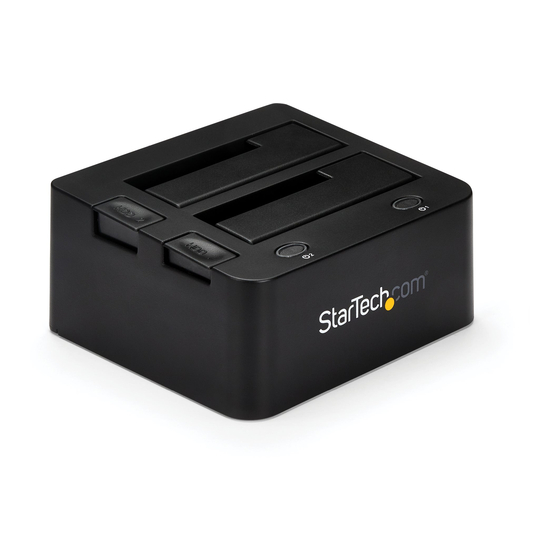

USB 3.0 SATA or IDE HDD/SSD Dock w/ UASP
UNIDOCKU33
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 10/28/2014
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com UNIDOCKU33
Summary of Contents for StarTech.com UNIDOCKU33
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 10/28/2014...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Product Diagram ..................2 Front View ..............................2 Rear View ....................2 Docking Station Installation..............3 SATA Drive Installation ................3 IDE Drive Installation ................4 SATA/IDE Drive Removal ...............4 Docking Station Operation ..............5 Drive Initialization ............................ -
Page 4: Introduction
Introduction Packaging Contents • 1x Universal Hard Drive Dock • 1x USB 3.0 Cable • 1x IDE 40 to 40 Pin Cable • 1x LP4 Power Cable • 1x 40 Pin + LP4 to 44 Pin IDE Cable • 1x Universal Power Adapter (NA/UK/EU/AUS) •... -
Page 5: Product Diagram
Product Diagram Front View 1. SATA Hard Drive Power button / Power and Activity LED (Button #1) 2. IDE Hard Drive Power button / Power and Activity LED (Button #2) 3. SATA Hard Drive slot (Slot #1) 4. IDE Hard Drive slot (Slot #2) 5. -
Page 6: Docking Station Installation
Docking Station Installation WARNING: Hard drives and docking stations require careful handling. If you are not careful with your hard disk, lost data may result. Always handle your hard drive and docking station with caution. Be sure that you are properly grounded by wearing an anti-static strap when handling computer components or discharge yourself of any static electricity build-up by touching a large grounded metal surface (such as the computer case) for several seconds. -
Page 7: Ide Drive Installation
IDE Drive Installation 1. Connect the included 40-pin IDE ribbon cable to the IDE connector on the rear of the dock. If using a 2.5in IDE hard drive, connect the 40 to 44-pin IDE cable to the rear of the dock. 2. -
Page 8: Docking Station Operation
If you have a 2.5in IDE drive, disconnect the 44-pin IDE cable from the drive, and disconnect the 40 pin IDE cable and LP4 breakout cable from the docking station. 3. (Only required for SATA drives) Press the eject button for the SATA Hard drive to release the drive from the connector for removal. -
Page 9: Led Indicators
2. A dialog window will automatically appear, asking you to initialize the drive. Depending on the version of Windows, it will give you the option of either creating an “MBR” or “GPT” disk. Note: GPT (GUID partition) is required for drives larger that 2TB but is not compatible with some older operating systems, while MBR is supported by newer and older operating systems. - Page 10 Mac OS X To safely disconnect the attached drive from the host computer, close any windows listing the contents of the removable drive. Once all windows are closed, click on the USB storage icon on the desktop, and drag it to the Trash Can icon on the desktop. Allow 5 seconds before physically removing the drive from the docking station.
-
Page 11: Specifications
Specifications Host Interface USB 3.0 Host Connectors 1 x USB 3.0 B female Drive Connectors 1 x SATA DATA (7 pin) + Power (15 pin) reciprocal 1x IDE Data (40 pin) + LP4 Power (44 Pin adapter included Maximum Data Transfer Rate USB 3.0: 5 Gbit/s Compatible Operating Systems O/S independent... -
Page 12: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 13 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
