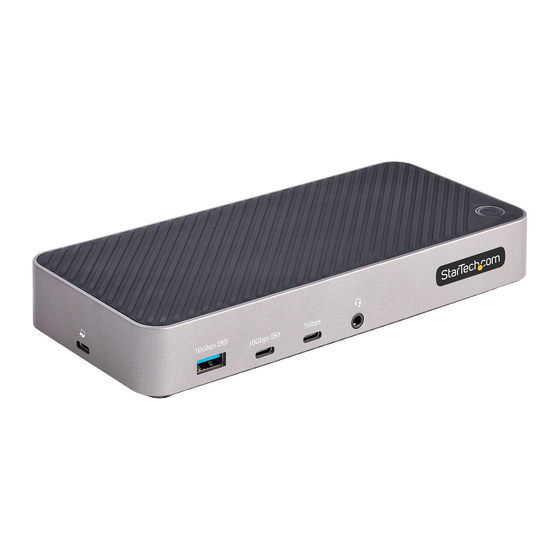

StarTech.com 116N-USBC-DOCK Quick Start Manual

USB-C Triple Monitor Dock 2x DP/3x HDMI - 2x USB-C/3x USB-A - GbE - 100W PD
Product ID
116N-USBC-DOCK

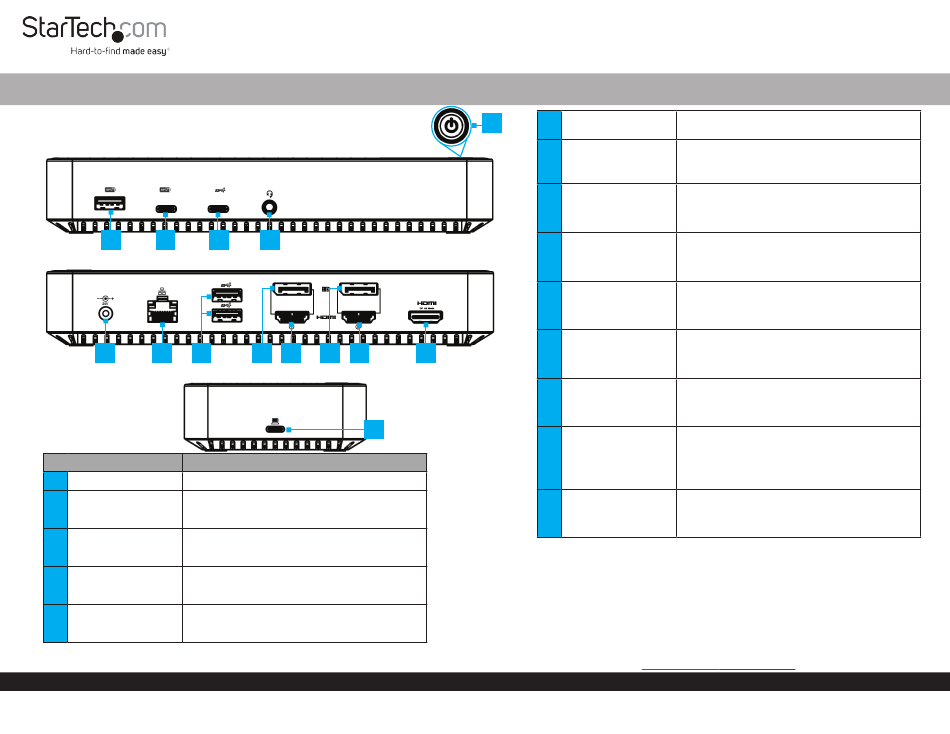

Product Diagram

(Side A)
2 3
(Side B)
6 7 8
(Side C)
Component
1
Power Button
• Press and release to toggle power for the Dock
• Connect and/or charge a USB-A Peripheral
USB-A Data/Charge
2
• USB 3.2 Gen 2 (10 Gbps)
Port
• Supports BC 1.2 5 V/1.5 A (7.5 W) charging
• Connect and/or charge a USB-C Peripheral
USB-C Data/Charge
3
• USB 3.2 Gen 2 (10 Gbps)
Port
• Supports 5V/1.5A (7.5 W) charging
• Connect and/or charge a USB-C Peripheral
4 USB-C Data Port
• USB 3.2 Gen 1 (5 Gbps)
• Supports 5 V/0.9 A (4.5 W) of power
• Connect an Audio Device
5 3.5mm Audio Port
• 4 Position Audio Jack for Headset use
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
4 5
9 10 11 12
14
Function
• CTIA/OMTP
1
6
DC 24V Port
Gigabit Ethernet
7
Port
8
2x USB-A Data Ports
DisplayPort Video
Port
9
(Video Output 1)
HDMI Video Port
10
(Video Output 1)
DisplayPort Video
Port
13 11
(Video Output 2)
HDMI Video Port
12
(Video Output 2)
HDMI Video Port
13
(Video Output 3)
14 USB-C Host Port

Requirements

Computer
•
DP Alt Mode enabled USB-C Port
•
Video performance on Video Output #3, such as resolution, and refresh
•
rate depend upon your host computer's video controller. Please verify
the specifications of your computer.
For the latest drivers, manuals, product information, technical specifications, and declarations of
conformance, please visit:
Quick-Start Guide
• Connect the Dock to a Power Source, using the
Universal Power Adapter
• Connect the Dock to a Network Device, using a
Network Cable
• 10/100/1000 Mbps
• Connect USB-A Peripherals
• USB 3.2 Gen 1 (5 Gbps)
• Supports up to 5 V/0.9 A (4.5 W) of power
• Connect a DisplayPort Display as Video Output #1
• DisplayPort 1.4
• Up to 4K (4096x2160) 60Hz
• Connect an HDMI Display as Video Output #1
• HDMI 2.0
• Up to 4K (4096x2160) 60Hz
• Connect a DisplayPort Display as Video Output #1
• DisplayPort 1.4
• Up to 4K (4096x2160) 60Hz
• Connect an HDMI Display as Video Output #2
• HDMI 2.0
• Up to 4K (4096x2160) 60Hz
• Connect an HDMI Display as Video Output #3
• HDMI 2.0
• Up to 4K (4096x2160) 60Hz
• Via DisplayPort 1.4 DP Alt Mode
• Connect to a USB-C Port on a Host Computer
• USB 3.2 Gen 2 (10 Gbps)
• Power Delivery 3.0 Specification
www.StarTech.com/116N-USBC-DOCK
Manual Revision: April 6, 2022 2:22 PM
