Manual

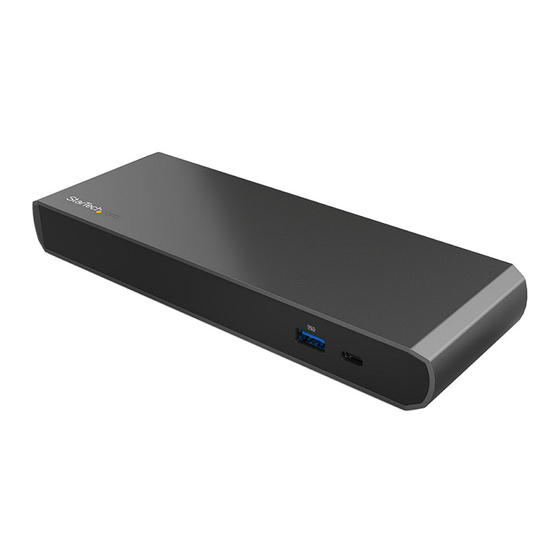

Thunderbolt 3 Dual-4K Docking Station for
Laptops - Windows Only
TB3DK2DPWUE
FR: Guide de l'utilisateur - fr.startech.com
DE: Bedienungsanleitung - de.startech.com
ES: Guía del usuario - es.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
IT: Guida per l'uso - it.startech.com
For the latest information, technical specifications, and support for
this product, please visit www.startech.com/TB3DK2DPWUE
Manual Revision: 01/27/2016
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com TB3DK2DPWUE
Summary of Contents for StarTech.com TB3DK2DPWUE

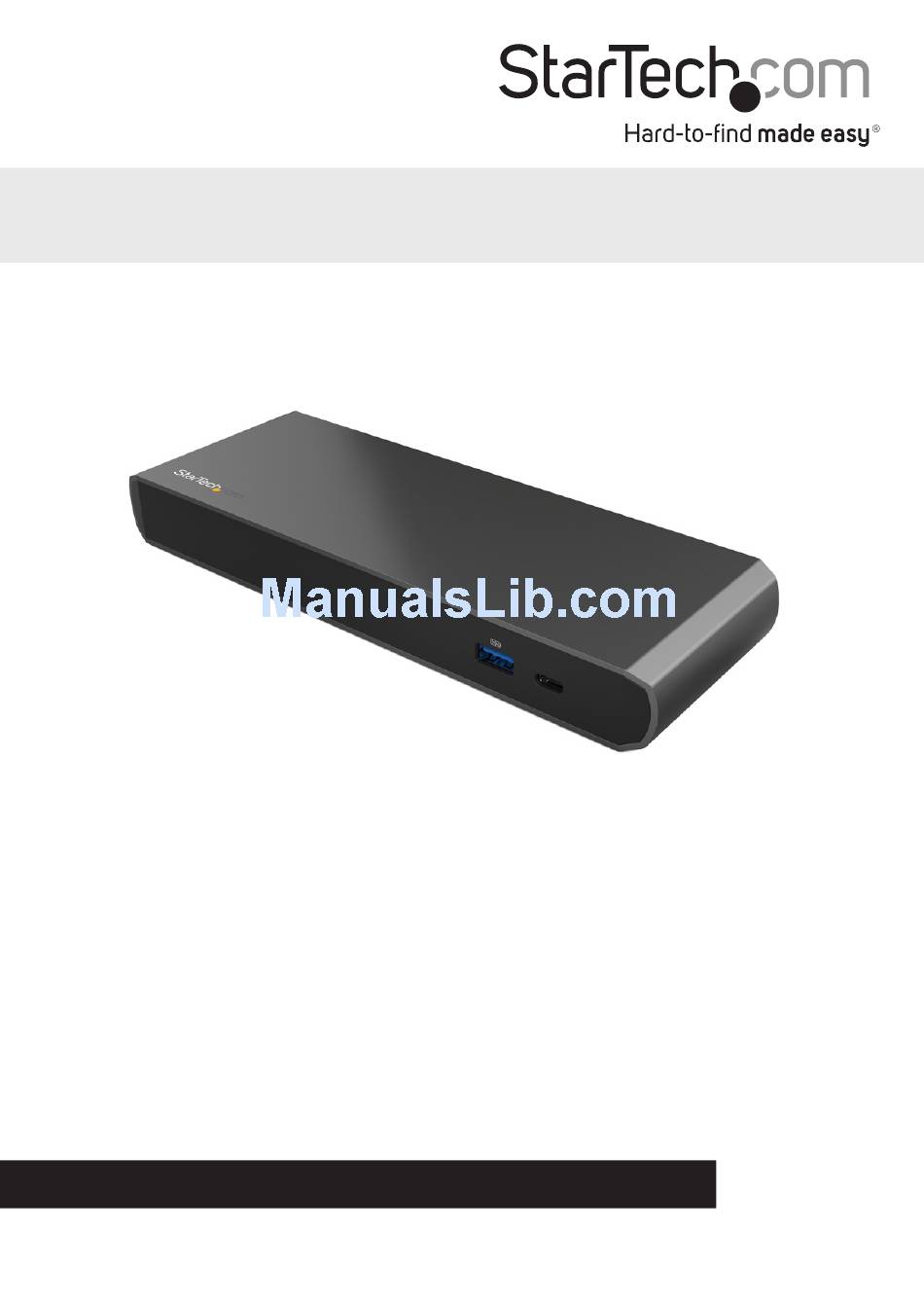

- Page 1 Thunderbolt 3 Dual-4K Docking Station for Laptops - Windows Only TB3DK2DPWUE *actual product may vary from photos FR: Guide de l’utilisateur - fr.startech.com DE: Bedienungsanleitung - de.startech.com ES: Guía del usuario - es.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com IT: Guida per l’uso - it.startech.com...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging contents ..........................1 System requirements ..........................1 Product diagram ..................2 Front view ..............................2 Rear view ..............................2 About Thunderbolt 3 ................3 About DP alt mode (DisplayPort alternative mode) ..............3 About USB power delivery 2.0 ......................3 Thunderbolt temperature ........................ - Page 4 Technical support ...................8 Warranty information ................8 Instruction Manual...
-
Page 5: Introduction
The docking station does not support Mac operating systems. o Video output capabilities are dependent on the video card and hardware specification of your connected host laptop. Operating system requirements are subject to change. For the latest requirements, please visit http://www.startech.com/TB3DK2DPWUE. Instruction manual... -
Page 6: Product Diagram
Product diagram Front view USB 3.0 fast- charge-and-sync USB-C (USB 3.0 - 5Gbps) downstream (data only) Rear view DisplayPort 3.5mm audio output USB 3.0 (DP++) Gigabit 3.5mm DC input Thunderbolt 3 microphone RJ45 USB-C input Instruction manual... -
Page 7: About Thunderbolt 3
USB 3.0 is also known as USB 3.1 Gen 1. This connectivity standard offers speeds up to 5Gbps. Any mention of USB 3.0 in this manual or on the StarTech.com website for TB3DK2DPWUE refers to the 5Gbps USB 3.1 Gen 1 standard. Any mention of USB 3.1 Gen 2 refers to the 10Gbps Gen 2 standard. -
Page 8: About The Docking Station's Usb-C (Usb Type-C™) Ports
About the docking station’s USB-C (USB Type-C™) ports Not all USB-C ports support the full functionality of the USB Type-C standard. Some ports might only provide data transfer, and might not support video (DP alt mode) or USB power delivery 2.0. The docking station includes two USB-C ports: •... -
Page 9: Install The Docking Station
Install the docking station The docking station is natively supported when connected to a compatible operating system (see the System requirements section for supported operating systems). It should automatically detect and install the required drivers once connected to a Thunderbolt 3 port on your host laptop. Follow the below sections and steps to properly set up the docking station. -
Page 10: Charge A Device
You can also connect a display (or a display adapter) to one of the docking station’s Thunderbolt 3 USB-C ports. One of the docking station’s Thunderbolt 3 ports must remain connected to your host laptop. Visit www.StarTech.com for a range of USB-C video adapters and cables. Instruction Manual... -
Page 11: Connect Multiple Thunderbolt 3 Displays In A Daisy Chain
Note: The docking station lets you connect two 4K displays, or a single 5K display. Video adapters sometimes limit the maximum available resolution. Check the documentation of the video adapter to determine its maximum supported resolution. Connect multiple Thunderbolt 3 displays in a daisy chain You can also set up dual displays using multiple Thunderbolt 3 displays in a daisy-chain configuration. -
Page 12: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 13 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
