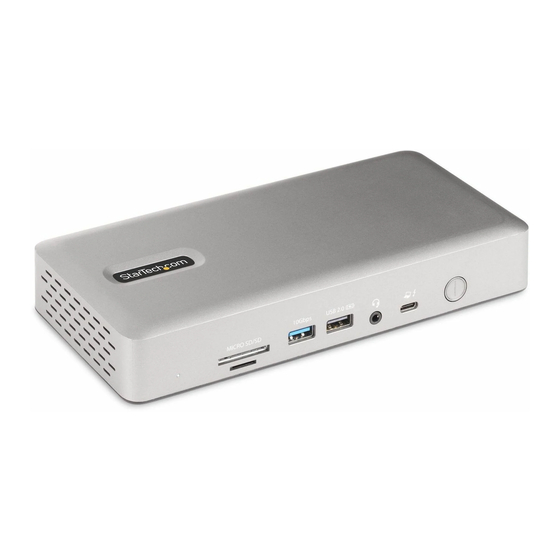

StarTech.com 132N-TB4USB4DOCK Quick Start Manual

Thunderbolt 4/USB4 Dock, Quad Display, 7x USB, 2.5GbE, 98W Power Delivery
Product ID
132N-TB4USB4DOCK / 132UE-TB4USB4DOCK
Product Diagram (Side A)
8 7 6
(Side B)
9 10 11
(Side C)
Component
1
Power Button
Thunderbolt 4 Host Port
2
(USB Type-C)
3
3.5mm Headset Jack
4
USB-A Data/Charge Port
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
5 USB-A Data Port
5 4 3 2
12 13 14 15 16
18
Function
• Press and Release to Toggle Power for the Dock
• Connect to a Thunderbolt 4 Port on a Host Computer
• Thunderbolt 3/USB4 (40 Gbps)
• Power Delivery 3.0 Specification
• Capability of charging the Host Computer up to 98W
• Connect a 3.5mm Audio Device
• 4-Position CTIA
• Mono Audio Input
• Stereo Audio Output
• Connect and/or Charge a USB-A Peripheral
• USB 2.0 (480Mbps)
• Supports 7.5W BC 1.2 Charging (5V/1.5A)
• Connect a USB-A Peripheral
• USB 3.2 Gen 2 (10 Gbps)
• Supports 4.5W of Power (5V/0.9A)
6
SD Card Reader
1
7 MicroSD Card Reader
8 Status LED
9
DC 20V Port
DisplayPort Port
17 10
(Group A)
HDMI Port
11
(Group A)
DisplayPort Port
12
(Group B)
HDMI Port
13
(Group B)
14 2.5 Gigabit Ethernet Port
15
USB-C Data Port
16 2x USB-A Data Ports
17 2x USB-A Data Ports
2x Lock Slots
18
(Standard & Nano)
Quick-Start Guide
• Secure Digital (SD) 4.0 UHS-II, SD 3.0, 2.0, 1.1, and 1.0
compatibility
• Push an SD Card, label side up, into the SD Card Slot
• Note: The Host Computer's Operating System (OS)
will automatically detect the SD Card and install the
required driver software
• Micro Secure Digital (microSD) 4.0 UHS-II, microSD
3.0, 2.0, 1.1, and 1.0 compatibility
• Push a microSD Card, label side down, into the
microSD Card Slot
• Note: The Host Computer's Operating System (OS)
will automatically detect the SD Card and install the
required driver software
• Illuminates Green, When the Dock is Connected to a
Host Computer
• Illuminates White, When the Dock is Not Connected
to a Host Computer
• Does Not Illuminate, When the Dock is Turned Off
• Connect the Dock to a Power Source, using the
Universal Power Adapter
• Connect a DisplayPort Display as Video Output #1
• DisplayPort 1.4
• Resolutions up to 7680 x 4320 60Hz
• Connect an HDMI Display as Video Output #2
• HDMI 2.1
• Resolutions up to 7680 x 4320 60Hz
• Connect a DisplayPort Display as Video Output #3
• DisplayPort 1.4
• Resolutions up to 7680 x 4320 60Hz
• Connect an HDMI Display as Video Output #4
• HDMI 2.1
• Resolutions up to 7680 x 4320 60Hz
• Connect the Dock to a Network Device, using a
Network Cable
• 2.5GBASE-T / 1000BASE-T / 100BASE-T / 10BASE-T
• 2.5Gbps/1000Mbps/100Mbps/10Mbps
• Connect a USB-C Peripheral
• USB 3.2 Gen 2 (10 Gbps)
• Supports 4.5W of Power (5V/0.9A)
• Connect USB-A Peripherals
• USB 3.2 Gen 2 (10 Gbps)
• Supports 4.5W of Power (5V/0.9A)
• Connect USB-A Peripherals
• USB 3.2 Gen 1 (5 Gbps)
• Supports 4.5W of Power (5V/0.9A)
• Connect a K-Slot Style Locking Device to deter the
theft of the Docking Station
Manual Revision: October 11, 2023 9:32 AM
