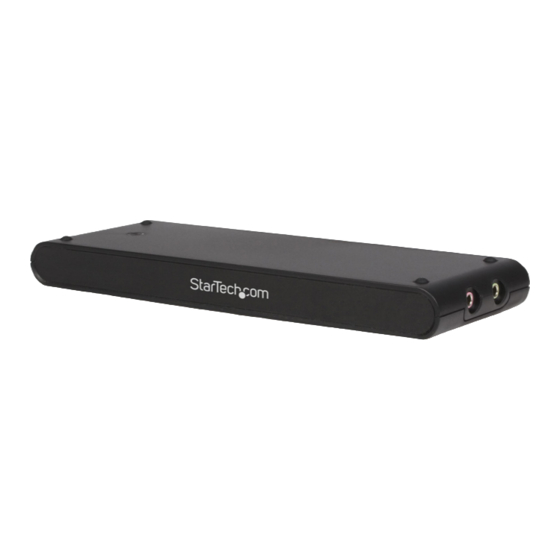

- Page 1 USBVGADOCK2 Instruction Manual USB VGA Docking Station 4-in-1 USB to VGA Adapter and Docking Station Manual Revision:11/16/2010 For the most up-to-date information, please visit www.startech.com...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 3: Table Of Contents
Table of Contents Introduction ..............1 Packaging Contents..............1 System Requirements ..............1 Rear View ..................2 Side Views ...................2 Installation ............... 3 Driver Installation .................3 Verifying Installation ..............5 Configuring the USB Video Adapter ......6 Display ID ..................6 Display Resolution ...............6 Display Rotation ................7 Display Modes ................7 Identify Monitors ................8 Multi-Display Control Panel ............9... -
Page 4: Introduction
RJ45 network port, dual (3.5mm mini-jack) audio ports and four additional USB 2.0 ports. Packaging Contents • 1 x USBVGADOCK2 docking station • 1 x Driver Installation CD • 1 x Universal Power Adapter • 3 x Interchangable Power Adapter Plug (NA/GB/EU) •... -
Page 5: Rear View
Rear View RJ45 Ethernet DC Power USB 2.0 connector connector connector USB Link LED VGA connector Side Views 3.5mm mini-jack Audio (Mic/Speaker) USB mini-B connector (Host) -
Page 6: Installation
Installation * Please ensure that the driver installation is complete prior to the physical installation of the USB 2.0 to VGA Docking Station Driver Installation 1. Insert the Driver CD into your CD/DVD-ROM drive. 2. If the installation program does not begin automatically, locate the Setup.exe application. - Page 7 6. Connect the power adapter to the Docking Station and make sure the power LED on the top of the unit lights up. NOTE: The power adapter uses interchangable plugs for compatibility with different regions (North America, Great Britian, Europe). Be sure to use the proper plug for the receptacle you have.
-
Page 8: Verifying Installation
Verifying Installation From the main desktop, right-click on “My Computer” (“Computer” in Vista), then select Manage. In the new Computer Management window, select Device Manager from the left window panel. In the Device Manager view, ensure that the indicated devices are present. -
Page 9: Configuring The Usb Video Adapter
Configuring the USB Video Adapter Look for the USB Video Adapter icon ( ) on your Windows Start bar. Right-click this icon to access the variety of functions associated to the adapter. NOTE: The Aero desktop theme is not supported by this adapter, so should be disabled prior to use of the USB Video Adapter. -
Page 10: Display Rotation
Display Rotation 4 options available: “0°, 90°, 180°, 270° when used with the Extended or Primary display modes. It is a useful function for some rotatable display devices. Display Modes “EXTENDED” DISPLAY MODE (DEFAULT) A default display mode; this feature allows the attached USB Video Adapter enabled display to work as an “Extended”... -
Page 11: Identify Monitors
“PRIMARY” DISPLAY MODE A unique feature to allow the USB Video Adapter to act as the main working display. The USB Video Adapter will work as the main graphics adapter on the system. The on-board display will work as the extended display. -
Page 12: Multi-Display Control Panel
Multi-Display Control Panel A unique feature to allow quicker and simpler management of a multi-display environment. A series of hotkeys to quickly move the active window or mouse cursor to the desired display (either on-board or each USB Video Adapter). The default setting of the hotkeys can be found in the Hotkey List of “Multi-Display Control Panel”. -
Page 13: Supported Video Resolutions
Supported Video Resolutions Resolution Color Depth Refresh Rate 800x600 16/32-bit 60/75Hz 1024x768 16/32-bit 60/75Hz 1152x864 16/32-bit 60Hz 1280x768 16/32-bit 60Hz 1280x800 16/32-bit 60Hz 1280x960 16/32-bit 60Hz 1280x1024 16/32-bit 60Hz 1400x1050 16/32-bit 60Hz 1440x900 16/32-bit 60Hz 1680x1050 16/32-bit 60Hz 1600x1200 16/32-bit 60Hz... -
Page 14: Specifications
Specifications Bus Interface USB 2.0 Video Signal VGA (RGBHV) LAN: SMSC LAN9500 Chipset ID Video: Trigger UV-185CB-128 1 x USB type mini-B 1 x DE-15 VGA female Connectors 4 x USB type A 1 x RJ45 2 x 3.5mm mini-jack audio Maximum Video Resolution 1600x1200@32-bit LAN Link Speed... -
Page 15: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or... - Page 16 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Server...
