StarTech.com DK30A2DHU Quick Start Manual

Dual-4K Monitor Hybrid Docking Station - Dual HDMI®, Dual DP, or HDMI & DP - USB-C/USB 3.1

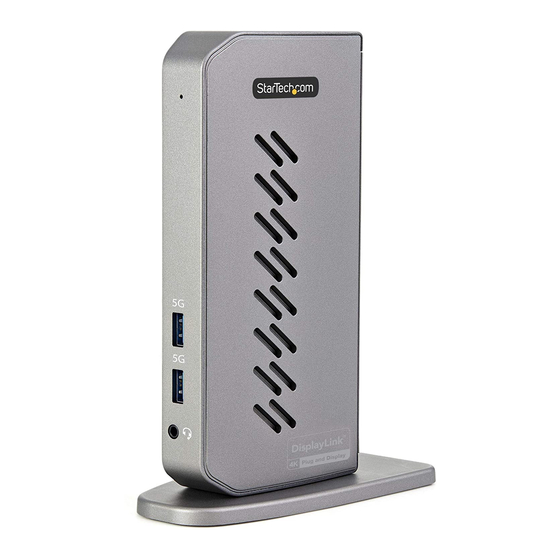

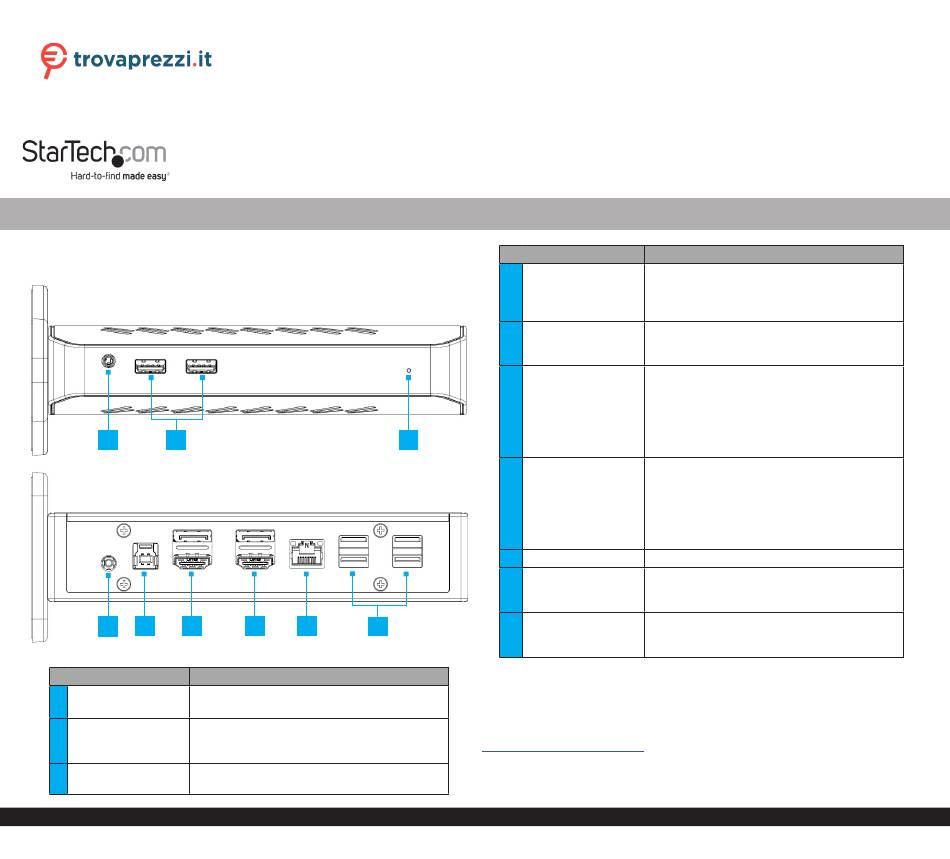

Product Diagram (DK30A2DHU/ DK30A2DHUUE)
Front
1
2
Rear
5 6
4
Port/LED
• Connect an Audio Device
1 3.5mm Audio Port
• 4 Position Audio Jack for Headset use
• Connect a USB Storage Device (e.g. flash
2 USB-A Ports x 2 drive), or USB Peripheral Device
• USB-A 3.1/3.0 (5Gbps)
• Solid: The Docking Station is connected and
3 Power LED
receiving power
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
Questo manuale d'istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per
DK30A2DHUUE o cerca il tuo prodotto tra le
3
7 8/9
10
Function
migliori offerte di Schede di Memoria e Lettori
Port/LED
• Connect the Universal Power Adapter to
supply power to the Docking Station
4 DC 20V Port
• Type-N barrel connector
• 20V 2A
5 USB-B Host Port • Connect the Host Computer
• Connect a DisplayPort Enabled Display
Device
• DisplayPort Version 1.2
6 Video 1 Ports
--Or--
• Connect an HDMI Enabled Display Device
• HDMI Version 2.0
• Connect a DisplayPort Enabled Display
Device
• DisplayPort Version 1.2
7 Video 2 Ports
--Or--
• Connect an HDMI Enabled Display Device
• HDMI Version 2.0
8 RJ45 Port • Connect a Network Device
• Green: The Docking Station detects a link
RJ45 LEDs (above the
speed of 10 Mb, 100 Mb, or 1 Gb
9
RJ45 Port)
• Flashing Amber: Indicates network activity
• Connect a USB Storage Device (e.g. flash
drive), or USB Peripheral Device
10 USB-A Ports x 4
• USB-A 3.1/3.0 (5Gbps)
Requirements
Depending on the Host Laptop's operating system, the required drivers will
automatically be installed when the Docking Station is connected and powered on. For
the latest drivers, requirements, and instructions, please visit:
www.startech.com/DK30A2DHU.
Note: If the drivers do not automatically install, navigate to the Support tab to locate
the driver installation instructions and downloads.
StarTech.com
Quick-Start Guide
Function
Manual Revision: August 11, 2020 4:25 PM
