StarTech.com 116E-USBC-DOCK Quick Start Manual

USB-C Triple Monitor Dock 2x DP/3x HDMI - 2x USB-C/3x USB-A - GbE - 100W PD
Product ID
116N-USBC-DOCK / 116E-USBC-DOCK / 116U-USBC-DOCK

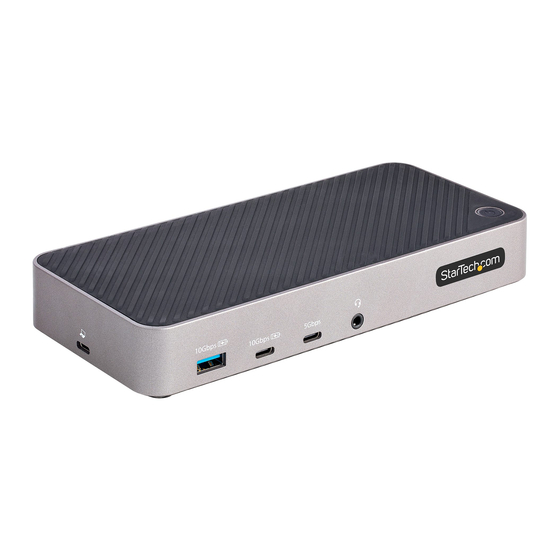

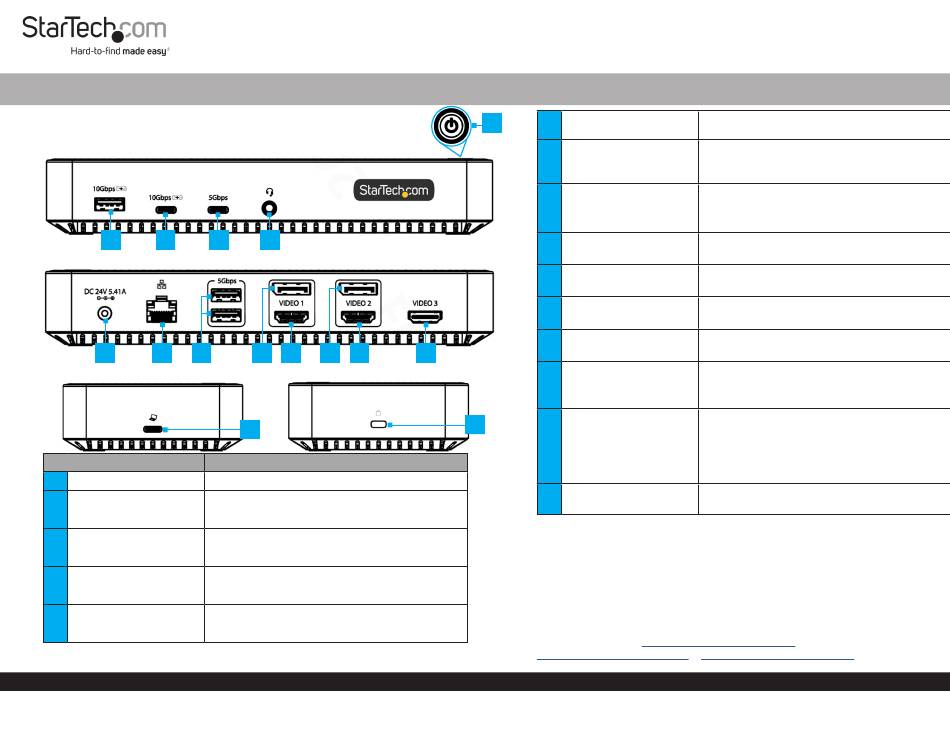

Product Diagram (Side A)
2 3
(Side B)
6 7 8
(Side C)
Component
1
Power Button
2 USB-A Data/Charge Port
3 USB-C Data/Charge Port
4 USB-C Data Port
5 3.5mm Audio Port
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
4 5
9 10 11 12
(Side D)
14
Function
• Press and release to toggle power for the Dock
• Connect and/or charge a USB-A Peripheral
• USB 3.2 Gen 2 (10 Gbps)
• Supports BC 1.2 5 V/1.5 A (7.5 W) charging
• Connect and/or charge a USB-C Peripheral
• USB 3.2 Gen 2 (10 Gbps)
• Supports BC 1.2 5V/1.5A (7.5 W) charging
• Connect and/or charge a USB-C Peripheral
• USB 3.2 Gen 1 (5 Gbps)
• Supports up to 5 V/0.9 A (4.5 W) of power
• Connect an Audio Device
• 4 Position Audio Jack for Headset use
• CTIA/OMTP
1
6
DC 24V Port
7 Gigabit Ethernet Port
8
2x USB-A Data Ports
9 Video 1 DisplayPort Port
10
Video 1 HDMI Port
11
Video 2 DisplayPort Port
12
Video 2 HDMI Port
13
13
Video 3 HDMI Port
15
14 USB-C Host Port
Lock Slot
15
(K-Slot)
Requirements
Computer
•
DP Alt Mode enabled USB-C Port
•
Video support and performance on Video Output #3, such as
•
resolution, and refresh rate depend upon your host computer's video
controller. Please verify the specifications of your computer.
For the latest drivers, manuals, product information, technical specifications, and declarations of
conformance, please visit:
www.StarTech.com/116E-USBC-DOCK
Quick-Start Guide
• Connect the Dock to a Power Source, using the Universal
Power Adapter
• Connect the Dock to a Network Device, using a Network
Cable
• 10/100/1000 Mbps
• Connect USB-A Peripherals
• USB 3.2 Gen 1 (5 Gbps)
• Supports up to 5 V/0.9 A (4.5 W) of power
• Connect a DisplayPort Display as Video Output #1
• Up to 4K (4096x2160) 60Hz
• Connect an HDMI Display as Video Output #1
• Up to 4K (4096x2160) 60Hz
• Connect a DisplayPort Display as Video Output #2
• Up to 4K (4096x2160) 60Hz
• Connect an HDMI Display as Video Output #2
• Up to 4K (4096x2160) 30Hz
• Connect an HDMI Display as Video Output #3
• Up to 4K (4096x2160) 60Hz
• Via DP Alt Mode
• Connect to a USB-C Port on a Host Computer
• USB 3.2 Gen 2 (10 Gbps)
• Power Delivery 3.0 Specification
• Capability of charging the Host Computer up to 100W
• Connect a K-Slot Style Locking Device to deter the theft of
the Docking Station
www.StarTech.com/116N-USBC-DOCK,
or www.StarTech.com/116U-USBC-DOCK
Manual Revision: April 28, 2023 3:19 PM
