StarTech.com DK30C2DPEP Quick Start Manual

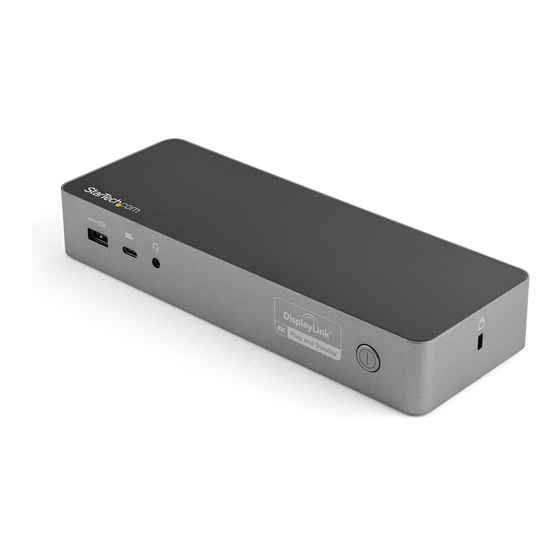

Dual-4K Universal Docking Station - USB-C / USB 3.0 - DisplayPort & HDMI - 100W PD 3.0

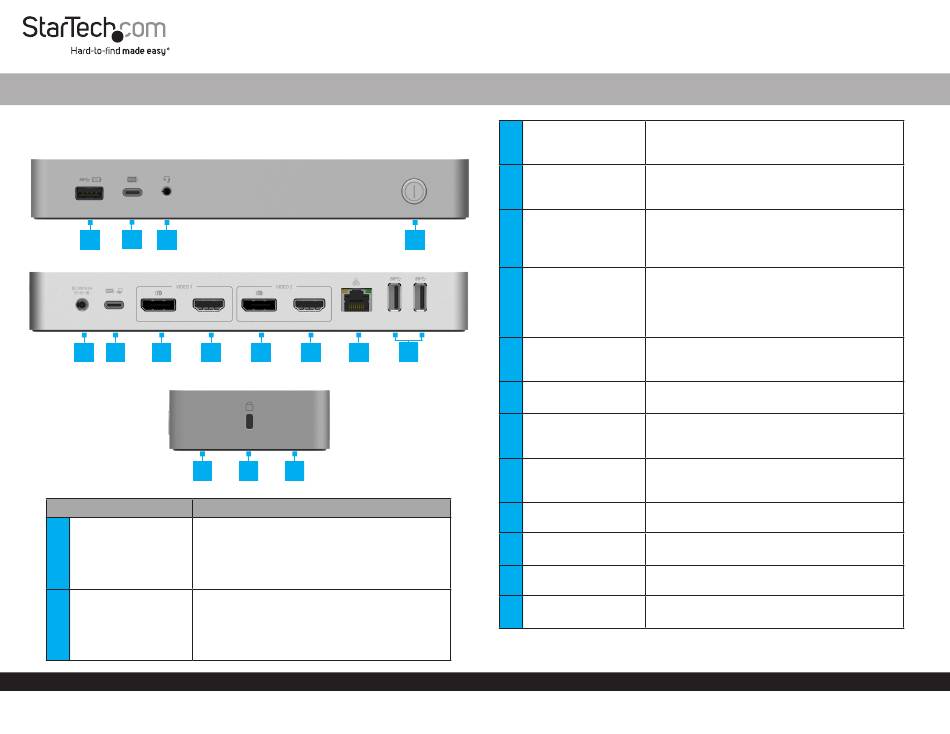

Product Diagram (DK30C2DPEP/DK30C2DPEPUE)
Front View
1 2 3
Rear View
5 6 7 8
Side View
13
Port
• Connect a USB-A Peripheral or charge a
1 • USB 3.1 Gen 1
USB-A Charge Port
• Transmits power and/or data
• Supports BC1.2 5V/1.5A (7.5W) charging
• Connect a USB-C Peripheral or charge a
2 • USB 3.1 Gen 1
USB-C Charge Port
• Transmits power and/or data
• Supports BC1.2 5V/3A (15W) charging
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
9 10 11
14 13
Function
Mobile Device
Mobile Device
Audio Input/Output
3
Port
4
Power Button
5
4 DC Power Input Port
6
USB-C Host Port
12
Video 1 DisplayPort
7
Port
8 Video 1 HDMI Port
Video 2 DisplayPort
9
Port
10
Video 2 HDMI Port
11 Ethernet Port
USB-A Peripheral
12
Ports
13 Mounting Holes
14
Lock Slot
Quick-Start Guide
• Connect a Headset or Speakers for audio
input/output
• 3.5 mm 4-position headset audio jack
• Power the Docking Station on and off
• Integrated LED Indicator is illuminated white
when the Docking Station is powered on
• Connect the Universal Power Adapter to
supply power to the Docking Station
• Type-N barrel connector
• 20V 8.5A
• Connect to a USB-A or USB-C Port on a Host
Laptop using the USB-C Cable (with Attached
USB-C to USB-A Adapter)
• USB 3.1 Gen 1
• Power Delivery 3.0 Specification
• Connect a DisplayPort Enabled Display
Device
• DisplayPort Version 1.2
• Connect an HDMI Enabled Display Device
• HDMI Version 2.0
• Connect a second DisplayPort Enabled
Display Device
• DisplayPort Version 1.2
• Connect a second HDMI Enabled Display
Device
• HDMI Version 2.0
• Connect a CAT 5e/CAT 6 Cable to establish a
network connection
• Connect two USB-A Peripherals
• USB 3.1 Gen 1
• Mount the Docking Station to the underside
of a Desk or to a Wall
• Connect a K-Slot Style Locking Device
• Deter the theft of your Docking Station
Manual Revision: December 6, 2018 11:30 AM
