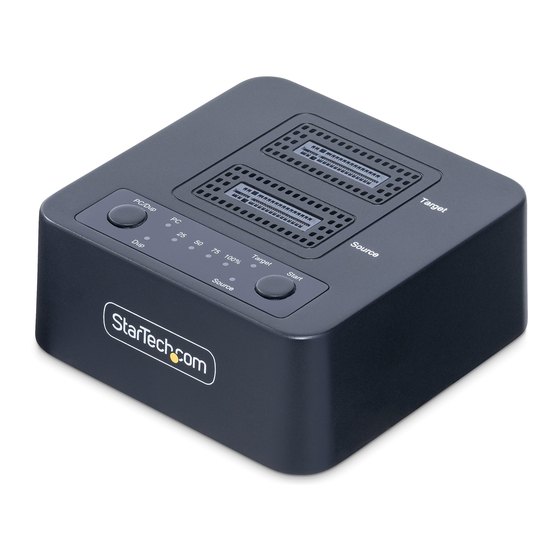

StarTech.com M2-HDD-DUPLICATOR-N1 Quick Start Manual

1 to 1 M.2 NVMe Drive Duplicator Dock
Product ID
M2-HDD-DUPLICATOR-N1
Top
1
2
3
Rear
8
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
4 5 6 7
9 10
Component
1
Target Drive Bay
•
2 Source Drive Bay
•
•
3 Mode Selector Switch
4 Mode LED Indicators
•
5 Progress LED Indicators
•
•
6 Drive LEDs
•
•
7 Start Button
•
8
USB-C Host Connection
9
DC Power Input
•
10
Power Switch
•
Requirements
For the latest product information, technical specifications, and declarations of
conformance, please visit: www.StarTech.com/M2-HDD-DUPLICATOR-N1
Package Contents
M.2 Drive Duplicator Dock x 1
•
3ft (1m) USB-C to USB-C Cable x 1
•
3ft (1m) USB-A to USB-C Cable x 1
•
Universal Power Adapter (NA/UE/UK/ANZ) x 1
•
Quick-Start Guide x 1
•
Quick-Start Guide
Function
Insert the Target M.2 NVMe Drive to Copy to
Insert the Source M.2 NVMe Drive to Copy from
Press and Hold to change between PC or
Duplicator Mode
Solid Green: PC Mode
•
Solid Blue: Duplicator Mode
•
Indicates progress from 25% to 100% during the
Duplication process
Solid Blue: Indicates the M.2 Drive is detected
Flashing Red: There is an error reading the M.2
Drive or the M.2 Drive was removed during
duplication
Solid Purple: Indicates the Target M.2 Drive is
too small to duplicate to
Starts the Drive Duplication process
See Operation section for more information
•
Connect the Drive Duplicator Dock to an
available USB-C Port on a Host Computer
Only required for PC Mode
•
Connect the included Universal Power Adapter
Turn the M.2 Drive Duplicator Dock On or Off
Manual Revision: March 14, 2024
