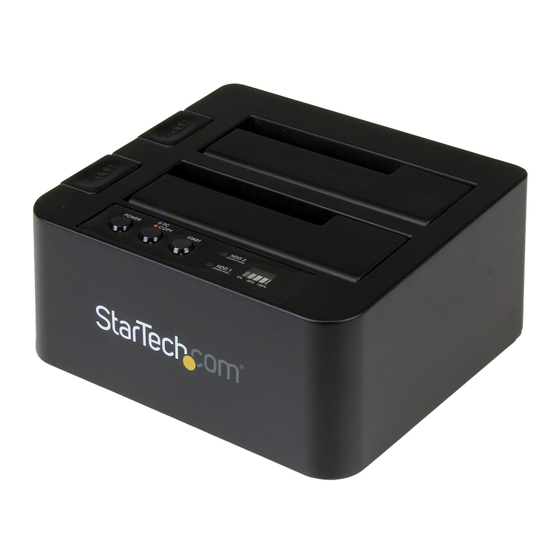

USB 3.1 (10Gbps) Standalone Duplicator
Dock for 2.5" and 3.5" SATA Drives
SDOCK2U313R
FR: Guide de l'utilisateur - fr.startech.com
DE: Bedienungsanleitung - de.startech.com
ES: Guía del usuario - es.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
IT: Guida per l'uso - it.startech.com
For the latest information, technical specifications, and support for
this product, please visit www.startech.com/SDOCK2U313R.
Manual Revision: 10/23/2015
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com SDOCK2U313R
Summary of Contents for StarTech.com SDOCK2U313R

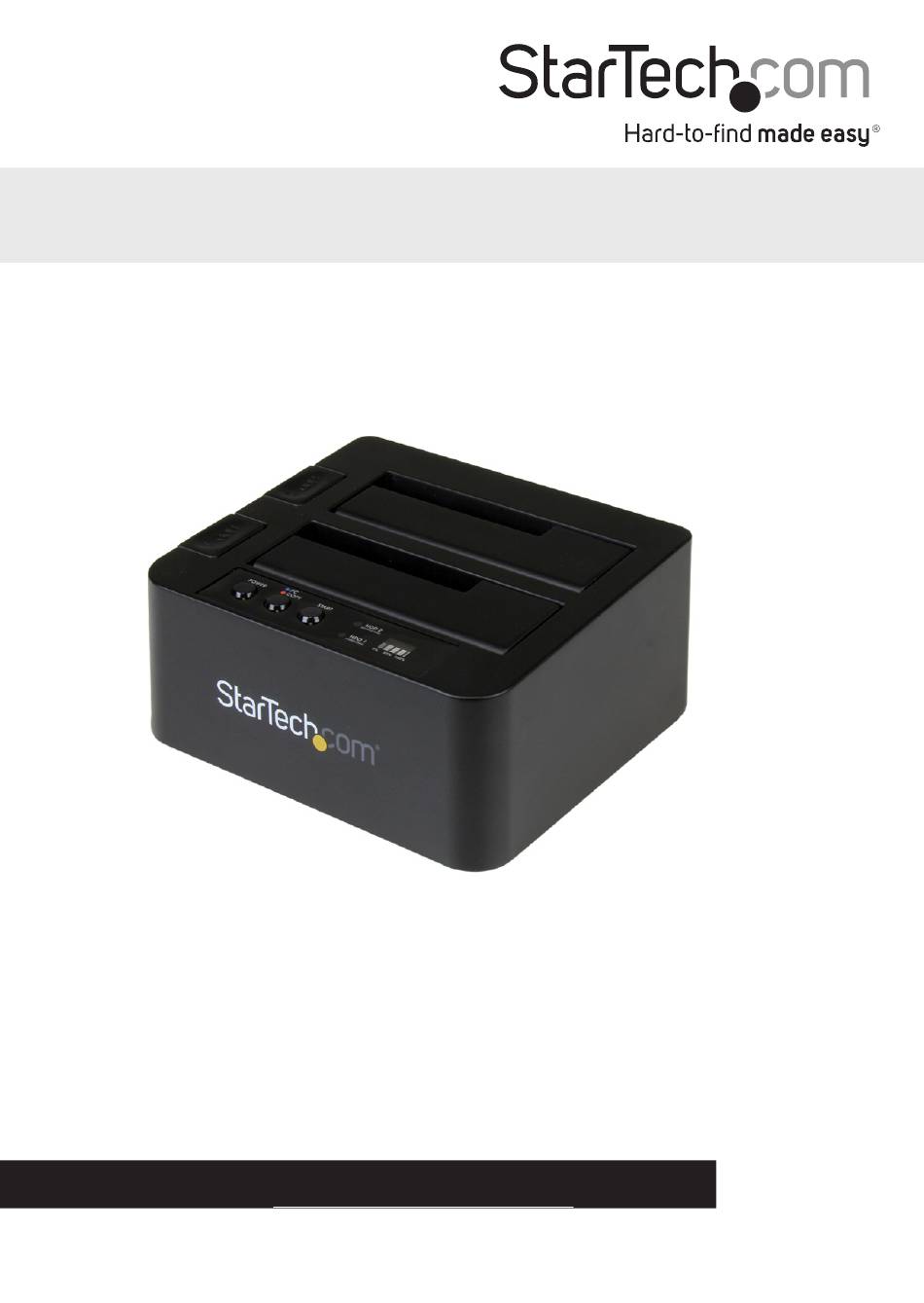

- Page 1 USB 3.1 (10Gbps) Standalone Duplicator Dock for 2.5” and 3.5” SATA Drives SDOCK2U313R *actual product may vary from photos FR: Guide de l’utilisateur - fr.startech.com DE: Bedienungsanleitung - de.startech.com ES: Guía del usuario - es.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com IT: Guida per l’uso - it.startech.com...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging contents ..........................1 System requirements ..........................1 Product diagram ..................2 Front view ..............................2 Rear view ..............................3 Installation ....................4 Connect the duplicator dock ........................ 4 Install a drive ............................... 4 Prepare a drive for use ..........................4 Using the duplicator dock ..............6 Duplicate a drive ............................ -
Page 4: Introduction
• Computer system with a USB port • Up to two 2.5 in. or 3.5 in. SATA hard drives (HDD) or solid-state drives (SSD) The SDOCK2U313R is OS independent and doesn’t require any additional drivers or software. Note: To obtain the maximum USB throughput, you must use a computer with a USB 3.1 Gen 2 (10Gbps) port. -
Page 5: Product Diagram
Product diagram Front view Drive #1 slot (destination for Drive #2 slot (source for duplication) duplication) Drive LEDs Drive eject buttons Duplication progress LED POWER button START duplication button and LED PC/COPY mode button and LED Quick start guide... -
Page 6: Rear View
Rear view USB 3.1 Gen 2 port Power adapter port Quick start guide... -
Page 7: Installation
Installation Connect the duplicator dock Warning! Drives and storage enclosures should be handled carefully, especially when they’re transported. If you’re not careful with your drives, you may lose data as a result. Always handle storage devices with caution. 1. Connect the external power adapter from the duplicator dock to a power outlet. 2. - Page 8 4. A dialog window appears and asks you to initialize the drive. Depending on the version of Windows that you’re running, you have the option to create either an MBR or a GPT disk. Note: GPT (GUID partition) is required for drives larger than 2 TB but GPT isn’t compatible with some earlier versions of operating systems.
-
Page 9: Using The Duplicator Dock
Using the duplicator dock Duplicate a drive 1. Install the source and destination drives as per the instructions in the Install a drive topic. Note: If you’re connecting drives for duplication, place the drive containing the data that you intend to copy from in the drive #2 slot, and place the drive that you intend to copy the data to in the drive #1 slot. -
Page 10: About The Led Indicators
About the LED indicators The SDOCK2U313R includes five LED indicators: a power LED, a PC/COPY mode LED, two drive activity LEDs, and a duplication progress LED. For more information about what the LED indicators represent, consult the table below. State... -
Page 11: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 12 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
