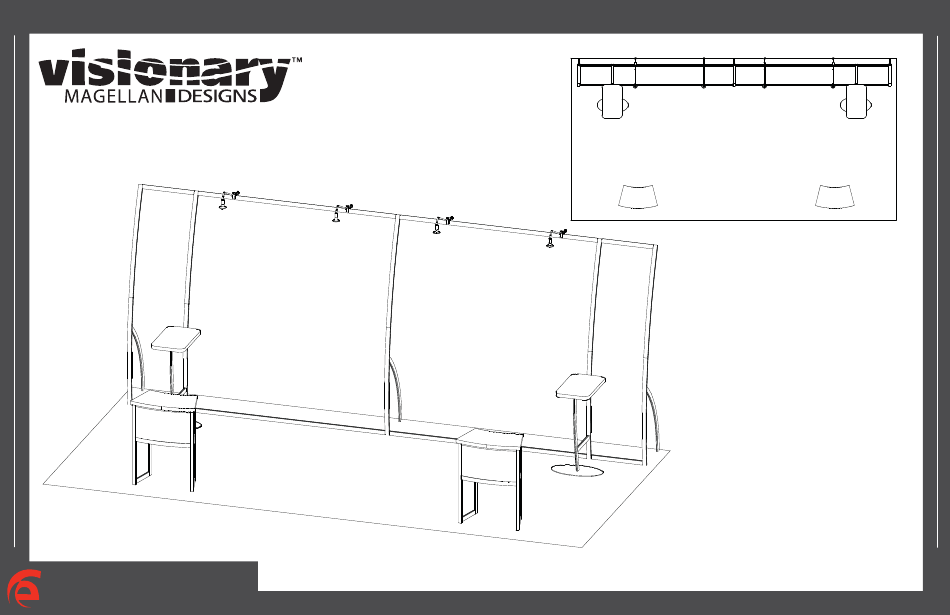

- Page 1 Step 1 Order #XXXXX - VK-2094 - Magellan Miracle - General Layout 866.652.2100 10’ 20’ Plan View WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING © 2008 w w w . c l a s s i c e x h i b i t s . c o m Page 1 of 4...
- Page 2 Step 2 Order #XXXXX - General Information 866.652.2100 Using Your Setup Instructions The Visionary Designs Setup Instructions are created specifically for your Detail A configuration. They are laid out sequentially, including an exploded view of the entire display, and then a logical series of detailed steps to assemble the main structure and components.
- Page 3 Step 1 Order #XXXXX - Backwall Assembly 866.652.2100 Part Number Description Light Connection 48.5”h Lower Curved Extrusion Attach Lights to 48.5”h Upper Curved Extrusion Backwall where 48.5”h Lower Curved Extrusion desired and tighten 48.5”h Upper Curved Extrusion in place. 48.5”h Lower Curved Extrusion 48.5”h Upper Curved Extrusion 23”w Horizontal Extrusion 23”w Horizontal Extrusion...
- Page 4 Step 2 Order #XXXXX - Backwall Assembly (Cont’d) 866.652.2100 Part Number Description Light Connection 48.5”h Lower Curved Extrusion Attach Lights to 48.5”h Upper Curved Extrusion Backwall where 48.5”h Lower Curved Extrusion desired and tighten 48.5”h Upper Curved Extrusion in place. 17a/17b 44”w Horizontal Extrusion 18a/18b...
- Page 5 Step 3 Order #XXXXX - Backwall Workstation Assembly 866.652.2100 Part Number Description Base Plate 37.6”h Curved Vertical Extruaion Oval Flange Plate 18.5”w Horizontal Extrusion 15.69”w Horizontal Extrusion Steps 1) Attach curved vertical [23] to base plate [22], see Base Plate Attachment detail. 2) Attach horizontal extrusions [24 and 25] between curved verticals [23] and backwall verticals [3 and 13] where indicated.
- Page 6 Step 4 Order #XXXXX - Pedestal Assembly - QTY. 2 866.652.2100 Part Number Description 37.5”h Vertical Extrusion 37.5”h Corner Extrusion 37.5”h Corner Extrusion 37.5”h Vertical Extrusion 11”w Horizontal Extrusion 24.875”w Horizontal Extrusion Steps (Cont’d): 3) Place hooks onto horizontal extrusions Steps where indicated, see Hook Attachment detial.
