Kiloview E3 Quick Start Manual

Dual-channel video encoder
Hide thumbs Also See for E3:
Table of Contents

Advertisement

Quick Links

Download this manual
E3 Dual-Channel Video Encoder
3G-SDI + 4K HDMI H.265 Video Encoder
（V2.12）
Contents
Packing List
Device interfaces and functions
Device connection, login and use guide
Device upgrade and restore factory setting
Before using this product, it is recommended that you read the guide carefully. To ensure your personal safety and avoid physical or
electrical damage to the device, please strictly follow the instructions of this guide to install and use it under the guidance of
professionals. Incorrect electrical connections or physical installation may cause permanent damage to the device and even threaten
personal safety.
Due to continuous product updates, the product you purchased may have undergone changes compared to the content in this manual.
Please refer to the actual product inside the packaging for accurate information.
Leading solution provider of IP-Based video transmission
Quick Start Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E3 and is the answer not in the manual?

Questions and answers

Related Manuals for Kiloview E3

Summary of Contents for Kiloview E3

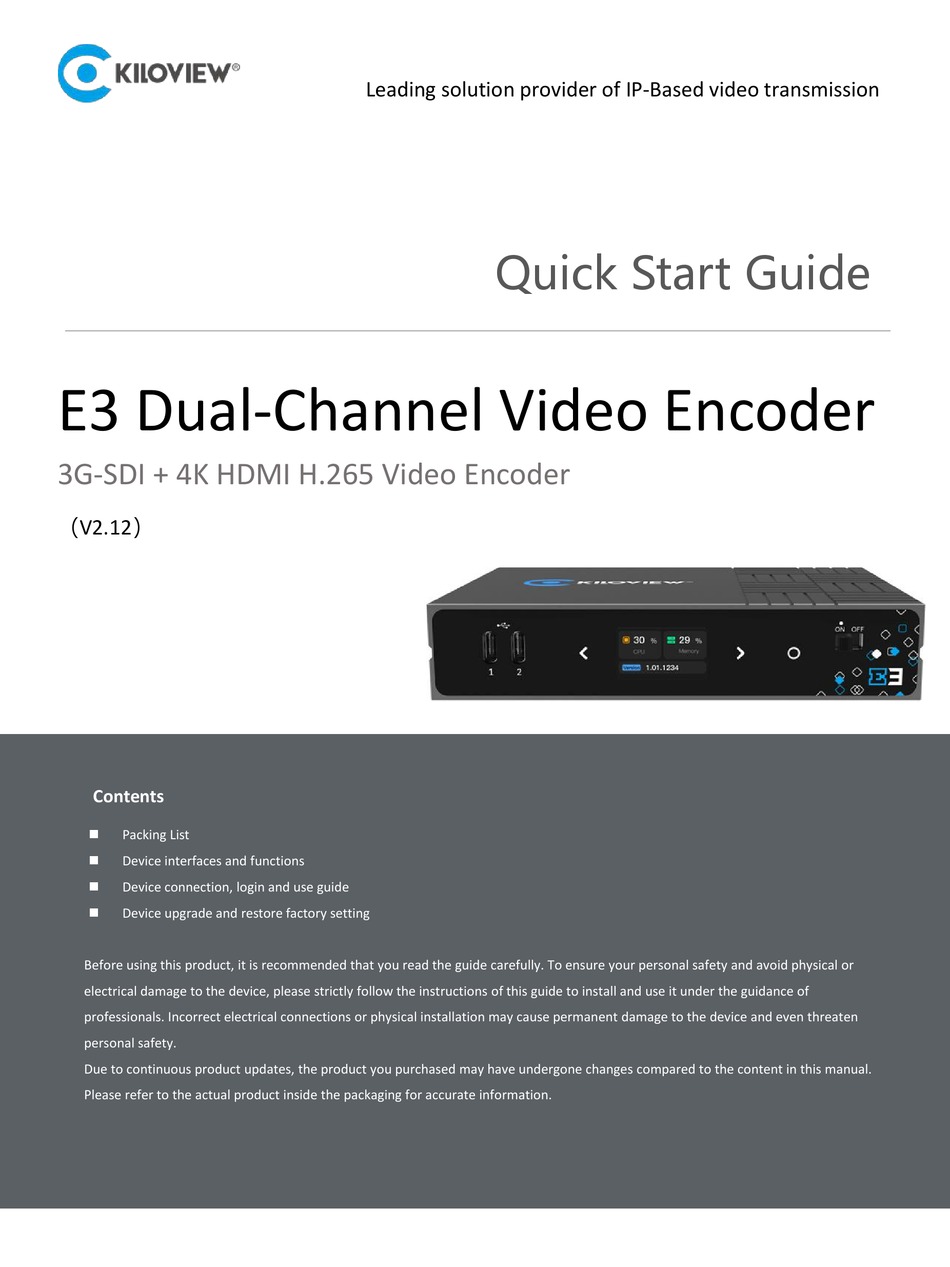

  • Page 1 Leading solution provider of IP-Based video transmission Quick Start Guide E3 Dual-Channel Video Encoder 3G-SDI + 4K HDMI H.265 Video Encoder （V2.12） Contents Packing List  Device interfaces and functions  Device connection, login and use guide  Device upgrade and restore factory setting ...

  • Page 2: Packing List

    1 Packing List E3 Encoder×1 (2) Power supply ×1 (3) Cold shoe ×1 (4) Warranty Card ×1 (5) Quick Start Guide ×1 2 Device Interface Power supply Interface HDMI Input 3.5mm LINE IN 1000M Ethernet (POE) USB TAPE-A USB TYPE-C...
  • Page 3 Status Green Light LCD screen Red Light Name Color Status Description Power connected LED indicators Power White Power off or failure 4 Application LOOP HDMI video source AC100~240V power supply Power adapter DC12V Switcher Output signal Network Note Please use the equipped power adaptor or directly use PoE to power the device, other unqualified power supplies may ...
  • Page 4 5 LCD screen and touch button E3 is equipped with an LCD screen and touch button on the front panel. With the built-in LCD screen, you can easily check the device status, input source, and network, etc. The LCD screen is also a big-sized Tally to display the preview/program status.

  • Page 5: Device Discovery

    6 Device discovery 6.1 Check IP address On the LCD screen, you can easily check the IP address of the device. On the 4 page of LCD screen: Current network status. It indicates the real-time network uplink and downlink bitrates. DHCP：Indicates the dynamic IP address obtained by the device.
  • Page 6 Note The working network that the current device is connected needs support DHCP. After the device automatically acquires  the IP, it can be discovered by the software through Onvif. 7 Login to the device management page After rebooting the device, the device will automatically obtain an IP address through DHCP. On the LCD screen, you can easily view the IP address of the device.
  • Page 7 8 Work with your device 8.1 Video source checking After the video source is connected, E3 allows you to preview the real-time video through the browser. Introduction The video preview window is set to the "Image" mode by default, and the screen will be refreshed every 3 seconds; if the CPU performance of the computer is strong enough, you can click the button to switch to the "Video"...
  • Page 8 8.2 Stream service Login to the WEB UI, you will see 3 inputs including HDMI, SDI and Mix on the left navigation bar. E3 supports encoding both HDMI and SDI simultaneously. Click HDMI, SDI or Mix to set the parameters.
  • Page 9 When using HDMI input and SDI input to add RTSP service at the same time, you need to use a different port number.  Session ID is not a required field, if the Session ID is set in E3, then the decoder also needs to fill in this field. And ...
  • Page 10 Click to copy this address, you can check the encoded video stream by pulling the stream through VLC. Download the VLC Download and install the VLC through the official address https://www.videolan.org/vlc/. Please follow the official guidelines of VLC for the download /installation. VLC is a free, open source, cross-platform multimedia player and framework that can play most multimedia files, as well as DVD, CD, VCD and various streaming protocols.
  • Page 11 8.3 Mix encoding E3 supports both 3G-SDI and HDMI input or loop, as well as mix encoding. Enter the Web UI, click Mix to enter the mix encoding mode, which can combine HDMI and SDI input video into picture-in-picture, and then encode and output to achieve the effect of multi view display. Click "Video Sources Switching"...
  • Page 12 3） Record Settings: Click "Settings" in the WEB UI, click Record Management, you can see the record parameters and configurations. Note If the power supply is cut down in the process of recording, for the recording file format selected as.avi/.mp4 and other formats, the video file may be permanent damaged, but .TS format video files would be saved.

  • Page 13: Firmware Update

    Note: E3 has one USB TAPE-A and two USB TAPE-C expansion port，which can support the expansion functions such as recording as well as external Tally, Intercom by headset, PTZ control and more. 9 Firmware update 9.1 Download firmware Kiloview will continuously provide the firmware of updating functions, please visit https://www.kiloview.com/en/support/download/...
  • Page 14 Step 1: Copy the firmware file downloaded from Kiloview website to a USB flash drive. Step 2: Insert the USB flash drive into the E3, after the device is turned on (about 2s), wait for the Kiloview logo to appear on the screen, long press and hold for more than 10s until the device enters recovery mode.
  • Page 15 In general, the upgrade process takes about 3-5 minutes. If the upgrade is not complete within 5 minutes, try  refreshing the page. If it still cannot be accessed, try contacting Kiloview or Kiloview authorized dealer for technical support. If you need to use a USB flash drive to upgrade the firmware, it is recommended that the file system format of the USB ...

  • Page 16: Restore Factory Settings

    10 Restore factory settings If the device cannot work normally after modified the parameters, please restore factory settings. 1) If you can login to web UI, then click "Settings>System settings>Restore factory settings". 2) If you cannot login to web UI, press on the first page of LCD to enter “System settings”, select “Restore Factory”, press again, then restore factory settings will be done.
