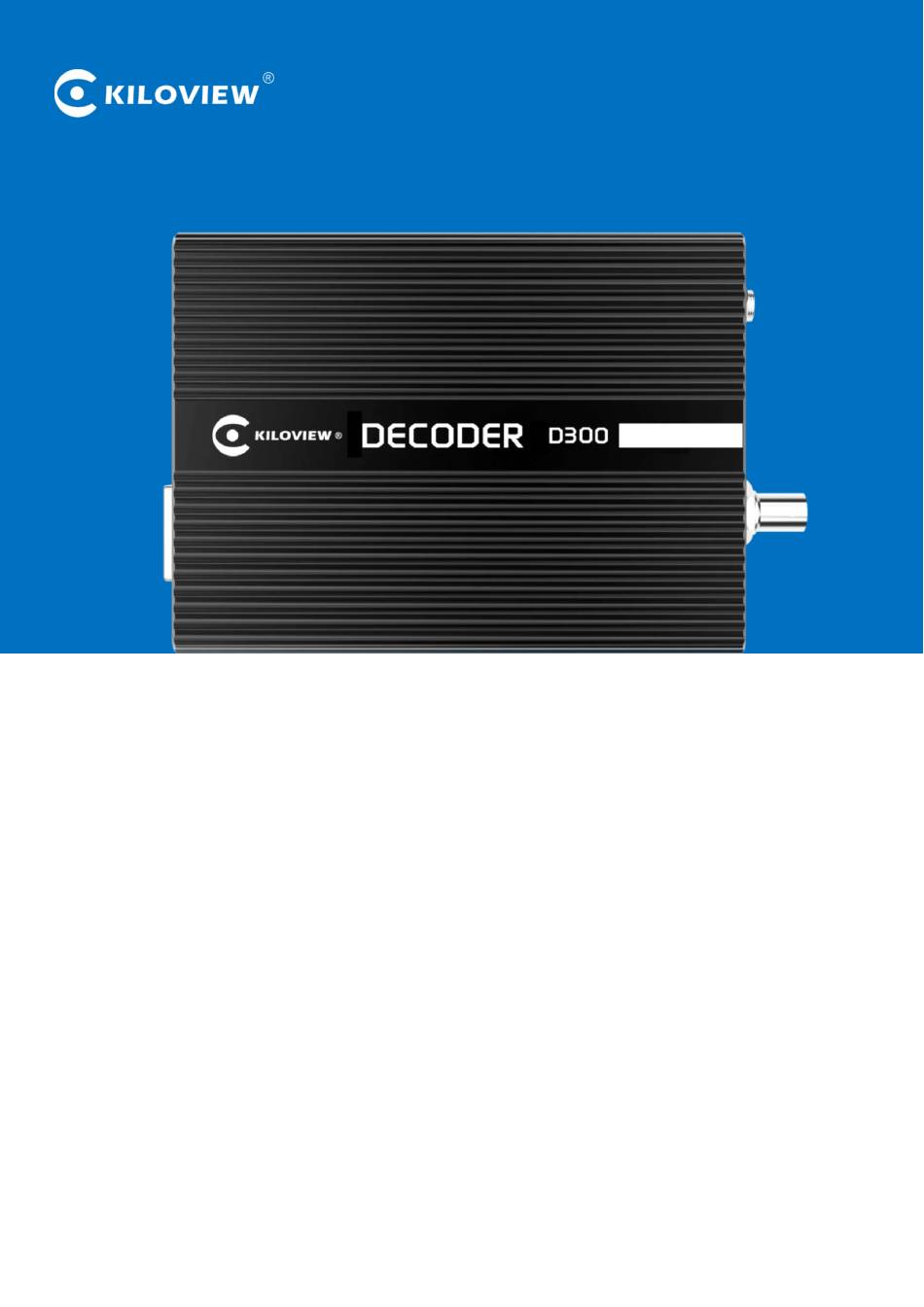

- Page 1 D300 Series 4K UHD Video Decoder/Gateway USER MANUAL Changsha KILOVIEW Electronics CO.,LTD.
- Page 2 Legal Notices Subject to the receiving of this document from Changsha Kiloview Electronics Co., Ltd.,(Hereinafter referred to “Kiloview”), the following terms are understood and agreed. Or else, please stop using this document. This document is copyright of Kiloview, all rights reserved. The document covers the proprietary information of the company.
-
Page 3: Table Of Contents
CONTENTS 1 PRODUCT INTRODUCTION................................. 1 2 OPERATION GUIDANCE................................3 3 PACKING LIST AND INTERFACE DESCRIPTION..........................4 ..................................4 3.1 P ACKING LIST ............................... 4 3.2 I NTERFACE DESCRIPTION ..................................5 3.3 L ED INDICATORS 4 INSTALLATION AND CONNECTION.............................. 6 ................................... 6 4.1 C ONNECT POWER ................................ -
Page 4: Product Introduction
D300 Series·User Manual 1 Product introduction Kiloview D300 4K UHD video decoder is a professional hardware decoding device that can decode multiple video streams without relying on a computer. It can decode multi-channels network video streams (from such as IP-Camera, RTSP/RTMP/RTP/SRT unicast or multicast media stream etc.) to SDI signal and HDMI signal video output. - Page 5 Support 1/2/4/6/8/9/16; It can support the re-encoding release of 1-way Split screen display multi-screen split video, and the image supports 1080P60 H.264 encoding at most. Management Power/consumption 12V/1A ≤6W Dimension/weight 138*105*25mm / 380g Working temperature -20 ℃ ~ 60℃ Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved...
-
Page 6: Operation Guidance
HDMI/SDI interface. Then drag the added video source to the output window and the decoder will start decoding it. If the decoding is normal, the video will be output. Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved... -
Page 7: Packing List And Interface Description
1.USB port 2. SDI indicator 3. SDI output 4. Reset 5.Audio output 6. Audio input 7.Working indicator 8. Power 9.100/1000M Ethernet port 1 10. 100/1000M Ethernet port 2 11. HDMI output 12. HDMI indicator Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved... -
Page 8: Led Indicators
The signal is not locked or the device is reset to factory settings GREEN Flash (the light will also flash) Device/signal is abnormal Light Network is connected Flash Device factory reset indication (the light will also flash) GREEN Network is dis-connected Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved... -
Page 9: Installation And Connection
4.2.1 Connect SDI displayer Using SDI cable to connect SDI output interface with SDI display. Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved... -
Page 10: Connect Hdmi Display
Connect one end of the network cable to the decoder Ethernet port 1, the other end is connected to the network switch or the computer's Ethernet port. Note: There are two Ethernet ports that you can connect to different networks. Normally, it can work by connecting to Ethernet port 1. Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved... -
Page 11: Login And Network Configuration
“admin/admin”, and then click "login". Note: Due to the browser compatibility issues, it may cause the web page display abnormal, it is recommended to use Chrome or Firefox browser. Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved... - Page 12 When accessing, it is necessary to pay attention whether the interface inserted by the network cable is corresponding or not: the default IP address of port 1 is 192.168.1.168; the default IP address of port 2 is 192.168.2.168. Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved...
-
Page 13: Network Configuration
DHCP may change, while the IP address specified manually can be fixed for the convenience of device management. IP address configuration is according to the actual situation of the local network configuration. Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved... - Page 14 IP address is manually configured or modified, otherwise the IP address may be lost. If you want to save the configuration immediately, you can restart the device once on the web page. Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved...
-
Page 15: Function Configuration
First of all, please get the correct video source URL address from other platforms. The abnormal video source address will cause the device to not work properly. (Video source can be tested by VLC player.) Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved... -
Page 16: Add Srt Source
Binding Network RTP protocol usage, Default auto Video Coder RTP protocol usage,[PT,]CODER[/Timestamp-unit],i.e.96,H264/90000 RTP protocol usage, Audio Coder [PT,]CODER[/Timestamp-unit/channels],i.e.96,MPEG4-GENERIC/48000/2 6.1.1.2 Add SRT source Add a SRT source in the page of video decoder by "Media"–"Add Source"–"SRT". Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved... -
Page 17: Video Sources List
Click on the "Detail" button in the upper right corner to set the bit rate and resolution of each video source to be displayed or not to be displayed. Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved... - Page 18 IP address of the video sources. The button in the lower left corner is the "Delete" video source button, and the button in the lower right corner is the "Setup" button. The Setup button can be modified for the parameters of the video source. Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved...
-
Page 19: Video Output Setting
This window is only an operation window, which can’t preview the decoded video output. If you want to view the decoded output video, you need to connect HDMI or SDI display for viewing. Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved... - Page 20 32K/44.1K/48KHz dual channel is optional. Please choose according to actual needs, default 48KHz. Display current video source information It can display the current output of the video source name, current bit rate and other parameters. Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved...
- Page 21 (that is, the same URL video source), you just need to create a new video source name, using the same URL, when setting the splitting screen, different splitting areas can choose different names of the video source. Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved...
-
Page 22: Sip
It can appoint one or more SIP local listening IP address and port, if IP address is *, it means listening on any interfaces, entering listening then Backspace. Proxy/Registration Server: SIP server address; Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved... -
Page 23: Call Set
Auto answer: automatically answer when the other party calls in; Buffer and delay: select the appropriate buffer and delay according to network status and video source Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved... - Page 24 Displayed in the source list: After selection, the SIP call is displayed in the source list of “Media”. Default local video source: Video source that selected output to SIP, can choose source from local files and source lists Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved...
-
Page 25: Stream (D300 Plus/Pro Only)
When there are multi-sources in the list, you can click to select the video source you want to output, and the output screen can be automatically switched.The selected source is shown as a red box with a tick. Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved... -
Page 26: Server (Stream Service)
Delete: If the stream service is not needed, you can choose to delete it. 6.3.4.2 RTMP Service “Add Stream Services”, “Service type”-“RTMP”, click on the “OK” button to build a RTMP stream service, and then you can set up it. Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved... - Page 27 Take YouTube RTMP address formats for an example, streaming point should be like Server URL+ Stream name/key, for example: rtmp://a.rtmp.youtube.com/live2/9ja6-9u28-uz4j-8x6r. After setup, the RTMP stream service is shown as follows: Delete: If the stream service is not needed, you can choose to delete it. Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved...
-
Page 28: Srt Service
Add a stream service in the publishing points and choose SRT, click “OK”. Enter the SRT configuration page, the SRT parameters can refer to that of the encoder. ： NOTE Delivery address format: srt://IP address: port Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved... - Page 29 In “Add Stream Services”, if adding type is RTMP or RTSP, it can convert SRT to RTSP/RTMP. In “Choose a source”, please choose the SRT stream that you want to convert in the source, then it will be converted to RTSP/RTMP stream. Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved...
-
Page 30: System Setup
6.4.2 System Time Timing mode can be set: synchronization with current PC, manual timing and slave NTP server.Choose the right time zone to ensure the correct time from the NTP server. Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved... -
Page 31: Reset
(depending on the size of firmware and network environment). After the device is restarted, you can click on the upper right button to see if the software version is consistent with the planned upgrade. Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved... - Page 32 D300 Series·User Manual Thank you for reading. Changsha KILOVIEW Electronics CO.,LTD. Service Hotline:86-731-88315979 Website:en.kiloview.com Technical support Email:support@kiloview.com WhatsApp: +86-18573195156/18573195256 Skype:kiloview-support/keqiu wang Address:188#, Middle Huanbao Rd, Yuhua District, Changsha, Hunan Province, China Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved...
