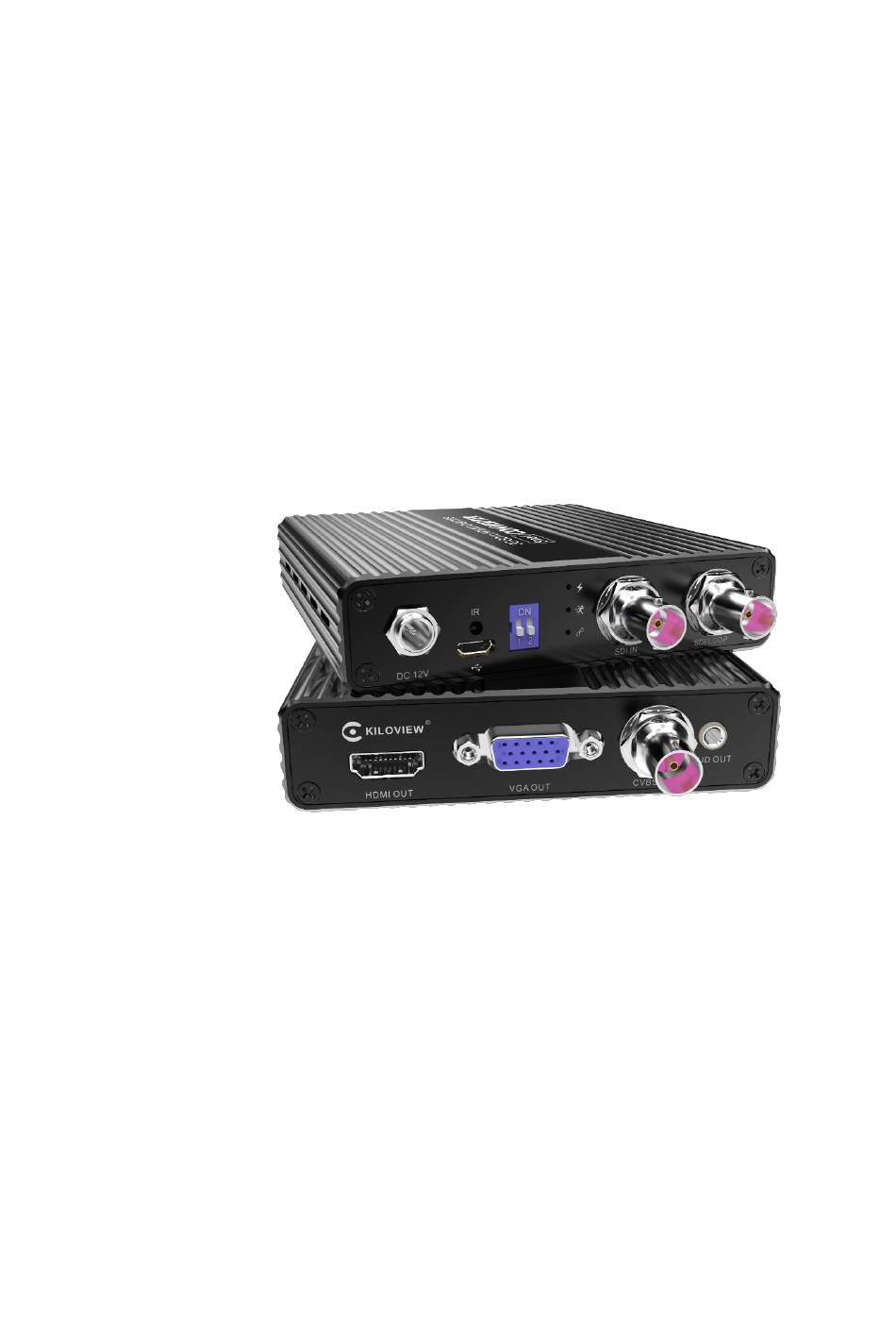

Multifunctional video converter
SD/HD/3G-SDI to HDMI&VGA&CVBS（AV）
Quick Start Guide
2021
Thanks for your purchasing! Before using this product, it is recommended that you read the guide carefully. To
ensure your personal safety and avoid physical or electrical damage to the device, please strictly follow the
instructions of this guide or install and use it under the guidance of professionals. Incorrect electrical connections
or physical installation may cause permanent damage to the device and even threaten personal safety.
Advertisement
Related Manuals for Kiloview CV180
Summary of Contents for Kiloview CV180
- Page 1 Multifunctional video converter SD/HD/3G-SDI to HDMI&VGA&CVBS（AV） Quick Start Guide 2021 Thanks for your purchasing! Before using this product, it is recommended that you read the guide carefully. To ensure your personal safety and avoid physical or electrical damage to the device, please strictly follow the instructions of this guide or install and use it under the guidance of professionals.
- Page 2 CV180, an SDI multi-function video converter, which can convert SDI to SDI, HDMI, VGA and AV (CVBS), supporting frame conversion, resolution conversion, color conditioning, image scale up/down and more. One input and multiple output! CV180 has built-in high-performance SDI cable equalizer (EQ), which can effectively guarantee the transmission distance of SDI (HD SDI 200m, 3G SDI 100m [Note: Meets Belden 1694A cable standards, SDI standard signal indicators]).
-
Page 3: Device Installation And Connection
⚫ Support SDI LOOPBACK, the loop signal is EQ and clock recovered, to improve the quality of SDI source signal and play a role of signal relay. ⚫ Output blue screen/black screen signal when SDI signal is losing. ⚫ OSD display for output/input signal. ⚫... - Page 4 Lights Status Description Not powered on or abnormal start Flashing Abnormal Powered on Abnormal Flashing/On Working No SDI signal input/SDI signal unlocked LOCK Flashing Ineffective SDI input format SDI signal input is normal and locked correctly 3. Video conversion rules The video converter can output on two output ports and one SDI port simultaneously.
-
Page 5: Remote Controller Operation
1) Output setting By remote controller menu "Output ports" can be selected to different video interfaces. Kiloview CV180 can convert and output in the two interfaces simultaneously, the output interface include combination: HDMI + CVBS (AV), HDMI + VGA, VGA + CVBS (AV). - Page 6 "De-Interleaving" option in the menu. 3）Output video format settings CV180 converts the input format to the same output format by default. If you need, you can lock an output interface for a specific format. Set the HDMI output format by remote controller menu "HDMI format", same operations for VGA and CVBS...
- Page 7 When there are problems when output like the output interface does not display properly, you can also use the remote controller aiming at CV180's IR receiver, press POWER/RESET " button on the remote control. Hold for one second and repress the...
- Page 8 5. Software control and firmware upgrade Besides remote control, you can also choose software control. Install “Smart Converter Tools” on your computer, connect the device to your computer by MINI USB port through a USB cable, and select the converter device recognized by the software.
- Page 9 6) No HDMI/analogy audio output Please check whether the SDI signal is with audio. then whether the HDMI displayer support audio (some displayers with HDMI interface but not support audio, actually it is DVI displayer).
