Summary of Contents for Kiloview DC220

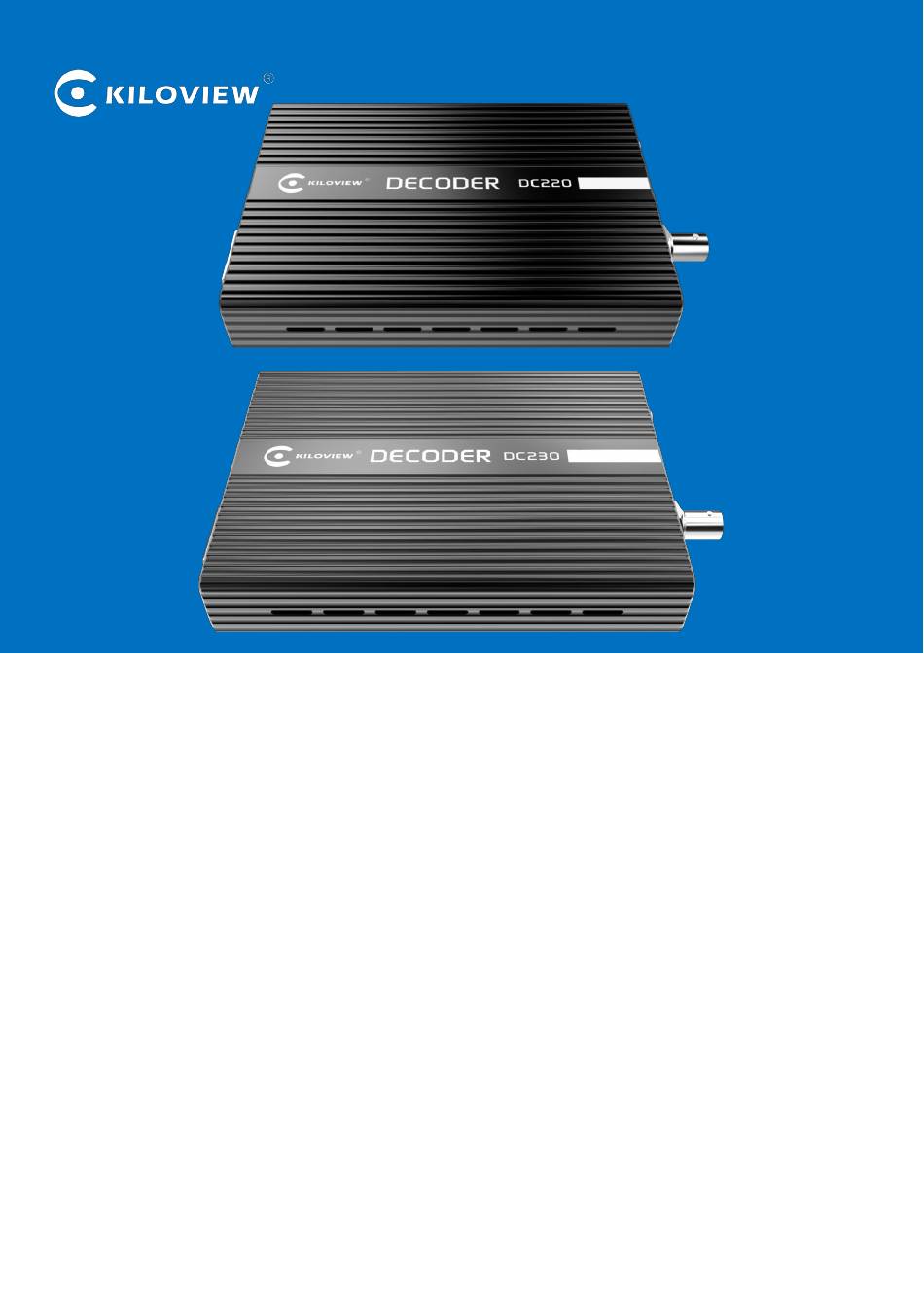

- Page 1 DC220/230 Multifunctional HD Video Decoder USER MANUAL Changsha KILOVIEW Electronics CO.,LTD.
- Page 2 Legal Notices Subject to the receiving of this document from Changsha Kiloview Electronics Co., Ltd.,(Hereinafter referred to “Kiloview”), the following terms are understood and agreed. Or else, please stop using this document. This document is copyright of Kiloview, all rights reserved. The document covers the proprietary information of the company.
-
Page 3: Table Of Contents
CONTENTS 1 PRODUCT INTRODUCTION ............................1 1.1 A DVANTAGES ..................................1 1.2 P ARAMETERS ..................................2 2 OPERATION GUIDANCE ............................... 4 3 PACKING LIST AND INTERFACE DESCRIPTION ..................... 5 3.1 P ..................................5 ACKING LIST 3.2 I NTERFACE DESCRIPTION ..............................5 3.3 L .................................. -
Page 4: Product Introduction
10% packet loss, excellent image output can be obtained. ⚫ Decoding latency can be less than 200 ms under a typical network environment with Kiloview intelligent latency control technology. ⚫ Decoding Output of H.264 Coded Video and AAC-LC/G.711 Coded Audio Supporting Bit Rate up to 40Mbps. -
Page 5: Parameters
DC220/230·User Manual 1.2 Parameters Model DC220 Input 1*RJ-45,100/1000Mbps USB port 1*USB 2.0 Type-A 1*SDI, SD-SDI (270M),HD-SDI (1.485G),3G-SDI(2.97G); Video output 1*DVI-I, HDMI1.4 /DVI 1.0/VGA SDI/HDMI: Up to1080P60Hz;VGA:Up to UXGA SDI: 1080P60/50,1080P30/25/24,1080I60/50,720P60/50,576I50,480I60 ； HDMI/DVI : 1080p60/50,1080p24/25/30,1080i60/50,720p60/50VESA standard formats; Output formats VGA ：... - Page 6 DC220/230·User Manual Model DC230 Input 1*RJ-45,100/1000Mbps USB port 1*USB 2.0 Type-A 1*SDI, SD-SDI(270M),HD-SDI(1.485G),3G-SDI(2.97G); Video output 1*DVI-I, HDMI1.4 /DVI 1.0/VGA SDI/HDMI: Up to 1080P60Hz,VGA: Up to UXGA. SDI:1080P60/59.94/50,1080P30/29.97/25/24/23.98,1080I60/59.94/50, 720P60/59.94/50, 576I50,480I60; Output formats HDMI/DVI:1080p60/50,1080p24/25/30,1080i60/50,720p60/50, VESA standard formats; VGA:1080p,720p,UXGA(1600x1200),SXGA(1280x1024),XGA(1024x768),SVG A(800x600),VGA(640x480) and other VESA formats.
-
Page 7: Operation Guidance
DC220/230·User Manual 2 Operation guidance ⚫ Installation and Connection of Device Connect the power supply and start the device. Connect the decoder SDI/DVI interface (DVI compatible with HDMI and VGA,need adaptor) to the display. ⚫ Network Connection and Configuration First,connect the decoder's E port to the switch or PC by using the network cable. -
Page 8: Packing List And Interface Description
DC220/230·User Manual 3 Packing list and interface description 3.1 Packing list Please check the parts and accessories you received are exactly Name Unit Quantity Note DC220/DC230 Decoder DC12V/1A power adaptor DVI to HDMI adaptor/ Optional Parts DVI to VGA adaptor... -
Page 9: Led Indicators
DC220/230·User Manual 3.3 Led indicators Name COLOR STATUS DESCRIPTION Powered up POWER No power supplied Device is working GREEN Device is starting up Network connected LINK GREEN Device disconnected or starting up... -
Page 10: Installation And Connection
DC220/230·User Manual 4 Installation and connection 4.1 Connect power Using the power adaptor (DC12V/1A) connected to the device, after the power is turned on, the device starts working. Note: Please use the standard power adaptor provided. Using other unqualified power supplies may damage the device. -
Page 11: Connect Hdmi Monitor
DC220/230·User Manual Connect HDMI monitor 4.2.3 ⚫ Using DVI to HDMI cable to connect DVI video output interface with HDMI monitor (recommended); ⚫ Or by DVI to HDMI adaptor with HDMI cable. Connect VGA display device 4.2.4 Using DVI to VGA adaptor connected to DVI interface, then with VGA cable to monitor. -
Page 12: Login And Network Configuration
DC220/230·User Manual 5 Login and network configuration 5.1 Login to the web page First, the decoder and the computer are connected to the same switch, or the decoder is directly connected to the computer network port. Then the decoder and the computer are configured in the same network segment so that the computer can access the WEB page of the decoder. - Page 13 DC220/230·User Manual 4) The computer defaults to "auto-get IP address", at which point you need to select "Use the IP address below" and manually enter 192.168.1.10, the IP address and subnet mask, click OK. 5) Open the WEB browser, enter the IP address of the decoder directly (default is 192.168.1.168) or the address http://192.168.1.168, click Enter to open the login interface of the decoder.
- Page 14 DC220/230·User Manual...
-
Page 15: Network Configuration
DC220/230·User Manual 6) After login, you can set decoding parameters and functional parameters on the Web page. The left window is for preview by default, the right one is the output 1/2 for decoding. Users can choose to close the preview window. The decoder page looks like this: 5.2 Network configuration... - Page 16 DC220/230·User Manual To choose a manual configuration, you need to set the IP, gateway, net mask, DNS parameters in turn. If the local network is in 192.168.4. */24 subnet, you can configure Address 1 to 192.168.4.14, 255.255.255.0, 192.168.3.1, and 8.8.8.8.(Make sure that the IP address is not occupied) After the IP address is configured, you can test whether the IP address can ping through other computers in the local network, or access the web page of the device through http://192.168.3.14.
-
Page 17: Function Configuration
DC220/230·User Manual 6 Function Configuration Media（Pull stream and Decode） Click on the "Media" menu to set up the pull stream and decode. There are three functions: one is to add a video sources and the video sources list; the second one is for preview; the third one is to set two output parameters of decoder, such as streaming, split-screen and so on. -
Page 18: Add Srt Source
DC220/230·User Manual The parameters of the video source are defined as follows: Name Video source name, can be set arbitrarily, support mixed Chinese and English Support RTSP, RTMP, RTMPS, UDP, HTTP and other protocols, decoder can automatically identify the URL address. After entering the URL address, if some... - Page 19 DC220/230·User Manual URL:When using CALLER mode, the URL address format is: srt://the-other-end public IP address: port, and when using Listener mode, the URL address is: srt://port Address: Set IP address of the receiving port; Port: Configure a listening port which should be consistent with the sending port;...
-
Page 20: Video Sources List
DC220/230·User Manual 6.1.3 Video sources list This list shows all the video sources and source parameter information you added, not all of them are decoded. To decode the output, you need to manually drag it to the upper output area to decode. When the video source is shown as green "View/Pull", the video source is decoded or pushed;... -
Page 21: The Source Preview
DC220/230·User Manual 6.1.4 The source preview Supports local preview of video sources through web pages, with a click in the upper left corner to turn off the preview function. Through Picture/video switch button, you can switch picture or video preview mode. -
Page 22: Video Output Setting
DC220/230·User Manual 6.1.5 Video output setting The decoder supports H.264 decoding and can support dual interfaces of SDI and DVI (compatible with HDMI and VGA) to simultaneously output the same and different signal sources or split screen pictures. The decoder WEB page has three output window, corresponding to the two hardware interfaces of SDI/DVI. - Page 23 DC220/230·User Manual...
- Page 24 DC220/230·User Manual ① Setting Video Output Parameters Resolution: Support SDI&DVI/HDMI/VGA (up to 1920x1080P60Hz) multi-resolution configuration. All the resolutions labeled SDI only are valid on the SDI output interface. On the HDMI interface, the output is the resolution closest to this resolution.
-
Page 25: Pictures And Osd Overlays
DC220/230·User Manual ⑦ Screen splitting settings (only supported by DC230) DC230 decoder can display four split-screen modes, with 1/2/3/4 split-screen, supporting up to 4 channels 1080P30 or 2 channels 1080P60 or less. By clicking on the right-hand expansion button, you can set the split-screen mode you want to display, available in 1-4 options. - Page 26 DC220/230·User Manual Click the output (1/2) box setting and select your picture or logo. You can overlay your Logo either place on the Window. After clicking "Set" to save, you can see the overlaid effect on the output screen. NOTE ：...
- Page 27 DC220/230·User Manual ➢ Overlay type: "No superimposition, text, date, time and date/time" can be selected; ➢ Overlay position: 7 preset display positions and custom positions can be selected, and the display position of characters after overlay can be selected according to actual needs;...
-
Page 28: System Setup
DC220/230·User Manual 7 System setup 7.1 User Management Viewing User Lists, Adding and Deleting Users 7.2 System Time Timing mode can be set: synchronization with current PC, manual timing and slave NTP server.Choose the right time zone to ensure the correct time from the NTP server. -
Page 29: Reboot
DC220/230·User Manual decode abnormal situations. The current decoding services will be temporarily interrupted, requiring about 3S. 7.4 Reboot Device software restart,it lasts about 3 minutes. 7.5 Restore If users change parameters that lead decoder can’t work (The typical situation is changed network address, so it can’t login decoder), users could restore factory setting to default value. - Page 30 DC220/230·User Manual Thank you for reading. Changsha KILOVIEW Electronics CO.,LTD. Telephone：86-731-88315979 Website：en.kiloview.com Support email：support@kiloview.com WhatsApp: +86-18573195156/18573195256 Skype: kiloview-support/keqiu wang Address: 188#, Middle Huanbao Rd, Yuhua District, Changsha, Hunan Province, China...
