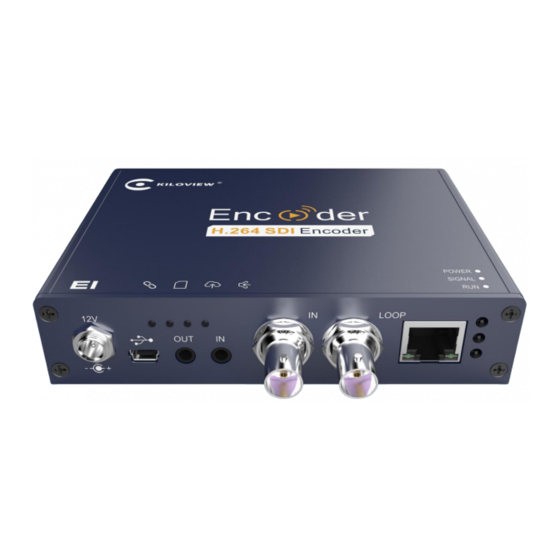

E1-s Video Encoder
SDI video encoder
Contents
◼
Packing List
◼
Device interfaces and functions
◼
Device connection, login and use guide
◼
Device upgrade and restore to factory settings
Before using this product, it is recommended that you read the guide carefully. To ensure your personal safety and avoid physical or
electrical damage to the device, please strictly follow the instructions of this guide to install and use it under the guidance of
professionals. Incorrect electrical connections or physical installation may cause permanent damage to the device and even threaten
personal safety.
Leading solution provider of IP-based video transmission
Quick Start Guide
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kiloview E1-s
Summary of Contents for Kiloview E1-s

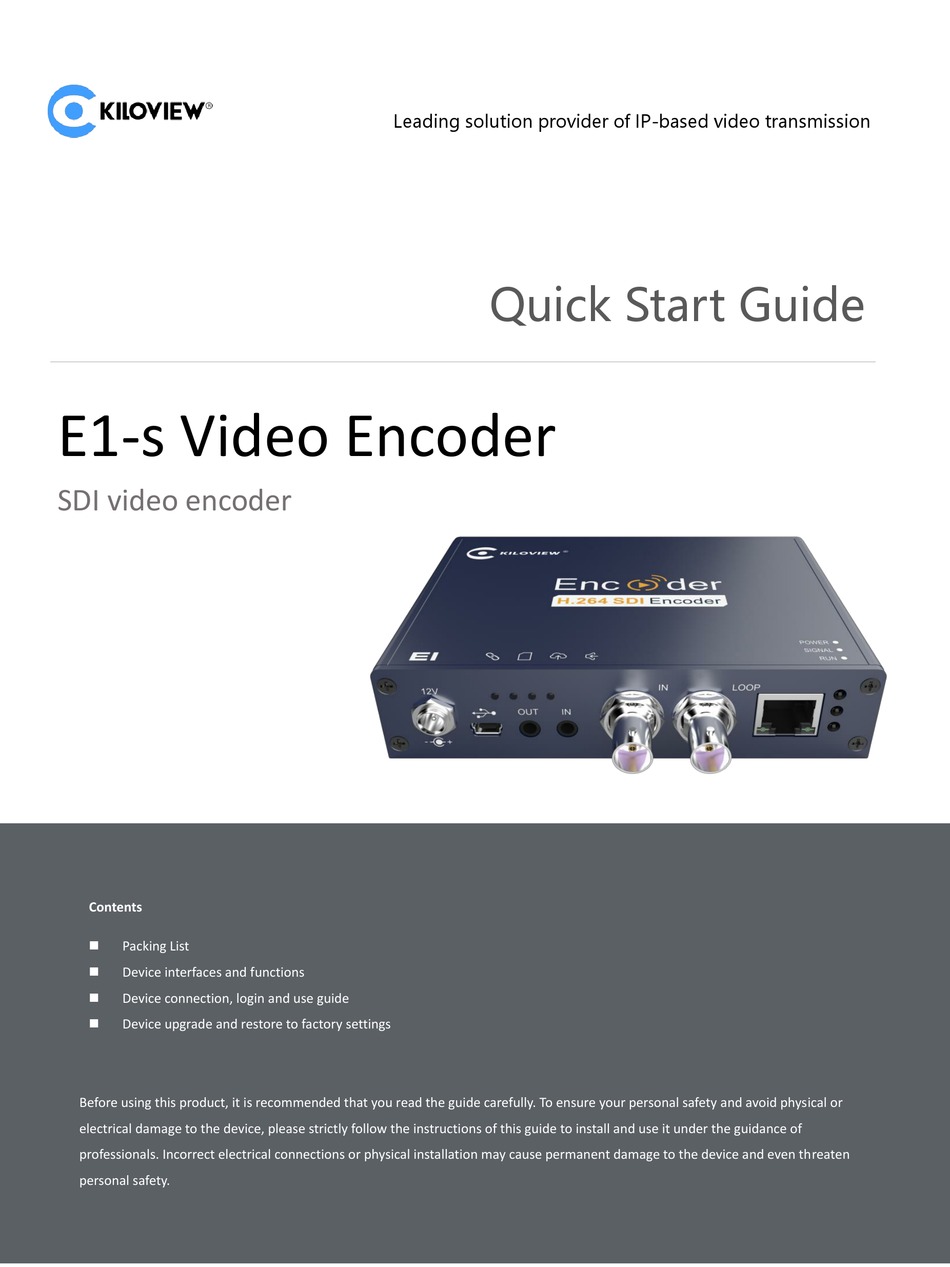

- Page 1 Leading solution provider of IP-based video transmission Quick Start Guide E1-s Video Encoder SDI video encoder Contents ◼ Packing List ◼ Device interfaces and functions ◼ Device connection, login and use guide ◼ Device upgrade and restore to factory settings Before using this product, it is recommended that you read the guide carefully.
-
Page 2: Packing List
Page 1 Packing List (1) Device ×1 (2) Power Supply×1 (3) Warranty Card×1 (4) Quick Start Guide×1 Device Interfaces Power port Working indicators Mini USB USB expansion port 3.5mm line in/out Micro SD/TF slot SDI Input (10) Power on /off SDI Loop (11) Reset 100M Ethernet port... -
Page 3: Device Indicators
Page 2 Device Indicators Name Color Status Description Power connected Power Power off or failure SDI signal connected LED Indicators Green Signal SDI signal unconnected Flashing Working Green Starting Device is abnormal or not started Device Connection SDI Video Source LOOP AC100~240V Power Supply... -
Page 4: Device Discovery
Device Discovery 5.1 Direct visit by default IP The default fixed IP address of E1-s is 192.168.1.168. Please configure your computer network to 192.168.1.xxx when you use it for the first time, and then enter http://192.168.1.168/ in the browser to visit Web UI. - Page 5 Page 4 Introduction ⚫ The working network that the device is connected needs to support DHCP. After the device automatically acquires the IP, it can be discovered by the software through Onvif. Login to the device WEB page Open a web browser and enter in the address bar: http://device IP address/login to the web UI. Note ⚫...
- Page 6 DVD, CD, VCD and various streaming protocols. 1. Click "Encoding and Streaming" > "Encoding and Streaming Parameter Settings" on the web UI of E1-s; 2. In the H.264 stream, copy the URL address displayed on the right side of RTSP. The default RTSP URL of the device is "rtps://device IP address: 554/ch01";...
- Page 7 Page 6...
- Page 8 7.3 RTMP Pushing streaming live 1.Add an RTMP push point on the device side; 2.Click "Encoding and Stram" > "Encoding and Stream Settings" on the web UI of E1-s; 3.Click "Add a Streaming Service" under the H.264 main stream; 4.Select "RTMP Push" in the pop-up window ";...
- Page 9 RTMP address. The format is: rtmp address/live code. ⚫ Please make sure the device is connected to the network, and configure the correct IP address, DNS and other parameters. Kiloview E1-s supports all the other stream services,for more information about the E1-s streaming service,please visit. https://www.kiloview.com/en/support/docs/E1-s/...
-
Page 10: Firmware Upgrading
Select “video encoders” > “E1-s”, find and download the latest firmware. 8.2 Upgrade device firmware Login to the web page of E1-s, click "Settings">"Firmware Upgrade" to check if there is any latest firmware available to download.If yes,select the downloaded firmware and click “Firmware Upgrade”. -
Page 11: Restore To Factory Settings
Page 10 Restore to factory settings If the device cannot work normally after modified the parameters or forgot internet IP configuration and couldn’t search and find the device, please restore factory settings. Two methods for restoring factory settings: 1) If you can login to web page, then via the web page, click "Settings>System settings>Restore factory settings". - Page 12 Page 11 Any In,Any Out,Anywhere For more questions, please contact us via： https://www.kiloview.com/en/support KILOVIEW Electronics CO., LTD. Tel：86-18573192787 Email：support@kiloview.com Web：www.kiloview.com/en Address: B4-106/109, Jiahua Intelligence Valley Industrial Park, 877 Huijin Road, Yuhua District, Changsha City, Hunan Province, China.
