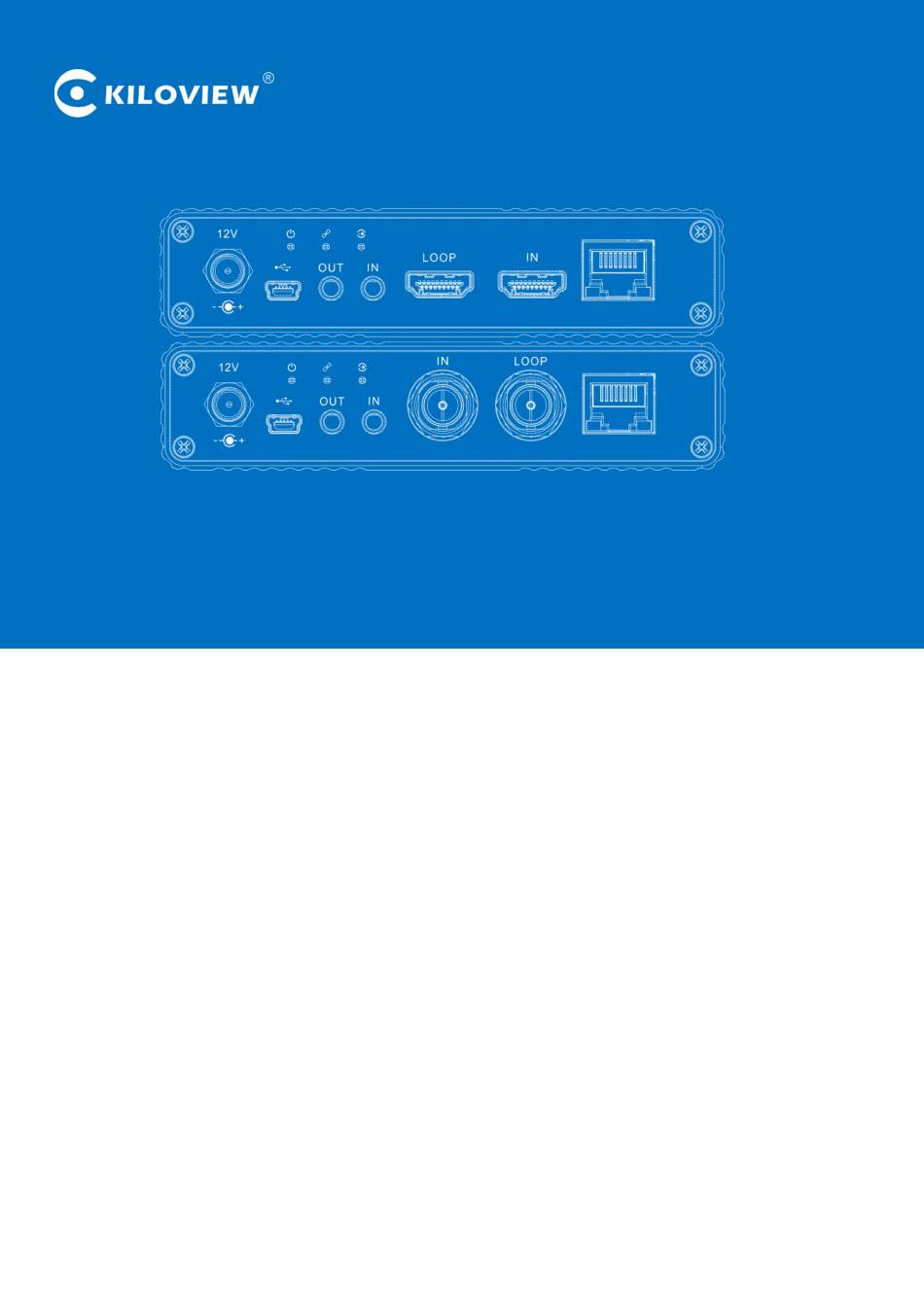

- Page 1 高清视频编码器 USER MANUAL For E1/E2/G1/G2/M2/IU series encoders Changsha KILOVIEW Electronics CO.,LTD.
- Page 2 Legal Notices Subject to the receiving of this document from Changsha Kiloview Electronics Co., Ltd.,(Hereinafter referred to “Kiloview”), the following terms are understood and agreed. Or else, please stop using this document. This document is copyright of Kiloview, all rights reserved. The document covers the proprietary information of the company.
-
Page 3: Table Of Contents
CONTENTS 1 PRODUCT INTRODUCTION................................1 1.1 E ..............................1 SERIES WIRED VIDEO ENCODER 1.1.1 Advantages..................................1 1.1.2 Parameters..................................2 1.2 G .............................. 3 SERIES WIRELESS VIDEO ENCODER 1.2.1 Advantages..................................3 1.2.2 Parameters..................................4 1.3 M2 .................................5 WIRED VIDEO ENCODER 1.3.1 Advantages..................................5 1.3.2 Parameters..................................6 1.4 1U ........................... - Page 4 5.3.5 Android APP................................. 24 6 PARAMETERS CONFIGURATION..............................26 6.1 D ................................... 26 ASHBOARD 6.2 B ..................................27 ASIC SETTINGS 6.2.1 Change WEB login password............................27 6.2.2 Location and time................................ 28 6.2.3 Restore factory settings............................... 29 6.2.4 Firmware upgrading..............................29 6.3 V &...
-
Page 5: Product Introduction
Facebook, YouTube, Ustream, Twitch, Wowza etc or security platform /NVR system; Dual stream output, the main code rate up to 1080p60Hz, and the sub-stream supports 720p60Hz video encoding. Version 1.1 © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved... -
Page 6: Parameters
Custom text, image overlay function, can be superimposed to any position on the overlay screen Recording Micro SD/TF card , local recording, NAS network storage Management WEB/Android APP Power DC 12V 1A / 4W supply/consumption Operating 125*89*28mm / 380g temperature Size/Weight -20℃~55℃ Version 1.1 © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved... -
Page 7: Gseries Wireless Video Encoder
Audio embedding encoding supported, with voice intercom function (need to deploy voice intercom software); Supports NAS network storage; With video real-time loop function, there is no delay and convenient for live monitoring. Version 1.1 © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved... -
Page 8: Parameters
Custom text, image overlay function, can be superimposed to any position on the overlay screen Recording Micro SD/TF card , local recording, NAS network storage Management WEB/Android APP Power DC 12V 1A / 4W supply/consumption Size/Weight 125*89*28mm / 380g Operating -20℃~55℃ temperature Version 1.1 © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved... -
Page 9: M2 Wired Video Encoder
Dual stream output, the main code rate up to 1080p60Hz, and the sub-stream supports 720p 60Hz video encoding. Capable with customized text and image overlay function, which can be at any position on the screen; Supports NAS network storage. Version 1.1 © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved... -
Page 10: Parameters
Custom text, image overlay function, can be superimposed to any position on the overlay screen Recording local recording, NAS network storage Management WEB/Android APP Power DC 12V 1A / 4W supply/consumption Operating 125*89*28mm / 380g temperature Size/Weight -20℃~55℃ Version 1.1 © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved... -
Page 11: Series Rack-Mounted Video Encoder
Adjustable bit rate from 64kbit/s～40Mbit/s. Note: (≤67ms) refers to the delay of the encoder end, and the end-to-end delay also relates to network, decoding, etc. Version 1.1 © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved... -
Page 12: Parameters
Custom text, image overlay function, can be superimposed to any position on the overlay screen Recording NAS network storage Management Power AC 220v 25W/U series: up to 25W supply/consumption Operating 483*175.25*44.5mm/1.6kg temperature Size/Weight -20℃~55℃ Version 1.1 © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved... -
Page 13: Operation Guidance
RTSP stream service is continuously turned on. Other streaming service If necessary, you can also configure the device to push video streams such as RTMP, RTMPS, UDP, HLS, etc. Version 1.1 © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved... -
Page 14: Packing List And Interface Description
3.2 Device interfaces E/G Series device interfaces 1, Power input 2, Mini-USB 3, Audio output 4, Audio Line in 5,SDI IN/HDMI LOOP 6,SDI LOOP/HDMI IN 7,100M Ethernet interface 8,Status leds Version 1.1 © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved... - Page 15 1, Dial switch (for custom development only) 2, Reset 3, Power input 4, Audio output 5, Audio line in 6, RS-485 Interface 7, VGA IN 8, HDMI IN 9, 100M Ethernet interface 10, USB interface Version 1.1 © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved...
- Page 16 2, Audio output 3, Audio line in 4, HDMI LOOP/SDI IN 5, SDI LOOP/HDMI IN 6,100M Ethernet interface 7, Status leds 8, Reset 9, AC 220V Power input 10, Power Switch Version 1.1 © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved...
-
Page 17: Led Indicator Descriptions
Using the power adapter (DC 12v) connect to the main product, after the power is turned on, then the product starts working immediately. Note: Please use the standard power adapter provided. Using other unqualified power supplies may damage the device. Version 1.1 © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved... -
Page 18: Connecting Video Signal
Connceting the power adapter (DC 12v) to the main product, then the product starts working immediately. Note: Please use the standard power adapter provided. Using other unqualified power supplies may damage the device. Version 1.1 © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved... -
Page 19: Connecting Video Signal
Using the power adapter (AC 220V) connect to the main product, after the power is turned on, then the product starts working immediately. Note: Please use the standard power adapter provided. Using other unqualified power supplies may damage the device. Version 1.1 © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved... -
Page 20: Connecting Video Signal
Note: HDMI and SDI device interface input and loop position is different. It is subject to the actual device. 4.3.3 Connect network Connect one end of the network cable to the encoder Ethernet port.The other end is connected to the network switch or the computer's Ethernet port. Version 1.1 © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved... -
Page 21: Login And Network Configuration
Note: Due to the browser compatibility issues, it may cause the web page display abnormal, it is recommended to use Chrome and Firefox. After login, the encoding and function parameters can be set on the encoder management web page. The page is shown as below: Version 1.1 © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved... -
Page 22: Log In To The Device Through The Wifi Hotspot （Only Gseries Wireless Encoders
DHCP. It will automatically get a complete IP address, gateway and DNS according to this LAN. Click "Network & Service Settings", click "Network Manager" to enter the following interface, you can see the IP address with Ethernet. Version 1.1 © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved... -
Page 23: Wifi Network (Only G Series Wireless Encoders)
“Set as Shared Hot spot” of WIFI 1 to customize the shared hot spot name and shared password. You can select the WIFI channel and the network card to be shared. Version 1.1 © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved... - Page 24 5.0GHz of the WIFI, and set the router to a relatively clean channel. In order to make sure the fluidity of the video while streaming with WIFI, the coding rate can be appropriately reduced as necessary. Version 1.1 © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved...
- Page 25 Ethernet configuration, you must delete the gateway of Ethernet, make sure only one IP address of Ethernet is used to manage the encoder. If not, it may cause that WIFI streaming is not actually used even WIFI is connected. Version 1.1 © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved...
-
Page 26: Network (Only For G Series Encoders)
Note: Please confirm whether USB 4G card enables dial-up connection function, SIM card is workable, otherwise the network maybe unavailable. Users can insert a USB 4G card into a computer to test whether it can provide Ethernet access function. Version 1.1 © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved... -
Page 27: Convenient Management Functions
192.168.1.168. Note: When accessing the device through a convenient managed IP address, your computer must have an IP address on the same network segment. Version 1.1 © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved... -
Page 28: Android App
The device information shown in the l list includes device interface information, device serial number, device IP address, etc. Click your device from the device list to enter into management page. Version 1.1 © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved... - Page 29 (Please refer to 6.3). “Setting” is used for quick reset, device reboot, restoring factory settings and device name modifications. Click and enter into device information page. Version 1.1 © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved...
-
Page 30: Parameters Configuration
“Ping”, wait for 3s, and “Connectivity” is displayed as “reachable, packet loss rate 0%" means the network is good and streams can be pushed to the Internet normally. Version 1.1 © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... -
Page 31: Basic Settings
Users can go for some basic functions settings here. 6.2.1 Change WEB login password Click “Change Password”, an option box will pop up, users can modify the WEB login password, the default password is admin. Version 1.1 © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... -
Page 32: Location And Time
HD Video Encoders · User Manual 6.2.2 Location and time Click “location and time”, then users can modify system time of the encoder, or just select “Synchronize from this PC”. Version 1.1 © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... -
Page 33: Restore Factory Settings
Web page, users can upload the firmware online. Click “Select Files” to select the upgrade file, and click “Upgrade” to upgrade the device. The upgrade process is slow, around 30s to 1 minute, please be patient. Version 1.1 © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... -
Page 34: Video & Audio Adjustments
(4) Rotation or flipping: It's the last step before encoding, you can rotate the video with 90/180/270 degrees, horizontal mirror or vertical flip. Above process is a pipeline from step 1 to step 4. You could choose to open, or prohibit it about each step. Version 1.1 © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... - Page 35 HD Video Encoders · User Manual Version 1.1 © Changsha KILOVIEW Electronics CO., LTD. All rights reserved...
-
Page 36: Audio Signal Source
64Kbps. One more detail: if encoder using TS-UDP protocol or needs using recording, then it needs to choose “With ADTS header” under AAC format. Note: Please do "Quick Reset" to take affect if you changed the 'Resample policy' or 'Sampling' parameter. Version 1.1 © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... -
Page 37: Encoding And Stream Settings
We generally set parameters of “H.264 main stream”, click “Setting”. Note: It is H.264 Main stream, the second setting, not Motion JPEG setting. Version 1.1 © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... - Page 38 “HALF” means if input video is 1920*1080P50, video framerate after encoding will be 25. This will be a good saving on the consumption of network bandwidth; customized framerate is user assigning framerate after encoding, in theory, it shouldn’t be higher than original framerate. Version 1.1 © Changsha KILOVIEW Electronics CO., LTD. All rights reserved...
-
Page 39: Streaming Media Service
IP address is 192.168.2.168, then the RTSP service address is "rtsp://192.168.2.168:554/ch01", if there are several IP encoding device, these IP address can also directly pull RTSP flow accordingly. Version 1.1 © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... - Page 40 "media", and "open network stream", then enter the RTSP service URL address, you can play the video. Note: URL should be copied completely and the punctuation marks should be included. Version 1.1 © Changsha KILOVIEW Electronics CO., LTD. All rights reserved...
-
Page 41: Rtmp Pushing (Live Streaming)
RTMP push configuration. The push address on YouTube platform is filled in the "push point", and set "Enable pushing" to "Yes". Click “Save”, then RTMP will stream to YouTube. Version 1.1 © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... - Page 42 Note: In the case of RTMPS push mode, fill in RTMPS URL at Push point and set ‘Use old RTMP version’ to yes, so that it can be supported. Version 1.1 © Changsha KILOVIEW Electronics CO., LTD. All rights reserved...
-
Page 43: Ts-Udp Pushing (Unicast And Multicast)
No need to change Multicast TTL; If using multicast, “pushing target address” needs to write a correct multicast address (224.x.x.x ~ 239.x.x.x). “Target port” is any port, but it is better not conflicted with other service port. Version 1.1 © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... - Page 44 VLC or other decoding player. If it is multicast, please remember to close Windows firewall. Note: When the URL obtained by configuring multicast push mode is udp://225.225.5.5:5678, if played by VLC Player, it needs to add @ for playing, that is udp://@225.225.5.5:5678. Version 1.1 © Changsha KILOVIEW Electronics CO., LTD. All rights reserved...
-
Page 45: Hls Service
Below is setting interface of HLS service. Very simple, if no special requirements, no need setting, only enable service. Once enabling service, it will get one HLS Publish point. You could watch it through VLC and other players using this address. Version 1.1 © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... -
Page 46: Srt-Ts Pushing
1) Click “Encoding & Stream”—“Encoding and Stream Settings” –“H.264 main stream” –“Add a stream”. Choose “SRT-TS pushing”, click “OK” and add a SRT service. 2) Click the icon for SRT configuration. Version 1.1 © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... - Page 47 Load size: Sending data packet size, it is optimal that the receiving port should equip with the same size. The default size is 1316, the optimal packet for the codec. Version 1.1 © Changsha KILOVIEW Electronics CO., LTD. All rights reserved...
-
Page 48: Local Recording
USB disk inserted into USB port of encoder for recording. The recording operation is as follows: 1) Click “Record” below “H.264 Main Stream” under “Dashboard” or “Encoding and stream setting”. Version 1.1 © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... - Page 49 It will record to the biggest available storage area. Recording format is TS file by default. Users could set recording for automatic cutting based on specified size. And when storage space is insufficient, it will automatically overwrite the old video file to achieve redundant storage. Version 1.1 © Changsha KILOVIEW Electronics CO., LTD. All rights reserved...
- Page 50 When no disks inserted or NAS network storage not set, the status will be as follows , dashboard will show “Stopped”. Record status shows “No valid disks” and “No records”. After inserted disks, the encoder will start recording automatically and the dashboard shows “Recording”. Version 1.1 © Changsha KILOVIEW Electronics CO., LTD. All rights reserved...
-
Page 51: Network Storage（Nas
You need to format the TF card once. 6.6 Network Storage（NAS） NAS is a Disk Arrays connected by network; it has all the main characteristics of disk arrays: high capacity, high efficiency and high reliability. Version 1.1 © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... -
Page 52: Text/ Image/Time Overlay
Please open the “Overlay image management” to upload an image first if you want to make image overlay; if text or time overlay, you can set the overlay function directly. Version 1.1 © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... -
Page 53: Overlay Image Management
“Don't rotate follow picture”, please choose yes or no .Then choose “Add overlay item” to set overlay functions for “Text”, “Time” and “Image” respectively. You can set multiple overlays at the same time. Version 1.1 © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... - Page 54 For every overlay, you can set the terms of overlay, position, font and font size, Image or text content and so on. After adding that, it will be shown as follows: Version 1.1 © Changsha KILOVIEW Electronics CO., LTD. All rights reserved...
- Page 55 If the added image occupies the majority of the video screen, the actual bitrate and the set bitrate will be greatly reduced due to the low screen dynamic fluctuation. For the image format, only JPEG and PNG supported. Version 1.1 © Changsha KILOVIEW Electronics CO., LTD. All rights reserved...
-
Page 56: Service Configuration
Onvif can discovery/manage this device, and get the video streams. Onvif is a 'Web Service' based protocol, you can even write your program to control this device by Onvif web service API. Version 1.1 © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... -
Page 57: Telnet Service Configuration
USB to Serial/FDTI chip/PL2303 chip. If the USB to RS232/RS422/RS485 converter (line) you inserted cannot be recognized and the converter chip is not supported by default, please replace the serial line. Version 1.1 © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... -
Page 58: Ptz Setting
"Quick Reset" is used to quickly reset the video encoding service of the encoder, normally it’s used to parameters come into force after modification or encoding abnormal, the current encoding service will be stopped and it will take about 3 seconds. Version 1.1 © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... -
Page 59: Reboot
“Reboot” is used to restart the device software, it will take about 3 minutes. 6.11 Logs and Debug System logs are available for download, which can be provided to technical service engineers for technical analysis. Version 1.1 © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... -
Page 60: Preset Configuration
When there are other devices on site or the parameters of your device are restored to the factory, you want to use the parameters previously set. You can upload the saved configuration file in "manage or load preset configuration", restart the device after loading, and the parameter configuration will take effect. Version 1.1 © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... - Page 61 Thank you for reading. Changsha KILOVIEW Electronics CO., LTD. Phone：86-731-88315979 Website：en.kiloview.com Support email：support@kiloview.com WhatsApp: +86-18573195156/18573195256 Skype: support_72698/keqiu wang Address: 188#, Middle Huanbao Rd, Yuhua District, Changsha, Hunan Province, China Version 1.1 © Changsha KILOVIEW Electronics CO., LTD. All rights reserved...
