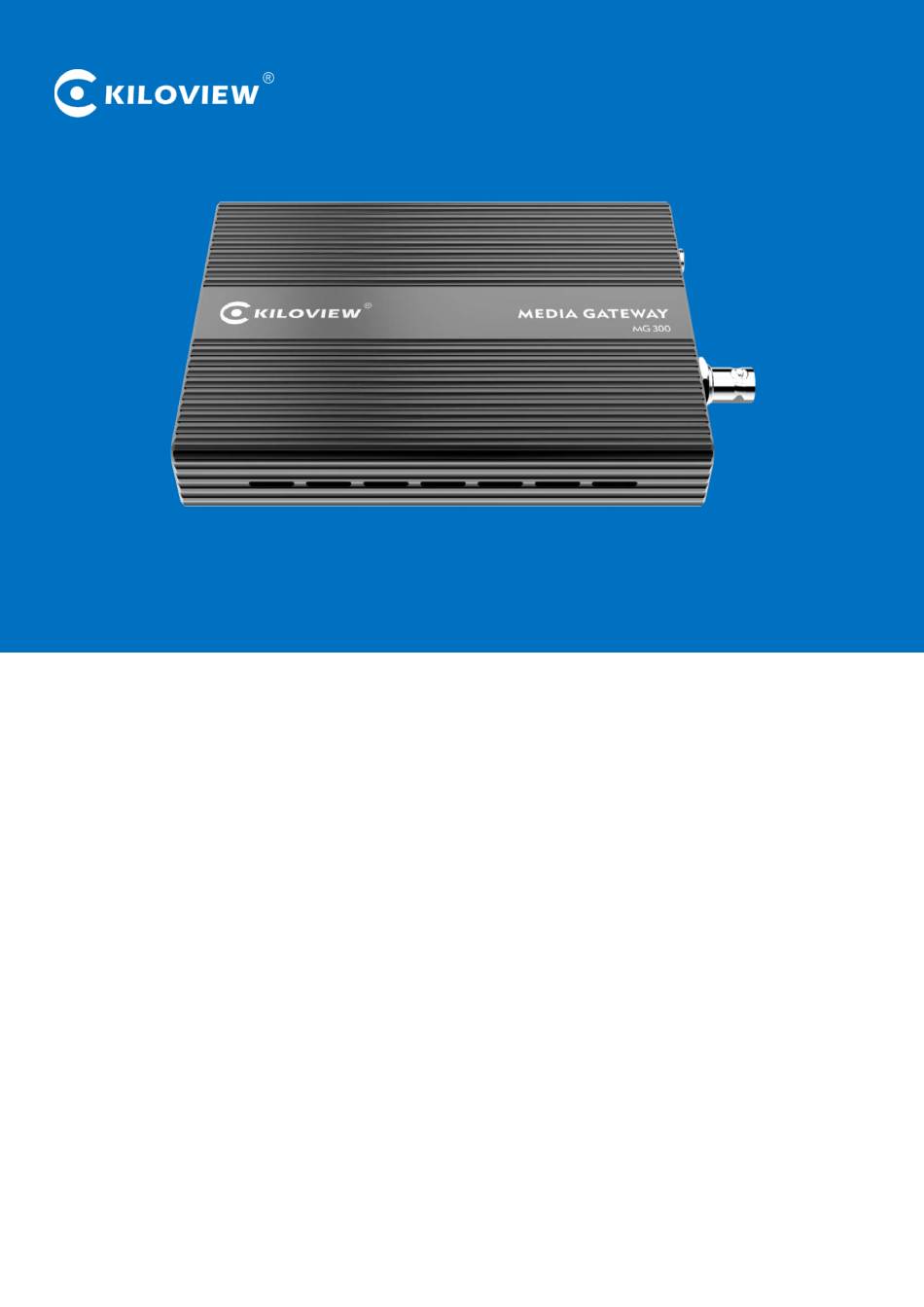

- Page 1 MG300 Media Gateway USER MANUAL Changsha KILOVIEW Electronics CO., LTD.
- Page 2 Legal Notices Subject to the receiving of this document from Changsha Kiloview Electronics Co., Ltd.,(Hereinafter referred to “Kiloview”), the following terms are understood and agreed. Or else, please stop using this document. This document is copyright of Kiloview, all rights reserved. The document covers the proprietary information of the company.
-
Page 3: Table Of Contents
Contents 1 PRODUCT INTRODUCTION................................1 2 OPERATION GUIDANCE................................2 3 PACKING LIST AND INTERFACE DESCRIPTION..........................3 ..................................3 3.1 P ACKING LIST ............................... 3 3.2 I NTERFACE DESCRIPTION 3.3 L ..................................4 ED INDICATORS 4 INSTALLATION AND CONNECTION.............................. 5 ............................5 4.1 C ONNECT POWER AND VIDEO SIGNAL ................................ - Page 4 7.1.4 Reboot..................................29 7.1.5 Restore..................................29 7.1.6 Firmware..................................29...
-
Page 5: Product Introduction
MG300· User Manual 1 Product introduction MG300 media gateway is a high-performance embedded multi-functional device, which integrates functions such as protocols conversion, distribution, multi-channels video decoding and video image segmentation. It can be applied to video format conversion, protocol intercommunication, decoding and splitting display from different systems, manufacturers, types and encoding ways. -
Page 6: Operation Guidance
HDMI/SDI interface. Then drag the added video source to the output window and the decoder will start decoding it. If the decoding is normal, the video will be output. Copyright © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... -
Page 7: Packing List And Interface Description
2. SDI indicator 3. SDI output 4. Reset 5.Audio output 6. Audio input 7. Indicator 8. Power 9.100/1000M Ethernet port 1 10. 100/1000M Ethernet port 2 11. HDMI output 12. HDMI indicator Copyright © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... -
Page 8: Led Indicators
The signal is not locked or the device is reset to factory settings GREEN Flash (the light will also flash) Device/signal is abnormal Light Network is connected Flash Device factory reset indication (the light will also flash) GREEN Network is dis-connected Copyright © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... -
Page 9: Installation And Connection
Using SDI cable to connect SDI output interface with SDI display. Copyright © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... -
Page 10: Connect Analog Audio
Ethernet port. Both NET 1 and NET 2 are workable, normally using NET 1. Note: There are two Ethernet ports that you can connect to different networks. Normally, it can work by connecting to Ethernet port 1. Copyright © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... -
Page 11: Login And Network Configuration
“admin/admin”, and then click "login". Note: Due to the browser compatibility issues, it may cause the web page display abnormal, it is recommended to use Chrome or Firefox browser. Copyright © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... -
Page 12: Network Configurations
Click "Network" to enter the configuration page. The network interface icon is shown as green to indicate the normal working state of network, and the network interface icon is shown as orange to indicate the disconnected state of network. Copyright © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... - Page 13 IP address is manually configured or modified, otherwise the IP address may be lost. If you want to save the configuration immediately, you can restart the device once on the web page. Copyright © Changsha KILOVIEW Electronics CO., LTD. All rights reserved...
-
Page 14: Function Configuration
Please make sure to get the correct URL address of the video source from live platforms. The abnormal working source address will cause the device not to work properly. (Video source can be testified by VLC player.) Copyright © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... -
Page 15: Add Srt Source
Name: You can name it freely, letters and numbers combination; Connection Mode: Caller, Listener, Rendezvous; URL address: When using the CALLER mode, the URL address is: srt:// the peer public IP address: port; Copyright © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... - Page 16 2) Please drag the added SRT source to the output window, and the decoder starts to listen for SRT requests, it will establish the SRT connection while receiving the right SRT "Call". After connected, the status will show “Pull”. Copyright © Changsha KILOVIEW Electronics CO., LTD. All rights reserved...
-
Page 17: Add Ndi|Hx Sources
"IP" box, click , the IP address will be added to the "Manual Scan Address List". You can add multiple IP addresses to search at the same time, and then press "OK". Copyright © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... -
Page 18: Ndi Discovery Server
Play cache: Select the play cache according to your actual scene. ： NOTE MG300 only decodes NDI|HX version 2.0 video source. For FULL NDI source, please choose other NDI products such as N3/N30/N4/N40 6.1.1.4 NDI discovery server The NDI discovery server function is a discovery mechanism that is different from the NDI automatic discovery function. -
Page 19: Video Source List
Yellow “Reconnecting" indicates that the source is decoding abnormally and tries to connect and decode. The Red “wrong” indicates the source is wrong and can not be decoded. Copyright © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... -
Page 20: Video Source Preview
Required browser: the latest version of Google and Edge; Only support for local preview in the same LAN for the computer and device, and cannot preview across WAN; Display of decoding status and source parameter information. Copyright © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... -
Page 21: Video Output Setting
The decoder supports H.265/H.264 decoding and simultaneously output of the same and different sources or split screens. Take "Output 1" as an example for detailed description on the output window (shown as below): Copyright © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... - Page 22 SDI, it represents that the current screen will be output to both HDMI and SDI interfaces. Two output windows can choose the same signal source and screen splitting, or can be set to different signal sources and screen splitting. Copyright © Changsha KILOVIEW Electronics CO., LTD. All rights reserved...
- Page 23 Click "SET" to modify the parameters of the video source directly, Click the“ □ X " to delete the video source; click "○ " to pop up the video source parameters and decoding status information. Copyright © Changsha KILOVIEW Electronics CO., LTD. All rights reserved...
-
Page 24: Ip Stream Configuration
"Encoding rate" supports adjustment between 64K-25M. The higher the bit rate, the better the encoded video quality. The specific settings should be based on your actual network situation. It should be not higher than the upstream bandwidth of your network. Copyright © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... -
Page 25: Image And Osd Overlay
1) Picture management On the page "Picture Management"-"Add Picture", in the pop-up box, fill in the name and choose Logo/Background for the type, then select a picture to upload. Copyright © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... - Page 26 Vertical shift: Adjust character position in the vertical direction of the screen.The unit is character. Then set the overlay parameters, select "Overlay Type", and configure the overlay function separately for the "Text" and "System Time" and "the overlay items". Copyright © Changsha KILOVIEW Electronics CO., LTD. All rights reserved...
-
Page 27: Stream Service
Border color: optional 6.2 Stream service MG300 supports for the most common protocols conversion. The sources can be dynamically switched. If the input video stream is RTSP, RTMP, UDP, SRT and other protocols, you can convert them to the same or different protocol streams. -
Page 28: Source Selection
Push Address: Fill in the RTMP push address provided by the live platform, e.g. rtmp://113.249.149.171/live/test; Username/password: Set according to RTMP streaming service platform needs. Once the configuration is complete, the RTMP streaming service appears as follows: Copyright © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... -
Page 29: Srt Streaming Service
Fill in the corresponding configuration parameters (reference to section 6.1.1.2) 2) Once the configuration is complete, you can switch between different source transformations in the source selection, and the SRT streaming service appears as follows: Copyright © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... -
Page 30: Rtsp Streaming Service
TS Advanced Options parameters for advanced users, require the background of research and development for TS stream. If there are no special requirements, it is recommended to use the default. Copyright © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... - Page 31 Note: When you configure the broadcast streaming method to get the URL is udp://225.6.6.6:1234, if you play with VLC Player, you need to insert a symbol @in the URL to play properly, i.e. udp://@225.6.6.6:1234. Copyright © Changsha KILOVIEW Electronics CO., LTD. All rights reserved...
-
