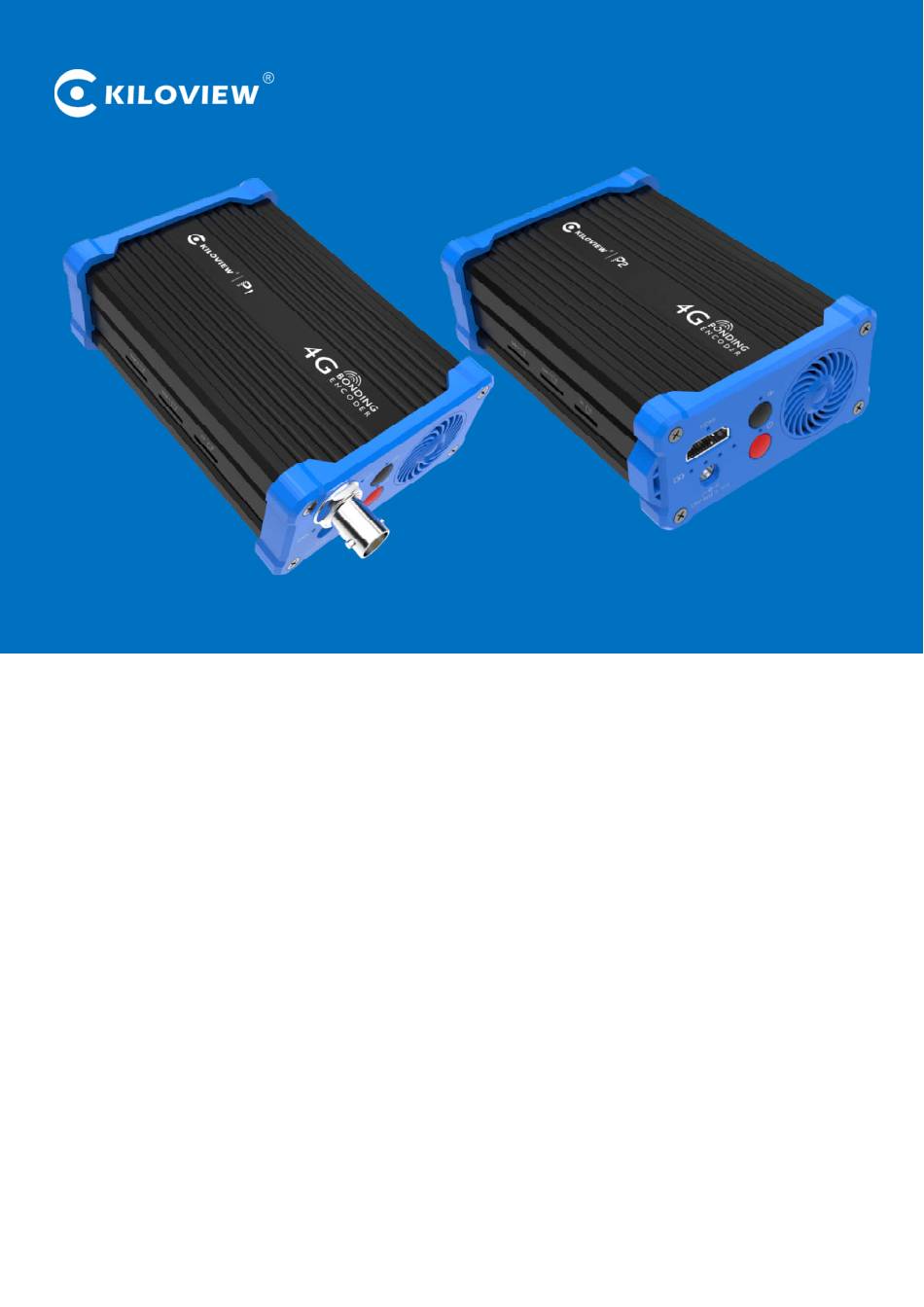

  • Page 1 P Series·4G Video Encoder USER MANUAL CO.,LTD. Changsha KILOVIEW Electronics...
  • Page 2 Legal Notices Subject to the receiving of this document from Changsha Kiloview Electronics Co., Ltd.,(Hereinafter referred to “Kiloview”), the following terms are understood and agreed. Or else, please stop using this document. This document is copyright of Kiloview, all rights reserved. The document covers the proprietary information of the company.

  • Page 3: Table Of Contents

    CONTENTS 1 PRODUCT INTRODUCTION..............................1 ..................................1 1.1 A DVANTAGES ..................................2 1.2 P ARAMETERS 2 OPERATION GUIDANCE...............................3 3 PACKING LIST AND INTERFACE DESCRIPTION......................4 ..................................4 3.1 P ACKING LIST ............................... 4 3.2 I NTERFACE DESCRIPTION ................................5 3.3 S IGNAL INDICATOR 4 INSTALLATION AND CONNECTION..........................
  • Page 4 6.7.1 Overlay Image Management............................38 6.7.2 Overlay function................................39 ..............................41 6.8 S ERVICE ONFIGURATION 6.8.1 Web Service Configuration............................41 6.8.2 Onvif Service Configuration............................41 6.8.3 Telnet Service Configuration............................42 6.9 S PTZ..............................42 ERIAL ORTS AND 6.9.1 Serial Ports.................................. 42 6.9.2 PTZ Setting.................................. 43 6.9.3 Control Panel................................43 ..............................

  • Page 5: Product Introduction

    P Series Encoder·User Manual 1 Product introduction P series video encoder is a professional high-end encoding device specially designed for mobile applications. It can encode SDI or HDMI video source , then transmit it to the internet live broadcast platforms through multi-channels 4G-LTE network (bonding). It also supports wired/WiFi network transmission.

  • Page 6: Parameters

    Micro SD/TF card , local recording,;NAS network storage Management Web/APP Hot shoe Removable Battery capacity 3.7V 6800mAh（29.6Wh） Power DC 12V 1A / 6.5W supply/Consumption Size/ Weight 115*75*35mm / 380g Working temperature -20℃~45℃ Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved...

  • Page 7: Operation Guidance

    Using a decoder or a PC player (such as VLC), it can pull the RTSP stream of the encoder directly.RTSP streaming services are continuously open.  Other streaming service If necessary, you can also configure devices to push RTMP, UDP, HLS and other video streams at the same time. Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved...

  • Page 8: Packing List And Interface Description

    Certificate/Warranty card 3.2 Interface description 1.SDI/HDMI input 2.Battery capacity/charge indicator 3. Power Supply 4.SDI/HDMI indicator 5.Streaming indicator 6.Streaming switch 7.Power indicator 8.Power switch Note:5 and 6 are only for customized functions Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved...

  • Page 9: Signal Indicator

    Flashing Connecting indicator Stop streaming WiFi Always on Working indicator WiFi disconnect Slow blink(200ms High/1800ms Low) Finding network Slow blink(1800ms High/200ms Low) Standby 4G indicator Fast blink(125ms High/125ms Low) Data transferring Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved...

  • Page 10: Installation And Connection

    1. While the device is powered on, the fan will start working when reaches a certain temperature. 2. While the device is powered off, the fan is working while charging. Note: Please use the standard power adapter provided. Using other unqualified power supplies may damage the device. Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved...

  • Page 11: Video Signal Connection

    Note: Encoder's push can be wired, wireless and 4G. If you use wireless or 4G networks, you must login through wired or hot spots to configure the device first. Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved...

  • Page 12: Login And Network Configuration

    Note: Due to the browser compatibility issues, it may cause the web page display abnormal, it is recommended to use Chrome and Firefox. After login, the encoding and function parameters can be set on the encoder management web page. The page is shown as below: Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved...

  • Page 13: Log In To The Device Through The Wifi Hotspot

    There are two ways to get the address, one is DHCP, and the other is to manual. To use DHCP to automatically obtain IP, you must first ensure that the router or switch has enabled the DHCP service. Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved...

  • Page 14: Wifi Network

    "192.168.250.254" in the browser of your mobile phone or laptop. As shown in the figure below, click “Set as Shared Hot spot”of WiFi 1 to customize the shared hot spot name and shared password. You can select the WiFi channel and the network card to be shared. Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved...
  • Page 15 Etherenet, if using DHCP, be sure that the wireless router has enabled the DHCP service (usually turned on). This method is simple and convenient, but the IP obtained by DHCP changes continuously, and you Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved...

  • Page 16: Network

    SIM card balance is sufficient, otherwise the network may not be available. You can plug the USB 4G card into the computer to test whether it can provide normal Internet service. Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved...
  • Page 17 After the device starts, click on the "Network & Service Settings" menu of the WEB interface to enter the "Network Manager"- "Wireless WAN" interface. Click "Configure" and manually "Add a New Wireless Broadband Connection". Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved...

  • Page 18: Easy Management Service

    192.168.1.168. Note: When accessing the device through a convenient managed IP address, your computer must have an IP address on the same network segment. Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved...

  • Page 19: Android App

     The device information shown in the list includes device interface information, device serial number, device IP address, etc.  Click the device from the device list to enter into management page. Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved...
  • Page 20  Click “Signal Source” for audio and video source choice page .  “Setting”are used for quick reset, device reboot, restoring factory settings and device name modifications. Click and enter into device information page. Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved...

  • Page 21: Parameters Configuration

    0%" means the network is good and streams can be pushed to the Internet normally. Note: If Ping public IP address is reachable, but Ping domain name is unreachable. Generally, it is because the DNS server configuration is incorrect. Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved...

  • Page 22: Basic Settings

    Users can go for some basic functions settings here. 6.2.1 Change WEB login password Click “Change Password”, an option box will pop up, users can modify the WEB login password, the default password is admin. Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved...

  • Page 23: Location And Time

    P Series Encoder·User Manual 6.2.2 Location and time Click “location and time”, then users can modify system time of the encoder, or just select “Synchronize from this PC”. Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved...

  • Page 24: Restore Factory Settings

    “Upgrade” to upgrade the device.The upgrade process is slow, around 30s to 1 minute, please be patient. After upgrading, kindly check whether the version information of the latest firmware is consistent with the expected status through the System Status-Software Version of the Web page. Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved...

  • Page 25: Video&Audio Adjustments

    1, but necessary in specific application.) (4) Rotation or flipping: It's the last step before encoding, you can rotate the video with 90/180/270 degrees, horizontal mirror or vertical flip. Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved...

  • Page 26: Audio Signal Source

    Above process is a pipeline from step 1 to step 4. You could choose to open, or prohibit it about each step. 6.3.3 Audio signal source “Auto selection” mode is automatically to select the embedded audio of the input video source. Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved...

  • Page 27: Encoding & Steam

    P Series Encoder·User Manual Note: P series products are without Analog Line in and doesn’t support adjust analog input gain. 6.4 Encoding & Steam 6.4.1 Audio encoding parameter setting Encoders can set audio encoding parameters. Click “Encoding &stream”, pull downward “Audio Encoding Engine”, then entering into audio parameters setting.

  • Page 28: Encoding And Stream Settings

    Video encoding parameters are adjustable. Click “Encoding &Stream”, pull downward “Encoding and stream settings” to enter below interface. We generally set parameters of “H.264 main stream”, click “Setting”. Note: It is H.264 Main stream, the second setting, not Motion JPEG setting. Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved...
  • Page 29  “Reference frames” has two options: one and multiframes. Theoretically using multiframes can improve encoding quality, but some decoders and players may not support multiframes. Substream parameter setting refers to Main stream configuration. Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved...

  • Page 30: Streaming Media Service

    P Series Encoder·User Manual 6.4.3 Streaming media service P series encoder currently support streaming services include: RTSP stream, RTMP push, TS-UDP push,HLS service, SRT service. One code stream can run up to 8 stream services at the same time for the encoder, which means it can push the video stream to 8 different live platforms.
  • Page 31 Click the settings button on the right side of the RTMP push, and you will enter the interface to fill in the RTMP push configuration. The push address on YouTube platform is filled in the "push point" , and set Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved...
  • Page 32 . Note: In the case of RTMPS push mode, fill in rtmps URL at Push point and set ‘Use old RTMP version’ to yes, so that it can be supported. Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved...
  • Page 33 No need to change Multicast TTL; If using multicast, “pushing target address” needs to write a correct multicast address (224.x.x.x ~ 239.x.x.x). “Target port” is any port, but it is better not conflicted with other service port. Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved...
  • Page 34 Using HLS service, the first thing is to “add a stream service”, then click right-side SET icon of “HLS service” for setting. Below is setting interface of HLS service. Very simple, if no special requirements, no need setting, only enable service. Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved...
  • Page 35 Once enabling service, it will get one HLS Publish point. You could watch it through VLC and other players using this address.  SRT service Click “Encoding & Stream”--“Encoding and Stream Settings”--“H.264 main stream”--“Add a stream”. Choose “SRT-TS pushing”, click “OK” and add a SRT service. Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved...
  • Page 36 (which can be understood as the payload), but it is different from our common protocol overhead, TCP header overhead, UDP header Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved...

  • Page 37: Local Recording

    6.5 Local recording P series encoders support local recording function. Encoder with TF card-slot can support TF recording and meanwhile it supports USB disk inserted into USB port of encoder for recording. The recording operation is as follows: 1) Click “Record”...
  • Page 38 It will record to the biggest available storage area. Recording format is TS file by default. Users could set recording for automatic cutting based on specified size. And when storage space is insufficient, it will automatically overwrite the old video file to achieve redundant storage. Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved...
  • Page 39  When no disks inserted or NAS network storage not set, the status will be as follows , dashboard will show “Stopped” Record status shows “No valid disks”and “No records”.  After inserted disks, the encoder will start recording automatically and the dashboard shows “Recording”. Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved...
  • Page 40 TF card unrecognizable. Sometimes, due to the influence of some files or programs in the TF card, the TF card can not be recognized. You need to format the TF card once. Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved...

  • Page 41: Network Storage（Nas

    NAS manager will show “Mounted” if NAS connection has been established, and there is a RECORD file under the Mount point. If the connection is abnormal, it will be displayed as “Mounting”. Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved...

  • Page 42: Text/ Image/Time Overlay

     Transparent color index: Manually specify an index color to erase background. Set tolerance (0%~100%) to control the similar color range selection.In most cases, transparent PNG images do not need to be processed manually. Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved...

  • Page 43: Overlay Function

    “Don't rotate follow picture”, please choose yes or no .Then choose “Add overlay item” to set overlay functions for “Text”, “Time” and “Image” respectively.You can set multiple overlays at the same time Add overlay item ( text) Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved...
  • Page 44  If the added image occupies the majority of the video screen, the actual bitrate and the set bitrate will be greatly reduced due to the low screen dynamic fluctuation.  For the image format, only JPEG and PNG supported . Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved...

  • Page 45: Service Configuration

    Onvif can discovery/manage this device, and get the video streams. Onvif is a 'Web Service' based protocol, you can even write your program to control this device by Onvif web service API. Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved...

  • Page 46: Telnet Service Configuration

    USB to Serial/FDTI chip/PL2303 chip. If the USB to RS232/RS422/RS485 converter (line) you inserted cannot be recognized and the converter chip is not supported by default, please replace the serial line. Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved...

  • Page 47: Ptz Setting

    Note:In the future, the PTZ function of Newtek Studio Monitor, ONVIF Device Manager and other software can be docked with the encoder control panel through product function docking, so as to realize the direct control of the front-end camera. Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved...

  • Page 48: Quick Reset And Reboot

    “Reboot” is used to restart the device software, it will take about 3 minutes. 6.11Logs and Debug System logs are available for download, which can be provided to technical service engineers for technical analysis. Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved...
  • Page 49 P Series Encoder·User Manual Thank you for reading. Changsha KILOVIEW Electronics CO.,LTD. Service Hotline：86-731-88315979 Website ：en.kiloview.com Technical support Email：support@kiloview.com WhatsApp: +86-18573195156/18573195256 Skype:kiloview-support/keqiu wang Address: 188#, Middle Huanbao Rd, Yuhua District, Changsha, Hunan Province, China Copyright © Changsha KILOVIEW Electronics CO.,LTD. All rights reserved...

This manual is also suitable for:

P1P2
