- Page 1 4K UHD VIDEO DECODER USER MANUAL Changsha KILOVIEW Electronics CO.,LTD.
- Page 2 Legal Notices Subject to the receiving of this document from Changsha Kiloview Electronics Co., Ltd.,(Hereinafter referred to “Kiloview”), the following terms are understood and agreed. Or else, please stop using this document. This document is copyright of Kiloview, all rights reserved. The document covers the proprietary information of the company.
-
Page 3: Table Of Contents
7.1 U ANAGEMENT ................................. 23 7.2 S YSTEM ..................................23 7.3 R ESET ....................................24 7.4 R EBOOT ..................................... 24 7.5 R ESTORE .................................... 24 7.6 F ..................................24 IRMWARE Copyright © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... -
Page 4: Product Introduction

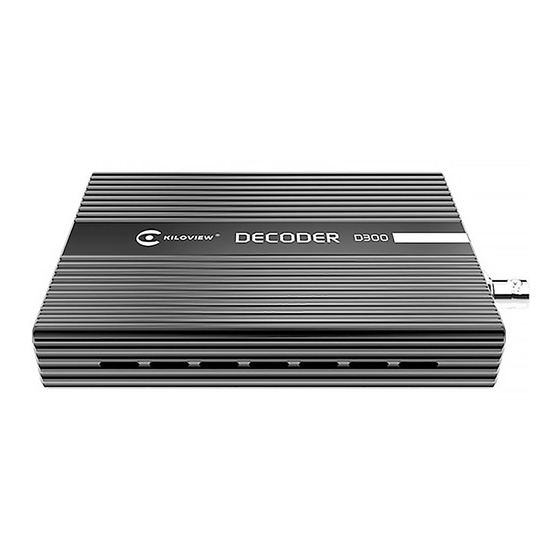

D300· User Manual 1 Product introduction Kiloview D300-4K UHD video decoder is a professional hardware decoding device that can decode multiple video streams without relying on a computer. It can decode multi-channel network video streams (from such as IP-Camera, RTSP/RTMP/SRT/NDI|HX unicast or multicast media stream etc.) to SDI signal and HDMI signal video output. -
Page 5: Operation Guidance
HDMI/SDI interface. Then drag the added video source to the output window and the decoder will start decoding it. If the decoding is normal, the video will be output. Copyright © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... -
Page 6: Packing List And Interface Description
3. SDI output 4. Reset 5.Audio output 6. Audio input 7. Working indicator 8. Power 9.100/1000M Ethernet port 1 10. 100/1000M Ethernet port 2 11. HDMI output 12. HDMI indicator Copyright © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... -
Page 7: Led Indicators
The signal is not locked or the device is reset to factory settings GREEN Flash (the light will also flash) Device/signal is abnormal Light Network is connected Flash Device factory reset indication (the light will also flash) GREEN Network is dis-connected Copyright © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... -
Page 8: Installation And Connection
Using SDI cable to connect SDI output interface with SDI display. Copyright © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... -
Page 9: Connect Network
192.168.1.* network segment. The specific steps are as follows (Take Win10 as an example): 1) Roll your mouse and click the network icon in the lower right corner, click on "Network and Internet Settings" and then click on "Network and Sharing Center"; Copyright © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... - Page 10 4) The computer defaults to "Obtain an IP address automatically", at which point you need to select "Use the following IP address", and manually enter the IP address 192.168.1.*and subnet mask, and click "OK". Copyright © Changsha KILOVIEW Electronics CO., LTD. All rights reserved...
- Page 11 6) After login, you can set decoding parameters and functional parameters on the Web page. The left window is for preview by default, the right one is the output 1/2 for decoding. Users can choose to close the preview window. The decoder page looks like this: Copyright © Changsha KILOVIEW Electronics CO., LTD. All rights reserved...
-
Page 12: Network Configuration
"DHCP Dynamic" and "Manual Set". The IP address obtained by DHCP may change, while the IP address specified manually is fixed for the convenience of device management. IP address configuration is according to the actual situation of your local network configuration. Copyright © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... - Page 13 IP address is manually configured or modified, otherwise the IP address may be lost. If you want to save the configuration immediately, you can restart the device once on the Web page. Copyright © Changsha KILOVIEW Electronics CO., LTD. All rights reserved...
-
Page 14: Function Configuration
The above picture shows how to add a video source by adding an RTSP source as an example. The steps for adding other types of video sources are the same. The parameters please refer to the table below. Copyright © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... -
Page 15: Add Srt Source
Port: Configure a listening port which should be consistent with the sending port; Latency: please set it according to the configuration of the video encode and the final delay will be the larger one between encoder and decoder. Default is 125ms; Copyright © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... -
Page 16: Add Ndi|Hx Video Source
"OK" (no need to fill in the IP address), the device will search for the NDI sources of these two group names at the same time (You are allowed to add multiple group names to search). Copyright © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... -
Page 17: Video Sources List
Stream: Full (main stream) and Preview (sub stream) optional; Play cache: Select the play cache according to the actual scene. Note: D300 only decodes NDI|HX Version 2.0 video source. For FULL NDI source, please choose other NDI products such as N3/N30/N4/N40. -
Page 18: Source Preview
Red “wrong” indicates the source is wrong and can not be decoded. Note: It is non-decoding status after video sources being added You need to drag it into the above output window, then D300 starts to connect to the source URL and decode the source. 6.3 Source preview Support local preview of video source on WEB page, click on the upper left corner to close the preview function. -
Page 19: Video Output Setting
Note: The browser preview does not support video sources containing B-frame encoding and H.265 encoding. 6.4 Video output setting D300 supports H.265/H.264 decoding and simultaneously output of the same and different sources or split screens. Take "Output 1" as an example for detailed description of the controls of the output window (shown as below): Copyright ©... - Page 20 Three modes can be selected: automatic mode, HDMI mode and DVI mode. If "Automation" is selected, the HDMI/DVI mode will be automatically selected according to the EDID description of the device Copyright © Changsha KILOVIEW Electronics CO., LTD. All rights reserved...
- Page 21 Click "Add Layout" to enter the layout editing page. Select the split screen layout, you can drag the size and overlay picture-in-picture of the multi-screen in the layout at will, and the layout can also be modified in real time while the layout is in use. Copyright © Changsha KILOVIEW Electronics CO., LTD. All rights reserved...
-
Page 22: Output Image And Osd Overlay
Logo/Background for the type, choose to upload a picture, and then save. Click the output (1/2) box setting that needs to be superimposed, select the picture or logo that needs to Copyright © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... - Page 23 ➢ Vertical offset: the offset position of the character in the vertical direction of the screen can be adjusted, the unit is character. Then set the overlay, select "Overlay Type", and perform the overlay function separately for the "Text" and "System Time" and the overlay items. Copyright © Changsha KILOVIEW Electronics CO., LTD. All rights reserved...
- Page 24 ➢ The outer border of the text: the adjustable range is 0-10px; ➢ Text color: text color can be selected; ➢ Border color: The color of the text border can be selected. Copyright © Changsha KILOVIEW Electronics CO., LTD. All rights reserved...
-
Page 25: Function Configuration
7.2 System Time Timing mode can be set: synchronization with current PC, manual timing and slave NTP server.Choose the right time zone to ensure the correct time from the NTP server. Copyright © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... -
Page 26: Reset
(depending on the size of firmware and network environment). After the device is restarted, you can click on the upper right button to see if the software version is consistent with the planned upgrade. Copyright © Changsha KILOVIEW Electronics CO., LTD. All rights reserved... - Page 27 D300· User Manual Thank you for reading Changsha KILOVIEW Electronics CO.,LTD. Service Hotline：86-731-88315979 Website：en.kiloview.com Technical support Email：support@kiloview.com WhatsApp: +86-18573195156/18573195256 Address: 188#, Middle Huanbao Rd, Yuhua District, Changsha, Hunan Province, China Copyright © Changsha KILOVIEW Electronics CO., LTD. All rights reserved...
