5: Cabling
Direct Connection with Failover
Controller B
76

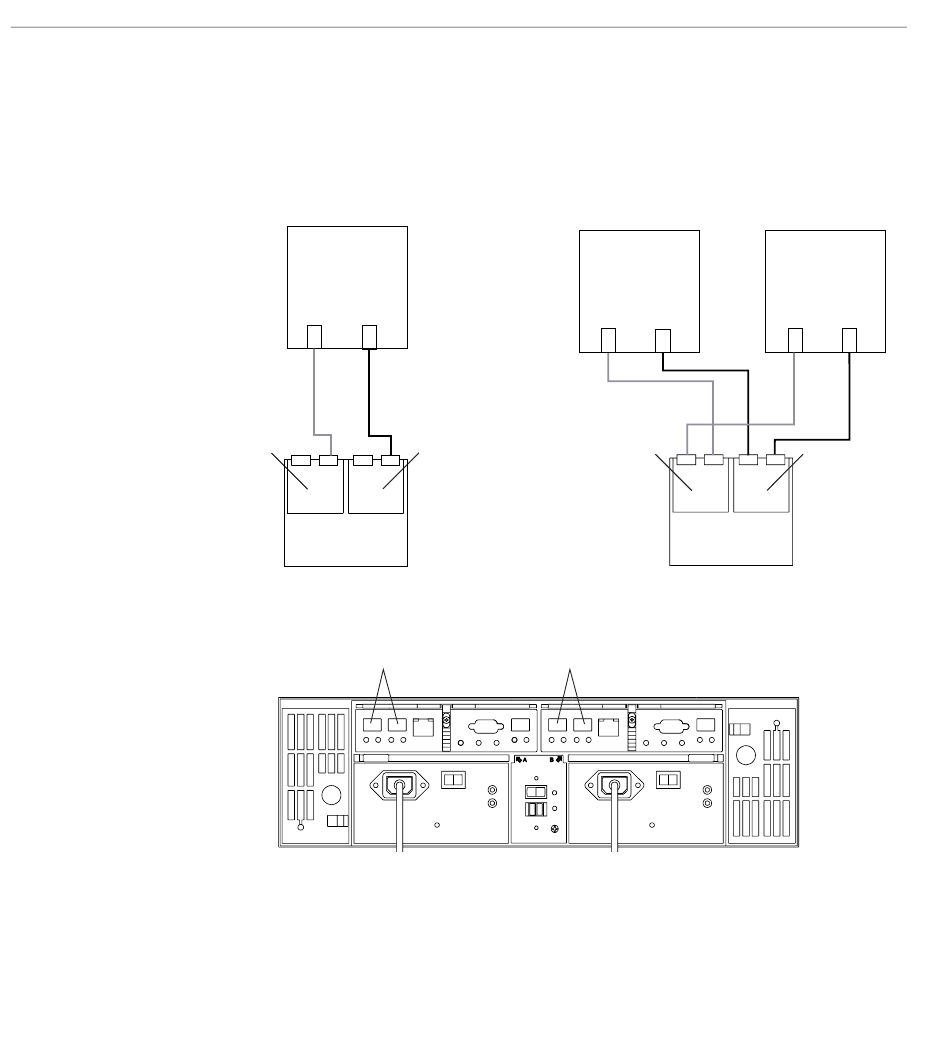

Figure 5-6 shows the possible configurations for direct connection systems with failover.
Direct connection to single
host with dual HBAs
Host
Controller
enclosure
Controller A
Host connectors
(SFP transceivers)
Figure 5-6 Direct Host Connection with Failover
Controller A Controller B
Controller B
Host connectors
(SFP transceivers)
Direct connection to dual
hosts with dual HBAs
Host 1
Controller
enclosure
Host 2
Controller A
