2: Storage Enclosures

Link Rate Switch

26
The link rate switch is located on the same panel as the enclosure ID switch, between the
power supplies on the rear of the enclosure (see Figure 2-9). The link rate switch controls
the speed of the Fibre Channel connections to the enclosure. This switch should always
be set to 2 Gbit/s. When there is a 2 Gbit/s link present, the 2-Gbit link rate LED
illuminates green.
Link rate switch

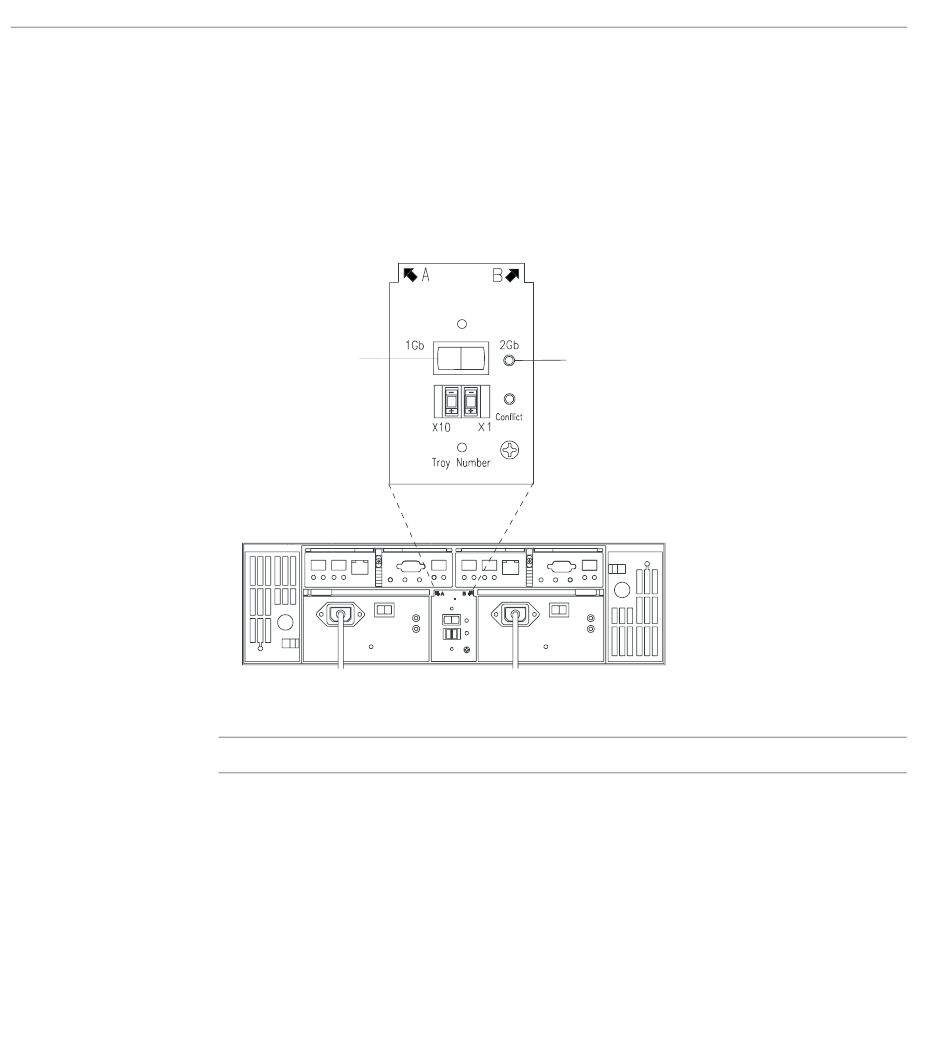

Figure 2-9 Link Rate Switch
Note: The link rate switches on all enclosures in a system should be 2 Gbit/s.
2-Gbit link rate LED
0 0
007-4644-003
