Assembly and Operating Instructions
en

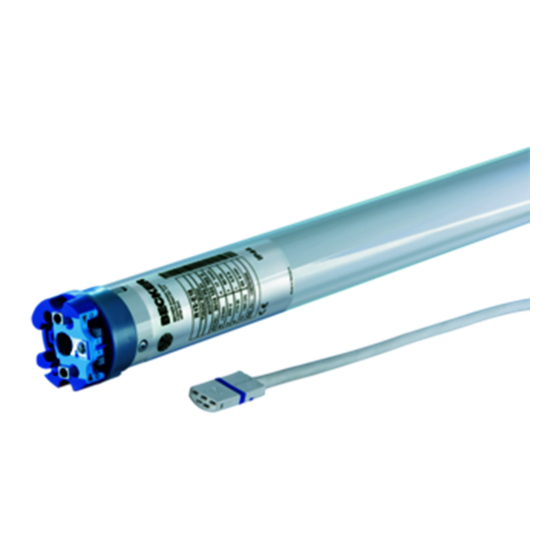

Tubular drives for roller shutters
Important information for:
• Fitters / • Electricians / • Users
Please forward accordingly!
These instructions must be kept safe for future reference.
2010 301 100 0 14/08/2018
Becker-Antriebe GmbH
Friedrich-Ebert-Straße 2-4
35764 Sinn/Germany
www.becker-antriebe.com
Advertisement
Table of Contents
Related Manuals for Becker E03a
Summary of Contents for Becker E03a
- Page 1 R12-17...R30-17 Model: E03a Assembly and Operating Instructions Tubular drives for roller shutters Important information for: • Fitters / • Electricians / • Users Please forward accordingly! These instructions must be kept safe for future reference. 2010 301 100 0 14/08/2018 Becker-Antriebe GmbH Friedrich-Ebert-Straße 2-4...
-
Page 2: Table Of Contents
Table of contents General .................................... 3 Warranty ..................................... 3 Safety instructions ................................ 4 Instructions for the user.............................. 4 Instructions for installation and commissioning........................ 4 Intended use .................................. 6 Drive version with angled plug ............................... 6 Installation................................... 8 Assembling the drive ............................... 8 Drive adapter safety catch ............................... -
Page 3: General
General These tubular drives are high-quality products with the following features: • Optimised for roller shutter operation • Automatic detection of limit positions thanks to intelligent electronic system with stop systems ∙ Secure anti-lifting device ∙ Slight pressure applied to the roller shutter curtain makes it difficult to raise or reach under it ∙... -
Page 4: Safety Instructions
Safety instructions The following safety instructions and warnings are intended to avert hazards and to prevent property damage and personal injury. Instructions for the user General information • The drive must be disconnected from its power source during cleaning and maintenance and when re- placing parts. - Page 5 • Hazardous moving parts of the drive must be installed at a height of over 2.5 m above floor level or any other surface from which the drive can be accessed. • To ensure safe operation of the system after commissioning, the limit positions must be correctly set/ programmed in.
-
Page 6: Intended Use
Intended use The type of tubular drive described in these instructions is intended solely for the operation of roller shutters. This type of tubular drive supports not only curtain attachment by means of springs but also mechanical anti-lifting devices (e.g., Zurfluh-Feller, Simu, GAH Alberts and Deprat). - Page 7 Disassembling the plug-in connecting cable for tubular drives with angled plug Caution Prior to disassembly, the power supply to the connecting cable must be disconnected. Insert a suitable flathead screwdriver right into the recess of the locating latch, so that the latch releases the locating lug from the plug.
-
Page 8: Installation
Installation Assembling the drive Attention To connect the drive to the driven part, solely mechanical accessory components made by the drive manufacturer from the current product catalogue may be used. Prior to mounting, the fitter must ensure that the masonry and the system being motorised are sufficiently robust (drive torque plus weight of the shading solution). -
Page 9: Disassembling The Drive Adapter With Safety Catch On The Drive Shaft
Disassembling the drive adapter with safety catch on the drive shaft Disassembly with disassembly tool, Item no. 4930 300 606 0 Disassembly with long nose pliers Assembling and disassembling the drive adapter with separate drive adapter safety catch Assembling and disassembling the drive adapter with screw connection Mounting the drive in the tube For profile tubes: In the case of some drive adapters, tolerances of the groove widths in different bar-... - Page 10 For round shafts: Measure the lug of the thrust ring (X, Y). Then notch the tube on the motor side, so the lug of the thrust ring can also be pushed into the shaft. There must be no play between the lug of the thrust ring and the shaft. To ensure secure torque transmission for round shafts, we recommend screwing the drive adapter to the shaft (see the table below).
-
Page 11: Setting The Limit Positions Using The Programming Unit
Setting the limit positions using the programming unit Programming unit for drives with electronic limit switching. Programming button Travel button Attention The programming unit is only designed for the commissioning, not for continuous opera- tion. Intelligent installation management Limit position status indicator A brief stopping and restarting indicates that no limit position has been set in that direction of movement. - Page 12 Upper point to lower point There is no shading solution length adjustment with this limit position setting. Open to the desired upper limit position. Press the programming button of the programming unit for 3 seconds. ▻ The tubular drive makes a “click” sound to confirm. Then close to the desired lower limit position.
-
Page 13: Deleting The Limit Positions Using The Programming Unit
Deleting the limit positions using the programming unit Connect the wires of the tubular drive to those of the same colour in the programming unit and switch on the power supply. Please pause for 1 sec after the last drive command before beginning the deletion se- quence. -
Page 14: Adjusting The Limit Positions With A Rotary Switch Or A Locking Button
Adjusting the limit positions with a rotary switch or a locking button Intelligent installation management Limit position status indicator A brief stopping and restarting indicates that no limit position has been set in that direction of movement. Completion of installation following automatic setting of limit position "Stop" The drive saves the limit position "Stop"... - Page 15 Upper point to lower point There is no shading solution length adjustment with this limit position setting. Open to the desired upper limit position. Carry out the following sequence without interruption between the individual drive commands. ▻ The tubular drive makes a "click" sound to confirm. until STOP and hold until Then close to the desired lower limit position.
-
Page 16: Deleting The Limit Positions With A Rotary Switch Or A Locking Button
Upper point to lower stop Open to the desired upper limit position. Carry out the sequence between the individual drive commands without pausing: ▻ The tubular drive makes a "click" sound to confirm. until STOP and hold until Then close to the permanent lower stop without pausing. During travel, the end posi- tion status indicator (ESI) must be displayed before the end position is reached. -
Page 17: Upper Anti-Freeze Mechanism
Upper anti-freeze mechanism The upper anti-freeze mechanism helps to prevent the roller shutter from freezing in the upper limit position, as the roller shutter stops just before the upper stop. The distance from the upper stop is automatically cyclically checked and, if necessary, correc- ted. -
Page 18: Technical Data Dia. 45
Technical data dia. 45 Tubular drive R12-17 R20-17 R30-17 Model E03a Type ROP+ A Rated torque [Nm] Output speed [rpm] Limit switch range 64 revolutions Supply voltage 240 V AC / 50 Hz Connected load [W] Rated current consumption [A] 0.50... -
Page 19: What To Do If
What to do if...? Problem Cause Remedy The roller shutter curtain is raised un- 1. One or more attachments have Repair system; then re-program limit po- evenly or not at all. broken off. sitions. 2. Lath has broken off. Tubular drive overruns the upper limit po- Stops have broken off. -
Page 20: Sample Wiring Diagrams
Sample wiring diagrams The assignment of the black and brown wires according to the direction of travel is de- pendant on how the drive is installed (mounted to the right or to the left). Controlling one/several drive(s) via a single switch/button... - Page 21 Central, group and individual control using Centronic UnitControl UC42 Central Control unit Mains 230 V / 50 Hz Central cable 230 V / 50 Hz (connection to further control units) Group 230 V / 50 Hz Individual Individual 230 V / 50 Hz 230 V / 50 Hz...
