L35-8...L120-3
Model: M06
Assembly and Operating Instructions
en

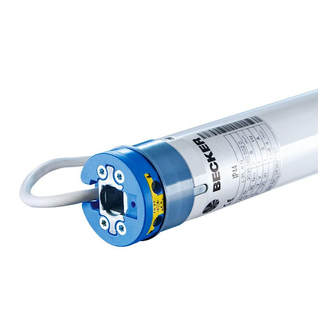

DC tubular drives
Important information for:
• Fitters / • Electricians / • Users
Please forward accordingly!
These instructions must be kept safe for future reference.
2010 300 234 0i 12/09/2022
Becker-Antriebe GmbH
Friedrich-Ebert-Straße 2-4
35764 Sinn/Germany
www.becker-antriebe.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Becker L120-3-M06
Summary of Contents for Becker L120-3-M06
- Page 1 Assembly and Operating Instructions DC tubular drives Important information for: • Fitters / • Electricians / • Users Please forward accordingly! These instructions must be kept safe for future reference. 2010 300 234 0i 12/09/2022 Becker-Antriebe GmbH Friedrich-Ebert-Straße 2-4 35764 Sinn/Germany www.becker-antriebe.com...
-
Page 2: Table Of Contents
Table of contents General .................................... 3 Warranty ..................................... 3 Safety instructions ................................ 4 Instructions for the user.............................. 4 Instructions for installation and commissioning........................ 4 Intended use .................................. 5 Assembly .................................... 6 Setting the limit positions.............................. 8 Information for the electrician ............................... 9 Disposal .................................... -
Page 3: General
General These tubular drives are high-quality products with the following features: • For use with roller shutters • For use with sunblinds • Can be operated with safe extra-low voltage • Easy limit switch setting on the drive Please observe these Assembly and Operating Instructions when installing and setting up the equipment. The date of manufacture comes from the first four digits of the serial number. -
Page 4: Safety Instructions
Safety instructions The following safety instructions and warnings are intended to avert hazards and to prevent property damage and personal injury. Instructions for the user General information • The drive must be disconnected from its power source during cleaning and maintenance and when re- placing parts. -
Page 5: Intended Use
• If the drive is used for shading solutions in a specially marked area (e.g., escape routes, hazard zones, safety areas), compliance with all applicable regulations and standards must be ensured. • Once the drive has been installed, the fitter must mark the used tubular drive in the “Technical data” chapter and make a note of the installation position. -
Page 6: Assembly
Assembly Assembling the drive Attention To connect the drive to the driven part, solely mechanical accessory components made by the drive manufacturer from the current product catalogue may be used. Prior to mounting, the fitter must ensure that the masonry and the system being motorised are sufficiently robust (drive torque plus weight of the shading solution). - Page 7 Assembling and disassembling the drive adapter with drive adapter safety catch or screw connection Assembling and disassembling the drive Assembling and disassembling the drive adapter with separate drive adapter adapter with screw connection safety catch Mounting the drive in the tube For profile shafts: In the case of some drive adapters, tolerances of the groove widths in different barrels can be offset by rotating the drive adapter into a different groove recess.
-
Page 8: Setting The Limit Positions
Setting the limit positions Upper limit position Lower limit position Lower limit position Upper limit position Setting the lower limit position 1. Before the shading solution is fixed to the barrel, let the drive run DOWN until it switches off automatically. 2. -
Page 9: Information For The Electrician
Information for the electrician It must be ensured that a sufficient power supply is guaranteed for operation with the nominal load. Attention Regenerative operation should not occur during application. Only use mechanically or electrically locked switching elements with a marked zero position! The changeover time for switching the running direction must be at least 0.5 s. -
Page 10: What To Do If
What to do if...? Problem Cause Remedy The roller shutter curtain is raised un- 1. One or more attachments have Repair system; then reset the limit posi- evenly or not at all. broken off. tions. 2. Lath has broken off. Tubular drive stops arbitrarily;... -
Page 11: Declaration Of Conformity
Declaration of conformity For UK-Markets: The Declaration of Conformity can be provided upon request from Becker Motors Ltd., or can be downloaded on www.beckermo- tors.co.uk. 11 - en...
