Step 1: Check what's in the box
KC-Virtual Brain5 Control Server
1 Power supply (12V DC) with adapters for US, UK, and EU
Step 2: Get to know your KC-Virtual Brain5
#
Feature
1
HDMI OUT Connector
2
RJ-45 Port
3
HDMI IN Connector
4
Power Connector
5
Power Button with LED
6
USB 3.0 Connectors (x2)
7
USB 2.0 Connector
8
Micro SD Card Slot
9
N/A
10
Lock Anchor
The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Step 3: Mount KC-Virtual Brain5
Install KC-Virtual Brain5 using one of the following methods:
•
Place KC-Virtual Brain5 on a flat surface.
•
When mounting on a wall, install the VESA mounting plate with 4 screws, insert the 2 hand-tightened screws into the
bottom of the device, and mount the device on the mounting plate using the 2 screws.
• Ensure that the environment (e.g., maximum ambient temperature & air flow) is compatible with the device.
• Avoid uneven mechanical loading.
• Appropriate consideration of equipment nameplate ratings should be used for avoiding overloading of the circuits.
• Reliable earthing of rack-mounted equipment should be maintained.
• Maximum mounting height for the device is 2 meters.
KC-Virtual Brain5 Quick Start
KC-Virtual Brain5 Quick Start Guide
This guide helps you install and use your KC-Virtual Brain5 for the first time.
Go to
www.kramerav.com/downloads/KC-Virtual Brain5
firmware upgrades are available.
Function
Connect to an HDMI sink.
Connect to a LAN (default mode).
Connect to an HDMI source.
Connect to the 12V DC power supply.
Press to power ON or turn OFF the device.
Connect to USB devices, for example, a keyboard and a mouse.
Connect to a USB device, for example, a keyboard or mouse.
Not in use.
Use to lock the device to the desk.
to download the latest user manual and check if
1 VESA mounting bracket
1 VESA screw set
P/N: 2 9 0 0 - 3 0 1 6 5 3 QS
1 Quick start guide
Rev: 2
Advertisement
Table of Contents
Related Manuals for Kramer KC-Virtual Brain5
Summary of Contents for Kramer KC-Virtual Brain5

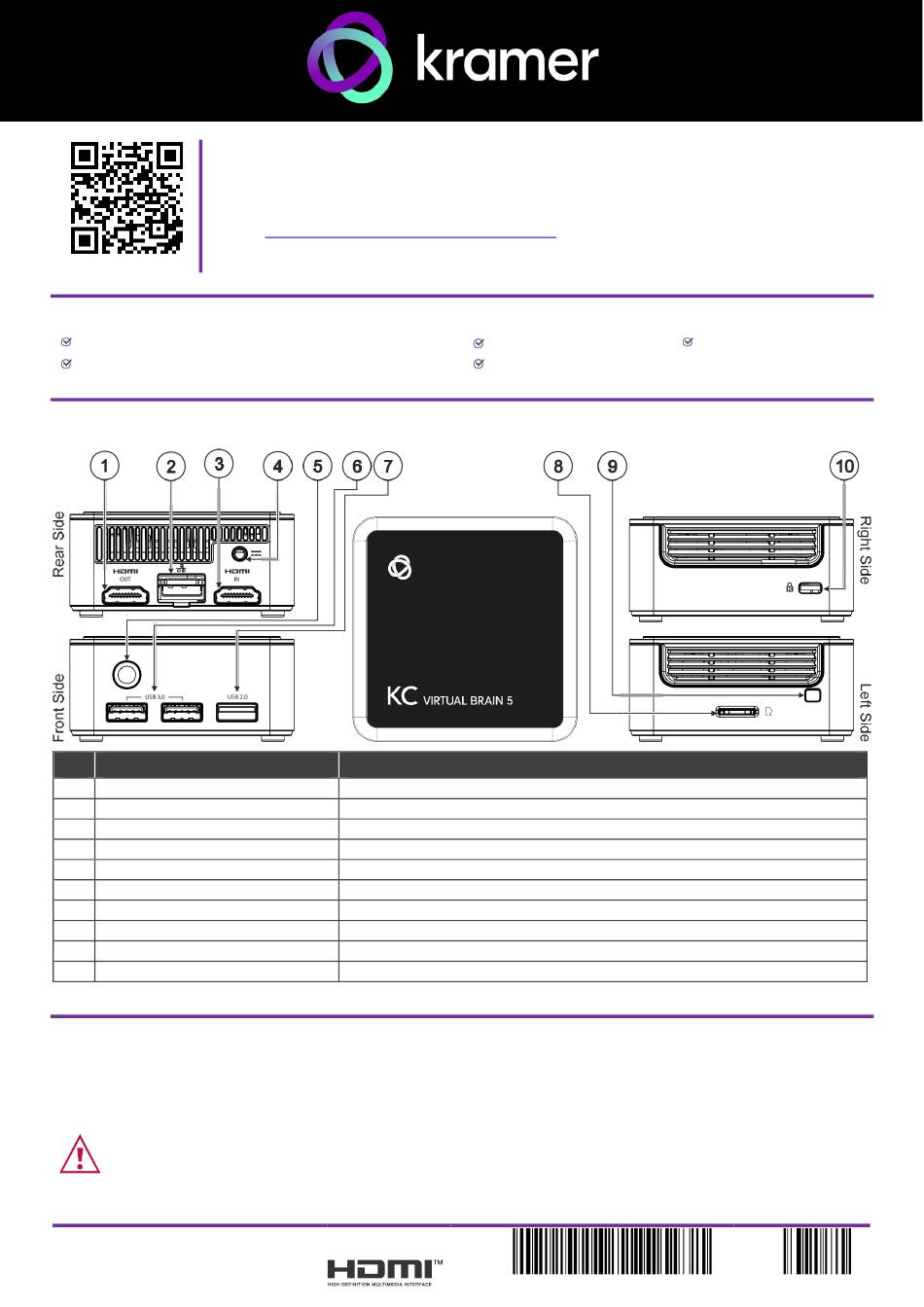

- Page 1 KC-Virtual Brain5 Quick Start Guide This guide helps you install and use your KC-Virtual Brain5 for the first time. Go to www.kramerav.com/downloads/KC-Virtual Brain5 to download the latest user manual and check if firmware upgrades are available. Scan for full manual Step 1: Check what’s in the box...
- Page 2 If direct connectivity to KC-Virtual Brain5 is required, connect the device as shown below. Always switch OFF the power on each device before connecting it to your KC-Virtual Brain5. To achieve specified extension distances, use the recommended Kramer cables available at www.kramerav.com/product/KC-Virtual Brain5.
- Page 3 DHCP server is recommended. You may need to contact your IT manager to get the IP of your brain. To operate KC-Virtual Brain5 , you need to follow the steps below: 1. Open a browser and enter Brain <IP_Address>:8090/docker.html in the URL.
- Page 4 Click RESTART or STOP to restart or stop the brains. Click LOG to download the logs. A zip file is created in the download directory. Host Network If you want to work with different network parameters, contact your local service engineer. The URL to access the brain is <IP_Address>:8001/kramer-ui/index.html.
