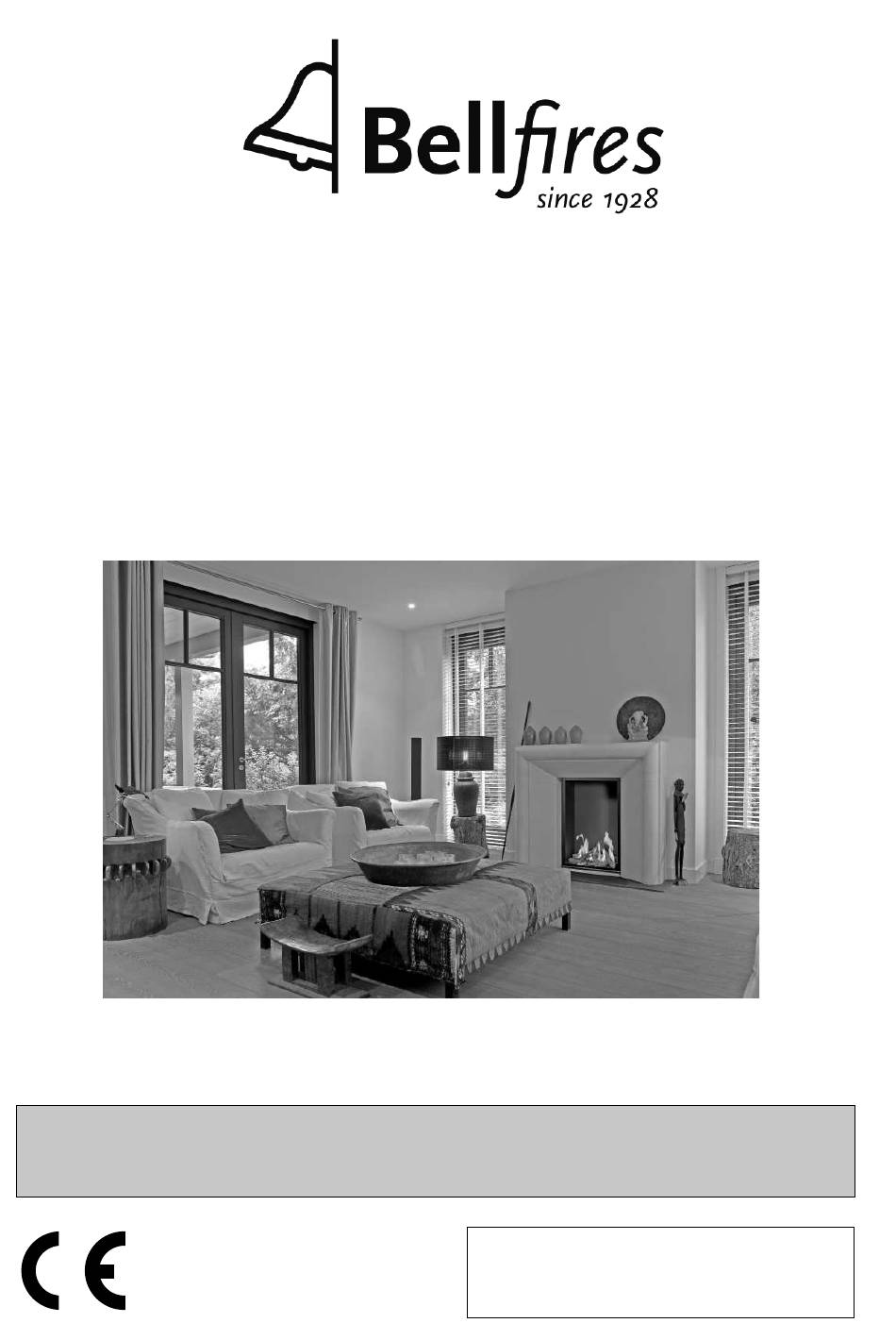

INSTRUCTIONS FOR USE &
MANUAL DAILY MAINTENANCE
VERTICAL BELL SMALL 3 CF/LF
Gas fi re with closed combustion system
Bellfi res wishes you many cosy evenings with your new Bellfi res gas fi re
This document is an essential part of your gas fi re.
Read it carefully before use of the gas fi re and keep it in a safe place!
Serial number:
Production date:
Advertisement
Related Manuals for Bellfires VERTICAL BELL SMALL 3 CF
Summary of Contents for Bellfires VERTICAL BELL SMALL 3 CF
- Page 1 INSTRUCTIONS FOR USE & MANUAL DAILY MAINTENANCE VERTICAL BELL SMALL 3 CF/LF Gas fi re with closed combustion system Bellfi res wishes you many cosy evenings with your new Bellfi res gas fi re This document is an essential part of your gas fi re.
- Page 3 Bellfi res English BELLFIRES GAS FIRE WITH CLOSED COMBUSTION SYSTEM: Vertical Bell Small 3 CF (Centre Fire) (VBS3 CF) Vertical Bell Small 3 LF (Line Fire) (VBS3 LF) Instructions for use...
- Page 4 Bellfi res English Instructions for use...
-
Page 5: Table Of Contents
Bellfi res English CONTENTS Page 1. WARRANTY TERMS ................. 2. INSTRUCTIONS FOR USE ............... 3. USING THE APPLIANCE FOR THE FIRST TIME ........4. DAILY MAINTENANCE ................5. ANNUAL MAINTENANCE ................Instructions for use... - Page 6 Bellfi res English Instructions for use...
-
Page 7: Warranty Terms
Bellfi res English WARRANTY TERMS Interfocos Warranty terms Interfocos B.V. guarantees the quality of the supplied Bellfi res hearth and the quality of the materials used. All Bellfi res hearths are developed and manufactured according to the highest possible quality standards. If, despite all this, something should prove amiss with the Bellfi... - Page 8 Bellfi res English it has not be used or maintained according to the instructions for use; it has been changed, neglected or roughly treated; it has been damaged as a result of external causes (outside the hearth itself), for example, lightning strike, water damage or fi re; 3.2.
-
Page 9: Instructions For Use
Bellfi res English INSTRUCTIONS FOR USE INTRODUCTION Congratulations on your purchase of this modern Bellfi res gas fi re. This quality product will provide you with many years of enjoyment due to the fl ame effect and warmth that it provides. - Page 10 The appliance is supplied with a “Centre Fire” or “Line Fire” double burner, as ordered, from the factory. These burners each have their own specifi c fl ame effect, see below for an impression. Vertical Bell Small 3 CF The appliance is supplied with a “Centre Fire” double burner: Both burners ON...
- Page 11 Bellfi res English Only front burner ON Vertical Bell Small 3 LF The appliance is supplied with a “Line Fire” double burner: Both burners ON Only front burner ON Natural gas: The above sketches provide an impression of the fl ame effect. This can differ from reality.
- Page 12 Bellfi res English Butane en Propane: The fl ame effect produced by butane and propane is less realistic than with natural gas. The fl ame effect is less as far as fl ame volume and height are concerned! OPERATION: REMOTE CONTROL 2.4.1 General Read these instructions carefully before lighting the fi...
- Page 13 Bellfi res English The hand-held transmitter and receiver are powered by batteries. Hand-held transmitter : 2x 1.5V battery type LR03 or AAA. Receiver : 4x 1.5V battery type LR06 or AA. Option : 6V adapter (230 VAC). Available from your fi tter. Note: Hand-held transmitter and receiver are not interchangeable with previous models.
- Page 14 Bellfi res English Signal Time Child proof Indicator Thermostatic Mode Battery Status Countdown Timer Fahrenheit or Celsius: °F/12 hour or °C/24 hour Program Eco Mode Mode Temperature AUX-Function: indicates that both “front burner” and “rear burner” are ON Figure 2: Display hand-held transmitter (8-Symbol display) SETTING FAHRENHEIT OR CELSIUS •...
- Page 15 Bellfi res English SETTING THE TIME • Pres buttons simultaneously. Day fl ashes. • Press button to select a number to correspond with the day of the week (e. g. 1= Monday, 2 = Tuesday, 3 = Wednesday, 4 = Thursday, 5= Friday, 6 = Saturday, 7= Sunday).
- Page 16 Bellfi res English Figure 3: Receiver “RESET” button Burner: The appliance’s entire burner consists of a “front burner” and a “rear burner”. Burner operation described below applies to: Both “front burner” and “rear burner”. (The -symbol (AUX -function) on the hand-held transmitter’s display is visible.) Only “front burner”.
- Page 17 Bellfi res English Hand-Held Transmitter One-Button Operation (Default Setting) • Press button until two short beeps and a blinking series of lines confi rms the start sequence has begun; release button. • Main gas fl ows once pilot ignition is confi rmed. •...
- Page 18 Bellfi res English Important: • If the pilot fl ame goes out for any reason, wait for 5 minutes before attempting to re-light it. • If the pilot light does not ignite after 3 ignition attempts; close the gas tap and warn the fi tter. •...
- Page 19 Bellfi res English STAND-BY MODE (PILOT LIGHT) • Press button and hold to set appliance to pilot light. We recommend to let the pilot light burn in the winter months, to prevent condensation on the inside of the glass. SETTING THE FLAME HEIGHT / EXTINGUISHING THE FIRE (STAND-BY) Gradually decrease fl...
- Page 20 Bellfi res English Gradually increase fl ame height • Press button and hold to increase the fl ame level and to turn on the burner from the stand-by position. (Pressing briefl y the button gradually increases the fl ames to the high position.) Flame height directly to maximum position •...
- Page 21 Bellfi res English TURNING THE “REAR BURNER” ON AND OFF After igniting the pilot light and the burner, the “front burner” is turned on (ON) and the “rear burner” remains in the last chosen setting. Turning on the “rear burner” •...
- Page 22 Bellfi res English COUNTDOWN TIMER ON / SETTING • Press button and hold until displayed, and hour fl ashes. • To select hour press button. • To confi rm press button. Minutes fl ash. • To select minutes press button. •...
- Page 23 Bellfi res English MODES OF OPERATION Thermostatic Mode The room temperature is measured and compared to the set temperature. The fl ame height is then automatically adjusted to achieve the set temperature. Program Mode PROGRAMS 1 and 2, each can be programmed to go on and off at specifi...
- Page 24 Bellfi res English THERMOSTATIC MODE 1. Press button. 2. displayed, preset temperature displayed briefl y, and then room temperature displayed. 1. Press button. 2. Press button to enter Manual Mode. 3. Press button to enter Program Mode. 4. Press button to enter Eco Mode. SETTING 1.
- Page 25 Bellfi res English PROGRAM MODE 1. Press button. , 1 or 2, ON or OFF displayed. 1. Press button to enter Manual Mode. 2. Press button to enter Thermostatic Mode. 3. Press button to enter Eco Mode. Note: The set temperature for Thermostatic Mode is the temperature for the on time in Program Mode.
- Page 26 Bellfi res English DAY SETTING fl ashes. Press button to choose between , 1, 2, 3, 4, 5, 6, 7. 6. To confi rm press button. selected ON TIME SETTING (PROGRAM 1) , 1, ON displayed, is displayed shortly, and hour fl ashes. 8.
- Page 27 Bellfi res English Note: Either continue to PROGRAM 2 and set on and off times or stop programming at this point, and PROGRAM 2 remains deactivated. Note: PROGRAM 1 and 2 use the same on (Thermostatic) and off temperatures for and Daily Timer (1, 2, 3, 4, 5, 6, 7).
- Page 28 Bellfi res English Faults • If the signals from the hand-held transmitter do not seem to be reaching the receiver, the cause may be: * Spent batteries: replace the batteries. * An electronic problem: press the “RESET” button on the receiver. •...
-
Page 29: Using The Appliance For The First Time
Bellfi res English USING THE APPLIANCE FOR THE FIRST TIME The gas fi re is coated with a lacquer layer resistant to high temperature. During the fi rst hours of operation, the burning in of the lacquer may result in an unplea- sant smell. -
Page 30: Daily Maintenance
Bellfi res English DAILY MAINTENANCE • Ensure that as little dust, and as few particles of cigarette smoke, candles and oil lamps as possible pollute the air in the room in which the appliance is used. Heating of these particles by the convection system of the appliance could lead to discoloration of the walls and ceiling. -
Page 31: Annual Maintenance
Bellfi res English ANNUAL MAINTENANCE It is essential that the appliance, the fl ue and the burner air intake are cleaned and inspected annually by a recognised fi tter/gas specialist. The safe operation of the appliance will thus remain guaranteed. Please refer also to the Installation instructions that are supplied separately with each appliance. - Page 32 Your Bellfi res dealer 01 - 201015 - 341501...
