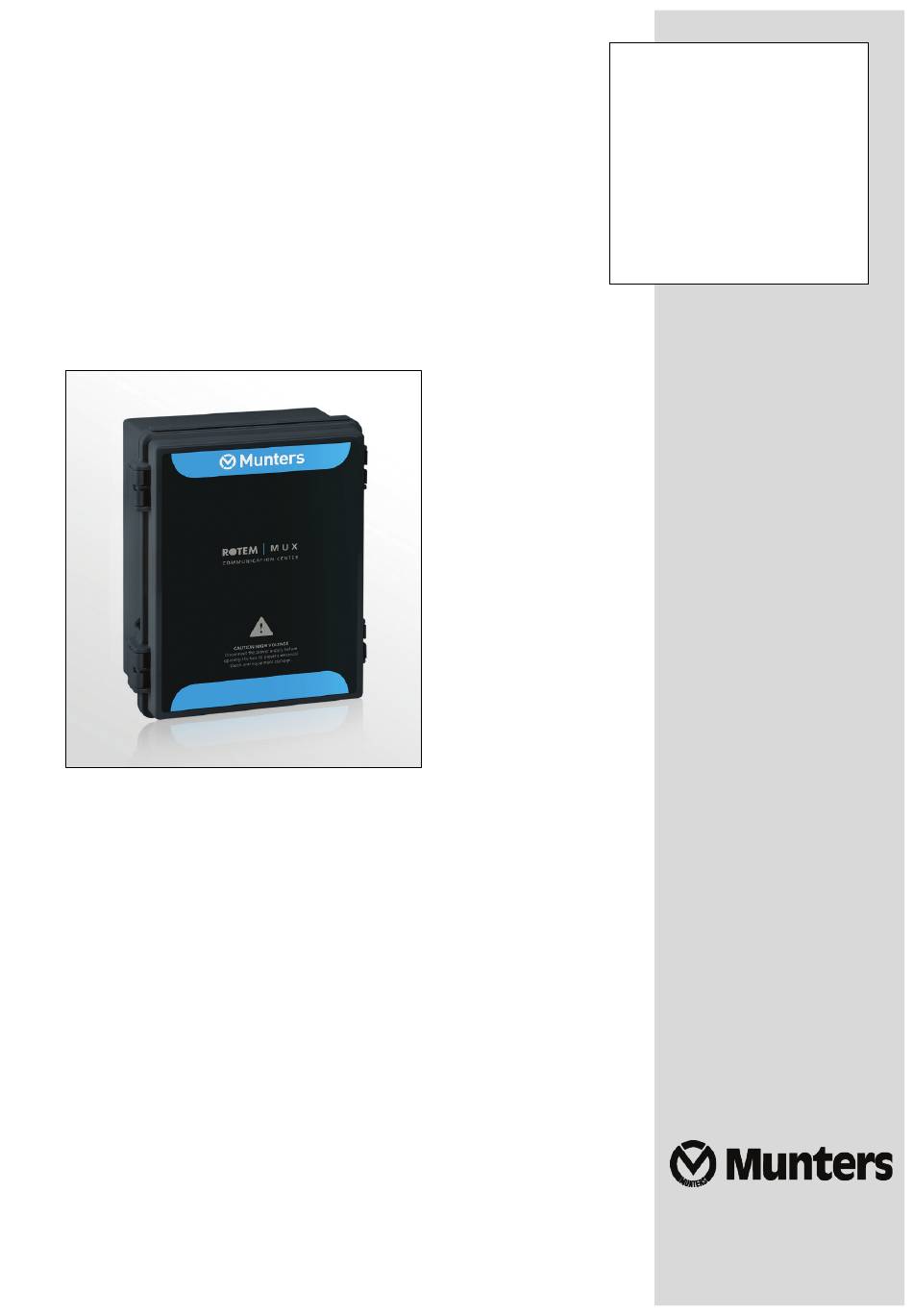

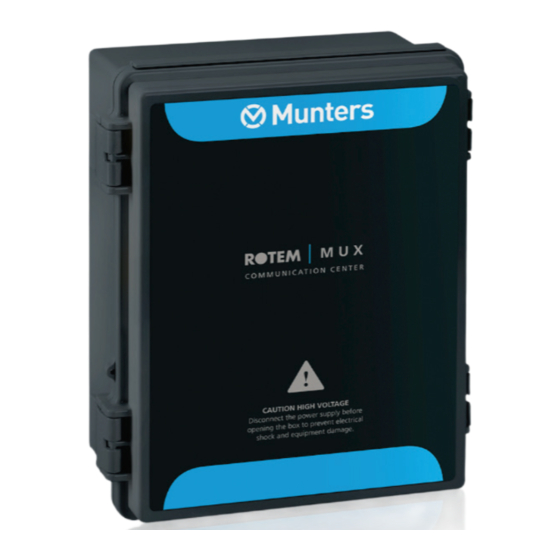

- Page 1 MUX 2/MUX 3 Manual for use and maintenance Communication Box RS-232 Communication Ag/MIS/UmGB-2153-11/13 rev 1.0 P/N: 116210...
- Page 2 Munters reserves the right to effect modifications to the apparatus in accordance with technical and legal developments. © Munters AB, 2014...
-
Page 3: Table Of Contents
Notes ............................4 Overview .............................. 5 PC Terminal Connection ....................... 5 Modem Terminal Connection ...................... 5 Environmental Protection ......................6 Wiring Diagram ..........................6 RS-232 to Controllers Wiring Diagram ..................7 Troubleshooting ..........................8 Warranty .............................. 9 © Munters AB, 2014... -
Page 4: Introduction
The information contained herein has been prepared by qualified experts within Munters. While we believe the information is accurate and complete, we make no warranty or representation for any particular purposes. The information is offered in good faith and with the understanding that any use of the units or accessories in breach of the directions and warnings in this document is at the sole discretion and risk of the user. -
Page 5: Overview
2 Overview The Munters MUX enables in line communication between controllers and a PC. The COMMUNICATION BOX has an AC voltage input on the left side of the box, and • 3-communication terminals. The left side terminal (RS-232) is connected to the controllers in the houses, the second one •... -
Page 6: Environmental Protection
The speed (baud rate) depends on cable length, number of houses, and level of noise in the lines. These results are lab tested and may vary in the field according to other parameters. CAUTION Munters guarrentees the results shown in the above table only when employing AWG- 24 shield cable (or better). © Munters AB, 2014... -
Page 7: Rs-232 To Controllers Wiring Diagram
3: Connect the cable shields only at 1) one end 4: Connect shield to GND of every cable 2) one end of each house 5: Neutral 6: Modem (priority channel) 7: COM 1, 2 8 PC © Munters AB, 2014... -
Page 8: Troubleshooting
Steady On or Off No RS-232 data to controllers Blinking RS-232 data sent to modem. Steady On or Off No RS-232 data to modem Blinking RS-232 data to PC. Steady On or Off No RS-232 data to PC © Munters AB, 2014... -
Page 9: Warranty
12 months of the delivery of the defective product. Munters has thirty days from the date of receipt in which to take action, and has the right to examine the product at the customer’s premises or at its own plant (carriage cost to be borne by the customer). - Page 10 The use of non-original spare parts or incorrect assembly exonerates the manufacturer from all liability. Requests for technical assistance and spare parts can be made directly to the nearest Munters office. A full list of contact details can be found on the back page of this manual.
- Page 11 Munters Brasil Industria e Comercio Ltda, Phone +55 41 3317 5050, Canada Munters Corporation Lansing, Phone +1 517 676 7070, China Munters Air Treatment Equipment (Beijing) Co. Ltd, Phone +86 10 80 481 121, Denmark Munters A/S, Phone +45 9862 3311, India...
