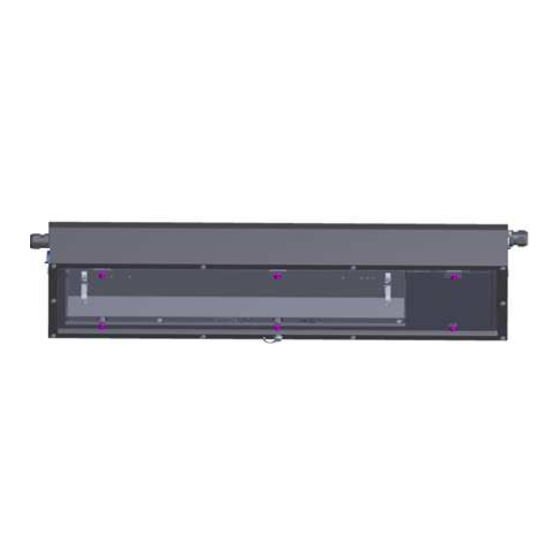

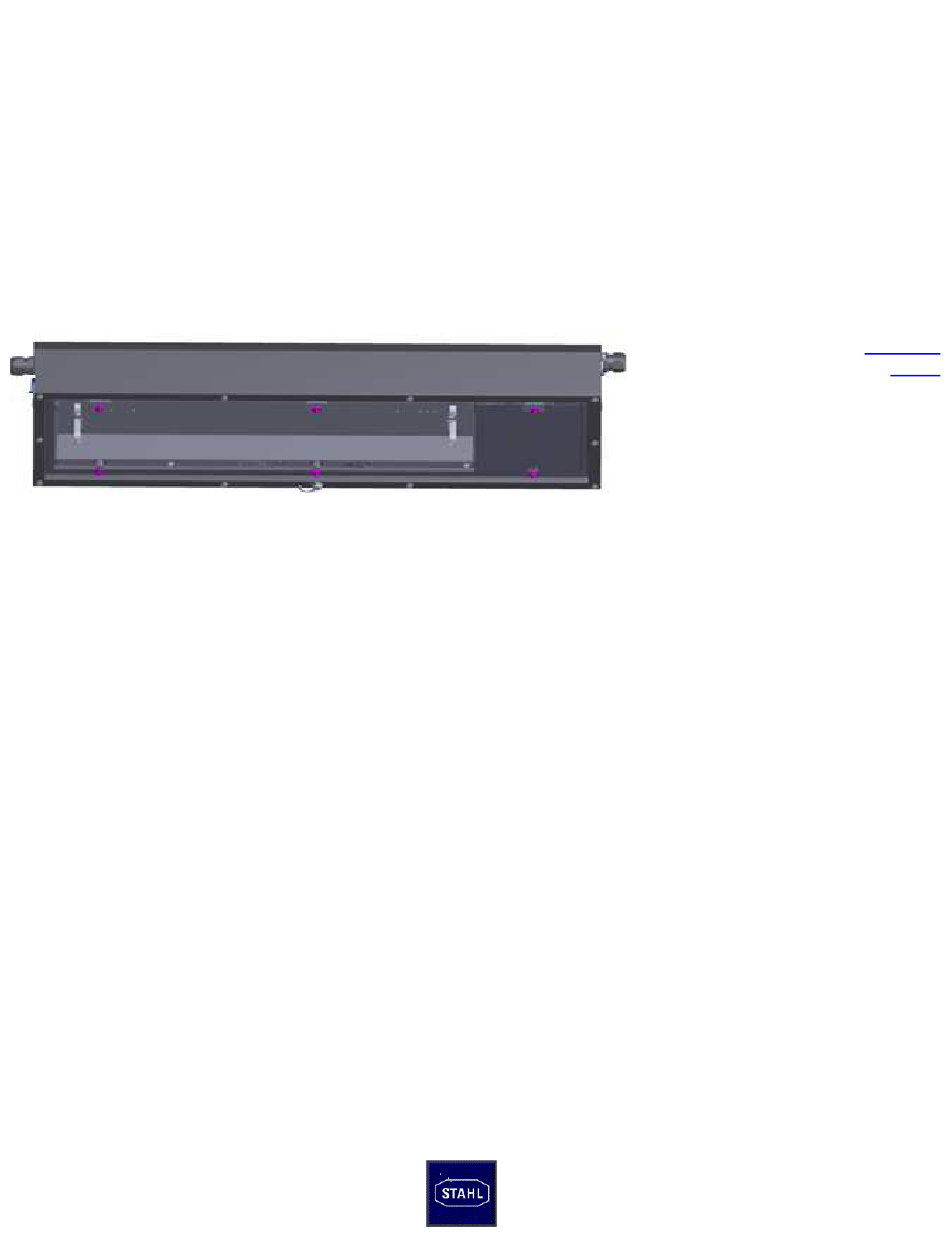

- Page 1 Operation, Installation and Maintenance Manual for 6418/11 - Series Operating instructions For Additional languages www.stahl- ex.com Emergency Sheet steel light fittings for Fluorescent Lamps Series 6418/11 ID-No.: 226766 / 6418601300 Publication Code: 2017-08-31:BA00.lll.en.01 Page - 1 - of 22...
-
Page 2: Table Of Contents
Operation, Installation and Maintenance Manual for 6418/11 - Series Contents General Information ......................................- 3 - Manufacturer ......................................- 3 - Information regarding the operating instructions ..........................- 3 - Conformity to Standards ..................................- 3 - Explanation of symbols ......................................- 3 - Symbols in these operating instructions ..............................- 3 - Warning notes .......................................- 4 - Symbols on the device ..................................- 4 - Safety Notes ........................................- 4 -... -
Page 3: General Information
Operation, Installation and Maintenance Manual for 6418/11 - Series General Information Manufacturer R. Stahl Schaltgeräte GmbH R. STAHL (P) LTD., Plot No. – 5 Am Bahnhof 30 Malrosapuram Road, Sengundram Indl. Area 74638 Waldenburg Singaperumal Koil, Kancheepuram Dist., Germany Tamil Nadu – 603 204, INDIA... -
Page 4: Warning Notes
Operation, Installation and Maintenance Manual for 6418/11 - Series Warning notes Warning notes must be observed under all circumstances, in order to minimize the risk due to construction and operation. The warning notes have the following structure: • Signaling word: DANGER, WARNING, CAUTION, NOTICE •... -
Page 5: Safe Use
Operation, Installation and Maintenance Manual for 6418/11 - Series Safe Use • Read and observe the safety notes in these operating instructions! • Observe characteristic values and rated operating conditions on the rating and data plates! • Observe additional information plates on the device! •... -
Page 6: Function And Device Design
Operation, Installation and Maintenance Manual for 6418/11 - Series Function and Device Design DANGER Explosion Hazard due to improper use! Non-compliance results in severe or fatal injuries. • Use the device only according to the operating conditions described in these operating instructions. Function DANGER Explosion Hazard due to improper use! -
Page 7: Technical Data
Operation, Installation and Maintenance Manual for 6418/11 - Series 5 Technical Data Explosion Protection Certificats ATEX, IEC Ex, PESO, Zone Classification Zone 2, 21 & 22 Explosion Protection Type Equipment protection by type of protection “n”, Equipment dust ignition protection by enclosure “t” IECEx IECEx BVS 15.0073 Ex nA IIC T4 Gc OR Ex tb IIIC T80°C Db... -
Page 8: Transport And Storage
Operation, Installation and Maintenance Manual for 6418/11 - Series Technical Data Connection Standard: Spring clamp terminal up to 4 mm 6-pole (2x L1, L2, L3, 2x L , 2X N, 2x PE) Special: Screw terminal up to 6 mm 6-pole (2x L1, L2, L3, 2x L , 2X N, 2x PE) Through Wiring Max, 12A... -
Page 9: Mounting & Installation Notes
Operation, Installation and Maintenance Manual for 6418/11 - Series Recommendation: • Store battery at an ambient temperature of + 5 °C to + 25 °C and a relative humidity of 65 ± 5 %. The storage period is reduced of up to one month if stored outside this temperature range.. -
Page 10: Mounting / Dismounting, Operating Position
Wall mounting must be performed with the central lock directed downwards. • For outdoor use, we recommend to install a 8162/1 breather from R. STAHL Schaltgeräte GmbH. The breather guarantees compliance with degree of protection IP64 in all mounting positions. -
Page 11: Opening And Closing The Reflector Plate
Operation, Installation and Maintenance Manual for 6418/11 - Series Fixtures, 6418/1 ..- ..- . . . 9 - . . . will be supplied without the battery, DO NOT FORGET TO INSTALL THE BATTERY. Kindly refer the section 10.1.2 of this manual to install the battery. -
Page 12: Connection Terminals
Operation, Installation and Maintenance Manual for 6418/11 - Series Note: • Clamping must be carried out precisely! • Do not clamp any part of the conductor insulation! • Do not interchange the conductors! • Observe the technical regulations when connecting the conductor! •... -
Page 13: Emergency Light Blocking
Operation, Installation and Maintenance Manual for 6418/11 - Series Continuous operation In this condition, The light fixture is switched ON Continuously as long as the supply is ON and the emergency mode will take over when the mains Fails. Normal lighting operation In this condition, The light fixture is switched ON Continuously as long as the supply is ON and the emergency mode will take over when the mains Fails. -
Page 14: Cable Entries
The standard luminaire is delivered with 3 lead-in holes, 1 cable gland, 1 cable gland + red plug and 1 stopping plug. Please observe the tightening torque for luminaires with installed cable glands and stopping plugs from R. STAHL Schaltgeräte GmbH. -
Page 15: Led Indication And System Status
Operation, Installation and Maintenance Manual for 6418/11 - Series 7.3.6 LED Indication and System Status Models / Priority Description LED display Type No. Acknowledge switching Automatic Self-test Function or Duration Test Active Lamp Error or Battery Fault No error , Charging operation of the battery Acknowledge switching Automatic Self-test Function or Duration Test Active Luminaire Failed, Battery not Charging... -
Page 16: Operations
Operation, Installation and Maintenance Manual for 6418/11 - Series • To avoid Deep-Discharge of the Battery, disconnected the battery from the supply, through the connector provided in the battery compartment, when the light fixture is not in use for a period longer than four weeks. •... -
Page 17: Function And Capacity Test
Operation, Installation and Maintenance Manual for 6418/11 - Series Emergency light Jumper between terminals 11 and 12 of the operation time emergency light electronics 1.5 hours open 3.0 hours closed Emergency light blocking This function is available only with “6418/11..-..-.4..-..” & “6418/11..-..-.5..-..” versions A remote switch for emergency light blocking can be connected to terminals 9 and 10 of the emergency light electronics. - Page 18 Operation, Installation and Maintenance Manual for 6418/11 - Series To carry out the test, the following prerequisites must be fulfilled: • The time interval has expired. • The power supply operation was active for at least 1 hour. • The remote switch is closed. The test result is shown on the LED display.
-
Page 19: Trouble Shooting
The lamp reached its end of service life. Replace the lamp. If the error cannot be eliminated using the mentioned procedures: • Contact the local representative of R. STAHL Schaltgeräte GmbH. For fast processing, have the following information ready: • Type and serial number •... -
Page 20: 10.1.1 Replacement Of Lamps
Operation, Installation and Maintenance Manual for 6418/11 - Series • • If exceeding the permissible ambient temperature or falling below the the permissible ambient temperature device must be taken out of operation. • • Replace the exchangeable enclosure components. If the enclosure the enclosure components for formation of cracks and damage. - Page 21 Operation, Installation and Maintenance Manual for 6418/11 - Series 1 Battery 2 M4 nuts to fix the bracket for battery 3 Bracket which holds the battery To open the fixture, refer section 7.3.1 of this manual. 4 Connector (attached to the battery) to Disconnect the male and female connectors (4 &...
-
Page 22: 10.1.3 Cleaning
• Do not use abrasive, scratching and aggressive detergents or solvents. Returning the device 10.2 • Use the "Service form" to return the device when repair/service is required. On the internet site "www.stahl-ex.com" under "Downloads > Customer service": • Download the service form and fill it out.
