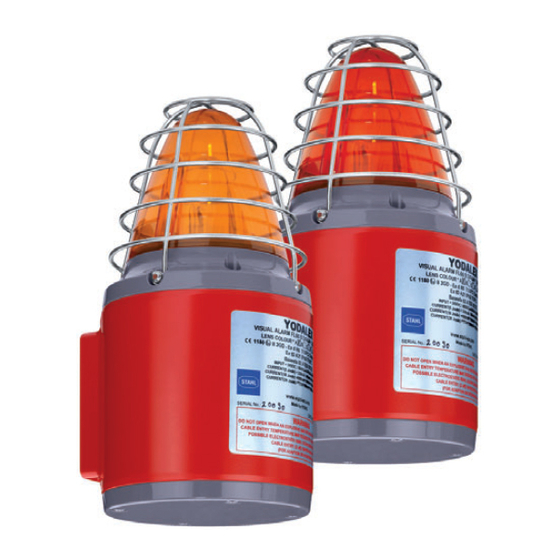

Stahl FL60 Series Operating Instructions Manual

Explosion proof visual signal 5, 10 or 20 joule
Hide thumbs Also See for FL60 Series:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating Instructions Manual

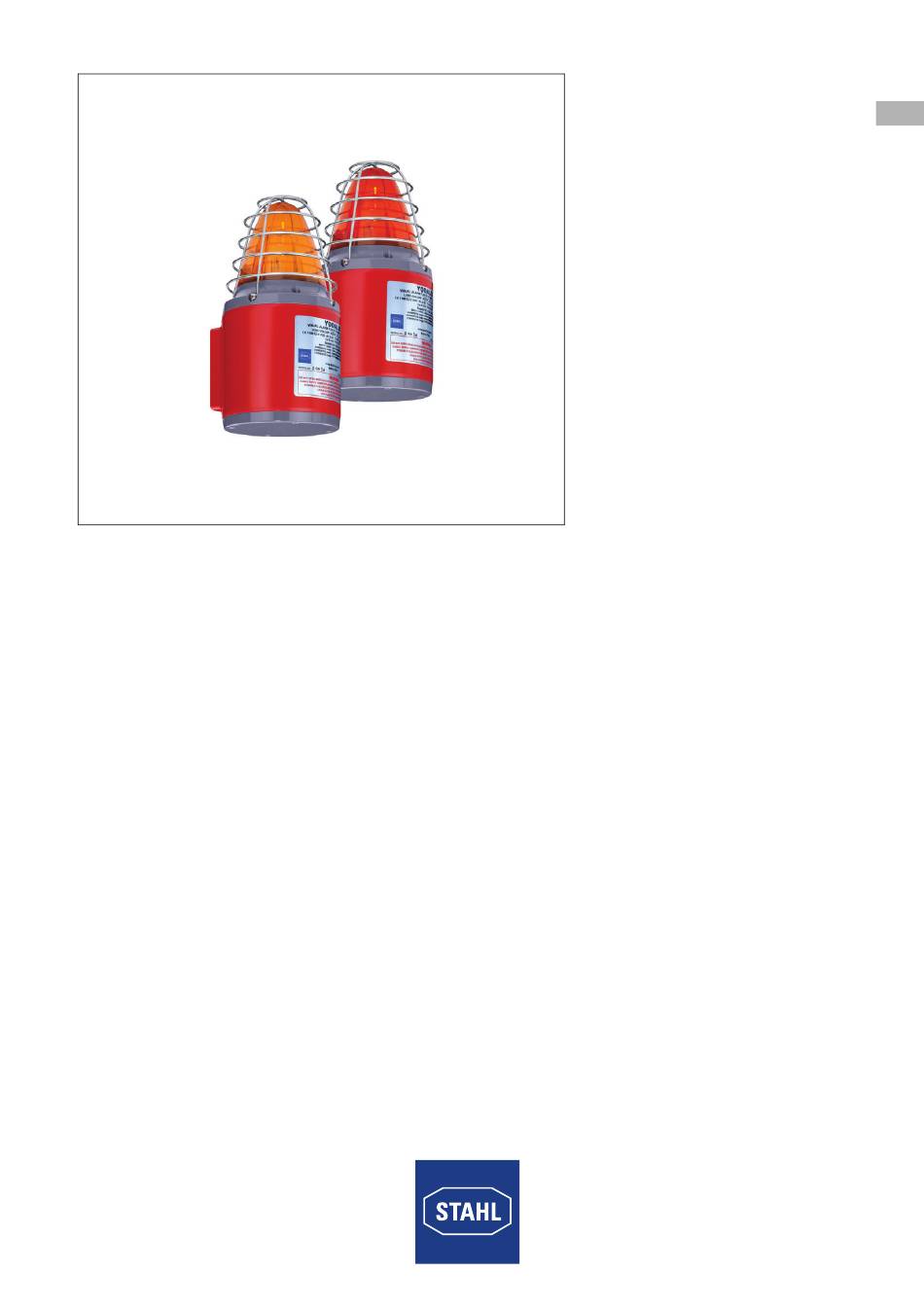

Explosion Proof Visual Signal -
5, 10 or 20 Joule
Series FL60
Operating instructions
Additional languages www.r-stahl.com
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FL60 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Stahl FL60 Series

Summary of Contents for Stahl FL60 Series

  • Page 1 Operating instructions Additional languages www.r-stahl.com Explosion Proof Visual Signal - 5, 10 or 20 Joule Series FL60...

  • Page 2: Table Of Contents

    Contents General information ....................3 Manufacturer .......................3 Information regarding the operating instructions ..........3 Further documents ....................3 Conformity with standards and regulations ............3 Explanation of the symbols .................4 Symbols in these operating instructions .............4 Warning notes .....................4 Symbols on the device ..................5 Safety notes ......................5 Operating instructions storage ................5 Safe use ......................5...

  • Page 3: En En En

    • Data sheet For documents in additional languages, see www.r-stahl.com. Conformity with standards and regulations See certificates and EU Declaration of Conformity: www.r-stahl.com. The device has IECEx approval. For certificate please refer to the IECEx homepage: http://iecex.iec.ch/ 223845 / FL6060300010 Explosion Proof Visual Signal - 2018-04-13·BA00·III·en·01...

  • Page 4: Explanation Of The Symbols

    Explanation of the symbols Explanation of the symbols Symbols in these operating instructions Symbol Meaning Tips and recommendations on the use of the device General danger Danger due to explosive atmosphere Danger due to energised parts = Strobe = Earth = Telephone initiate Warning notes Warnings must be observed under all circumstances, in order to minimize the risk due to...

  • Page 5: Symbols On The Device

    Safety notes CAUTION Danger to persons Non-compliance with the instruction can result in light injuries to persons. NOTICE Avoiding material damage Non-compliance with the instruction can result in material damage to the device and / or its environment. Symbols on the device Symbol Meaning CE marking according to the current applicable directive.

  • Page 6: En 3.3 Modifications And Alterations

    Function and device design Modifications and alterations DANGER Explosion hazard due to modifications and alterations to the device! Non-compliance results in severe or fatal injuries. • Do not modify or alter the device. No liability or warranty for damage resulting from modifications and alterations.

  • Page 7: En Technical Data

    Technical data Technical data Explosion Protection Global (IECEx) Gas and dust IIB+H2 IECEx BAS 05.0087X IECEx BAS 05.0086X IIB+H2, IIB IEC 60079-0: 2011 / IEC 60079-1: 2007-04 / IEC 60079-31: 2008 IIB+H2 Ex d IIB+H2 T4 Gb (Ta = -20 … +60°C) Ex tb IIIC T135°C Db IP 66 (Ta = -20 …...
  • Page 8 Technical data Explosion Protection Certifications and certificates Certificates IECEx, ATEX, Brazil (INMETRO), India (PESO), Kazakhstan (TR), Russia (TR), Taiwan (ITRI), USA & Canada (cULus), Belarus (TR) Functional safety (IEC 61508) Test report SIL 1 IEC61508-2:2010 Technical Data Technical data Product weight 5.08 kg Electrical data Rated operational...

  • Page 9: En 6 Transport And Storage

    5, 10 or 20 J Flash rate 60 FPM For further technical data, see www.r-stahl.com. Transport and storage • Transport and store the device only in the original packaging. • Store the device in a dry place (no condensation) and vibration-free.

  • Page 10: En En

    Mounting and installation Mounting and installation Dimensions / fastening dimensions Dimensional Drawings (All Dimensions in mm [inches]) – Subject to Alterations 18381E00 Mounting / dismounting, operating position DANGER Risk of explosion! Risk of injuries and material damage! • Terminal sleeves are fitted, they must be gas-tight and applied with a suitable tool.
  • Page 11 Mounting and installation 7.2.1 Installation conditions for electrical connection DANGER Risk of explosion! Risk of injuries and material damage! • Only cable glands with a corresponding certificate may be used. They must be flameproof (Ex d), suitable for the type of cable used and fulfil the requirements of IEC/EN 60079-14.
  • Page 12 Mounting and installation 7.2.3 Reassembly of enclosure Inserting the PCB For correct positioning of the PCB there are 2 grooves in the enclosure. Depending on the version, insert the PCB in the corresponding groove! 18814E00 18813E00 • FL60/./D50/./.. • FL60/./D100/./.. •...
  • Page 13 Mounting and installation 15748E00 7.2.4 Electrical connection Key Components 16440E00 16441E00 Key components FL60 DC (5J) Key components FL60 AC 16443E00 Key components FL60 DC, AC (10J, 20J) Legend 1 = Terminal blocks 223845 / FL6060300010 Explosion Proof Visual Signal - 2018-04-13·BA00·III·en·01 5, 10 or 20 Joule Series FL60...
  • Page 14 Mounting and installation Cable Connection • Approximately 20 cm (8 Inch) tails are required inside the enclosure for connection to the terminals on the PCB. This is especially important for installation using solid core cable. • The terminals accept wires of 2.5 mm or 14 to 18 AWG.

  • Page 15: Installation

    Mounting and installation 7.2.5 Earth connection 15265E00 • The unit must be connected to a good quality earth. • The internal Earth connection is the primary point. The external connection is for a supplementary bonding connection and is used where local code or authorities permit or require such connection.

  • Page 16: En 8 Commissioning

    If an error occurs please re-visit the earlier sections of this document. If the error cannot be eliminated using the mentioned procedures: • Contact R. STAHL Schaltgeräte GmbH. For fast processing, have the following information ready: • Type and serial number •...

  • Page 17: Maintenance, Overhaul, Repair

    Maintenance, overhaul, repair Maintenance, overhaul, repair WARNING Risk of electric shock or malfunctioning of the device due to unauthorized work! Non-compliance can result in severe injuries and material damage. • Work performed on the device must only be carried out by appropriately authorized and qualified electricians.

  • Page 18: En En

    • Only return or package the devices after consulting R. STAHL! Contact the responsible representative from R. STAHL. R. STAHL's customer service is available to handle returns if repair or service is required. • Contact customer service personally. • Go to the www.r-stahl.com website.

  • Page 19: En 12 Disposal

    Malfunction or damage to the device due to the use of non-original components. Non-compliance can result in material damage. • Use only original accessories and spare parts from R. STAHL Schaltgeräte GmbH. For accessories and spare parts, see data sheet on our homepage www.r-stahl.com.
