Summary of Contents for Stahl 6018/11 Series

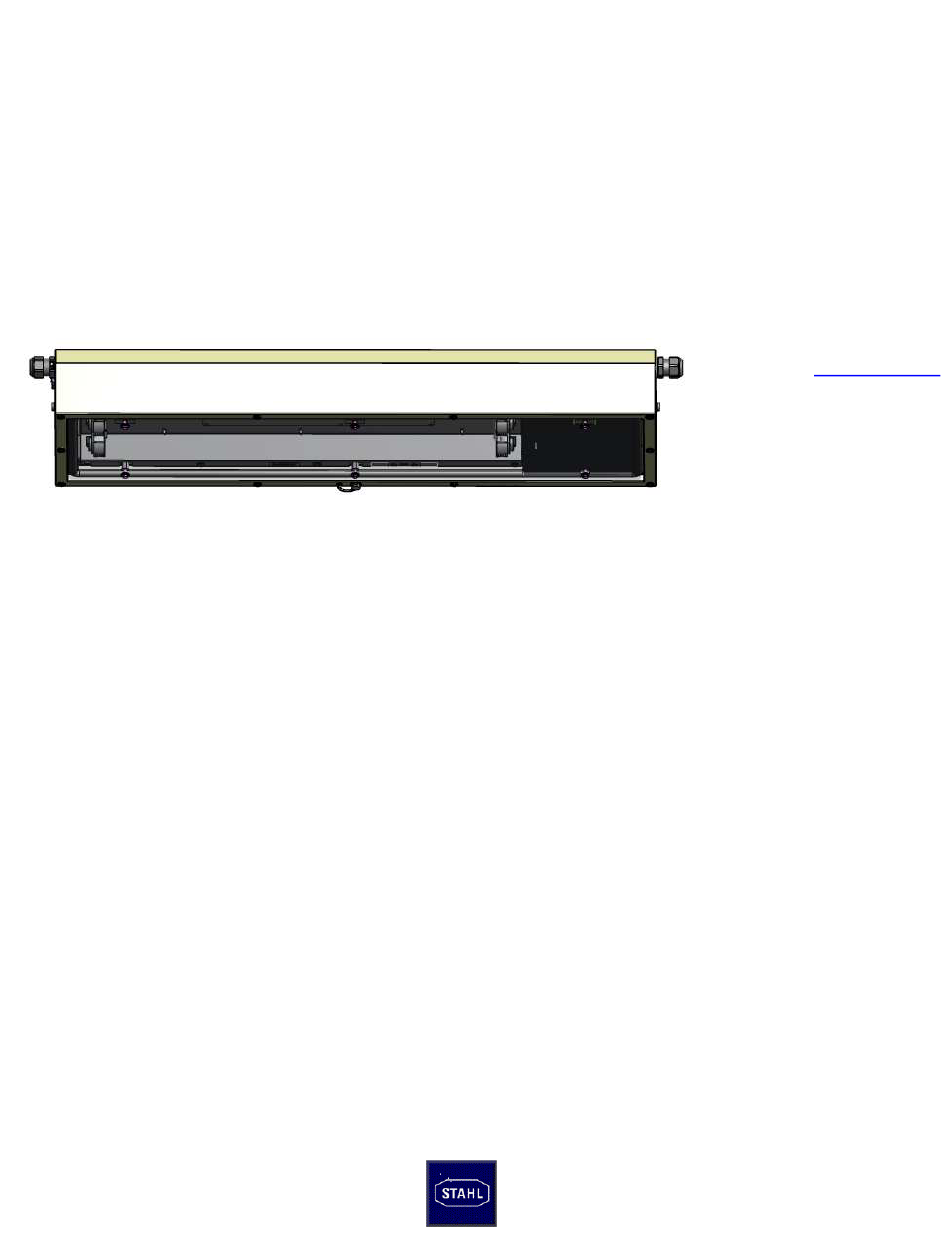

- Page 1 Operation, Installation and Maintenance Manual for 6018/11 - Series Operating instructions For Additional languages www.stahl-ex.com Emergency Sheet steel light fittings for Fluorescent Lamps Series 6018/11 ID-No.: 226765 / 6018605300 Publication Code: 2017-08-31:BA00.lll.en.02 Page - 1 - of 22...
-
Page 2: Table Of Contents
Operation, Installation and Maintenance Manual for 6018/11 - Series Contents .................................- 3 - General Information Manufacturer .....................................- 3 - Information regarding the operating instructions ..........................- 3 - Conformity to Standards ...................................- 3 - ................................- 3 - Explanation of symbols Symbols in these operating instructions ............................- 3 - Warning notes ....................................- 4 - Symbols on the device ..................................- 4 - ...................................- 4 -... -
Page 3: General Information
Operation, Installation and Maintenance Manual for 6018/11 - Series General Information Manufacturer R. Stahl Schaltgeräte GmbH R. STAHL (P) LTD., Plot No. – 5 Am Bahnhof 30 Malrosapuram Road, Sengundram Indl. Area 74638 Waldenburg Singaperumal Koil, Kancheepuram Dist., Germany Tamil Nadu – 603 204, INDIA... -
Page 4: Warning Notes
Operation, Installation and Maintenance Manual for 6018/11 - Series Warning notes Warning notes must be observed under all circumstances, in order to minimize the risk due to construction and operation. The warning notes have the following structure: • Signaling word: DANGER, WARNING, CAUTION, NOTICE •... -
Page 5: Safe Use
Operation, Installation and Maintenance Manual for 6018/11 - Series Safe Use • Read and observe the safety notes in these operating instructions! • Observe characteristic values and rated operating conditions on the rating and data plates! • Observe additional information plates on the device! •... -
Page 6: Function And Device Design
Operation, Installation and Maintenance Manual for 6018/11 - Series Function and Device Design DANGER Explosion Hazard due to improper use! Non-compliance results in severe or fatal injuries. • Use the device only according to the operating conditions described in these operating instructions. Function DANGER Explosion Hazard due to improper use! -
Page 7: Technical Data
Operation, Installation and Maintenance Manual for 6018/11 - Series 5 Technical Data Explosion Protection Certificats ATEX, IEC Ex, PESO, Zone Classification Zone 1, 2, 21 & 22 Explosion Protection Type Equipment protection by type of protection “n”, Equipment dust ignition protection by enclosure “t” IECEx IECEx BVS 16.0019 Ex eb db mb IIC T4 Gb... -
Page 8: Transport And Storage
Operation, Installation and Maintenance Manual for 6018/11 - Series Technical Data Connection Standard: Spring clamp terminal 0.5 to 4 mm Solid / Stranded 6-pole (2x L1, L2, L3, 2x L , 2X N, 2x PE) Special: Screw-type terminals, 0.5 to 4 mm finely and extra finely stranded, and 0.5 to 6 mm solid 6-pole (2x L1, L2, L3, 2x LI, 2X N, 2x PE) -
Page 9: Mounting & Installation Notes
Operation, Installation and Maintenance Manual for 6018/11 - Series NOTE Risk of deep battery discharge due to exceeded storage! Non-compliance can result in material damage! • The battery should be charged within 26 weeks from date of production by means of operating the luminaire. Mounting &... -
Page 10: Installation
Wall mounting must be performed with the central lock directed downwards. • For outdoor use, we recommend to install an 8162/1 breather from R. STAHL Schaltgeräte GmbH. The breather guarantees compliance with degree of protection IP64 in all mounting positions. -
Page 11: Opening And Closing The Reflector Plate
Operation, Installation and Maintenance Manual for 6018/11 - Series 1. Remove the closing cap of the central lock. 2. To open the fixture, press inward and Turn the central lock using a socket key M5 hex socket head driver, by 90° anti-clockwise direction as far as it can go. -
Page 12: Connection Terminals
Operation, Installation and Maintenance Manual for 6018/11 - Series • The terminal cover of optional screw-type terminals does not have to be removed to clamp the conductor! 7.3.3.1 Connection terminals Optional: Screw-type terminals Standard: Spring clamp terminals 0.5 to 4 mm finely and extra 0.5 to 4 mm Solid / Stranded... - Page 13 Operation, Installation and Maintenance Manual for 6018/11 - Series Emergency light blocking This function is available only with “6018/11..-..-.6..-..” & “6018/11..-..-.7..-..” versions A remote switch for emergency light blocking can be connected to terminals 9 and 10 of the emergency light electronics. Remote switch Remote switch is closed...
- Page 14 Operation, Installation and Maintenance Manual for 6018/11 - Series Normal lighting operation In this condition, the light fixture is switched ON continuously as long as the supply is ON and the emergency mode will take over when the mains Fails. Connection version remote switch The remote switch is directly connected to the emergency light electronics 6043/7.
-
Page 15: Function And Capacity Test
Operation, Installation and Maintenance Manual for 6018/11 - Series 7.3.3.3 Function and capacity test To carry out the test, the following prerequisites must be fulfilled: • The time interval has expired. • The power supply operation was active for at least 1 hour. •... -
Page 16: Cable Entries
The standard luminaire is delivered with 3 lead-in holes, 1x cable glands, 1x cable glands + red plug and 1 stopping plugs. Please observe the tightening torque for luminaires with installed cable glands and stopping plugs from R. STAHL Schaltgeräte GmbH. -
Page 17: Complete Charging And Discharging Of Nicd Battery
Operation, Installation and Maintenance Manual for 6018/11 - Series Note: • The required dust resistance! • The required temperature resistance! • The required temperature resistance! • The IP degree of protection according to the rating plate! • The required tightening torques! •... -
Page 18: Operations
The battery capacity is too low. Replace the battery. If the error cannot be eliminated using the mentioned procedures: • Contact the local representative of R. STAHL Schaltgeräte GmbH. For fast processing, have the following information ready: • Type and serial number •... -
Page 19: Maintenance, Repair & Returning Of The Device (As Per En60079-17 & As Per En60079-19)
The error is reset. Further error indications will be reset directly after troubleshooting. If the error cannot be eliminated using the mentioned procedures: • Contact R. STAHL Schaltgeräte GmbH. For fast processing, have the following information ready: • Type and serial number •... -
Page 20: 10.1.1 Replacement Of Lamps
Operation, Installation and Maintenance Manual for 6018/11 - Series • • Replace damaged, aged and porous seals and completely change enclosure the seals for ageing and damage components with foamed seal. • • Clamp loose conductors tightly. if the conductors are clamped properly 10.1.1 Replacement of lamps Only use fluorescent lamps with pins made of brass. - Page 21 Operation, Installation and Maintenance Manual for 6018/11 - Series To open the fixture, refer section 7.3.1 of this manual. Disconnect the male and female connectors (4 & 5) that are provided in this battery compartment as shown in the picture. Loosen the M4 Nuts (2) as shown in the picture (by 2 or 3 turns only).
-
Page 22: 10.1.3 Cleaning
Do not use abrasive, scratching and aggressive detergents or solvents. Returning the device 10.2 • Use the "Service form" to return the device when repair/service is required. On the internet site "www.stahl-ex.com" under "Downloads > Customer service": • Download the service form and fill it out.
