Stahl TRANBERG IMT ILED CIRCLE-H 2.0 Installation Manual

Helideck lighting system
Hide thumbs
Table of Contents

Advertisement

Quick Links

IMPORTANT!
Read this instruction carefully before installing the product

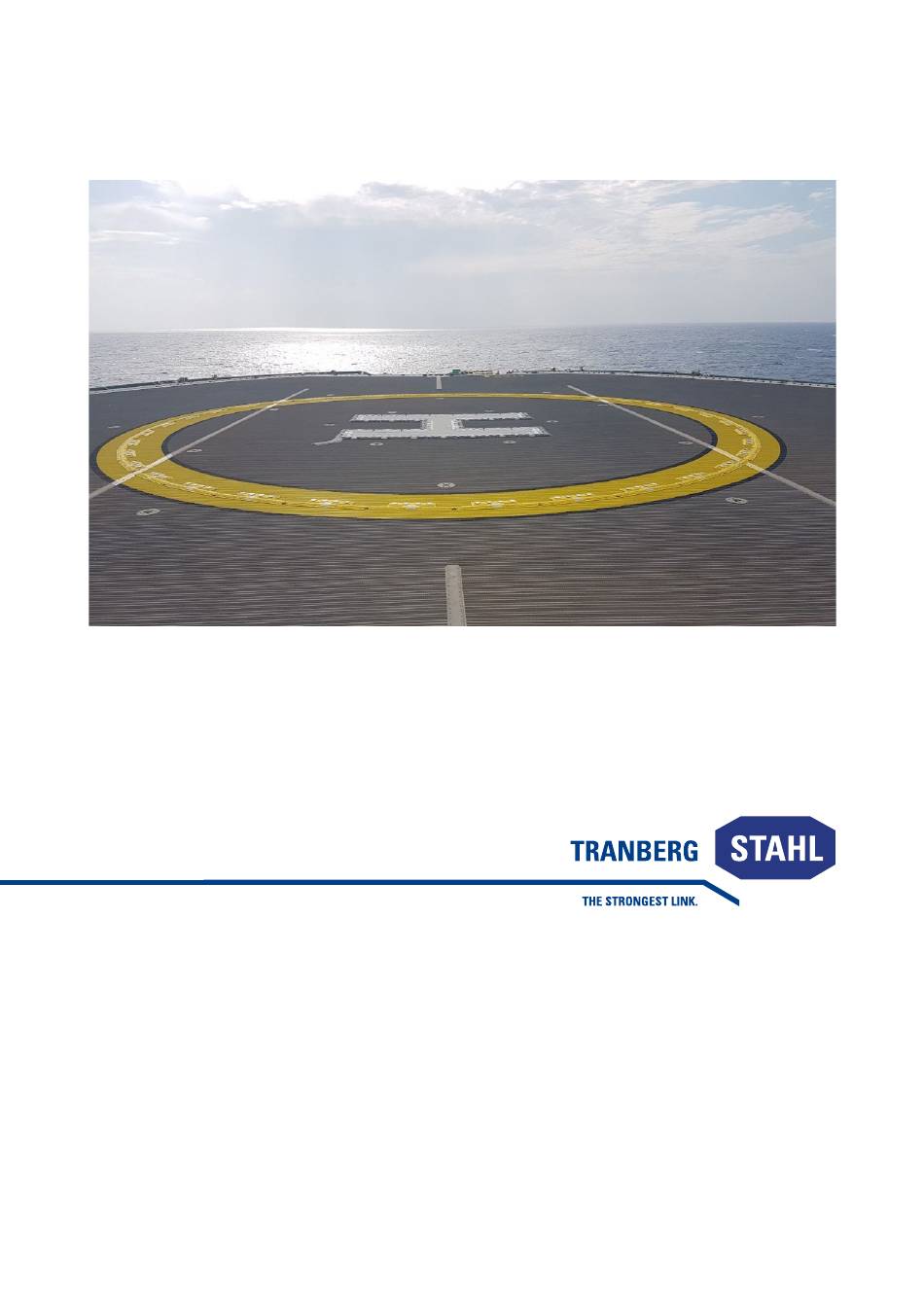

TRANBERG® IMT CIRCLE & H
ILED Aquarius Circle & H 2.0
Helideck Lighting System
INSTALLATION MANUAL
R. STAHL TRANBERG AS
Main office
|
Strandsvingen 6
|
N-4032 Stavanger, Norway
Oslo office
|
Luhrtoppen 2
|
N-1470 Lørenskog, Norway
| T
+47 51 57 89 00
| E
info.no-st@r-stahl.com
| T
+47 24 08 44 10
| E
info.no-os@r-stahl.com
|
stahl-tranberg.com
|
stahl-tranberg.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TRANBERG IMT ILED CIRCLE-H 2.0 and is the answer not in the manual?

Questions and answers

Related Manuals for Stahl TRANBERG IMT ILED CIRCLE-H 2.0

Summary of Contents for Stahl TRANBERG IMT ILED CIRCLE-H 2.0

  • Page 1 Read this instruction carefully before installing the product TRANBERG® IMT CIRCLE & H ILED Aquarius Circle & H 2.0 Helideck Lighting System INSTALLATION MANUAL R. STAHL TRANBERG AS Main office Strandsvingen 6 N-4032 Stavanger, Norway +47 51 57 89 00 info.no-st@r-stahl.com...

  • Page 2: Table Of Contents

    Contents General Information Introduction STEP Placing the mounting plates of the H STEP A, Placing the mounting plates of the H, 1 starting tool STEP A, Placing the mounting plates of the H, 1 middle plates of the H STEP A, Placing the mounting plates of the H, 3a Leg of H w/ angled circle connection STEP A, Placing the mounting plates of the H, 4a Leg of the H STEP A, Placing the mounting plates of the H, 5a Leg of the H STEP A, Placing the mounting plates of the H, 3b Leg of the H w/ straight circle connection...

  • Page 3: General Information

    C&H MK1, TDC6706 Luhrtoppen 2 each subsequent owner or user of the N-1470 Lørenskog • CAA Internaltional Statement IMT ILED device. Norway C&H MK2, TDC6707 Document no: TUM6677 +47 24 08 44 10 info.no-os@r-stahl.com R. Stahl Tranberg Revision: 0 Page 3...

  • Page 4: Introduction

    The action on the page visualized in description of both the IMT part numbers a big simplified map that shows the and the R. Stahl Tranberg part numbers. complete construction of the specific Please note that all the mounting plates, step.

  • Page 5: Stepa

    Helideck Lighting System STEP Placing the mounting plates of the H STEP A, Placing the mounting plates of the H, 1 starting tool 1. Starting tool IMT Part no. R. Stahl Tranberg Part no. Quantity 900.092. 99520291 1 pc. 901.218 99520216 1 pc.

  • Page 6: Step A, Placing The Mounting Plates Of The H, 1 Middle Plates Of The H

    ILED Aquarius Circle & H 2.0 Helideck Lighting System STEP A, Placing the mounting plates of the H, 1 middle plates of the H 2. Middle Plates of the H IMT Part no. R. Stahl Tranberg Part no. Quantity 901.539 99520186 8 pcs.
  • Page 7 INSTALLATION MANUAL ILED Aquarius Circle & H 2.0 Helideck Lighting System 902.910 902.912 902.912 902.910 901.539 902.965 902.965 Page 7...

  • Page 8: Step A, Placing The Mounting Plates Of The H, 3A Leg Of H W/ Angled Circle Connection

    STEP A, Placing the mounting plates of the H, 3a Leg of H w/ angled circle connection (Depending on the cable exit chosen (see page 1). Continue with step A3a (page 7) or A3b (page 10). 3a. Leg of the H w/ angled circle Connection IMT Part no. R. Stahl Tranberg Part no. Quantity 901.539 99520186 22 pcs.
  • Page 9 INSTALLATION MANUAL ILED Aquarius Circle & H 2.0 Helideck Lighting System 902.906 902.905 902.904 902.904 902.963 902.914 902.904 902.911 901.539 902.965 902.965 • Build the H sub section, shown above, and place it with the M8 bolt in the centre of the painted H on the deck. •...

  • Page 10: Step A, Placing The Mounting Plates Of The H, 4A Leg Of The H

    ILED Aquarius Circle & H 2.0 Helideck Lighting System STEP A, Placing the mounting plates of the H, 4a Leg of the H 4a. Leg of the H IMT Part no. R. Stahl Tranberg Part no. Quantity 901.539 99520186 44 pcs.
  • Page 11 INSTALLATION MANUAL ILED Aquarius Circle & H 2.0 Helideck Lighting System 902.906 902.905 902.904 902.904 902.963 902.914 902.904 902.911 901.539 902.965 902.965 • Build the H sub section, shown above, and place it with the M8 bolt in the centre of the painted H on the deck. •...

  • Page 12: Step A, Placing The Mounting Plates Of The H, 5A Leg Of The H

    ILED Aquarius Circle & H 2.0 Helideck Lighting System STEP A, Placing the mounting plates of the H, 5a Leg of the H 5a. Leg of the H IMT Part no. R. Stahl Tranberg Part no. Quantity 901.539 99520186 22 pcs.
  • Page 13 INSTALLATION MANUAL ILED Aquarius Circle & H 2.0 Helideck Lighting System 902.914 902.905 902.904 902.904 902.963 902.914 902.904 902.911 901.539 902.965 902.965 • Build the H sub section, shown above, and place it with the M8 bolt in the centre of the painted H on the deck. •...

  • Page 14: Step A, Placing The Mounting Plates Of The H, 3B Leg Of The H W/ Straight Circle Connection

    Helideck Lighting System STEP A, Placing the mounting plates of the H, 3b Leg of the H w/ straight circle connection 3b. Leg of the H w/ straight circle connection IMT Part no. R. Stahl Tranberg Part no. Quantity 901.539 99520186 22 pcs.
  • Page 15 INSTALLATION MANUAL ILED Aquarius Circle & H 2.0 Helideck Lighting System 902.906 902.905 902.904 902.913 902.963 902.914 902.904 902.904 901.539 902.965 902.965 • Build the H sub section, shown above, and place it with the M8 bolt in the centre of the painted H on the deck. •...

  • Page 16: Step A, Placing The Mounting Plates Of The H, 4B Leg Of The H

    ILED Aquarius Circle & H 2.0 Helideck Lighting System STEP A, Placing the mounting plates of the H, 4b Leg of the H 4b. Leg of the H IMT Part no. R. Stahl Tranberg Part no. Quantity 901.539 99520186 44 pcs.
  • Page 17 INSTALLATION MANUAL ILED Aquarius Circle & H 2.0 Helideck Lighting System 902.915 902.905 902.904 902.904 902.963 902.914 902.904 902.911 901.539 902.965 902.965 • Build the H sub section, shown above, and place it with the M8 bolt in the centre of the painted H on the deck. •...

  • Page 18: Step A, Placing The Mounting Plates Of The H, 5B Leg Of The H

    ILED Aquarius Circle & H 2.0 Helideck Lighting System STEP A, Placing the mounting plates of the H, 5b Leg of the H 5b. Leg of the H IMT Part no. R. Stahl Tranberg Part no. Quantity 901.539 99520186 22 pcs.
  • Page 19 INSTALLATION MANUAL ILED Aquarius Circle & H 2.0 Helideck Lighting System 902.915 902.905 902.904 902.913 902.963 902.914 902.904 902.904 901.539 902.965 902.965 • Build the H sub section, shown above, and place it with the M8 bolt in the centre of the painted H on the deck. •...

  • Page 20: Step A, Connecting The Sections Of The H

    INSTALLATION MANUAL ILED Aquarius Circle & H 2.0 Helideck Lighting System STEP A, Connecting the sections of the H, 6 6. Connecting the sections of the H IMT Part no. R. Stahl Tranberg Part no. Quantity 901.539 99520186 22 pcs. 902.965 99520300 22 pcs.

  • Page 21: Stepb

    INSTALLATION MANUAL ILED Aquarius Circle & H 2.0 Helideck Lighting System STEP Placing the mounting plates of the circle and the cable trays. Page 21...

  • Page 22: Step B, Preparing The Tools

    INSTALLATION MANUAL ILED Aquarius Circle & H 2.0 Helideck Lighting System STEP B, Preparing the tools Step B IMT Part no. R. Stahl Tranberg Part no. Quantity 901.466 99520183 12 pcs. 7-G133004000 99520290 12 pcs. D-value dependent D-value dependent 2 pcs.
  • Page 23 INSTALLATION MANUAL ILED Aquarius Circle & H 2.0 Helideck Lighting System 7-G133004000 901.466 For correct number, see table previous page. M8 Stud • Unfold the tools into a straight line and fix it with the supplied M4 bolts and nuts. •...

  • Page 24: Step B, 2A, Angled Tray Connection To The H

    ILED Aquarius Circle & H 2.0 Helideck Lighting System STEP B, 2a, Angled tray connection to the H. 2a. Angled tray connection to the H IMT Part no. R. Stahl Tranberg Part no. Quantity 901.539 99520186 6 pcs. 902.940 / 902.940BW 99520046 / BW: 99520047 1 pc.
  • Page 25 INSTALLATION MANUAL ILED Aquarius Circle & H 2.0 Helideck Lighting System 902.935 902.940 • Connect the cable tray (902.940) and cover (902.935) to the leg of the H with the CIRCLE connection (See Step A3a), as shown above. • The number engraved in the parts corresponds with the numbers shown above.

  • Page 26: Step B, 3A, Cable Trays To Circle

    ILED Aquarius Circle & H 2.0 Helideck Lighting System STEP B, 3a, Cable trays to circle 3a. Cable trays to circle IMT Part no. R. Stahl Tranberg Part no. Quantity 902.941 / 902.941BW 99520050 / BW: 99520051 1 pc. 902.942 / 902.942BW 99520054 / BW: 99520055 Ref.
  • Page 27 INSTALLATION MANUAL ILED Aquarius Circle & H 2.0 Helideck Lighting System Cut-out groove Cut-out groove 902.942 Cut-out groove 902.942 902.941 • Place the cable tray (902.941) in such a way that it aligns with the cable tray assembled in the previous step (See detail view). •...

  • Page 28: Step B, 4A, First Mounting Plates Circle

    INSTALLATION MANUAL ILED Aquarius Circle & H 2.0 Helideck Lighting System STEP B, 4a, First mounting plates circle 4a. First mounting plates circle IMT Part no. R. Stahl Tranberg Part no. Quantity 902.908 99520190 1 pc. 902.909 99520191 1 pc.
  • Page 29 INSTALLATION MANUAL ILED Aquarius Circle & H 2.0 Helideck Lighting System 902.908 902.909 • Stretch the tool to the start of the circle. The strap should align with the center of the straight cable trays (902.942), as shown above. • Slide the holes in the tool over the holes of the mounting plates (902.908 and 902.909), as shown in the detail to the left.

  • Page 30: Step B, 5A, Mounting Plates Circle

    INSTALLATION MANUAL ILED Aquarius Circle & H 2.0 Helideck Lighting System STEP B, 5a, Mounting plates circle 5a. Mounting plates circle IMT Part no. R. Stahl Tranberg Part no. Quantity D-value dependent D-value dependent 1 pc. 902.907 99520189 Ref. table D-value 902.907...
  • Page 31 INSTALLATION MANUAL ILED Aquarius Circle & H 2.0 Helideck Lighting System 902.907 D-value dependent • Slide the holes in the second circle tool over the holes of the mounting plates (902.908 and 902.909), as shown in the detail to the left.

  • Page 32: Step B, 2B, Straight Cable Tray Connection To H

    ILED Aquarius Circle & H 2.0 Helideck Lighting System STEP B, 2b, Straight cable tray connection to H 2b. Straight cable tray connection to H IMT Part no. R. Stahl Tranberg Part no. Quantity 901.539 99520186 6 pcs. 902.974 / 902.974BW 99520048 / BW: 99520049 1 pc.
  • Page 33 INSTALLATION MANUAL ILED Aquarius Circle & H 2.0 Helideck Lighting System 902.908 • Connect the cable tray (902.974) and cover (902.972) to the leg of the H with the CIRCLE connection (See Step A3b), as shown above. • The number engraved in the parts corresponds with the numbers shown above.

  • Page 34: Step B, 3B, Cable Trays To Circle

    ILED Aquarius Circle & H 2.0 Helideck Lighting System STEP B, 3b, Cable trays to circle 3b. cable trays to circle IMT Part no. R. Stahl Tranberg Part no. Quantity 902.975 / 902.975BW 99520052 / BW: 99520053 1 pc. 902.942 / 902.942BW 99520054 / BW: 99500055 Ref.
  • Page 35 INSTALLATION MANUAL ILED Aquarius Circle & H 2.0 Helideck Lighting System Cut-out groove 902.942 Cut-out groove 902.942 Cut-out groove 902.975 • Place the cable tray (902.975) in such a way that it aligns with the cable tray assembled in the previous step (See detail view). •...

  • Page 36: Step B, 4B, First Mounting Plates Circle

    INSTALLATION MANUAL ILED Aquarius Circle & H 2.0 Helideck Lighting System STEP B, 4b, First mounting plates circle 4b. First mounting plates circle IMT Part no. R. Stahl Tranberg Part no. Quantity 902.908 99520190 1 pc. 902.909 99520191 1 pc.
  • Page 37 INSTALLATION MANUAL ILED Aquarius Circle & H 2.0 Helideck Lighting System 902.908 902.909 • Stretch the tool to the start of the circle. The strap should align with the center of the straight cable trays (902.942), as shown above. • Slide the holes in the tool over the holes of the mounting plates (902.908 and 902.909), as shown in the detail to the left.

  • Page 38: Step B, 5B, Mounting Plates Circle

    INSTALLATION MANUAL ILED Aquarius Circle & H 2.0 Helideck Lighting System STEP B, 5b, Mounting plates circle 5b. Mounting plates circle IMT Part no. R. Stahl Tranberg Part no. Quantity D-value dependent D-value dependent Ref. table 902.907 99520189 1 pc.
  • Page 39 INSTALLATION MANUAL ILED Aquarius Circle & H 2.0 Helideck Lighting System 902.907 D-value dependent • Slide the holes in the second circle tool over the holes of the mounting plates (902.908 and 902.909), as shown in the detail view. Keep the first tool connected to the mounting plates. •...

  • Page 40: Step B, 6, Cable Tray Connections Circle

    INSTALLATION MANUAL ILED Aquarius Circle & H 2.0 Helideck Lighting System STEP B, 6, Cable tray connections circle 6. Cable tray connections circle IMT Part no. R. Stahl Tranberg Part no. Quantity 902.943 99520045 1 pc. D-value 902.943 13,88m – 14,54m 14,55m –...
  • Page 41 INSTALLATION MANUAL ILED Aquarius Circle & H 2.0 Helideck Lighting System 902.943 No cut • Remove the tools used for laying out the circle. • Cut the connection tray (902.943) to the correct length (see table to the left). From cut out to cut out as shown in the picture above. •...

  • Page 42: Step B, 7, Cable Tray Connections Circle

    ILED Aquarius Circle & H 2.0 Helideck Lighting System STEP B, 7, Cable tray connections circle 6. Cable tray connections circle IMT Part no. R. Stahl Tranberg Part no. Quantity 902.944 / 902.944BW 99520056 / BW: 99520057 2 pcs. 902.944 902.944...
  • Page 43 INSTALLATION MANUAL ILED Aquarius Circle & H 2.0 Helideck Lighting System 902.944 Angle=X Angle=X/2 Angle=X/2 902.944 902.944 • Place one of the cable trays (902.944) as shown above. • Define the position of the junction box and draw a straight line between that position and the dot showed in the picture above.

  • Page 44: Step B, 8, Cable Trays To Junction Box

    ILED Aquarius Circle & H 2.0 Helideck Lighting System STEP B, 8, Cable trays to junction box 8. Cable trays to junction box IMT Part no. R. Stahl Tranberg Part no. Quantity Installation 902.942 / 902.942BW 99520054 / BW: 99500055...

  • Page 45: Stepc

    INSTALLATION MANUAL ILED Aquarius Circle & H 2.0 Helideck Lighting System STEP Fixing the mounting plates and cable trays to the deck STEP C, 1, Checking the installation Important checks: □ Does the H construction follow the shape of the painted H? □...

  • Page 46: Step C, 2, Drilling Holes For The H

    ILED Aquarius Circle & H 2.0 Helideck Lighting System STEP C, 2, Drilling holes for the H 2. Drilling holes for the H IMT Part no. R. Stahl Tranberg Part no. X Holes 902.904 / 902.904BW 99520194 / BW: 99520195 Min. 7 holes 902.906 / 902.906BW...
  • Page 47 INSTALLATION MANUAL ILED Aquarius Circle & H 2.0 Helideck Lighting System 902.905 902.915 902.914 902.906 902.911 902.904 902.910 902.912 902.913 • Drill a minimum of X holes where X is the amount described in the table to the left. • The holes without thread are meant for the fixation to the deck.

  • Page 48: Step C, 3, Drilling Holes For The Circle

    INSTALLATION MANUAL ILED Aquarius Circle & H 2.0 Helideck Lighting System STEP C, 3, Drilling holes for the circle 3. Drilling holes for the circle IMT Part no. R. Stahl Tranberg Part no. X Holes 902.907 99520189 Min. 11 holes 902.908 99520190 Min.
  • Page 49 INSTALLATION MANUAL ILED Aquarius Circle & H 2.0 Helideck Lighting System 902.908 902.909 902.907 • Drill a minimum of X holes where X is the amount described in the table. • The holes without thread are meant for the fixation to the deck. The minimum amount of holes needed is based on using stainless steel M6 bolts (A4) or Avdel stainless steel monobolts (A4).

  • Page 50: Step C, 4, Drilling Holes For The Cable Trays

    ILED Aquarius Circle & H 2.0 Helideck Lighting System STEP C, 4, Drilling holes for the cable trays 4. Drilling holes for the cable trays IMT Part no. R. Stahl Tranberg Part no. X Holes 902.940 / 902.940BW 99520046 / BW: 99520047 Min. 6 holes 902.941 / 902.941BW...
  • Page 51 INSTALLATION MANUAL ILED Aquarius Circle & H 2.0 Helideck Lighting System 902.940/ 902.974 902.941/ 902.943 902.942 902.975 902.944 • Drill a minimum of X holes where X is the amount described in the table. • The holes without thread are meant for the fixation to the deck. •...

  • Page 52: Step C, Fixing Construction

    INSTALLATION MANUAL ILED Aquarius Circle & H 2.0 Helideck Lighting System STEP C, Fixing construction • Treat the drilled holes according to the mechanical demands of the helideck. • Fasten the mounting plates and cable trays to the deck. Make sure the holes chosen for fixing are spread. This will divide forces equally.

  • Page 53: Stepd

    INSTALLATION MANUAL ILED Aquarius Circle & H 2.0 Helideck Lighting System STEP Installing the fixtures and cables of the H. Page 53...

  • Page 54: Step D, 1, Placing The Fixtures Of The H

    ILED Aquarius Circle & H 2.0 Helideck Lighting System STEP D, 1, Placing the fixtures of the H. 1. Placing the fixtures of the H IMT Part no. R. Stahl Tranberg Part no. Quantity 101.013.01 99520176 34 pcs. Page 54...
  • Page 55 INSTALLATION MANUAL ILED Aquarius Circle & H 2.0 Helideck Lighting System 101.013.01 • Place the white-green fixtures (101.013.01) bottom up on the mounting plates of the H with the cable entry point facing inward as shown in the picture above. Take care not to damage the optic when positioning and handling the fixtures while in bottom up position.

  • Page 56: Step D, 2, Connecting The Cables Of The H

    ILED Aquarius Circle & H 2.0 Helideck Lighting System STEP D, 2, Connecting the cables of the H. 2. Connecting the cables of the H IMT Part no. R. Stahl Tranberg Part no. Quantity 902.790 (H03) 99520040 4 pcs. 902.788 (H01) 99500038 20 pcs.
  • Page 57 INSTALLATION MANUAL ILED Aquarius Circle & H 2.0 Helideck Lighting System 902.791 (H04) 902.789 (H02) 902.791 (H04) 902.788 (H01) 902.788 (H01) 902.792 (25m) 902.788 (H01) 902.788 (H01) 902.788 (H01) 902.793 (25m) • Connect all cables of the H. All lengths at their designated positions as shown above.

  • Page 58: Step D, 3, Complete The Connection Of The H

    INSTALLATION MANUAL ILED Aquarius Circle & H 2.0 Helideck Lighting System STEP D, 3, Complete the connection of the H. 3. Complete the connection of the H IMT Part no. R. Stahl Tranberg Part no. Quantity 901.539 99520186 272 pcs.
  • Page 59 INSTALLATION MANUAL ILED Aquarius Circle & H 2.0 Helideck Lighting System STEP Installing the fixtures and cables of the Circle. Page 59...
  • Page 60 INSTALLATION MANUAL ILED Aquarius Circle & H 2.0 Helideck Lighting System STEP E, 1, Placing the fixtures of the circle 1. Placing the fixtures of the circle IMT Part no. R. Stahl Tranberg Part no. Quantity 101.038.01 99520175 Ref. table D-value 101.038.01...
  • Page 61 INSTALLATION MANUAL ILED Aquarius Circle & H 2.0 Helideck Lighting System 101.038.01 101.038.01 101.038.01 • Place the yellow fixtures (101.038.01) bottom up on the mounting plates of the circle with the cable entry point facing inward as shown in the picture above. Take care not to damage the optic when positioning and handling the fixtures while in bottom up position.
  • Page 62 ILED Aquarius Circle & H 2.0 Helideck Lighting System STEP E, 2, Connecting the cables of the circle. 2. Connecting the cables of the circle IMT Part no. R. Stahl Tranberg Part no. Quantity 902.787 (C) 99520017 Ref. table 902.996 (12,5m, JB L) 99520015 1 pc.
  • Page 63 INSTALLATION MANUAL ILED Aquarius Circle & H 2.0 Helideck Lighting System 902.787 (C) 902.996 (12,5m) 902.787 (C) 902.997 (12,5m) • Connect all cables of the circle. All lengths at their designated positions as shown above. Use the supplied Loctite 8104 on the O-ring of the plugs before connecting them.
  • Page 64 INSTALLATION MANUAL ILED Aquarius Circle & H 2.0 Helideck Lighting System STEP E, 3, Complete the connection of the circle. 3. Complete the connection of the circle IMT Part no. R. Stahl Tranberg Part no. Quantity 901.539 99520186 272 pcs.
  • Page 65 INSTALLATION MANUAL ILED Aquarius Circle & H 2.0 Helideck Lighting System STEP Installing the covers of the H. Page 65...
  • Page 66 INSTALLATION MANUAL ILED Aquarius Circle & H 2.0 Helideck Lighting System STEP F, 1, Placing the cable caps. 1. Placing the cable caps IMT Part no. R. Stahl Tranberg Part no. Quantity 902.946 99520105 6 pcs. 902.947 99520106 5 pcs.
  • Page 67 INSTALLATION MANUAL ILED Aquarius Circle & H 2.0 Helideck Lighting System 902.946 (Corner 01) 902.950 (To circle) 902.947 (Corner 02) 902.946 (Corner 01) 902.947 (Corner 02) 902.946 (Corner 01) • Place the cable caps over the cables on the positions shown above. Place 902.950 at the cable tray, depending on your exit at the side of the H or in the middle.
  • Page 68 ILED Aquarius Circle & H 2.0 Helideck Lighting System STEP F, 2, Placing the covers. 2. Placing the covers IMT Part no. R. Stahl Tranberg Part no. Quantity 902.917 / 902.917BW 99520133 / BW: 99520134 20 pcs. 902.922 / 902.922BW 99520135 / BW: 99520136 3 pcs.
  • Page 69 INSTALLATION MANUAL ILED Aquarius Circle & H 2.0 Helideck Lighting System 902.927 902.924 902.922 902.924 902.925 902.923 902.925 902.926 902.917 902.917 902.917 902.917 902.917 902.917 902.917 902.917 902.929 902.928 902.930 902.931 902.932 902.917 902.917 • Place the covers on their designated positions. See above. •...
  • Page 70 INSTALLATION MANUAL ILED Aquarius Circle & H 2.0 Helideck Lighting System Page 70...
  • Page 71 INSTALLATION MANUAL ILED Aquarius Circle & H 2.0 Helideck Lighting System STEP Installing the covers of the circle. Page 71...
  • Page 72 INSTALLATION MANUAL ILED Aquarius Circle & H 2.0 Helideck Lighting System STEP G, 1. Placing the cable caps. 1. Placing the cable caps IMT Part no. R. Stahl Tranberg Part no. Quantity 901.539 99520186 4 pcs. 901.025 99520184 4 pcs.
  • Page 73 INSTALLATION MANUAL ILED Aquarius Circle & H 2.0 Helideck Lighting System 902.948 902.945 902.945 901.025 901.539 • Place the cable caps over the cables on the positions shown above. • The position of the cable caps (902.945) is predetermined by a socket in the mounting plates as shown to the left.
  • Page 74 INSTALLATION MANUAL ILED Aquarius Circle & H 2.0 Helideck Lighting System STEP G, 2. Placing the covers. 2. Placing the covers IMT Part no. R. Stahl Tranberg Part no. Quantity 902.933 99520117 Ref. table 902.934 99520116 2 pcs. D-value 902.933 13,88m –...
  • Page 75 INSTALLATION MANUAL ILED Aquarius Circle & H 2.0 Helideck Lighting System 902.933 902.933 902.933 902.933 902.934 902.934 902.945 901.025 901.539 901.025 • Place the covers on their designated positions. See above. • To easily place the cover over the cable slide it into position as shown on the detail view.
  • Page 76 INSTALLATION MANUAL ILED Aquarius Circle & H 2.0 Helideck Lighting System Page 76...
  • Page 77 INSTALLATION MANUAL ILED Aquarius Circle & H 2.0 Helideck Lighting System STEP Installing the covers of the cable trays. Page 77...
  • Page 78 INSTALLATION MANUAL ILED Aquarius Circle & H 2.0 Helideck Lighting System STEP H, 1. Placing the cable caps. 1. Placing the cable caps IMT Part no. R. Stahl Tranberg Part no. Quantity Installation 902.949 99520102 dependent Page 78...
  • Page 79 INSTALLATION MANUAL ILED Aquarius Circle & H 2.0 Helideck Lighting System 902.949 902.949 902.949 Cut-out groove 902.949 902.949 902.949 902.949 902.949 • Place the cable caps in the cut-out grooves in the cable trays as shown above. Depending on the cable exit chosen, ref introduction page 4: Continue with step H2a or H2b.
  • Page 80 ILED Aquarius Circle & H 2.0 Helideck Lighting System STEP H, 2a. Placing the covers, angled exit. 2a. Placing the covers, angled. IMT Part no. R. Stahl Tranberg Part no. Quantity 902.935 / 902.935BW 99520143 / BW: 99520375 1 pc.
  • Page 81 INSTALLATION MANUAL ILED Aquarius Circle & H 2.0 Helideck Lighting System 902.939 902.939 902.938 902.937 902.937 902.937 902.937 902.936 902.935 • Place the covers on their designated positions. See above. • If needed cut cover 902.938 at the corresponding cut-outs. Corresponding to the cable tray (902.943).
  • Page 82 ILED Aquarius Circle & H 2.0 Helideck Lighting System STEP H, 2b. Placing the covers, straight exit. 2b. Placing the covers, straight. IMT Part no. R. Stahl Tranberg Part no. Quantity 902.972 / 902.972BW 99520144 / BW: 99520145 1 pc.
  • Page 83 INSTALLATION MANUAL ILED Aquarius Circle & H 2.0 Helideck Lighting System 902.937 902.937 902.937 902.939 902.938 902.937 902.937 902.937 902.937 902.972 902.973 901.539 901.025 • Place the covers on their designated positions. See above. • If needed cut cover 902.938 at the corresponding cut-outs. Corresponding to the cable tray (902.943).
  • Page 84 INSTALLATION MANUAL ILED Aquarius Circle & H 2.0 Helideck Lighting System APPENDIX A, vocabulary Vocabulary Mounting plate Cable tray Cover Tools Cable cap Fixture Cable Page 84...
  • Page 85 INSTALLATION MANUAL ILED Aquarius Circle & H 2.0 Helideck Lighting System APPENDIX B, part no list IMT Part No R. Stahl Tranberg Part No Description (BW=Black/White, GW=Green/White) 101.013.01 99520176 IMT ILED ILED Circle-H fixture, white/green, LED green, short 101.038.01 99520175 IMT ILED Circle-H 2.0 fixture, yellow, LED amber...
  • Page 86 INSTALLATION MANUAL ILED Aquarius Circle & H 2.0 Helideck Lighting System APPENDIX B IMT Part No R. Stahl Tranberg Part No Description (BW=Black/White, GW=Green/White) 902.908 99520190 IMT ILED Mounting plate connection 01 902.909 99520191 IMT ILED Mounting plate connection 02 902.910...
  • Page 87 INSTALLATION MANUAL ILED Aquarius Circle & H 2.0 Helideck Lighting System APPENDIX B IMT Part No R. Stahl Tranberg Part No Description (BW=Black/White, GW=Green/White) 902.929BW 99520126 IMT ILED Cover H inner corner 02 BW 902.930 99520127 IMT ILED Cover H inner corner 03 GW 902.930BW...
  • Page 88 INSTALLATION MANUAL ILED Aquarius Circle & H 2.0 Helideck Lighting System APPENDIX B IMT Part No R. Stahl Tranberg Part No Description (BW=Black/White, GW=Green/White) 902.950 99520107 IMT ILED Connection cap H-JB 902.962 99520324 IMT ILED Tool H01 902.963 99520325 IMT ILED Tool H02 902.964...
  • Page 89 INSTALLATION MANUAL ILED Aquarius Circle & H 2.0 Helideck Lighting System APPENDIX B IMT Part No R. Stahl Tranberg Part No Description (BW=Black/White, GW=Green/White) 902.998 99520309 Tool Circle D19.24 - 19.90 903.053 99520310 Tool Circle D19.91 – 20.57 903.001 99520311 Tool Circle D20.58 - 21.24...
  • Page 90 R. STAHL TRANBERG AS Main office Strandsvingen 6 N-4032 Stavanger, Norway +47 51 57 89 00 info.no-st@r-stahl.com stahl-tranberg.com Oslo office Luhrtoppen 2 N-1470 Lørenskog, Norway +47 24 08 44 10 info.no-os@r-stahl.com stahl-tranberg.com...
