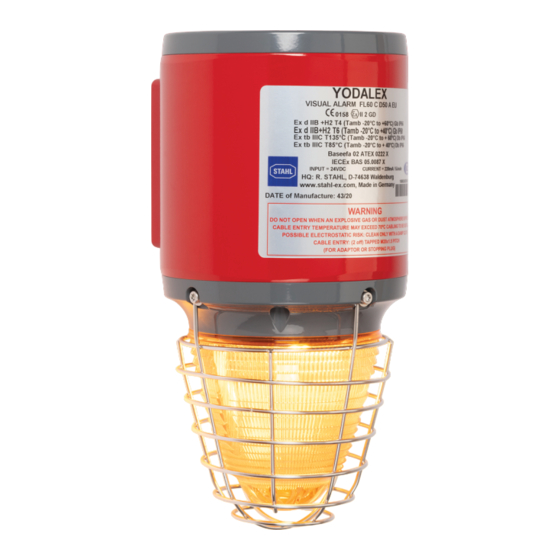

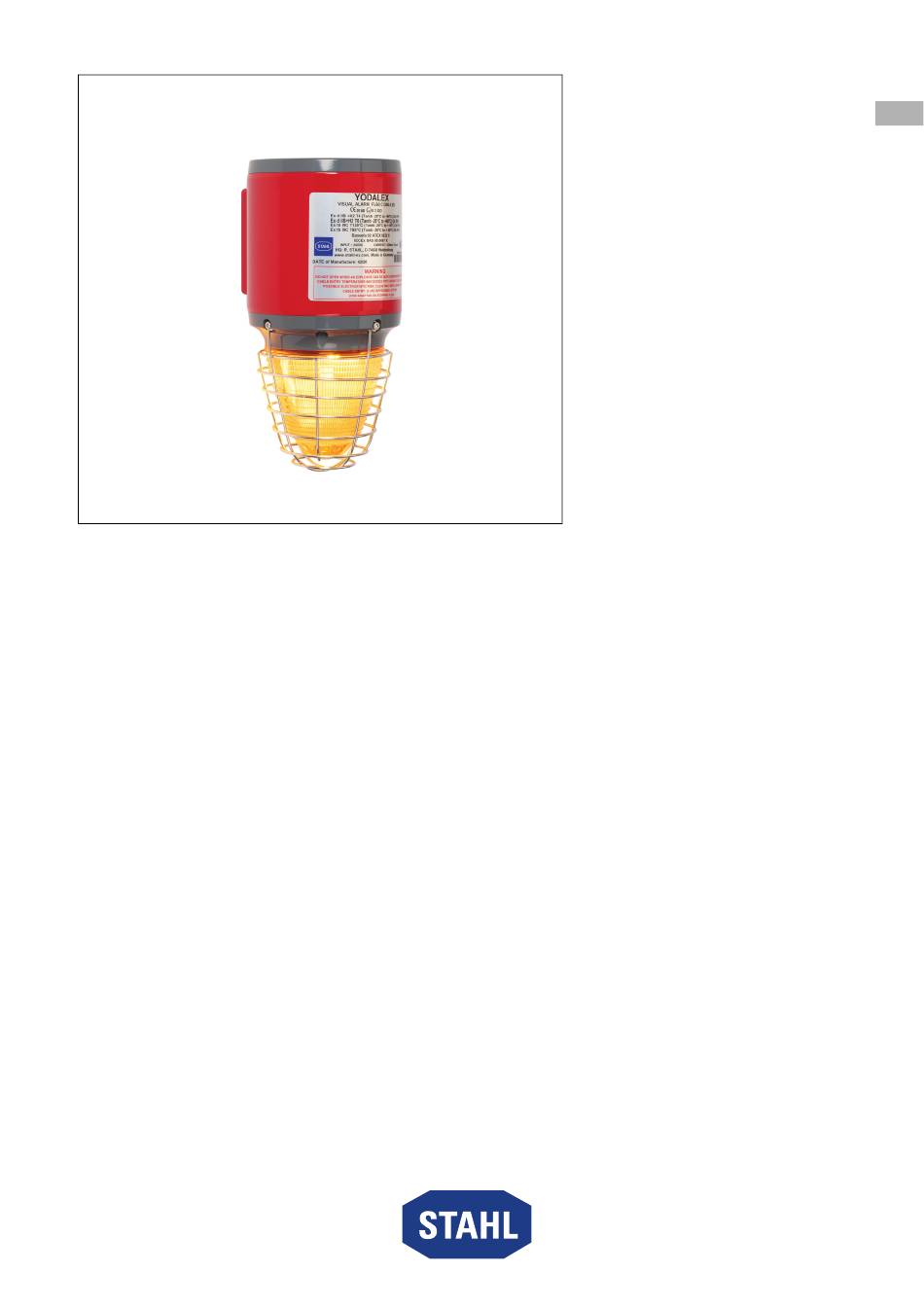

- Page 1 Operating instructions Additional languages r-stahl.com Visual signalling device Series FL60/2...
-
Page 2: Table Of Contents
Contents Contents General information .....................3 Manufacturer......................3 Information regarding the operating instructions..........3 Further documents....................3 Conformity with standards and regulations............3 Explanation of symbols ..................4 Symbols used in these operating instructions............4 Warning notes......................4 Symbols on the device..................5 Safety notes ......................6 Operating instructions storage ................6 Personnel qualification..................6 Safe use.......................6 Modifications and alterations ................7... -
Page 3: En Fr
They are legally binding in all legal affairs. Further documents • Data sheet For documents in other languages, see r-stahl.com. Conformity with standards and regulations IECEx, ATEX, EU Declaration of Conformity and further national certificates can be downloaded via the following link: https://r-stahl.com/en/global/support/downloads/. -
Page 4: Explanation Of Symbols
Explanation of symbols Explanation of symbols Symbols used in these operating instructions Symbol Meaning Tips and recommendations on the use of the device General danger Danger due to explosive atmosphere Warning notes Warning notes must be observed under all circumstances, in order to minimise the risk resulting from design engineering and operation. -
Page 5: Se Fi
Explanation of symbols Symbols on the device Symbol Meaning CE marking according to the current applicable directive. 05594E00 Device certified for hazardous areas according to the marking. 02198E00 Input 15649E00 Output 15648E00 Safety notes that must always be observed: The corresponding data and/or safety-related instructions contained in the operating instructions must be followed for devices with this symbol! 11048E00... -
Page 6: Safety Notes
Additional knowledge is required for any activity in hazardous areas! R. STAHL recommends having a level of knowledge equal to that described in the following standards: • IEC/EN 60079-14 (Project engineering, selection and construction of electrical systems) •... -
Page 7: Modifications And Alterations
Function and device design Commissioning, maintenance, repair • Only have commissioning and repairs performed by qualified and authorised persons (see "Personnel qualification" chapter). • Before commissioning, make sure that the device is not damaged. • Perform only maintenance work described in these operating instructions. Modifications and alterations DANGER Explosion hazard due to modifications and alterations to the device! -
Page 8: Device Design
Function and device design Device design 22790E00 Cheese head screws Cover Enclosure Visual signalling device 276788 / FL6060300130 Series FL60/2 2022‐03‐17·BA00·III·en·01... -
Page 9: Technical Data
Technical data Technical data Explosion protection Global (IECEx) Gas and dust IECEx EPS 20.0037X Ex db IIC T. Ex tb IIIC T... °C Europe (ATEX) Gas and dust EPS 20 ATEX 1 077 X E II 2 G Ex db IIC T. E II 2 D Ex tb IIIC T... - Page 10 Technical data Technical data Technical data Product weight 5.08 kg Electrical data Rated operational 21.1 to 24 V DC voltage Average input power/ Max. current Average max. current consumption power consumption [mA] XENON 5J In flash mode 1,200 Class I (PE connection) (internal + external) Ambient conditions Functional ambient min.
- Page 11 Technical data Technical data Visual data Calculated LED disc: max. range Inform Alarm Function Flashing Blinking Flashing Blinking 1 Hz 1 Hz 1 Hz 1 Hz Colour 45 m 58 m 10 m 13 m Amber 69 m 89 m 15 m 20 m Blue...
- Page 12 Technical data Technical data Luminous characteristics Effective luminous Type LED disc LED tower XENON intensity Function Flash- Blink- Flash- Blink- Flashing 1 Hz 1 Hz 1 Hz 1 Hz 1 Hz Colour 41 cd 67 cd 55 cd 90 cd 24 cd Amber 96 cd...
- Page 13 Technical data Technical data Pole diagram XENON: 180° 165° 165° 150° 150° 135° 135° 120° 120° 105° 105° 90° 90° 75° 75° 60° 60° 45° 45° 30° 30° 15° 15° [cd] 0° C0 - C180 C90 - C270 22498E00 LED tower: 180°...
-
Page 14: Transport And Storage
Signalling device according to configuration L-bracket Dust caps For further technical data, see r-stahl.com. Transport and storage • Transport and store the device only in the original packaging. • Store the device in a dry place (no condensation) free of vibrations. -
Page 15: Mounting And Installation
Mounting and installation Mounting and installation Dimensions/fastening dimensions Dimensional drawings (all dimensions in mm [inch]) – Subject to modifications 18381E00 276788 / FL6060300130 Visual signalling device 2022‐03‐17·BA00·III·en·01 Series FL60/2... -
Page 16: Mounting/Dismounting, Operating Position
Mounting and installation Mounting/dismounting, operating position DANGER Explosion hazard due to improper mounting! Non-compliance results in severe or fatal injuries. • Only operate the device if it is not damaged. If the thread is damaged, replace the device immediately. • Only install the device in a clean and dry operating environment. •... -
Page 17: Installation
Mounting and installation • Select a mounting location that is suitable for the signal effect of the device, as well as the required mounting and installation parameters (see "Technical data" chapter). • Mount the device on a flat surface using the L-bracket and screw holes. •... - Page 18 Mounting and installation 7.3.2 Electrical connections DANGER Explosion hazard due to insufficient protective measures! Non-compliance results in severe or fatal injuries. • Select suitable cables to ensure that the maximum permissible conductor temperatures are not exceeded. • When using core end sleeves, attach them using a suitable tool. •...
- Page 19 Mounting and installation 0V 24V 0V 24V 0V 24V 24 V 22798E00 Example: Connection diagram for combining multiple devices When doing so: • Observe the maximum permissible single wire cross-sections for the connection terminals – see "Technical data" chapter. • Only such cable entries and stopping plugs may be installed that have been separately tested and certified according to Directive 2014/34/EU (ATEX) and IECEx (CoC);...
- Page 20 Mounting and installation 7.3.3 Configuration The configuration of the device is performed by adjusting the DIP switch on the PCB. The following general/visual configuration options are available: XENON circuit board 22846E00 DIP switch designation Function General settings "SW1" DIP switch Reserved Reserved Reserved...
- Page 21 Mounting and installation General settings Control signal A/B Emitted signal Signal Signal selection ACTIVATION XENON 1 Hz XENON 1 Hz XENON 1 Hz XENON 1 Hz Signal deactivated Signal deactivated XENON 1 Hz XENON 1 Hz 276788 / FL6060300130 Visual signalling device 2022‐03‐17·BA00·III·en·01 Series FL60/2...
- Page 22 Mounting and installation LED circuit board 22799E00 DIP switch designation Function Visual functions General settings "SW2" DIP switch LED ECO MODE (current consumption reduced by up to 50%) LED POWER MODE (max. power) LED disc LED tower Reserved Reserved Reserved Reserved RI ACTIVATION Active switching via B signal...
- Page 23 Mounting and installation General settings Control signal A/B Emitted signal Signal Signal selection ACTIVATION LED prog.1 LED prog.2 LED prog.3 LED prog.4 Signal deactivated Signal deactivated LED prog.1 LED prog.2 276788 / FL6060300130 Visual signalling device 2022‐03‐17·BA00·III·en·01 Series FL60/2...
- Page 24 Mounting and installation Visual settings DIP switch "SW1" function tower, monochrome LED prog1 LED prog2 LED prog3 LED prog4 Continuous light Double flash 1 Hz Flashing light 1 Hz Rotating light 120 rpm Flashing light 1 Hz Continuous light Flashing light 1.5 Hz Flashing light 2 Hz (dimmed) Flashing light 1.5 Hz...
- Page 25 Mounting and installation DIP switch "SW1" function disc, monochrome LED prog1 LED prog2 LED prog3 LED prog4 Continuous light Double flash 1 Hz Flashing light 1 Hz Continuous light (dimmed) Flashing light 1 Hz Continuous light Flashing light 1.5 Hz Flashing light 2 Hz (dimmed) Flashing light 1.5 Hz...
- Page 26 Mounting and installation 7.3.4 Mounting the device 22790E00 Cheese head screws Cover Enclosure Screws and seals The cheese-head screws are delivered with Nyltite seals. • Before mounting, check the seals for damage. • Replace damaged seals. • Use seals a maximum of 5 times. •...
- Page 27 Mounting and installation • Carefully insert the PCB (3) into the enclosure (4). 22800E00 • Keeping the cover (2) straight, place it carefully on the enclosure (4). 22801E00 • Insert the 4 cheese-head screws (1) into the cover (2) and tighten them (tightening torque 4 Nm).
-
Page 28: Commissioning
Commissioning Commissioning Prerequisites DANGER Explosion hazard due to incorrect installation! Non-compliance results in severe or fatal injuries. • Check the device for proper installation before commissioning. • Comply with national regulations. Before commissioning, make sure that: • the device has been installed according to regulations. •... -
Page 29: Operation
• a visual signal. Troubleshooting If the error cannot be eliminated using the specified procedures: • Contact R. STAHL Schaltgeräte GmbH. For rapid processing, have the following information ready: • Type and serial number of the device • Purchase information •... -
Page 30: 10.3 Returning The Device
• Only return or package the devices after consulting R. STAHL! Contact the responsible representative from R. STAHL. R. STAHL's customer service is available to handle returns if repair or service is required. • Contact customer service personally. • Go to the r-stahl.com website.
