Operating and
installation instructions
REMKO RKL ECO series

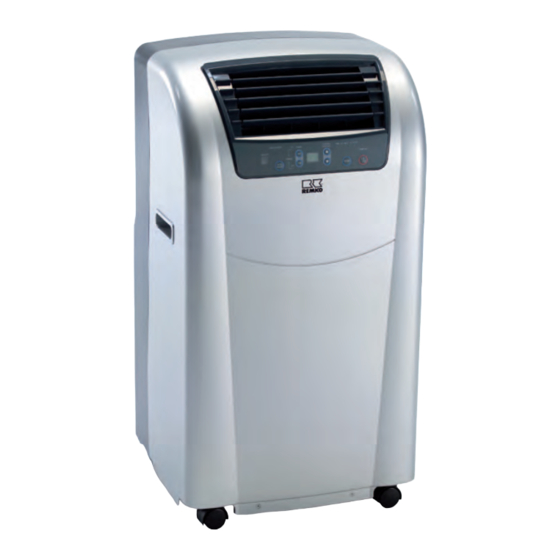

Local room air-conditioner in compact design
RKL 300 ECO, RKL 300 ECO S-Line, RKL 360 ECO, RKL 360 ECO S-Line
0231-2020-10 Edition 1, en_GB
Read the instructions prior to performing any task!

Advertisement

Table of Contents
loading

Related Manuals for REMKO RKL ECO Series

Summary of Contents for REMKO RKL ECO Series

  • Page 1 Operating and installation instructions REMKO RKL ECO series Local room air-conditioner in compact design RKL 300 ECO, RKL 300 ECO S-Line, RKL 360 ECO, RKL 360 ECO S-Line 0231-2020-10 Edition 1, en_GB Read the instructions prior to performing any task!
  • Page 2 Read these operating instructions carefully before commis- sioning / using this device! These instructions are an integral part of the system and must R290 always be kept near or on the device. Subject to modifications; No liability accepted for errors or mis- Refrigerant prints! Translation of the original...

  • Page 3: Table Of Contents

    Table of contents Safety and usage instructions......................4 1.1 General safety notes........................4 1.2 Additional safety notes when handling refrigerant R290..............4 1.3 Identification of notes........................5 1.4 Personnel qualifications........................5 1.5 Dangers of failure to observe the safety notes................5 1.6 Safety-conscious working.......................

  • Page 4: Safety And Usage Instructions

    REMKO RKL ECO series Safety and The safety notes in regards to the room sizes and the flammability of the refrigerant must not usage instructions be removed from the machine. The units may only be operated in well venti- 1.1 General safety notes lated areas.

  • Page 5: Identification Of Notes

    Intervention in the refrigeration circuit may only be done by certified specialist personnel taking WARNING! into account the safety notes of the manufac- This combination of symbol and signal word turer. warns of a potentially hazardous situation, Maintenance and repairs may only be carried which if not avoided may be fatal or cause out by authorised personnel which have the serious injury.

  • Page 6: Safety-Conscious Working

    REMKO RKL ECO series 1.6 Safety-conscious working All housing parts and unit openings, e.g. air inlets and outlets, must be free from foreign The safety notes contained in this manual, the objects, fluids or gases. existing national regulations concerning accident...

  • Page 7: Safety Notes For Installation, Maintenance And Inspection

    Do not stand or sit on the unit. Do not operate the unit with defective cables or sockets. Unplug the power plug before cleaning the unit. 1.8 Safety notes for installation, maintenance and inspection Check the work area Before starting work on units with combustible refrigerants, ensure that any potential ignition sources are removed and the risk of igniting the refrigerants is eliminated.
  • Page 8 REMKO RKL ECO series Sufficient ventilation Repairing of intrinsically safe components Before starting work, ensure that the working Do not introduce permanent inductive or area is outdoors or has sufficient ventilation. A capacitive loads into the existing circuits continuous ventilation stream is required while without ensuring that the maximum permitted working.

  • Page 9: Unauthorised Modification And Changes

    Leak detection methods Filling process The following leak detection methods are per- The following requirements for the general mitted for systems with combustible refriger- specifications must also be fulfilled during the ants. Electronic equipment must be used for filling process: detecting leaks.

  • Page 10: Intended Use

    "certificate of warranty" to REMKO GmbH & Co. KG at the time when the units are purchased and commissioned. The warranty conditions are detailed in the "Gen- eral business and delivery conditions".

  • Page 11: Technical Data

    Technical data 2.1 Unit data RKL 300 RKL 360 RKL 300 RKL 360 Series Operating mode Local compact air conditioning unit for cooling Nominal cooling output Energy efficiency ratio - cooling Energy efficiency rating EER Energy consumption, hourly kWh/60 min Application area (room volume), approx.

  • Page 12: Design And Function

    REMKO RKL ECO series Design and function Unit description The local air conditioning unit is particularly well suited to flexible use. The local room air conditioner comprises a floor- standing unit for the indoor area and an exhaust air hose to conduct the heat away. The indoor unit...

  • Page 13: Operation

    Operation The system can be operated by means of the control panel on the unit or via the standard infrared remote controller. The functional operation of the keys among themselves is identical, however, the designation can vary. The batteries must be correctly inserted before the infrared remote control is used. Fig.
  • Page 14 REMKO RKL ECO series "COMP. ON" key Infrared remote control General Information Cooling capacity will now only be generated whilst the compressor is active. Upon reaching the pro- With the unit switched on any change to the grammed target temperature, the compressor and settings will be automatically transferred to the thus the cooling capacity will be switched off.

  • Page 15: Assembly And Installation

    Assembly and installation Assembly and unit installation instructions The unit is positioned at the desired location with the discharge side pointing into the room. When positioning, observe the following instructions: After unpacking the unit let it sit on its transport rollers for at least 5 minutes before you switch it on.
  • Page 16 REMKO RKL ECO series Check whether the stopper in the condensate Conduct the warm exhaust air away drain is present and correctly installed. There is a risk of uncontrolled condensate leakage after NOTICE! commissioning. The exhaust air hose should always be laid...
  • Page 17 Via a wall pass-through The hose supplied is firmly attached to a wall pass- through. A suitable wall pass-through is available as an accessory (Fig. 12). Fig. 12: Wall pass-though NOTICE! In some circumstances routing the exhaust air Fig. 10: Exhaust air with open window via a firmly attached exhaust air hose, e.g.
  • Page 18 REMKO RKL ECO series Installation scheme for wall pass-though (accessory) Fig. 13: Installation example 1: External grill 3: Non-return flap 2: Telescopic tube 4: Sealing cover Installation instructions Create a core hole in the exterior wall (wall thickness 270-480 mm) with a diameter of at least 135 mm.

  • Page 19: Electrical Wiring

    Electrical wiring Electrical drawings Fig. 14: Electrical drawings PCB1: Control panel MS1: Microswitch (tank full) PCB2: Control board Colour coding: Swing motor Black Fan motor (evaporator) Brown Fan motor (condenser) Blue Condensate pump Grey Compressor Orange CX1: Capacitor (M1) CX2: Capacitor (M2) White CX3:...

  • Page 20: Commissioning

    Permanent shutdown The entire system should only be dismantled by a specialist firm familiar with all environmental aspects involved. REMKO GmbH & Co. KG or your contractual partner will be pleased to provide a list of refrigerant specialists in your area.

  • Page 21: Troubleshooting And Customer Service

    Troubleshooting and customer service The unit has been manufactured using state-of-the-art production methods and has been tested several times to ensure that it works properly. If malfunctions should occur, please check the unit as detailed in the list below. Please inform your dealer if the unit is still not working correctly after all the function checks have been performed.

  • Page 22: Care And Maintenance

    REMKO RKL ECO series Care and maintenance Filter cleaning The unit is equipped with two air filters. These can Regular care and observation of some basic points be withdrawn from the rear of the unit. The filters will ensure trouble-free operation and a long must be cleaned at regular intervals.

  • Page 23: Exploded View And Spare Parts Lists

    Exploded view and spare parts lists 11.1 Exploded view of the unit Fig. 16: Exploded view drawing We reserve the right to modify the dimensions and design as part of the ongoing technical development process.

  • Page 24: Spare Parts List

    REMKO RKL ECO series 11.2 Spare parts list Please contact directly to order spare parts REMKO GmbH & Co. KG IMPORTANT! To ensure the correct delivery of spare parts, please always the device type with the corresponding serial number (see type plate)
  • Page 25 RKL 300 ECO RKL 360 ECO No. Designation RKL 300 ECO RKL 360 ECO Fan housing (evaporator) Fan impeller (evaporator) Fin motor Exhaust air filter Power supply with plug Compressor capacitor On request by providing the serial number Capacitor (evaporator fan) Capacitor (evaporator fan) Exhaust air hose...

  • Page 26: Index

    REMKO RKL ECO series Index Assembly ......15 Operation Control panel ......13 Care and maintenance .
  • Page 28 REMKO QUALITY WITH SYSTEMS Air-Conditioning | Heating | New Energies Telephone +49 (0) 5232 606-0 REMKO GmbH & Co. KG Hotline within Germany +49 (0) 5232 606-0 Klima- und Wärmetechnik Telefax +49 (0) 5232 606-260 Im Seelenkamp 12 E-mail info@remko.de...
