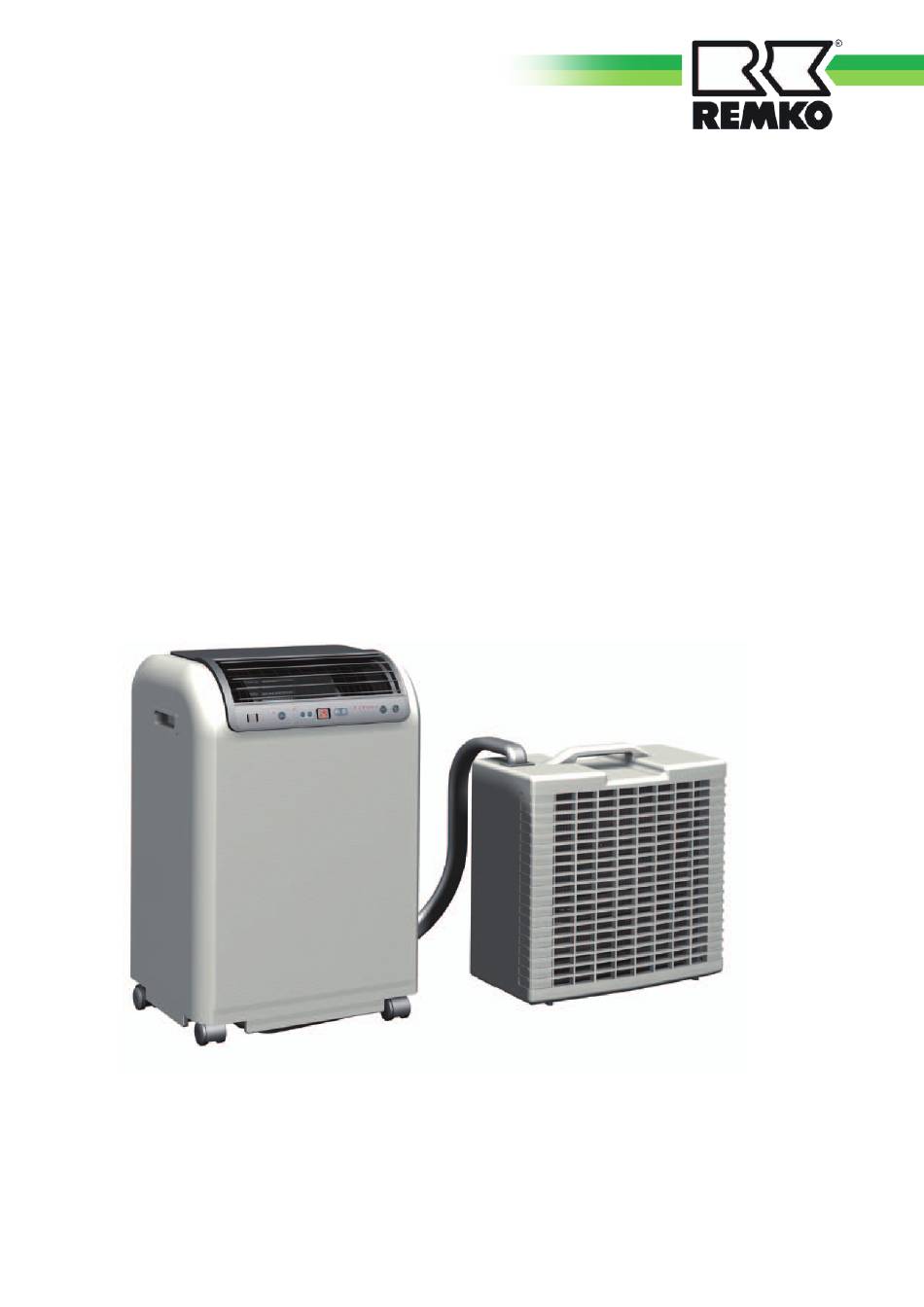

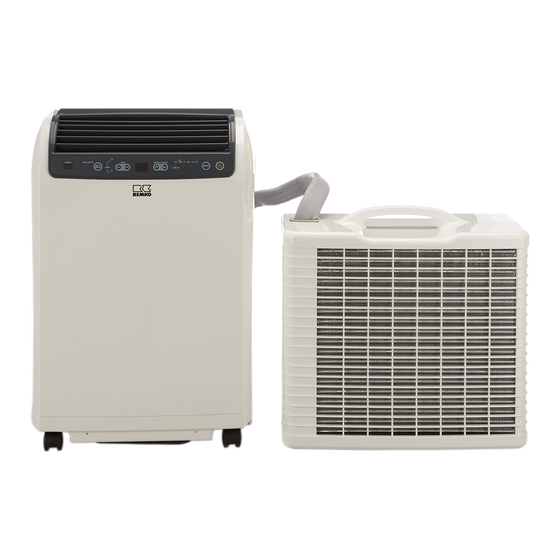

- Page 1 REMKO RKL RKL 490 DC, RKL 490 DC S-LINE Mobile Inverter Air Conditioning Unit in Split Design Operation · Technology · Spare parts Edition GB – B06...
-
Page 3: Table Of Contents
These instructions are an integral part of the system and must always be kept near or on the device. This operating manual is a translation of the German original. Made by REMKO Subject to modifications; no liability accepted for errors or misprints! -
Page 4: Safety Notes
REMKO GmbH & Co. KG Mobile units must be set up ■ when performing installation, and placing the unit in service. -
Page 5: Transport And Packaging
Transport and Packaging The equipment is shipped in sturdy Front view transport packaging. Immediately check the equipment on delivery Infrared receiver Air outlet and make note of any damage or Ventilation louvers Recessed grip missing parts on the delivery note Control panel and inform the forwarding agent Carrying... -
Page 6: Operation
REMKO RKL Operation The system can be operated by means of the control panel on the device or via the standard infrared remote control unit. The functional operation of the buttons among themselves is identical, however, the designation can vary. The batteries must be correctly inserted before the infrared remote control is used. -
Page 7: Installation Instructions
4. Take the condensate drain hose rated from the indoor unit, mean- Minimum clearance to wall on the back of the indoor unit ing that there is the additional out of its bracket and remove option of fitting it to a wall open- the plug. - Page 8 REMKO RKL Should this not be suitable for the Mounting on an external wall External wall mounting with characteristics of the wall then with wall bracket fastening straps the fastening elements should be Fasten to the wall using the selected on site to ensure suitable Fastening straps are an additional ■...
-
Page 9: Connector Pipes
Connector pipes The connection pipe is connected The device can be disconnected ■ NOTE to the indoor unit with quick- and reconnected approx. 7 It is possible that residual fluid release couplings. times without experiencing can leak out of the the con- This offers the option of discon- a noticeable loss of cooling per- densate hose. - Page 10 REMKO RKL 10. Screw continuously until the Unscrew the left-hand union nut connection is disconnected. Cable strap dismantle NOTE Do not stop screwing in the event that refrigerant escapes and a slight hissing sound is heard. 11. Unscrew the right-hand union nut with the SW 24 open-end- ed spanner provided.
-
Page 11: Shut-Down
1. Allow the equipment run for plug from the outdoor unit. aspects involved. 2-3 hours in circulation mode. REMKO GmbH & Co. KG or your This extracts any residual hu- 5. Clean the filter and the plastic sales partner will be be pleased to midity from the unit. -
Page 12: Care And Maintenance
REMKO RKL Care and maintenance Regular care and observation Air filter for indoor unit NOTE of some basic points will ensure Check the level of dirt on the trouble-free operation and a long Clean the air filter at intervals of on the service life of the unit. -
Page 13: Electrical Connection Diagram
Electrical connection diagram Legend PCB 1 = Control board PCB 2 = main board Swing Motor FM 1 = Vaporiser fan FM 2 = Condenser fan condensate pump Compressor Compressor excessive temperature protection CX 1 = Condenser, vaporiser fan CX 2 = Condenser vaporiser fan CX 3 = Condenser compressor... -
Page 14: Exploded View And Parts Lists
REMKO RKL Exploded view indoor unit We reserve the right to modify the dimensions and constructional design as part of the ongoing technical development process. - Page 15 Spare parts list Designation RKL 490 DC RKL 490 DC Front panel 1106060 1106120 Recessed grip 1106061 1106121 Cover, top 1106062 1106062 Exhaust grille 1106063 1106063 slats 1106064 1106064 Shift lever for fins 1106065 1106065 Back wall 1106066 1106122 Air filter...
- Page 16 REMKO RKL Exploded view outdoor unit We reserve the right to modify the dimensions and constructional design as part of the ongoing technical development process.
- Page 17 Spare parts list Designation RKL 490 DC RKL 490 DC Back wall 1106100 1106125 Front panel 1106101 1106126 Device base 1106102 1106102 Covering for fan 1106103 1106103 Condenser fan 1106105 1106105 Fastening for vaporiser fan 1106106 1106106 Mounting angle 1106107...
-
Page 18: Technical Data
REMKO RKL Technical data Series RKL 490 DC RKL 490 DC Operating mode Mobile Inverter Air Conditioning Unit in Split Design Nominal cooling output 3,84 (1,82-4,71) Energy efficiency class, cooling Energy efficiency ratio EER 3,01 Power consumption, annual, (500h) Operating range (room volume), approx. -
Page 19: Declaration Of Conformity
Air conditioning and heating technology Im Seelenkamp 12 D - 32791 Lage Equipment (machinery) - Implementation: Air conditioner combination in split design Series / Model: REMKO RKL 490 DC, RKL 490 S-Line Series / Class Number: 516..476..Applicable regulations :... - Page 20 REMKO, a partner helping you find solutions to your problems. Distribution REMKO offers not just a well established sales network both nationally and internationally, but also has exceptionally highly- qualified sales specialists.
