Page 1: Spare Parts

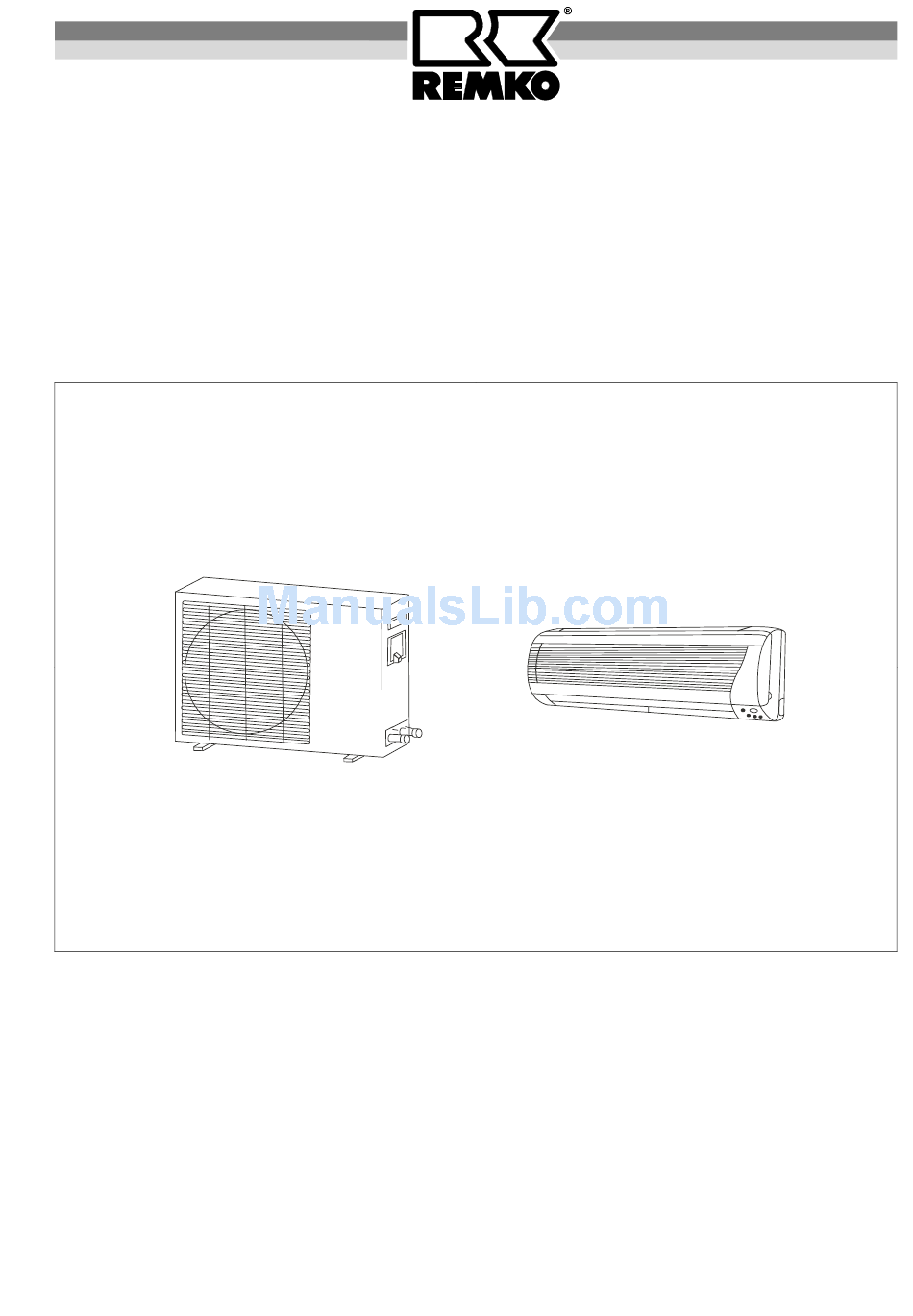

REMKO RKS 327 H – 371 H Split-Design Wall-Mounted Room Air Conditioners Operation Technology Spare Parts REMKO – powerful like a bear. Edition GB – P07... -
Page 3: Table Of Contents
Subject to alterations! Split-design wall-mounted Room air conditioners REMKO RKS 327 H / 335 H / 350 H / 371 H Contents Contents Page Page... -
Page 4: Safety Hints
à Do not place any objects on top of the units! à The indoor unit may only be connected to a correctly The room air conditioners REMKO RKS 327 H to 371 H installed and grounded power supply! have a REMKO RKS ... H-AT outdoor part which can be mounted on the wall or set up on the ground outside as à... -
Page 5: System Design
System Design 1 Indoor unit RKS ... H-IT 2 Outdoor part RKS ... H-AT Inside 3 Infrared remote control 4 Connection lines 5 Air filter Outside 6 Air intake grille 7 Air outlet plate fins with swing motor 8 Plate fins for directing air or manually (covered) 9 Display and receiver 10 Console for manual operation... - Page 6 Control display of the indoor units The buttons on the remote control The LEDs of the indoor units RKS 327 H to RKS 371 H 1 ON / OFF display the following operational modes: This button is used to put the unit into operation. OPERATION LED: Ready for operation 2 TEMP.
- Page 7 Button functionality Within a 7 m distance, the remote control can be used to carry out the following commands. Point the remote control at the receiver on the right hand side of the indoor unit. ON / OFF button Press the ON / OFF button to activate and deactivate your air-conditioner. The settings and set values programmed before the unit was switched off appear on the display.
- Page 8 The desired time can be programmed by pressing this button in the Clock, Timer On TIME and Timer OFF programs. ADJUST button Functional process Press and re- Hold button lease button longer 0:00 0:01 0:11 A programmed on or off time can be reset by pressing the CANCEL button. Cancel button Functional process The on or off programming can be transmitted to the air-conditioning unit by pressing...
- Page 9 Use the “COOL” mode when you want to cool down the room to the desired tempera- COOL mode ture. Decrease the temperature by pressing the button in 1°C Sc increments. The indoor unit’s receiver indicates that the settings are being correctly received by beeping. After approximately 3 minutes, the air-conditioner starts working.
-
Page 10: Shutting Down The Unit
For environmental safety reasons, the air conditioners may only be disassembled by authorised service centres. REMKO GmbH & Co. KG or your contract partner would be happy to provide you with the name of a service cen- tre in your area. -
Page 11: Maintenance And Service
Maintenance and Service Cleaning the filter of the indoor unit Regular care and the observation of a number of basic Clean the right and left air filter and the extra fine filter rules will ensure that the unit has a long service life and behind them at intervals no longer than every two operates reliably. -
Page 12: Troubleshooting
If all functional checks have been performed and the unit is still not operating properly, contact the closest dealer or get in touch directly with REMKO GmbH & Co. KG. -
Page 13: Technical Data
Technical Data RKS 327 H RKS 335 H RKS 350 H RKS 371 H Cooling capacity * 2600 3500 5000 7100 Heating capacity ** 2900 3870 6040 7620 Operating range (size of room approx. ) m³ Refrigerant R 407 C Connection injector line inches (mm) 1/4 (6.35) -
Page 14: Dimensions
Dimensions RKS 327 H - AT RKS 327 H – IT RKS 335 H - AT RKS 335 H – IT RKS 350 H – AT RKS 350 H – IT 1025 RKS 371 H – AT RKS 371 H – IT 1190 1138... -
Page 15: Assembly Instructions For Personnel
The indoor unit and the outdoor part of the REMKO à air-conditioner are adjusted to one another from a technical standpoint. - Page 16 The following chart provides the minimum distances Wind: If the unit is operated primarily in windy areas, make sure that the hot air current being released from the unit is flowing in the primary wind direction. RKS 327 H IT 1000 RKS 335 H IT 1000...
- Page 17 à If the outdoor part is set up in a basement, an attic, Prior to assembly, look at the possible drainage op- à tions (1 to 4) for refrigerant lines, condensation in adjoining rooms or halls, make sure that the warm hoses and control lines.
-
Page 18: Installation
4. Loosen the screws and detach the wall mount from 8. Work with the refrigerant lines as shown in the fig- the unit. ure below: Flare tool Refrigerant line Deburrer Only tools approved for use in cold conditions may be used 9. -
Page 19: Impermeability Check
Winter Regulation 18. Place the control line in the same line guideway. Mechanism 19. Install the outdoor part with the wall or base console onto stationary building parts approved for this pur- pose. To ensure that the system functions properly, the pres- Observe the installation instructions for the con- sure and temperature of the refrigerant must be kept soles. -
Page 20: Electrical Connection
Electrical wiring diagram RKS 327 / 335 H AT Instructions for electrical connection Inside the indoor units for all air-conditioning units, there 2(N) are connection terminals for the power connection and Winter regulation mechanism the customer-supplied connection line. The power connection line is already permanently wired in the indoor unit up all air-conditioners. -
Page 21: Wiring Diagram
Condensation Connecting the outdoor part The connections of the outdoor part are located inside Condensation flow to the outdoor part the unit above the connection valves. Proceed as fol- lows to connect the lines: Condensation forms during heating operation on the plate fin exchanger of the outdoor part because tem- 1. - Page 22 Condensation hose on the indoor unit Ensure the following before laying the condensation Follow the operating instructions for the pump and in- hose: structions below: The condensation drainage line is generally placed in à Protect the housing from coming into direct contact à...
-
Page 23: Prior To Initial Operation
Connections of the condensation pump on the wa- Initial operation of the condensation pump ter side Before putting the pump into operation, the lines that have been laid must be checked to ensure that they are The reservoir is attached to the condensation collection functioning properly and leakproof. -
Page 24: Adding Refrigerant
Adding Refrigerant 4. Do a test run The refrigerant required for operating the system is lo- For more information, see the following section. cated in the outdoor part. 5. Measure all the required values and complete the For refrigerant lines longer than 5 m per cycle, refriger- initial operation log. -
Page 25: Error Analysis For Service Personnel
LED of the tomer must completely fill out the "guarantee certificate" indoor unit. enclosed with all units and send it back to REMKO GmbH The following table describes the type of error that oc- & Co. KG curred using the lit up LEDs. -
Page 26: Certification For Initial Operation
Certification for Date 08/2002 Initial operation Subsequent operation of a REMKO air-conditioning system Unit data based on type plates Units Connection line Length: Outdoor part: Indoor unit: Type of unit: H – AT RKS H – IT Height difference: Oil elevation arcs:... - Page 28 REMKO GmbH & Co. KG Klima- und Wärmetechnik D-32791 Lage Im Seelenkamp 12 • D-32777 Lage PO Box 1827 • Phone +49 (5232) 606 - 0 +49 (5232) 606260...
