Page 1: Spare Parts

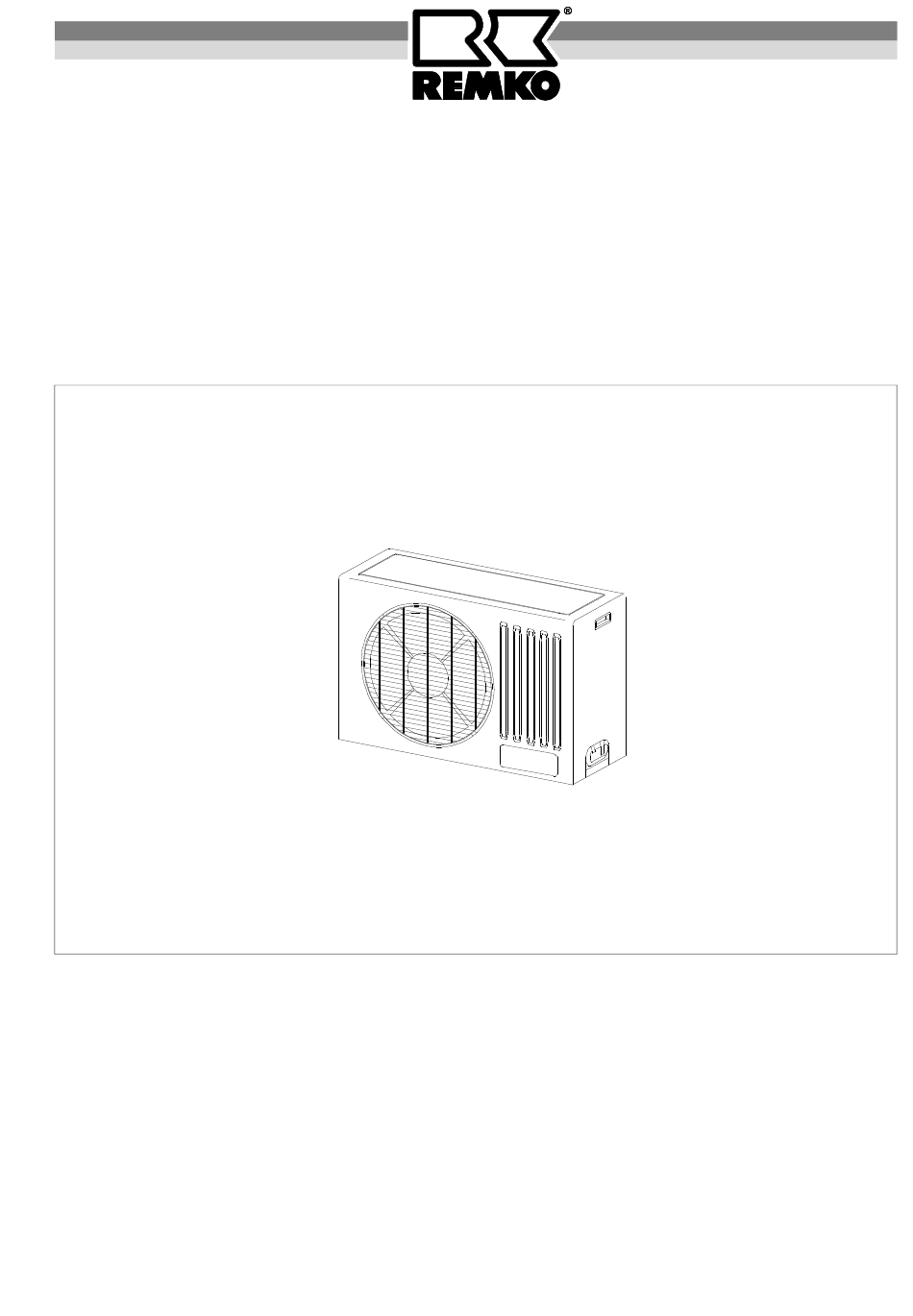

REMKO RKS 510 / 513 / 524 REMKO RKS 513 H / 524 H Combi Air Conditioning Units Operation Technology Spare Parts Edition GB – M08 REMKO – powerful like a bear... -
Page 3: Table Of Contents
Subject to alterations! Combi Air Conditioning Units REMKO RKS 510 / 513 / 524 REMKO RKS 513 H / 524 H Contents Contents Page... -
Page 4: Safety Hints
The outdoor part is controlled via the indoor unit. For example, by animals. this reason, it is necessary to read the section ◊ All REMKO air conditioners are supplied with the en- "Operation" in the operating instructions for the indoor vironmentally-friendly refrigerant R 407 C. units. -
Page 5: Combinations
For environmental safety reasons, the air conditioners may only be disassembled by authorised service cen- tres. REMKO GmbH & Co. KG or your contract partner RKV 10 W would be happy to provide you with the name of a serv- ice centre in your area. -
Page 6: Technical Data
Technical Data RKS 510 RKS 513 RKS 524 RKS 513 H RKS 524 H Cooling capacity * 2900 3800 6800 3800 6800 Heating capacity ** 4000 7200 Working range (size of room) approx. m³ Operating range outside temperature °C - 15 to + 46 Air performance max. -
Page 7: Dimensions
◊ Place the unit in its original packaging as close as possible to the location where it will be assembled. RKS 510, RKS 513, RKS 513 H This will prevent damage resulting from transport. ◊ Prior to installation, the electrical connection values must be checked for consistency with the data on the type plate. - Page 8 These safety zones ensure that air can flow freely in and out of the unit, that maintenance and repair work can be performed and to protect the unit from damage. RKS 510 RKS 513 RKS 524 200 mm...
-
Page 9: Installation
Installation Snow: The outdoor part should be installed on the wall in areas The following instructions describe installation of the with heavy snowfall. cold cycle and the assembly of the indoor unit and out- door part. 1. The required cross-sections are provided in the "Technical Data”... -
Page 10: Impermeability Check
Impermeability Test 11. First manually connect the refrigerant lines with the shut-off valves to ensure that they are in the proper position. Once all connections have been made, the manometer station is connected to the corresponding valve connec- Check that the suction and pressure lines of the tions as described below: cold cycle have been correctly allocated! small valve... -
Page 11: Electrical Connection
Electrical Connection Winter Regulation A power supply to the outdoor part must be installed as To ensure that the system functions properly, the pres- well as a 4-wire control line for pure cooling operation sure and temperature of the refrigerant must be kept from the outdoor part to the indoor unit. -
Page 12: Prior To Initial Operation
Prior to Initial Operation Initial Operation After the impermeability check has been performed, the Initial operation of the unit must comply with the certifi- vacuum pump must be connected to the valve connec- cation specifications and must be documented. tions of the outdoor part by means of the manometer Prior to handover station and a vacuum created. -
Page 13: Customer Service And Guarantee
Protective conductor For the guarantee to be valid, the purchaser or his cus- tomer must completely fill out the "guarantee certificate" enclosed with all units and send it back to REMKO GmbH Connections of the indoor unit RKV-K & Co. KG... - Page 14 Internal wiring diagram Cooling units RKV-K, RKV-W, RKV-T TS 1 yel/grn CM 1 KCM1 Compressor TS 2 Winterregulation Ventilator Fuse 3 A / 250 V TS 3 Sensor Internal wiring diagram Cooling / Heating units RKV 13 WH, RKV 24 WH TS 1 yel/grn KCM1...
-
Page 15: Initial Operation Certification
Certification for Date 01/2003 Initial operation ? Subsequent operation of a REMKO air-conditioning system Unit data Outdoor part Indoor unit Type of unit Unit number Refrigerant length/height of line ———– Oil elevation arcs ———– units Additional quantities ———– Condensation pump ———–... - Page 16 REMKO GmbH & Co. KG Klima- und Wärmetechnik D-32791 Lage Im Seelenkamp 12 • D-32777 Lage PO Box 1827 • Phone +49 (5232) 606 - 0 +49 (5232) 606260...
