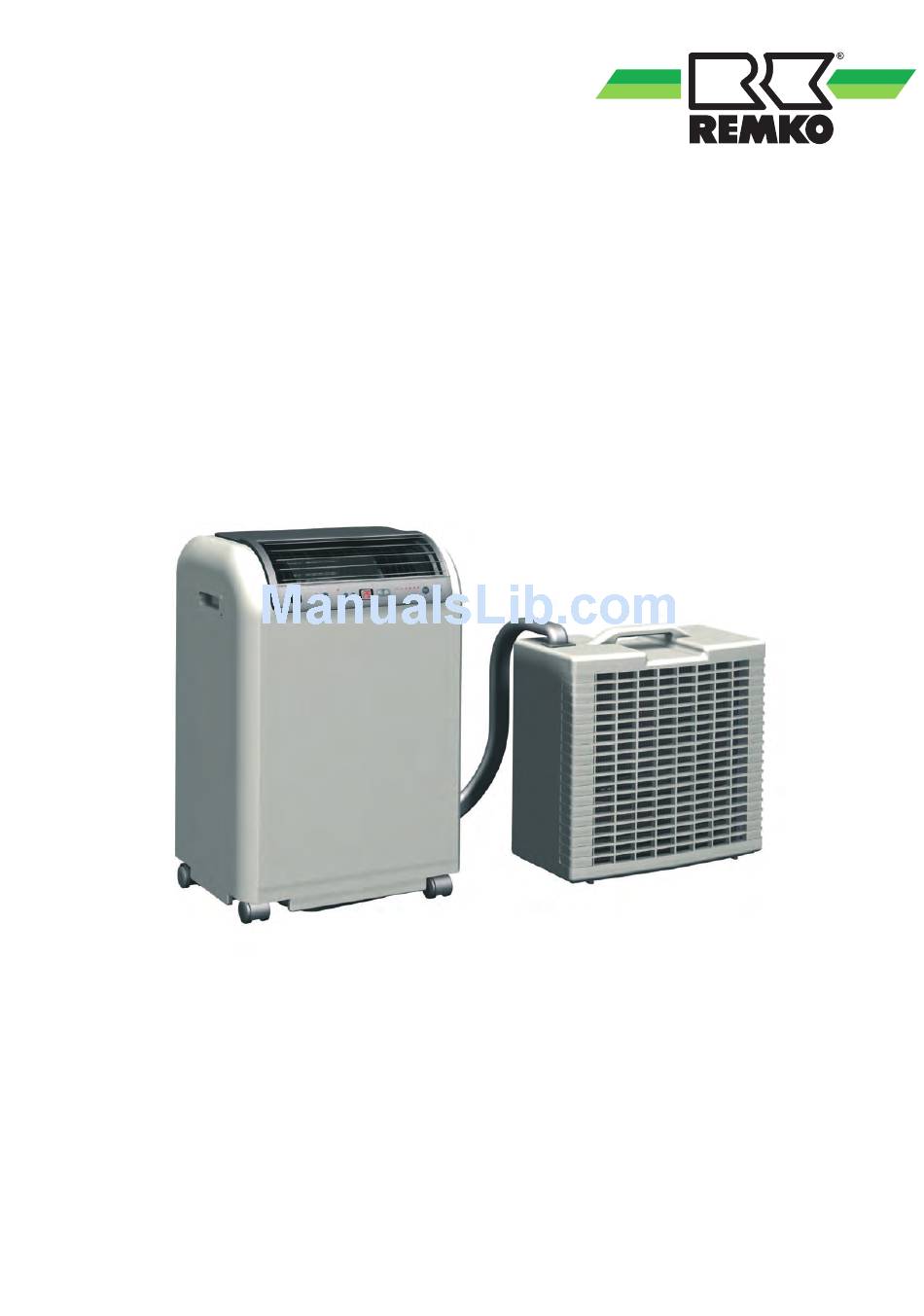

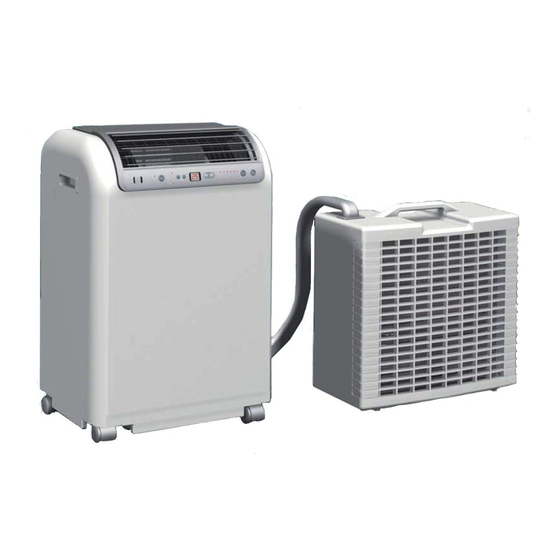

- Page 1 Assembly and operating instructions REMKO RKL 491 DC Local inverter room air conditioner in split design Read the instructions prior to performing any task! 0074-2015-07 Edition 2, en_GB...
- Page 2 Read these operating instructions carefully before commis- sioning / using this device! These instructions are an integral part of the system and must always be kept near or on the device. Subject to modifications; No liability accepted for errors or mis- prints! Installation and operating instructions (translation of the orig- inal)
-
Page 3: Table Of Contents
Table of contents Safety and usage instructions......................4 1.1 General safety notes........................4 1.2 Identification of notes........................4 1.3 Personnel qualifications........................4 1.4 Dangers of failure to observe the safety notes................4 1.5 Safety-conscious working....................... 4 1.6 Safety notes for the operator......................5 1.7 Safety notes for installation, maintenance and inspection.............. -
Page 4: Safety And Usage Instructions
REMKO RKL Safety and usage instructions CAUTION! This combination of symbol and signal word 1.1 General safety notes warns of a potentially hazardous situation, which if not avoided may cause injury or mate- Carefully read the operating manual before com- rial and environmental damage. -
Page 5: Safety Notes For The Operator
"certificate of warranty" to with all applicable regional regulations. REMKO GmbH & Co. KG at the time when the Local regulations and laws such as Water units are purchased and commissioned. -
Page 6: Transport And Packaging
REMKO RKL 1.11 Transport and packaging The devices are supplied in a sturdy shipping con- tainer. Please check the equipment immediately upon delivery and note any damage or missing parts on the delivery and inform the shipper and your contractual partner. For later complaints can not be guaranteed. -
Page 7: Technical Data
Technical data 2.1 Technical data Unit data Series RKL 491 DC RKL 491 DC Operating mode Local inverter room air conditioner in split design 4.30 (1.80 to 4.60) Nominal cooling output Energy efficiency ratio, Energy efficiency size SEER Power consumption, annual, Q Application area (room volume), approx. -
Page 8: Structure And Function
REMKO RKL Structure and function Equipment description The device is particularly suited for flexible opera- tion, but can also be mounted in a stationary instal- lation. The local air conditioning unit is comprised of an indoor unit for setting up on the floor indoors and an outdoor unit for wall or ground installation outdoors. -
Page 9: Operation
Operation The system can be operated by means of the control panel on the device or via the standard infrared remote control unit. The functional operation of the buttons among themselves is identical, however, the designation can vary. The batteries must be correctly inserted before the infrared remote control is used. REMOTE DRAIN WATER TIMER... - Page 10 REMKO RKL Dehumidifying mode DE-HUM. ( ) Position the indoor unit and the outdoor unit in the room that is to be dehumidified. Ensure that the indoor unit cannot extract warm air from the outdoor unit. Do not hang the outdoor unit onto the indoor unit.
-
Page 11: Installation
Installation Installation on the ground Installation instructions The device is supplied in a fully operational condi- tion and is equipped as standard with a 3.0 m long connection pipe linking the indoor and outdoor devices, meaning that it is ready for use. The 20 cm scope of delivery includes various accessories for mounting the outdoor unit. - Page 12 REMKO RKL Fig. 8: Required air circulation Fig. 9: Gaps assembly bracket Safety bolt M4 Fig. 7: Example assembly outdoor unit Mounting height The outdoor unit (lower edge) may only be Mounting on an external wall with wall bracket mounted max. 1.8 m above the installation level of Fasten to the wall using the supplied wall the indoor unit (Fig.
-
Page 13: Connecting Line
Connecting line Hook the wall bracket onto the outdoor unit and secure it with the screws (M4). The connecting line is connected to the indoor unit Hook one end of the fastening strap with the with quick-release couplings. This provides the spring catch into the fastening eyelet of the facility to disconnect the connecting line from the outdoor unit. - Page 14 REMKO RKL Instructions for disconnecting the connecting In doing so, the following procedure must be line: adhered to: Disconnect the units only immediately before Switch the unit off. assembly and only leave the units discon- Pull the power plug out of the socket.
- Page 15 NOTICE! Never twist the the fixed upper section. Screw continuously until the connection is disconnected. NOTICE! Do not stop screwing in the event that refrigerant escapes and a slight hissing sound is heard. Screw the protective caps provided onto the 4 coupling halves (Fig.
- Page 16 REMKO RKL Fig. 15: Unscrew the right-hand union nut A: Hold to prevent turning B: Tighten C: Loosen Fig. 16: Screw on protective caps 1: Protective caps...
-
Page 17: Electrical Connection
Electrical connection Electrical connection diagram Fig. 17: Electrical connection diagram PCB1: Keyboard board THCT: Probe compressor temperature PCB2: Control board THEP: Probe condenser PCB3: Main board THOP: Probe compressor final temperature PCB4: IPM protection board THRA: Probe room temperature PCB5: Condenser board Condensate pump Compressor... -
Page 18: Troubleshooting And Customer Service
REMKO RKL Troubleshooting and customer service The unit has been manufactured using state-of-the-art production methods and tested several times to ensure its correct function. If malfunctions should occur, please check the unit as detailed in the list below. If all functional checks have been carried out and the device still fails to operate properly, then please notify your nearest specialist dealer. -
Page 19: Care And Maintenance
Error codes Fault description / note Liquid line heat exchanger is too high Low power AC High power AC(A) AC(PCON) overcurrent active IPM board error communication IPM board general error IPM board DC overcurrent PFC overcurrent Over-/undervoltage IPM board current error PFC over temperature Care and maintenance Fig. -
Page 20: Shut-Down
Permanent shut-down The entire system should only be dismantled by a specialist firm familiar with all environmental aspects involved. REMKO GmbH & Co. KG or your sales partner will be be pleased to provide details of refrigerant specialists in your area. -
Page 21: Exploded View And Spare Parts Lists
Exploded view and spare parts lists 11.1 Exploded view indoor unit Fig. 19: Exploded view indoor unit We reserve the right to modify the dimensions and design as part of the ongoing technical development process. -
Page 22: Spare Parts List - Indoor Unit
REMKO RKL 11.2 Spare parts list - Indoor unit Please contact REMKO GmbH & Co. KG directly to order spare parts. All of the spare parts numbers for your unit can be found in the download area at www.remko.de. IMPORTANT! - Page 23 No. Designation RKL 491 DC RKL 491 DC Evaporator fan Compressor, cpl. Evaporator Coupling, set (1x m / 1x w) Connecting line, cpl. Fastening block, cpl. Condensate drain hose Keypad board Keypad foil On request by providing the serial number...
-
Page 24: Exploded View Outdoor Unit
We reserve the right to modify the dimensions and design as part of the ongoing technical development process. 11.4 Spare parts list - Outdoor unit No. Designation RKL 491 DC RKL 491 DC Back wall Front panel Unit base Covering for fan... -
Page 25: Index
Index Outdoor unit ......11 Assembly Connecting line ..... . 13 Maintenance . - Page 26 REMKO RKL...
- Page 28 SFlb Customer Service Our equipment operates precisely and reliably. However, in the event of a fault, REMKO customer service is quickly at the scene. Our comprehensive network of experienced dealers always guarantees quick and REMKO GmbH & Co. KG reliable service.
