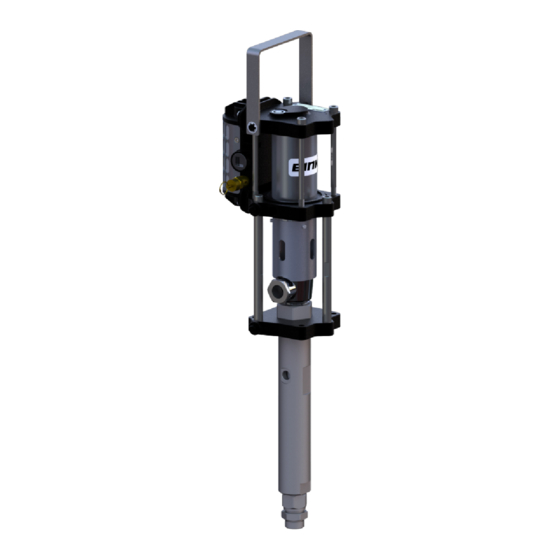

Binks MX412 Quick Start Manual

12:1 pump systems for air assist & airless finishing
Hide thumbs Also See for MX412:
Table of Contents

Advertisement

Quick Links

Download this manual
MX412 12:1 Pump Systems for
Air Assist & Airless Finishing
Ratio:
Maximum air inlet pressure:
Maximum fluid pressure:
Displacement per cycle:
Output @ 60 cycles/min:
Air consumption @ 20 cycles/min:
Maximimum recommended continuous cycle rate:
Air inlet connection:
Fluid inlet connection:
Fluid outlet connection:
Sound level:
Weight:

We reserve the right to change the specifications without prior notice.
© ITW INDUSTRIAL FINISHING 2009
Patent Pending
SPECIFICATIONS
12:1
8 bar [116 psi]
96 bar [1390 psi]
24 cc [0.8 oz]
1.4 L/m [0.4 gal/m]
62.5 LPM [2.2 SCFM]
20 cycles/min
3/8" BSP(f)
1/2" NPS(m)
3/8" BSP(m) and 3/8" NPS(m)
88 dB
7 kg [15.4 lbs]

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MX412 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Binks MX412

Summary of Contents for Binks MX412

  • Page 1 MX412 12:1 Pump Systems for Air Assist & Airless Finishing Patent Pending SPECIFICATIONS Ratio: 12:1 Maximum air inlet pressure: 8 bar [116 psi] Maximum fluid pressure: 96 bar [1390 psi] Displacement per cycle: 24 cc [0.8 oz] Output @ 60 cycles/min: 1.4 L/m [0.4 gal/m]...
  • Page 2 HIGH PRESSURE CONSIDERATION    released under pressure, or flying debris.    High pressure can cause serious injury. Relieve all  pressure before servicing. Spray from the spray gun,  hose leaks, or ruptured components can inject fluid into  your body and cause extremely serious injury.    PINCH POINT HAzARD    Moving parts can crush and cut. Pinch points are basically  STATIC CHARGE    any areas where there are moving parts.    Fluid may develop a static charge that must be  dissipated through proper grounding of the equipment,  objects to be sprayed and all other electrically  conductive objects in the dispensing area. Improper  grounding or sparks can cause a hazardous condition    PACEMAKER WARNING    and result in fire, explosion or electric shock and other  You are in the presence of magnetic fields which may  serious injury.    interfere with the operation of certain pacemakers.      IT IS THE RESPONSIBILITY OF THE EMPLOYER TO PROVIDE THIS INFORMATION TO THE  OPERATOR OF THE EQUIPMENT.    FOR FURTHER SAFETY INFORMATION REGARDING BINKS AND DEVILBISS EQUIPMENT, SEE THE  GENERAL EQUIPMENT SAFETY BOOKLET (77‐5300).    77‐2923R page  2 of 16   ...

  • Page 3: General Warnings

    Be sure that all fluids, solvents and fillers to be used are chemically and physically compatible with wetted parts in the pump. Consult your BINKS representative for pump materials of constructions and compatibility information. Consult the fluid manufacture for information regarding the fluids to be used.
  • Page 4 5. User shall ensure all metallic parts of the equipment are suitably bonded to earth. Should be no greater than 1 .       EC Declaration of Conformity    We: ITW Finishing UK, Ringwood Rd., Bournemouth, Dorset, BH11 9LH, UK As the  manufacturer of the items listed below:    Piston Pumps MX412 MX432  Declare, under our sole responsibility, that, the equipment to which this document relates is in conformity with the following  standards or other normative documents:    EN 13463‐1:2009, EN 13463‐5:2005, EN 982:1996 + A1:2008, EN 983:1996 + A1:2008 and EN 12621:2006    And thereby conform to the protection requirements of Council Directive 98/37/EC relating to Machinery Safety Directive and  council Directive 94/9/EC relating to Equipment and Protective Systems intended for use in Potentially Explosive Atmospheres;  CE Ex 2 II Gc T4 Issued on: 1st  July  2009 Authorized by:   ...

  • Page 5: Start-Up And Operation

    2. Select a suitable filter element using    1 . Prepare the BINKS pump for start‐up  the table in this manual (page 10) and  CAUTION as shown above.      insert it into to the high pressure filter      Once work is completed, the BINKS pump (0110‐009130).    2. Close the high pressure ball valve  must be thoroughly cleaned. Under no     (0114‐019091) on the fluid filter.    circumstances must you allow paint residue to 3. Attach a suitable fluid hose to the ...
  • Page 6         SHUT‐DOWN    CLEANING YOUR BINKS PUMP    6 . Remove the spray tip from the gun  and point the gun into the tank. Unlock    the safety lever on the gun. Operate the        gun trigger and close the high pressure    CAUTION  !  ball valve (0114‐019091). The spray  CAUTION  !  material will now flow through the high  If working with waterborne material, the  Do not allow spray material or solvent to  pressure filter, the fluid hose and the  BINKS pump must again be thoroughly  soak into the ground.    rinsed with water before it is started up.  gun, back into the tank.        7. Release the gun trigger and set  the working pressure at the  1. Clean the pump and the suction     ...
  • Page 7 4  4  4  4  6  0115‐010035  M8 PLAIN WASHER  4  4  4  4  7  MX412PL  MX412 BARE PUMP ASSEMBLY, (PTFE/LEATHER)    1    0    1    0    77‐2906‐EU    8  MX412PP  MX412 BARE PUMP ASSEMBLY (PTFE)    0    1    0    1    77‐2906‐EU   ...
  • Page 8 0115-010001 SOCKET HEAD CAP SCREW 0115-010030 M8 HEX NUT 0115-010031 M8 LOCKWASHER 0115-010035 M8 PLAIN WASHER MX412PL MX412 BARE PUMP ASSEMBLY (PTFE/LEATHER) 77-2906-EU MX41 MX412 BARE PUMP ASSEMBLY (PTFE) 77-2906-EU 0115-010180 AIR ASSIST AIR CONTROL 0115-010198 AIRLESS AIR CONTROL 0110-009130...
  • Page 9 1    1    2    0115‐010227    SOCKET HEAD CAP SCREW    4    4    4    4    3    MX412PL    MX412 BARE PUMP ASSEMBLY (PTFE/LEATHER)    1    0    1    0    77‐2906‐EU  4    MX412PP    MX412 BARE PUMP ASSEMBLY (PTFE)    0   ...

  • Page 11: Parts List

      0115‐010180 AIR ASSIST AIR CONTROL ASSEMBLY    PARTS LIST    When ordering, please specify Part No.      ITEM    NO.    PART NO.  DESCRIPTION  1  0115‐010181  ELBOW FITTING                                                        1  2 ...
  • Page 12 0115‐010198 AIRLESS GUN AIR CONTROL ASSEMBLY    PARTS LIST    When ordering, please specify Part No.    ITEM    PART NO. NO.      DESCRIPTION          QTY.    1    0115‐010181    ELBOW FITTING          2    2    0115‐010185    TUBING            1    3 ...

  • Page 13: System Accessories

      SYSTEM ACCESSORIES        0115‐010186 CART ASSEMBLY  PARTS LIST    When ordering, please specify Part No.    PART ITEM DESCRIPTION QTY. 0114-014640 CART FRAME, WITH WHEELS ....... 1 0114-014216 CAP SCREW............ 0114-014165 FLAT WASHER..........0114-014164 HEX NUT ............  0115‐010100 TRIPOD ASSEMBLY  PARTS LIST    When ordering, please specify Part No.    PART ITEM DESCRIPTION 0115-010101 PUMP MOUNTING PLATE ......
  • Page 14 77-2923R ACCESSORIES FOR YOUR MX412 PUMP               WALL TROLLEY TRIPOD BRACKET ASSEMBLY ASSEMBLY 0115-010179 0115-010186 0115-010100             LUBRICATING OIL FOR AIR CONTROLS   FX-4 FLUID PUMP 0114-009433 FLUID FILTER (100 0115-010180 (Air Assist)  ...
  • Page 15 NOTES...

  • Page 16: Warranty

    This product is covered by Binks’ 5 Year Limited Warranty. Binks European Sales and Service Listing: www.itwifeuro.com ITW Industrial Finishing Binks has authorized distributors throughout the world. For technical assistance or the distributor nearest you, see listing below. ITW Surfaces et Finitions: 163-171 Av des Auréals...
