Instruction Manual

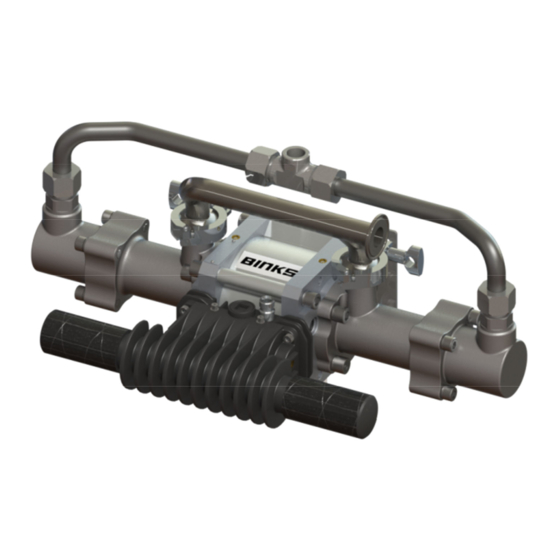

Maple 7/7 Pump
Model 10 40 40

Advertisement

loading
Need help?

Need help?

Do you have a question about the Maple 7/7 and is the answer not in the manual?

Questions and answers

Related Manuals for Binks Maple 7/7

Summary of Contents for Binks Maple 7/7

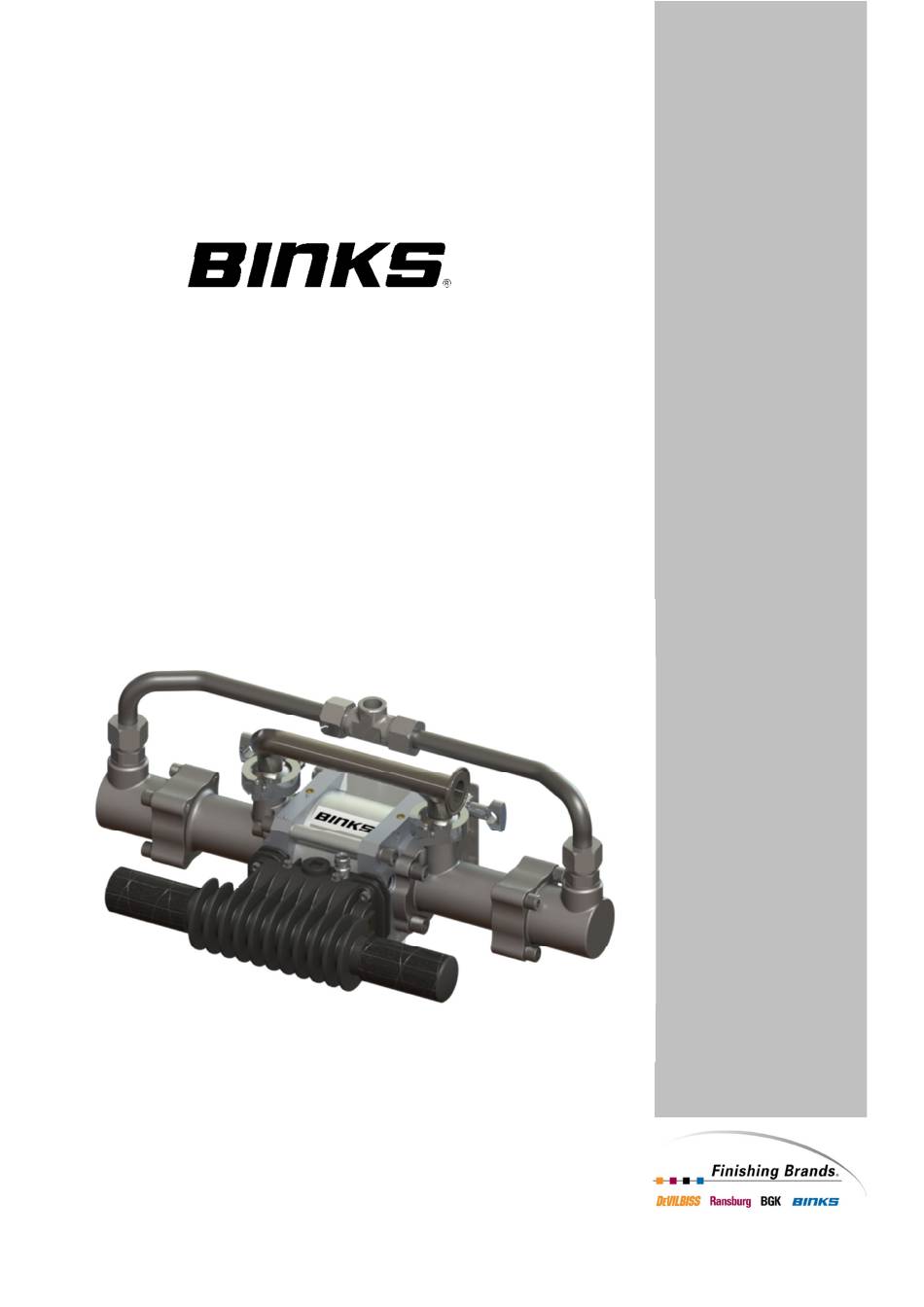

  • Page 1 Instruction Manual Maple 7/7 Pump Model 10 40 40...
  • Page 2 Instruction Manual Page 2 of 16 Issue: 1.0...
  • Page 3 Instruction Manual Specification Pump Ratio Max. Air Pressure Inlet 7 Bar Max. Fluid Pressure 49 Bar 0.166 Litres Nominal Flow Volume / Cycle 0.044 US Gall 10.0 Litres / min Fluid Output @ 60 cycles/min 2.6 US Gall / min Maximum Recommended Continuous Cycle Rate 20 Cycles /min Maximum Recommended Intermittent Cycle Rate...
  • Page 4 Instruction Manual Page 4 of 16 Issue: 1.0...
  • Page 5 Instruction Manual Page 5 of 16 Issue: 1.0...
  • Page 6 Instruction Manual Page 6 of 16 Issue: 1.0...
  • Page 7 Instruction Manual Parts List – 104040 ITEM PART No DESCRIPTION REMARKS 0115-010037 POPPET ASSEMBLY 0115-010102 AIR VALVE ASSEMBLY 161993 Ø20.35 x 1.78 VITON O-RING 161994 Ø4.47 x 1.78 O'RING 161995 Ø19.5 x 3.00 O-RING 161998 Ø125 x 2 O-RING 162703 SHAFT SEAL 162746 Ø25 X 1.6 O'RING PTFE...
  • Page 8 Instruction Manual = GREASE (AGMD-010) = LOCTITE = TORQUE = GREASE INTERNAL (AGMD-010) = MAINTENANCE ORDER (REVERSE FOR ASSY) Item 48 – Detail A ITEM PART No DESCRIPTION REMARKS 162707 PISTON SEAL 165973 M12 x 45 GRUBSCREW (ST ST) 192759 PISTON SHAFT 192832 PISTON...
  • Page 9 Instruction Manual = GREASE (AGMD-010) = LOCTITE = TORQUE = GREASE INTERNAL (AGMD-010) = MAINTENANCE ORDER (REVERSE FOR ASSY) Item 42 - 193357 Piston Assembly ITEM PART No DESCRIPTION REMARKS 160526 CONICAL SPRING 162743 Ø33 X 2 'O' RING PTFE 162744 Ø23.52 X 1.78 ORING PTFE 162745...
  • Page 10 Instruction Manual = GREASE (AGMD-010) = LOCTITE = TORQUE = GREASE INTERNAL (AGMD-010) = MAINTENANCE ORDER (REVERSE FOR ASSY) = MAGNET HAZARD Item 1 - 0115-010102 Valve Assembly ITEM PART No DESCRIPTION REMARKS 0115-010015 SPOOL AND SLEEVE ASSEMBLY 162789 SPOOL AND SLEEVE O’RING Not Shown 0115-010016 BUMPER...
  • Page 11 Instruction Manual Removal of a single fluid piston 16mm 10mm Page 11 of 16 Issue: 1.0...

  • Page 12: Fault Finding

    Instruction Manual Fault Finding Symptom Possible Cause Remedy Pump will not a. Air getting into the suction a. Check seals and hose connections ‘Prime’ hose/manifold b. Replace piston seals b. Worn piston seals c. Inspect, clean/replace balls/seats c. Ball checks not seating correctly Pump will not run a.

  • Page 13: Maintenance Schedule

    Instruction Manual Spares Kits for Maple 7/7 Pump Kit No. Part No. Description Remarks 250653 Fluid Section Service Kit Check Main Parts List 250655 Fluid Section Overhaul Kit for details of individual 250695 Air Motor Seal Kit Kit Contents 250628...
  • Page 14 Instruction Manual Accessories Part No. Description Remarks 192206 1” Sanitary Gasket 192009 1 & 1½” Sanitary Clamp 502608 Seal Insertion Tool For Shaft seal (9) 502769 Bellows Assembly Tool 502382 Bellows Assembly Spigot AGMD-010 Kluber Isoflex Topas NB 52 (Grease type #) 50 ml Tube 192779 Exhaust Tube Adapter (1”...
  • Page 15 Instruction Manual A: 1” SANITARY INLET B: ½” NPT (FEMALE) OUTLET C: 3/8” UNIVERSAL AIR INLET D: EARTH Page 15 of 16 Issue: 1.0...
