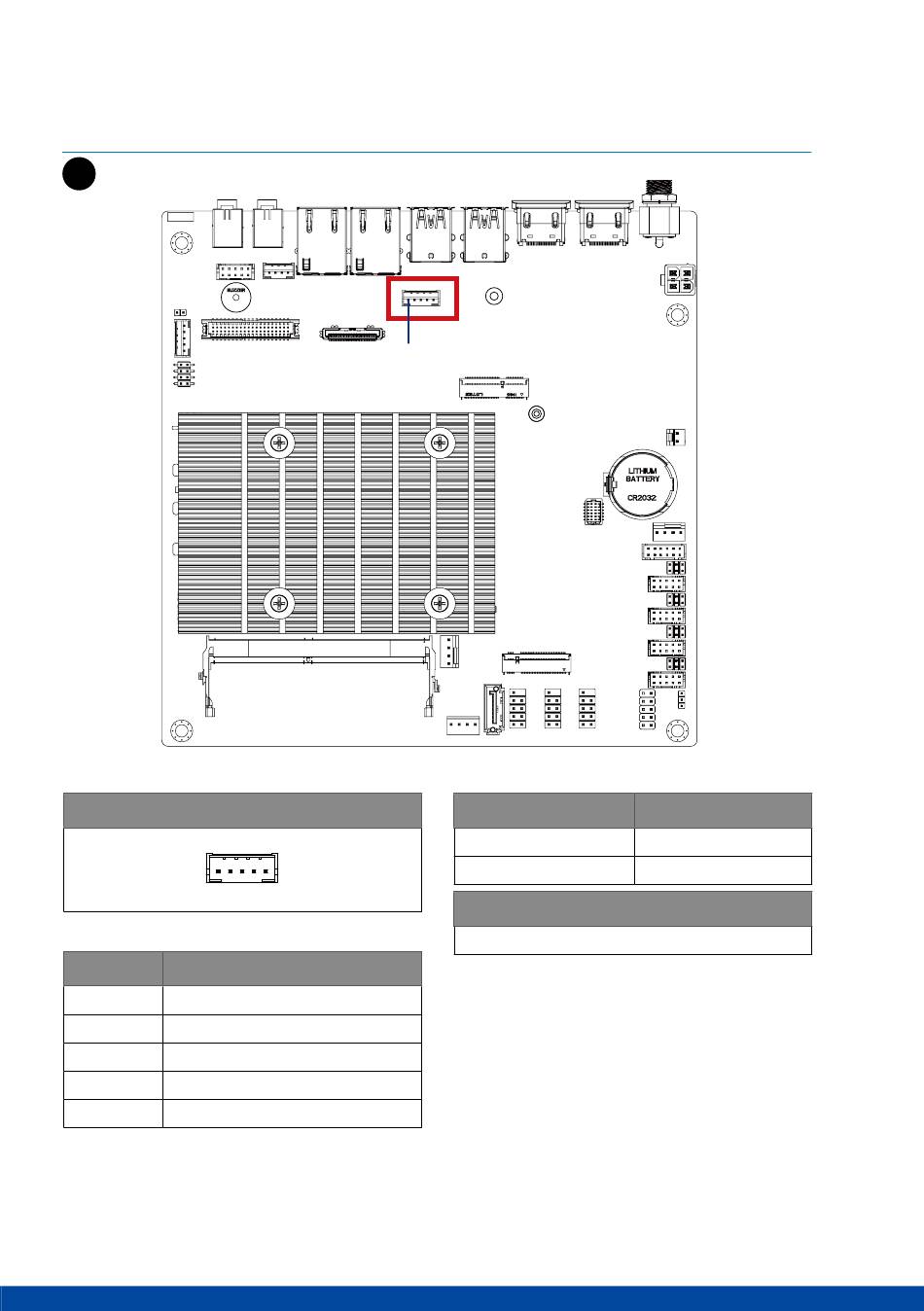

2.2.27 BKL_EDP (Backlight control header for EDP)
27
Pin 1
Backlight control connector
Connector PN
Vendor
721-81-05TW00
PINREX
1
5
A2001WV-05P146
JOINT-TECH
Connector type
1x5pin header, pitch 2.0mm
Pin No.
Definition
1
5V
2
PWM
3
Backlight Enable
4
GND
5
12V
49
