Table of Contents
Web Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
First Login . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Web Application Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
AVT Status Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Data Logs Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Settings Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Documentation Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Support Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

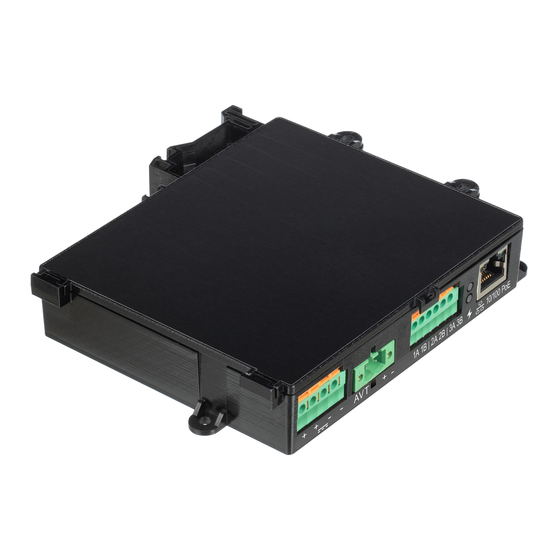

The network module is designed to be an optional accessory that enables network capabilities for the VeriSafe 2 .0 Absence of Voltage
Tester (AVT) . The network module provides an integrated web application that is delivered by an on board web server . The web applica-
tion monitors data from the AVT and provides integration, configuration and firmware update capabilities . The network module supports
AVT data over EtherNet/IP and Modbus TCP protocols . The voltage presence discrete outputs may be used as an indication of voltage
presence with or without a network connection . The network module provides the ability to log various pieces of data based on built in
triggers (see Data Logs Page for more information) .
Before attempting to physically install the network module in hazardous or ordinary locations, refer to document no . B21148 (VeriSafe
Network Module Installation Requirements Manual) for physical installation requirements including; connectivity, ratings and environ-
mental specifications for the network module .
TO REDUCE THE RISK OF INJURY, USER MUST READ INSTRUCTION MANUAL
NOTE: In the interest of higher quality and value, Panduit
pictures may vary from the enclosed product.
NOTE: Updates to this Instruction Manual may be available. Check www.panduit.com for the latest version of this manual.
Tech Support Emails
North America Tech Support:
techsupport@panduit.com
EU Tech Support :
techsupportemea@panduit.com
LATAM Tech Support:
techsupportlatam@panduit.com
For a copy of Panduit product warranties, log on to www.panduit.com/warranty
TM
Visit us at www.panduit.com/verisafe
1006819, B21176_EN_rev3
VeriSafe Network Module
Subject: User Guide
Lit. No.: B21176
Date: June 19 2023 Revision: 3 [English]
Model No: VS2-NET
Data Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
EtherNet/IP
Data Model . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
TM
Modbus TCP Data Model . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Rockwell Automation Integration . . . . . . . . . . . . . . . . . . . . . . .24
Automatic Diagnostic AOP Items . . . . . . . . . . . . . . . . . . . . . .24
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Panduit Limited Product Warranty . . . . . . . . . . . . . . . . . . . . .29
products are continually being improved and updated. Consequently,
™
For more information
Asia Pacific Tech Support:
techsupportap@panduit.com
Advertisement
Table of Contents
Related Manuals for Panduit VeriSafe VS2-NET
Summary of Contents for Panduit VeriSafe VS2-NET
-
Page 1: Table Of Contents
Panduit Limited Product Warranty . . . . . . . . . . . . . . . . . . -
Page 2: Web Application
Web Application FEATURES The network module web application can be used to configure and monitor the AVT . Access the web application by typing the network module IP address in a supported browser . FIRST LOGIN Type the network module IP address (default: 192 .168 .2 .10) in a supported browser using HTTPS and not HTTP . - Page 3 Before using the Network Module with an AVT unit, please ensure the firmware is updated to the latest version by selecting the image below . This will take you to Panduit’s products software/firmware page where the latest firmware version of the Network Module can be found .
-
Page 4: Web Application Layout
WEB APPLICATION LAYOUT The web application layout consists of a left sidebar menu and a content area loaded with content cards . Figure 5. WEB APPLICATION DASHBOARD LOGIN On login the user will be directed to the AVT Status page. Sidebar Menu 1st Card 2nd Card... - Page 5 AVT STATUS PAGE FIRST CARD Data presented in this card is updated as described in table 1 . The user is presented with time stamps to indicate when the data was last updated . Some data will not be shown until an absence of voltage test is completed .
- Page 6 AVT STATUS PAGE SECOND CARD Data in this card is updated every 2 seconds . For single phase systems the view shown is determined by selection on card 1 (table 1, item 6 AC/DC selection) . Figure 8. AVT STATUS PAGE SECOND CARD VIEWS Three-Phase View Single-Phase View DC View...
-
Page 7: Data Logs Page
DATA LOGS PAGE This page allows the user to manage the log data stored on the network module SD card . LOG TRIGGERS Log entries are triggered by specific AVT events: Change in state of any voltage presence indicator „ Initiating the absence of voltage test „... -
Page 8: Settings Page
SETTINGS PAGE The settings page allows the user to configure and view the current state of the network module, retrieve AVT information, check active faults, and update firmware . Figure 10. SETTINGS PAGE 1006819, B21176_EN_rev3 06/19/2023... - Page 9 NETWORK MODULE SETTINGS Figure 11. NETWORK MODULE SETTINGS CARD DETAILS REFRESH Replace all data in fields with the last saved settings . SAVE SETTINGS AND RESTART Saves modified settings and restarts the network module . RESTART Restart the network module without saving changes to settings .
- Page 10 Web Server Mode The web server can be configured for either HTTP or HTTPS (default is HTTPS) Download Certificate Download the network module certificate . Upload PEM Certificate Upload a user supplied PEM certificate (default uses on board PEM certificate) Upload PEM Private Key Upload a user supplied PEM private key (default uses on board PEM private key) Use Custom Cert and Key...
- Page 11 ABOUT AVT Figure 12. ABOUT AVT CARD DETAILS Displays firmware version, model number and universal identifier (UID) of the AVT . Use the refresh button to update the card . Refresh AVT Data ACTIVE FAULTS Figure 13. ACTIVE FAULTS CARD DETAILS This card will display active faults in the network module .
- Page 12 Figure 14. UPDATE FIRMWARE Download the latest firmware at www .panduit .com Select Browse, navigate to the firmware file, and click the appropriate Update button . . The firmware update process for both the network module and AVT should take approximately one minute .
-
Page 13: Documentation Page
Queries the AVT and network module for product information to assist in technical support . „ Contains a Licenses section outlining the Panduit License Agreement as well as the Web and System „ licenses used in the creation of this product . -
Page 14: Data Models
Data Models The following data models will describe the parameters utilized in the EtherNet/IP and Modbus TCP communication protocols . ETHERNET/IP DATA MODEL Network Module Unit Object (100~Decimal, 64~Hex - 1 Instance) „ All attribute IDs are in decimal value for each data item . „... - Page 15 Value Type Item Name Description Range (size bytes) L1 to Ground L1-G Attribute ID: 5 Access Rule: Get L2 to Ground Line to Ground L2-G Attribute ID: 6 0 to 1100 Vrms RMS Voltage Access Rule: Get L3 to Ground L3-G Attribute ID: 7 Access Rule: Get...
- Page 16 Value Type Item Name Description Range (size bytes) Bit Name Battery Warning Indicator 0: Battery OK 1: Check battery (low or not present) Temperature Fault 0: OK 1: Fault Power Source 0: Battery 1: Aux Phase Number 0: 3 Phase 1: Single phase Status bits associated with the network User Threshold...
- Page 17 Value Type Item Name Description Range (size bytes) Result Passed Battery Voltage Low Voltage Exceeded Temperature not in range Connectivity not Confirmed Most recent test result of an AVT test AVT Result 1 WORD(2) Attribute ID: 20 Diagnostic 5 Access Rule: Get Diagnostic 6 Diagnostic 7 Diagnostic 8...
- Page 18 Value Type Item Name Description Range (size bytes) Result Passed Battery Voltage Low Voltage Exceeded Temperature not in range Connectivity not Confirmed Second most recent test result of an AVT test AVT Result 2 WORD(2) Diagnostic 5 Attribute ID: 21 Access Rule: Get Diagnostic 6 Diagnostic 7...
-
Page 19: Modbus Tcp Data Model
MODBUS TCP DATA MODEL INPUT DATA All values are contained in input registers (offset 30000) . Value Type Input Data Item Description Range (size bytes) Current Date/Time set in the network module Microseconds since epoch Date/Time uint64_t(8) Start Address: 1 End Address: 4 Last voltage reading of the AVT battery 0 .0 to 4 .0 V... - Page 20 Value Type Input Data Item Description Range (size bytes) L1 to Ground L1-G Start Address: 9 End Address: 9 L2 to Ground Line to Ground L2-G Start Address: 10 0 to 1100 Vrms RMS Voltage End Address: 10 L3 to Ground L3-G Start Address: 11 End Address: 11...
- Page 21 Value Type Input Data Item Description Range (size bytes) Bit Name Battery Warning Indicator 0: Battery OK 1: Check battery (low or not present) Temperature Fault 0: OK 1: Fault Power Source 0: Battery 1: Aux Phase Number 0: 3 Phase 1: Single phase Status bits associated with the network User Threshold...
- Page 22 Value Type Input Data Item Description Range (size bytes) Result Passed Battery Voltage Low Voltage Exceeded Temperature not in range Connectivity not Confirmed Most recent test result of an AVT test AVT Result 1 uint16_t(2) Start Address: 25 Diagnostic 5 End Address: 25 Diagnostic 6 Diagnostic 7...
- Page 23 Value Type Input Data Item Description Range (size bytes) Result Passed Battery Voltage Low Voltage Exceeded Temperature not in range Connectivity not Second most recent test result of an AVT Confirmed test AVT Result 2 uint16_t(2) Start Address: 26 Diagnostic 5 End Address: 26 Diagnostic 6 Diagnostic 7...
-
Page 24: Rockwell Automation Integration
Rockwell Automation Integration The EtherNet/IP protocol is supplemented by an Add-On Profile (AOP) for easy integration with products from Rockwell Automation . The AOP supports the Automatic Diagnostics feature . AOP available in Studio 5000 Logix Designer V33 .01 or greater „... - Page 25 AVT RESULT 1 WORD(2) Most recent test result of an AVT test „ This report has the following possible bit states to indicate a passed test or the reason for „ a failed AVT test Table 8. Passed 0F Battery voltage Voltage exceeded Temperature not in Connectivity not...
-
Page 26: Security
Security The Network Module contains software that stores user entered data . All data entered by the user is stored in non-volatile storage on the system running the software . NON-VOLATILE STORAGE The Network Module uses non-volatile storage to store all configuration information . „... - Page 27 SECURE BOOT PROTECTION The product uses industry standard code signature algorithms to protect firmware booted by the device . „ A signature block is appended to the bootloader . „ The signature block contains a signature of the bootloader and the RSA 3072-bit public key . „...
-
Page 28: Troubleshooting
„ installed . This can be checked on the Network Module Settings Page . SD card error (5) Contact Panduit for support around SD Card errors and possibly reseating or replacing the SD Card . SD card full (6) download logs (if necessary) and then delete logs from the web interface . -
Page 29: Warranty
Panduit product, will comply with Panduit’s published specifications and will be free from defects in material and workmanship for a period of 1 year from the date of invoice from Panduit or its authorized distributor, not to exceed 18 months from the original date of shipment from Panduit’s facility .
