© Panduit Corp. 2013
CJR6X88TG**
Understanding the Label
IMPORTANT!: Determine the desired direction of cable before
wiring the cap. The cap, in relation to the jack, must be kept
consistent throughout the entire termination.
B
A
B
A
Do not pre-arrange
conductors.
Bend wires to
ease inserting
them into the
cap.
Do not pre-arrange
conductors.
For Technical Support: www.panduit.com/resources/install_maintain.asp
** Denotes color.

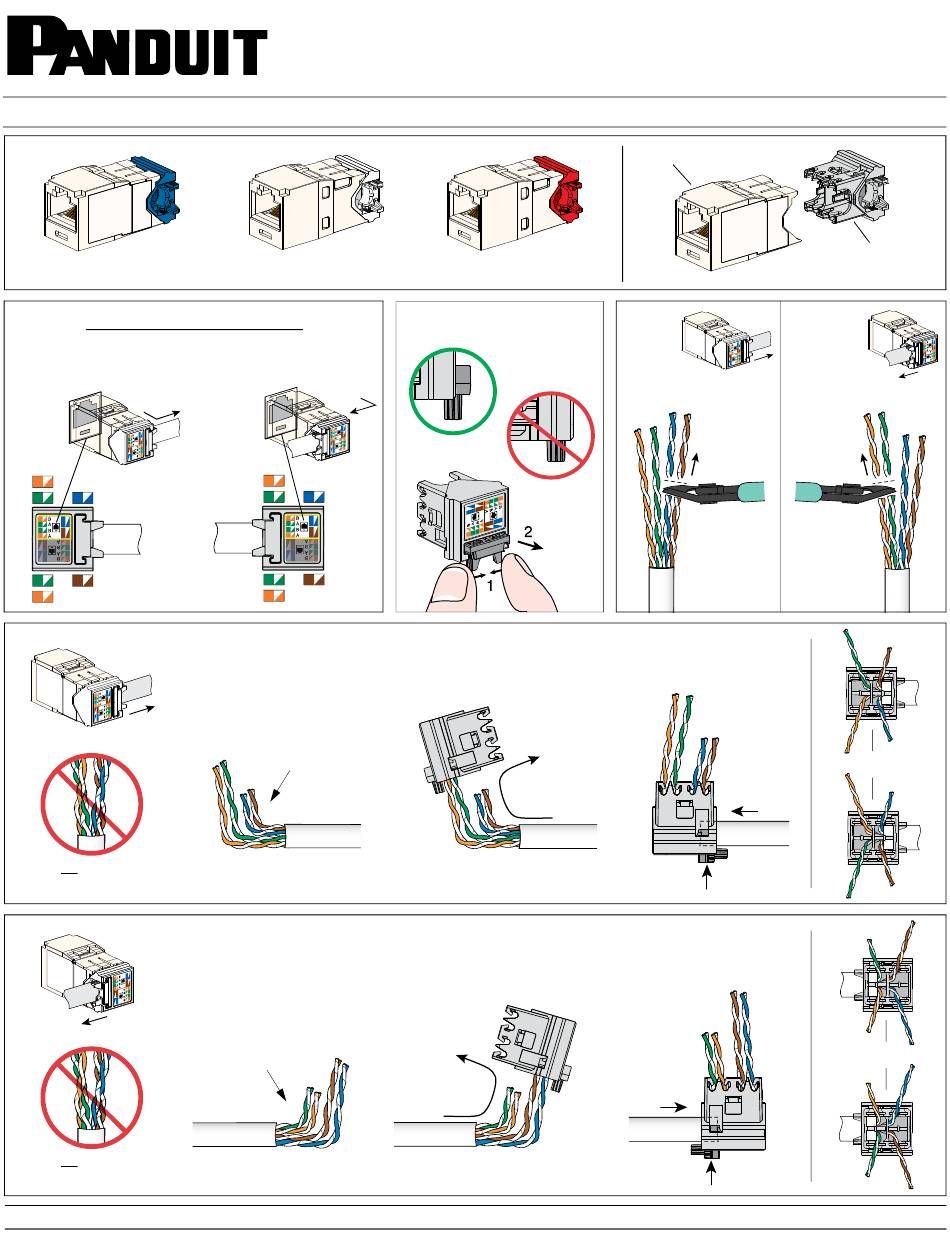

Jack Modules with Right Angle Wire Cap
INSTALLATION INSTRUCTIONS
CJR688TG**
B
A
B
A
3a
Bend wires to
ease inserting
them into the
cap.
3b
TX6A 10Gig, TX6 PLUS and TX5e UTP
Part Numbers: CJR6X88TG**, CJR688TG**, CJR5E88TG**
CJR5E88TG**
1
4a
4b
Page 1 of 3
Jack
2a
2b
5a
1
2
5b
1
2
PN581
Right Angle
Wire Cap
(OR)
(OR)
Advertisement
Table of Contents
Related Manuals for Panduit TX6A 10Gig
-
Control Unit Panduit TX6 PLUS Installation Instructions
Utp jack modules (3 pages)
-
Control Unit Panduit TX6A Installation Instructions
10gig shielded jack modules for use with tx7000 marine rated 10gig shielded copper cable (2 pages)
-
Control Unit Panduit CJ6X88TG Series Installation Instructions
10gig utp jack modules (3 pages)
-
Control Unit Panduit CJSK6X88TG Series Installation Instructions
Mini-com shielded jack modules - tg style termination (3 pages)
Summary of Contents for Panduit TX6A 10Gig
- Page 1 TX6A 10Gig, TX6 PLUS and TX5e UTP Jack Modules with Right Angle Wire Cap Part Numbers: CJR6X88TG**, CJR688TG**, CJR5E88TG** INSTALLATION INSTRUCTIONS PN581 © Panduit Corp. 2013 Jack Right Angle Wire Cap CJR6X88TG** CJR688TG** CJR5E88TG** Understanding the Label IMPORTANT!: Determine the desired direction of cable before wiring the cap.
- Page 2 INSTALLATION INSTRUCTIONS PN581 © Panduit Corp. 2013 T568B Wiring T568A Wiring Termination side Label side Termination side Label side (OR) (OR) T568B Wiring T568A Wiring Termination side Label side Termination side Label side (OR) (OR) For Technical Support: www.panduit.com/resources/install_maintain.asp Page 2 of 3...
- Page 3 2. Jack Modules can terminate 22-26 AWG solid or stranded IWC data cable with 0.062" (1.57mm) maximum insulated conductor outside diameter. 3. Jack Modules may be re-terminated a minimum of 20 times. 4. For technical and performance information, consult Panduit Technical Support. As with all Wiring Accessories, the following statements apply: 1.
