Panduit CJSK6X88TG Series Installation Instructions

Panduit CJSK6X88TG Series Installation Instructions

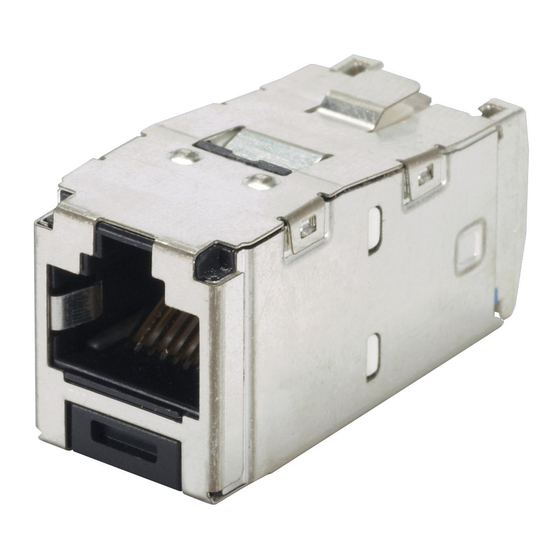

Mini-com shielded jack modules - tg style termination

Advertisement

© Panduit Corp. 2015
S/FTP
Individual foil
pair screen
Conductors
Braid
SF/UTP
Overall foil
screen
Conductors
Braid
U/FTP
Individual foil
pair screen
Conductors
Drain wire
F/UTP
Overall foil
screen
Conductors
Drain wire
For Technical Support: www.panduit.com/resources/install_maintain.asp
** = color.
Mini-Com Shielded Jack Modules -
Part Numbers: CJS6X88TG**Y, CJSK6X88TG**, CJSQ6X88TGBL, CJSH6X88TG**Y, CJS688TG**Y,
CJSK688TG**, CJSQ688TG**, CJSH688TG**Y, CJS5E88TG**Y, CJSK5E88TG**, CJSH5E88TG**Y
INSTALLATION INSTRUCTIONS
Jack

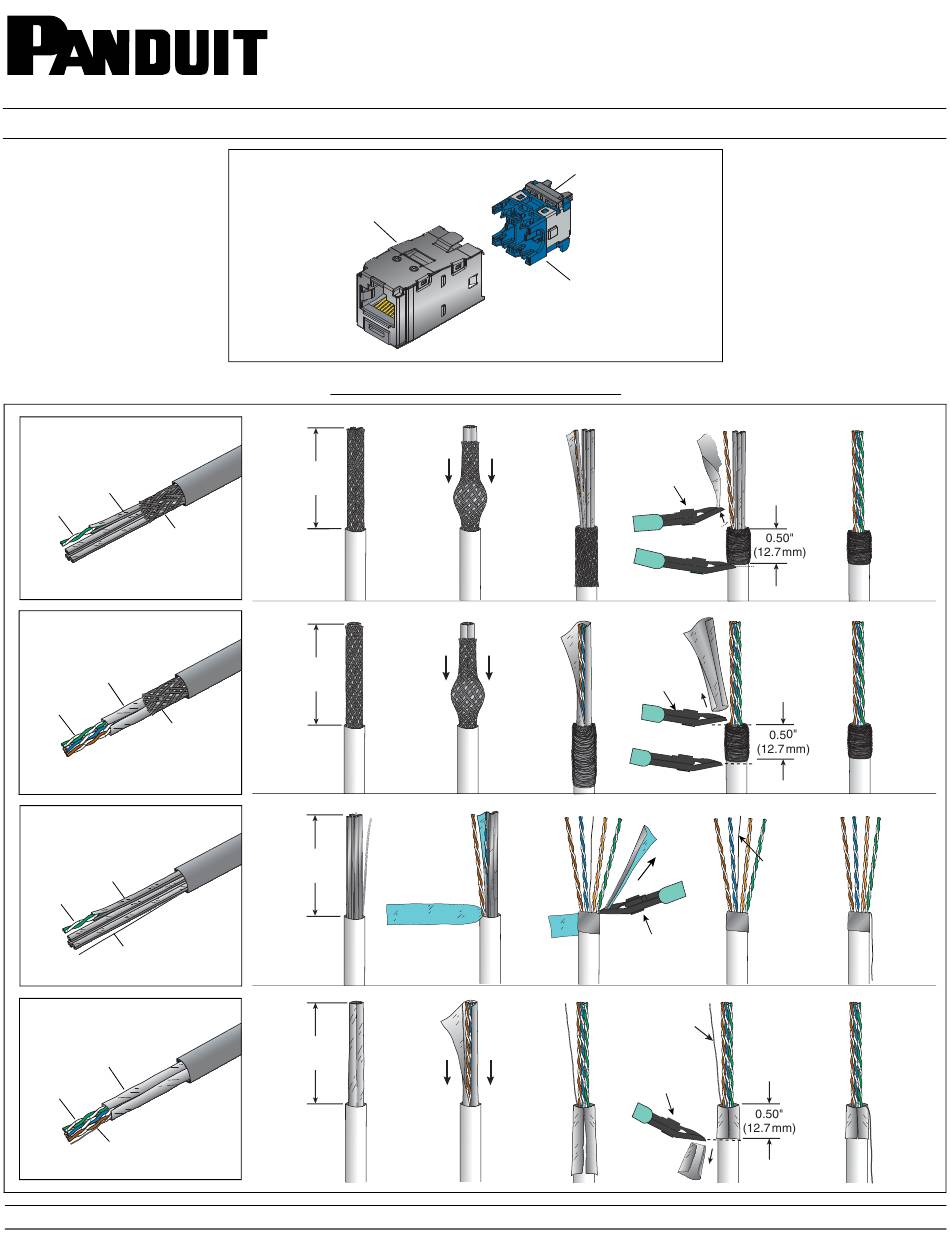

CABLE PREPARATION STEPS

2.00"
(50.8mm)
2.00"
(50.8mm)
2.00"
(50.8mm)
2.00"
(50.8mm)
Page 1 of 3
TG Style Termination
Strain relief clip
Wire cap
Blue - Cat. 6A
White - Cat. 6
Red - Cat. 5e
CWST
CWST
CWST
Drain Wire
CWST
PN366M
Drain
Wire

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CJSK6X88TG Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Panduit CJSK6X88TG Series

  • Page 1 Mini-Com Shielded Jack Modules - TG Style Termination Part Numbers: CJS6X88TG**Y, CJSK6X88TG**, CJSQ6X88TGBL, CJSH6X88TG**Y, CJS688TG**Y, CJSK688TG**, CJSQ688TG**, CJSH688TG**Y, CJS5E88TG**Y, CJSK5E88TG**, CJSH5E88TG**Y INSTALLATION INSTRUCTIONS PN366M © Panduit Corp. 2015 Strain relief clip Jack Wire cap Blue - Cat. 6A White - Cat. 6 Red - Cat.
  • Page 2 INSTALLATION INSTRUCTIONS PN366M © Panduit Corp. 2015 TERMINATION STEPS 0.5" (12.7mm) Trim pair separator and/or ripcord, if present. EGJT Do not pre-arrange conductors. (OR) T568B Wiring T568A Wiring (OR) (OR) For Technical Support: www.panduit.com/resources/install_maintain.asp Page 2 of 3...
  • Page 3 3. Shielded jack modules may be re-terminated a minimum of 20 times. 4. For technical and performance information, contact Panduit Technical Support. 5. CJSGK-X Grounding Kit is REQUIRED for all Mini-Com Modular Patch Panels, but is optional for Mini-Com All Metal Shielded Modular Patch Panels.
