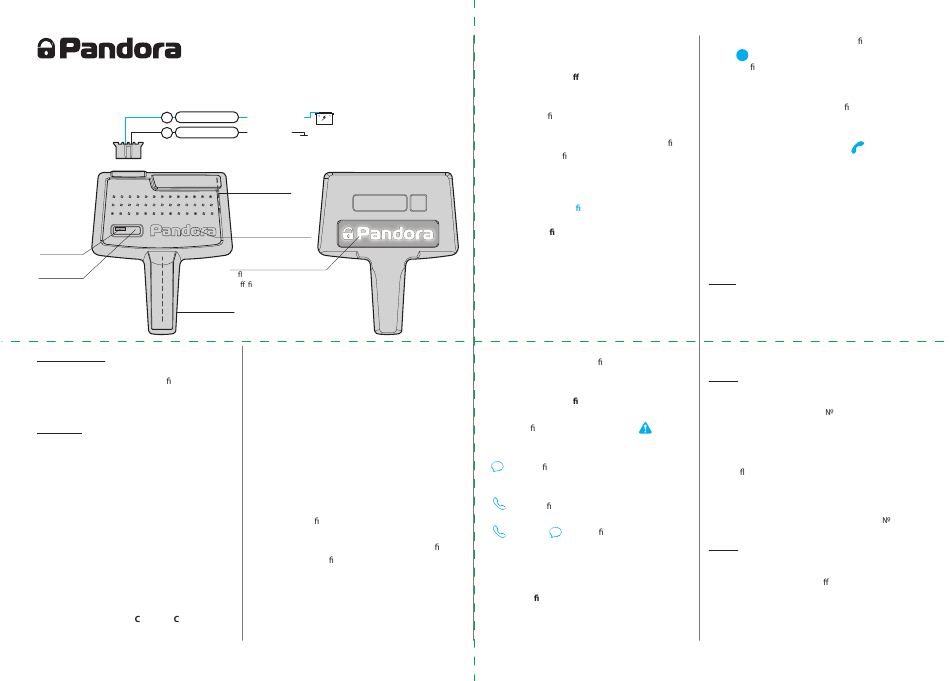

Panduit RFM-470 Instruction Manual

This RF module is designed to control a security system
by remote controls at a frequency of 868 MHz
3
Red
2
Black
Light
indicator
«LED-RFM»
Button
«CALL/SOS»
868MHz (LoRa)
Antenna

COMPATIBILITY

The module is compatible with the systems that
has Bluetooth 5.0 interface and rmware version
4.04 and higher:
Pandora Elite v2.

FEATURES

• 868MHz Antenna, LoRa-modulation, dialog
encryption (128bit) – up to 4 remote controls
D-043
• CALL/SOS – multifunction button
• LED-RFM – LED indicator of the CALL/SOS
button
• PANDORA-RFM – LED indicator of security
mode
• BEEPER-RFM – sound indicator
• 2.4GHz Antenna, Bluetooth 4.2 – wireless
connection with a security system
• 12V Power supply – own power supply
The module is designed to work at the
temperature from -40 to +85 , IP40.
0 0
RF Module
RFM-470
POWER(+12V)
GROUND (–)
2.4GHz (BLE4.2)
Antenna
Sound indicator
BEEPER-RFM
Light indicator
PANDORA-RFM
( ashes on./
o / rst 3 minutes.)

FUNCTIONS OF THE CALL/SOS BUTTON

The multifunctional CALL/SOS button with the
built-in LED-RFM indicator is used to control a
security system in case of emergency and
notify phone numbers recorded in the system.
Emergency disarming – enter the "Secret
PIN-code" that is written on the Owner's personal
card. The system will be disarmed if you enter a
correct PIN:
• Press the CALL/SOS button the number of times
equal to the rst digit.
• Pauses between presses should not exceed 1
second. Pause for more than 1 second con rms
the input of the rst digit.
• Enter the second, third and fourth digits in the
same manner.
Emergency deactivation of the anti-theft
– turn on ignition and start to enter
functions
the "Secret PIN-code" within 10 seconds.
When you enter a correct PIN, the system will
deactivate the anti-theft functions until the
ignition is turned o :
• Press the CALL/SOS button the number of times
equal to the rst digit.
• Pauses between presses should not exceed 1
second. Pause for more than 1 second con rms
the input of the rst digit.
• Enter the second, third and fourth digits in the
same manner.
– Owner's personal
Emergency SOS noti cation
safety function. The system will make
alternate noti cation to the programmed
phone numbers:
• Press and hold the CALL/SOS button for 3
seconds (until the third sound signal of the
BEEPER-RFM)
!
T 10
HIS FUNCTION IS NOT AVAILABLE FOR SECONDS AFTER
(
TURNING ON THE IGNITION THIS TIME IS RESERVED FOR
E -
MERGENCY DEACTIVATION OF THE ANTI THEFT FUNCTIONS
It is required to set-up noti cations on the
pandora-on.com
Voice and SMS noti cation settings
- Go the SETTINGS -> NOTIFICATIONS menu
- Add noti cations for the "Accident"
type to any programmed phone number:
SMS noti cation "SOS + a link to the map with
current location";
Voice noti cation: "Owner is in danger";
Voice and SMS noti cation: "Owner is in
danger, current coordinates are sent by SMS"
and "SOS + a link to the map with current
location".
PUSH noti cations settings
- Go the SETTINGS -> NOTIFICATIONS menu
- Go to the ADMINISTRATIVE SETTINGS -> RULES;
- Select the "CRASH!" type in the Noti cations
rule :
PUSH noti cation Emergency call by a command
from remote.
CALL driver function - owner noti cation
function. The system will call the owner's phone
number and play the "Greeting ringtone". The
remote control will indicate "call"
!
T
HIS FUNCTION IS NOT AVAILABLE WHEN THE SYSTEM IS
ARMED 10
AND FOR SECONDS AFTER TURNING ON THE
( E
IGNITION THIS TIME IS RESERVED FOR MERGENCY
-
DEACTIVATION OF THE ANTI THEFT FUNCTIONS

INSTALLATION

STEP 1 – connect power supply of the module:
• Connect the wire 2 (Black) to a grounded spot of
a car;
).
• Connect the wire 3 (Red) to constant +12V
STEP 2 – pair the module with a security
system:
• Enter the programing level 10.11;
• If the LED is green, the system is ready for
pairing;
• Press and hold the CALL/SOS button on the RF
module until the sixth beep of the
(sixth ash of the BEEPER-LED)
• If pairing was successful - the BEEPER-RFM
module and the Siren/Beeper of the system will
sound a beep and the LED will light red. The
system will enter the programming level
STEP 3 – settings:
• 1.8.3 – Flashes of the Pandora LED when the
system is armed (Flashes o / Flashes on / First 3
minutes);
• 1.9 – P factor of RF-module (1-127).
).
BEEPER-RFM
of the
0.
