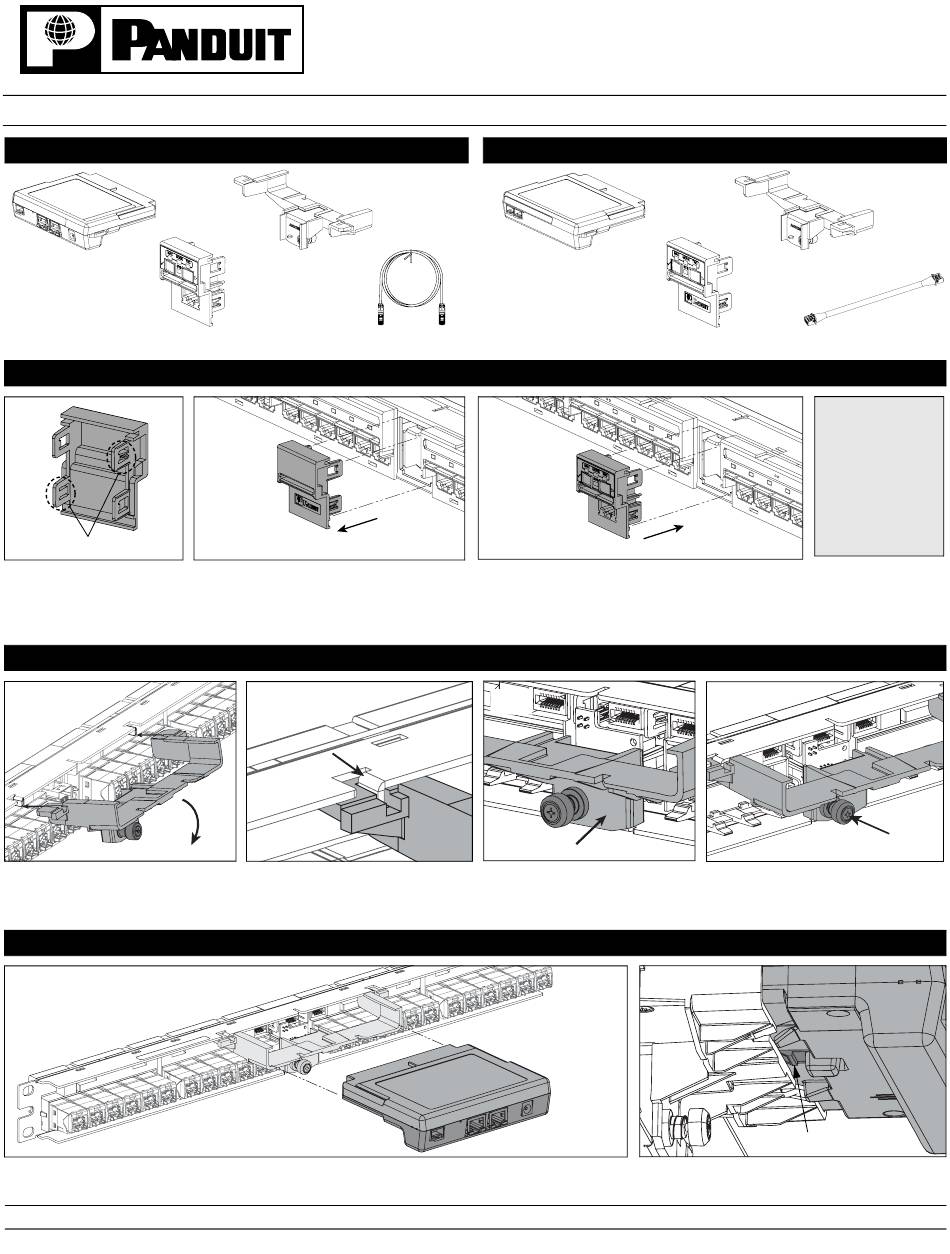

Panduit PVQ-PM Installation Instructions

© Panduit Corp. 2009
Hardware Components (included with PM)
P V iQ Panel
AN IEW
Manager (PM)
PM Interface Unit
1.
Locking Tabs
To remove any Interface Unit, depress the locking tabs from the rear of
the panel (upper right & lower left) and gently push the unit forward.
2.
Locate and tilt the mounting bracket
downward into the center of the
PViQ Patch Panel.
3.
Slide the PM or EM into the mounting bracket until the latch on the bottom of the PM or EM snaps into the mounting bracket. When properly inserted,
you will hear an audible click.
For Technical Support: www.panduit.com/resources/install_maintain.asp
INSTALLATION INSTRUCTIONS
Mounting Bracket
for Module
Patch Cord

Installing the Interface Unit

1a.

Mounting Bracket Installation

2a.
Pivot bracket until the tabs on the
patch panel rest inside the slots of
the mounting bracket.

Installing the Panel Manager (PM) or Expansion Module (EM)

P V iQ (PViQ) Panel Manager (PM)
AN IEW
and Expansion Module (EM)
Part Numbers: PVQ-PM, PVQ-EM
P V iQ Expansion
AN IEW
Module (EM)
1b.
Insert the new PM or EM Interface Unit into the
front center of the patch panel, gently pushing it into
the open slot until it snaps into place. Care must be
taken to avoid disruption of cabling or electronics.
2b.
Next apply forward and upward
pressure until bracket slides into
the catch on the patch panel.
Page 1 of 2
PN466C
Hardware Components (included with EM)
EM Interface Unit
2c.
Secure the bracket to the patch panel
using a phillips-head screwdriver to
push in and turn the securing screw.
3a.
Mounting Bracket
for Module
Expansion Port Cable
NOTE:
Be sure to match
the proper
Interface Unit
included with each
module (i.e. PM
Interface Unit with
PM module)
Bottom Latch
