Table of Contents
Web Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
First Login . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Web Application Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
AVT Status Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Data Logs Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Settings Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Documentation Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Support Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
The network module is designed to be an optional accessory that enables network capabilities for the VeriSafe 2 .0 Absence of Voltage
Tester (AVT) . The network module provides an integrated web application that is delivered by an on board web server . The web applica-
tion monitors data from the AVT and provides integration, configuration and firmware update capabilities . The network module supports
AVT data over EtherNet/IP and Modbus TCP protocols . The voltage presence discrete outputs may be used as an indication of voltage
presence with or without a network connection . The network module provides the ability to log various pieces of data based on built in
triggers (see Data Logs Page for more information) .
Before attempting to physically install the network module in hazardous or ordinary locations, refer to document no . B21148 (VeriSafe
Network Module Installation Requirements Manual) for physical installation requirements including; connectivity, ratings and environ-
mental specifications for the network module .
TO REDUCE THE RISK OF INJURY, USER MUST READ INSTRUCTION MANUAL
NOTE: In the interest of higher quality and value, Panduit
pictures may vary from the enclosed product.
NOTE: Updates to this Instruction Manual may be available. Check www.panduit.com for the latest version of this manual.
Tech Support
North America Tech Support:
techsupport@panduit.com
Tel: 866.405.6654
EU Tech Support :
techsupportemea@panduit.com
Tel: 31.546.580.452
Fax: 31.546.580.441
For a copy of Panduit product warranties, log on to www.panduit.com/warranty
TM
Visit us at www.panduit.com/verisafe

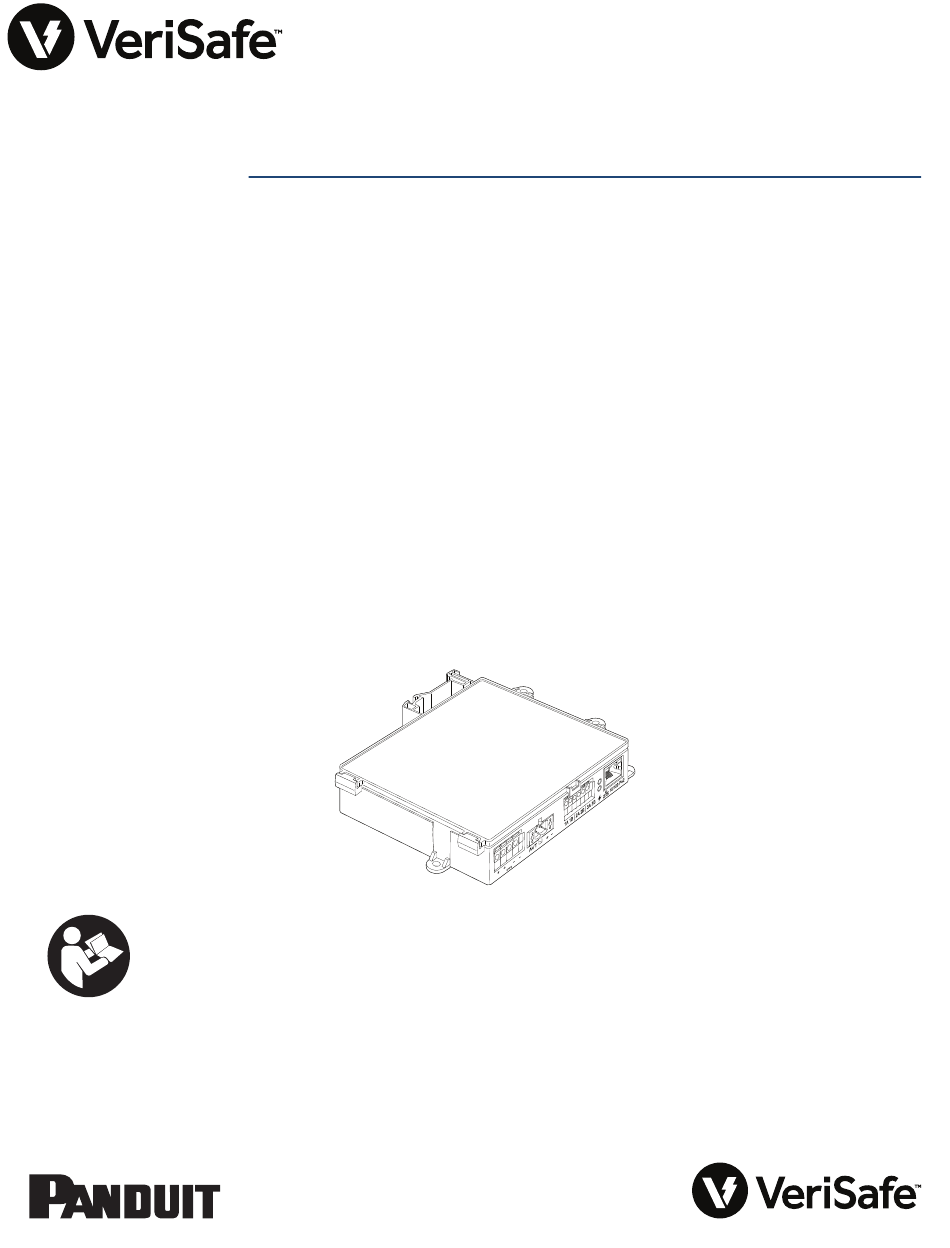

VeriSafe Network Module
Subject: User Guide
Lit. No.: B21176
Date: SEP 2022
Model No: VS2-NET
Data Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
ModBus TCP Data Model Implementation . . . . . . . . . . . . . . .14
EtherNet/IP
Implementation . . . . . . . . . . . . . . . . . . . . . . . .14
TM
Rockwell Automation Integration . . . . . . . . . . . . . . . . . . . . . . .15
Automatic Diagnostic AOP Items . . . . . . . . . . . . . . . . . . . . . .15
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Panduit Limited Product Warranty . . . . . . . . . . . . . . . . . . . . .18
products are continually being improved and updated. Consequently,
™
For more information
Revision: 1 [English]
Asia Pacific Tech Support:
techsupportap@panduit.com
Tel:
Singapore: 1-800-Panduit (7263848)
Australia: 1-800-Panduit (7263848)
Korea: 02.21827300
Advertisement
Table of Contents
Related Manuals for Panduit VeriSafe VS2-NET
Summary of Contents for Panduit VeriSafe VS2-NET
-
Page 1: Table Of Contents
Panduit Limited Product Warranty . . . . . . . . . . . . . . . . . . -
Page 2: Web Application
Web Application FEATURES The network module web application can be used to configure and monitor the AVT . Access the web application by typing the network module IP address in a supported browser . FIRST LOGIN Type the network module IP address (default: 192 .168 .2 .10) in a supported browser . Supported browsers: Chrome, Edge, Firefox „... - Page 3 completed . FIGURe 2. AVT STATUS PAGE 1ST CARD VIEWS 3-Phase View DC/Single-Phase View Name User defined AVT name (Default blank) . This is used to identify data log files and appears in the side bar menu . Changes are automatically saved . Date/Time Current Date/Time of the network module .
- Page 4 AVT STATUS PAGE SECOND CARD Data in this card is updated every 2 seconds . For single phase systems the view shown is determined by selection on card 1 (item 6 AC/DC selection) . FIGURe 3. AVT STATUS PAGE SECOND CARD VIEWS Three-Phase View Single-Phase View DC View...
-
Page 5: Data Logs Page
DATA LOGS PAGE This page allows the user to manage the log data stored on the network module SD card . LOG TRIGGERS Log entries are triggered by specific AVT events: Change in state of any voltage presence indicator „ Initiating the absence of voltage test „... -
Page 6: Settings Page
SETTINGS PAGE The settings page allows the user to configure and view the current state of the network module, retrieve AVT information, check active faults, and update firmware . FIGURe 5. SETTINGS PAGE VeriSafe Network Module User Guide, B21176 rev 1 [English] September 2022... - Page 7 NETWORK MODULE SETTINGS FIGURe 6. NETWORK MODULE SETTINGS CARD DETAILS REFRESH Replace all data in fields with the last saved settings . SAVE SETTINGS AND RESTART Saves modified settings and restarts the network module . RESTART Restart the network module without saving changes to settings .
- Page 8 Download Certificate Download the network module certificate . Upload PEM Certificate Upload a user supplied PEM certificate (default uses on board PEM certificate) Upload PEM Private Key Upload a user supplied PEM private key (default uses on board PEM private key) Use Custom Cert and Key Check to enable use of the user supplied certificate and private key for HTTPS .
- Page 9 ABOUT AVT Displays firmware version, model number and universal identifier (UID) of the AVT . Use the refresh button to update the card . Refresh AVT Data ACTIVE FAULTS This card will display active faults in the network module . The fault information is updated automatically every 3 seconds .
- Page 10 On initial login and factory reset the user will be prompted to change the password . UPDATE FIRMWARE Download the latest firmware at www .panduit .com Select Choose File, navigate to the firmware file, and click the appropriate Update button . . The firmware update process for both the network module and AVT should take approximately one minute .
-
Page 11: Documentation Page
Modbus TCP communications protocols . FIGURe 7. DOCUMENTATION PAGE SUPPORT PAGE Provides contact information and a link to the VeriSafe landing page on www .panduit .com „ Queries the AVT and network module for product information to assist in technical support . -
Page 12: Data Model
Data Model The network module uses the same data model for both EtherNet/IP and Modbus TCP protocols . Value Type Item Name Description Range (size bytes) Current Date/Time set in the network microseconds since epoch Date/Time LINT(8) module Last voltage reading of the AVT battery Battery voltage REAL(4) 0 .0 to 4 .0 V... - Page 13 Status bits associated with the network module and AVT DWORD(4) Bit Battery Warning Phase User Threshold Disconnect Module Network Indicator Temperature Power Number Triggered Present Internal Module Fault Source Fault Fault 0: Battery OK 0: OK 0: Battery 0: 3 Phase [NOT [NOT 0: OK...
-
Page 14: Modbus Tcp Data Model Implementation
EtherNet/IP IMPLEMENTATION The network module supports EtherNet/IP . The EDS file can be found on the documentation page of the web application or by going to panduit .com . VeriSafe Network Module User Guide, B21176 rev 1 [English] September 2022... -
Page 15: Rockwell Automation Integration
Rockwell Automation Integration The EtherNet/IP protocol is supplemented by a Add-On Profile (AOP) for easy integration with products from Rockwell Automation . The AOP supports the Automatic Diagnostics feature . AOP available in Studio 5000 Logix Designer V33 .01 or greater „... - Page 16 AVT RESULT 1 WORD(2) Most recent test result of an AVT test „ This report has the following possible bit states to indicate a passed test or the reason for „ a failed AVT test Table 3. Passed 0F Battery voltage Voltage exceeded Temperature not in Connectivity not...
-
Page 17: Troubleshooting
AVT (4) Move AVT connection cable away from possible noise sources SD card error (5) Contact Panduit for support around SD Card errors and possibly reseating or replacing the SD Card . SD card full (6) download logs (if necessary) and then delete logs from the web interface . -
Page 18: Warranty
Panduit product, will comply with Panduit’s published specifications and will be free from defects in material and workmanship for a period of 1 year from the date of invoice from Panduit or its authorized distributor, not to exceed 18 months from the original date of shipment from Panduit’s facility . - Page 19 September 2022 VeriSafe Network Module User Guide, B21176 rev 1 [English]...
