Supero SuperServer 6023P-8 User Manual

Supermicro superserver 6023p-8 servers: user guide
Hide thumbs Also See for SuperServer 6023P-8:
Table of Contents

Advertisement

Quick Links

Download this manual
S
®
UPER
S
S
6023P-8R
UPER
ERVER
S
S
6023P-8
UPER
ERVER
USER'S MANUAL
1.0a

Advertisement

Table of Contents
loading

Related Manuals for Supero SuperServer 6023P-8

Summary of Contents for Supero SuperServer 6023P-8

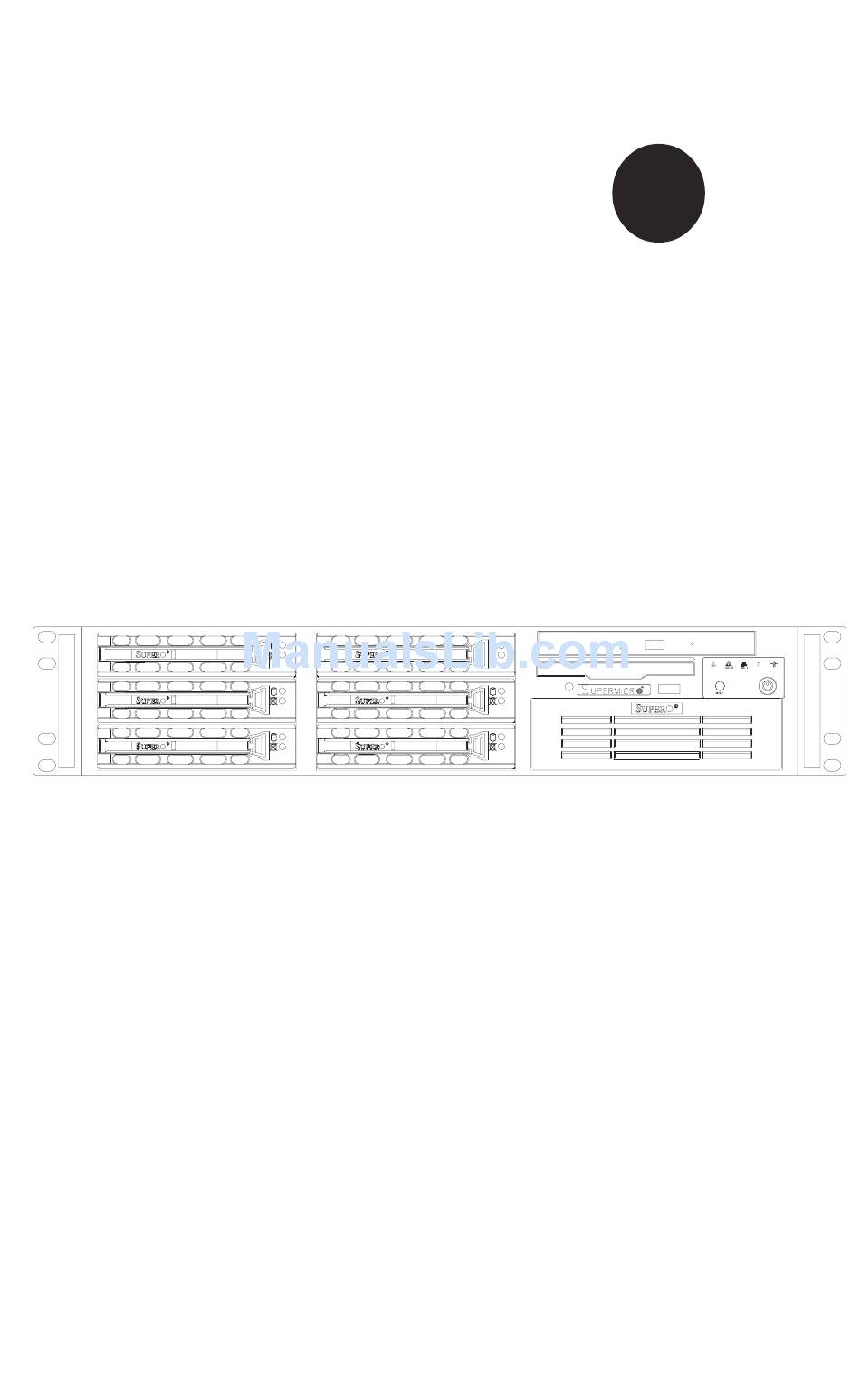

  • Page 1 ® UPER 6023P-8R UPER ERVER 6023P-8 UPER ERVER USER’S MANUAL 1.0a...
  • Page 2 The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product. Unless you request and receive written permission from SUPER MICRO COMPUTER, you may not copy any part of this document.

  • Page 3: Preface

    Chapter 2: Server Installation This chapter describes the steps necessary to install the SuperServer 6023P-8R/6023P-8 into a rack and check out the server configuration prior to powering up the system. and memory components, this chapter will refer you to the appropriate sec- tions of the manual for their installation.
  • Page 4 You should thoroughly familiarize yourself with this chapter for a general overview of safety precautions that should be followed when installing and servicing the SuperServer 6023P-8R/6023P-8. Chapter 5: Advanced Motherboard Setup Chapter 5 provides detailed information on the X5DP8-G2 motherboard, in- cluding the locations and functions of connectors, headers and jumpers.
  • Page 5 Preface Notes...

  • Page 6: Table Of Contents

    Choosing a Setup Location ... 2-2 Rack Precautions ... 2-2 Server Precautions ... 2-2 Installing the 6023P-8R/6023P-8 into a Rack ... 2-3 Identifying the Sections of the Rack Rails ... 2-3 Installing the Chassis Rails ... 2-4 Installing the Rack Rails ... 2-4 Installing the Server into the Rack ...
  • Page 7 Power Fail ... 3-3 SCSI Drive Carrier LEDs ... 3-3 Motherboard LED ... 3-3 Chapter 4: System Safety Electrical Safety Precautions ... 4-1 General Safety Precautions ... 4-2 ESD Precautions ... 4-3 Operating Precautions ... 4-4 Chapter 5: Advanced Motherboard Setup Handling the X5DP8-G2 Motherboard ...
  • Page 8 UPER ERVER 6023P-8R/6023P-8 Manual ATX PS/2 Keyboard & Mouse Ports ... 5-15 Fan Headers ... 5-16 Power LED/Speaker/NMI ... 5-16 Third Power Supply Fail Header ... 5-16 Keylock ... 5-16 Wake-On-LAN ... 5-17 Wake-On-Ring ... 5-17 Jumper Settings ... 5-18 Explanation of Jumpers ...
  • Page 9 Power Supply: 6023P-8R ... 6-9 Power Supply Failure ... 6-9 Removing/Replacing the Power Supply ... 6-9 Power Supply: 6023P-8 ... 6-10 Power Supply Failure ... 6-10 Removing/Replacing the Power Supply ... 6-10 Chapter 7: BIOS Introduction ... 7-1 Running Setup ... 7-2 Main ...
  • Page 10 UPER ERVER 6023P-8R/6023P-8 User's Manual Notes...

  • Page 11: Chapter 1: Introduction To The 6023P-8R/6023P-8

    Introduction to the 6023P-8R/6023P-8 Overview The Supermicro SuperServer 6023P-8R/6023P-8 is a high-end dual proces- sor, 2U rackmount server that features some of the most advanced technol- ogy currently available. The SuperServer 6023P-8R/6023P-8 is comprised of two main subsystems: the SC822 2U rackmount chassis and the X5DP8- G2 dual Xeon processor mainboard.

  • Page 12: Mainboard Features

    SuperServer 6023P-8R/6023P-8 User's Manual * Product may change without notice. Mainboard Features At the heart of the SuperServer 6023P-8R/6023P-8 lies the X5DP8-G2, a dual Intel Xeon processor motherboard designed to provide maximum per- formance. Below are the main features of the X5DP8-G2.

  • Page 13: Onboard Scsi

    The X5DP8-G2 supports single or dual Intel Xeon 604/603-pin processors of up to 3.06 GHz with a 512K L2 cache at a 533/400 MHz FSB. Please refer to the motherboard specifications pages on our web site ( http:// www.supermicro.com/Product_page/product-m.htm) for updates on sup- ported processors. Memory The X5DP8-G2 has eight 184-pin DIMM slots that can support up to 16 GB of registered ECC DDR-266 (PC2100) SDRAM.

  • Page 14: Other Features

    UPER ERVER 6023P-8R/6023P-8 Manual keyboard ports, a video (monitor) port, an external SCSI port and an Intel ANVIK controller for dual Gigabit Ethernet LAN ports. Other Features Other onboard features are included to promote system health. These in- clude various voltage monitors, two CPU temperature sensors, four fan speed sensors, a chassis intrusion header, auto-switching voltage regula- tors, chassis and CPU overheat sensors, virus protection and BIOS rescue.

  • Page 15: Server Chassis Features

    Server Chassis Features The 6023P-8R/6023P-8 is a high-end, scaleable 2U rackmount server plat- form designed with state-of-the-art features. outline of the main features of the SC822 chassis. System Power When configured as the 6023P-8R, the SC822 chassis includes a redundant 400W hot-swappable power supply.

  • Page 16: Cooling System

    UPER ERVER 6023P-8R/6023P-8 Manual Figure 1-2. I/O Backplane (6023P-8R shown) 7 Low Profile PCI Slots Keyboard/Mouse Ports USB Ports COM1 Port VGA Port Ethernet Ports Cooling System The SC822 chassis' revolutionary cooling design that includes four 8-cm redundant system cooling (intake) fans.

  • Page 17: Contacting Supermicro

    Contacting Supermicro Headquarters Address: SuperMicro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Web Site: www.supermicro.com Europe Address: SuperMicro Computer B.V. Het Sterrenbeeld 28, 5215 ML...
  • Page 18 UPER ERVER 6023P-8R/6023P-8 Manual Notes...

  • Page 19: Chapter 2: Server Installation

    Decide on a suitable location for the rack unit that will hold the SuperServer 6023P-8R/6023P-8. It should be situated in a clean, dust-free area that is well ventilated. Avoid areas where heat, electrical noise and electromag- netic fields are generated.

  • Page 20: Choosing A Setup Location

    UPER ERVER 6023P-8R/6023P-8 Manual Choosing a Setup Location: - Leave enough clearance in front of the rack to enable you to open the front door completely (~25 inches). - Leave approximately 30 inches of clearance in the back of the rack to allow for sufficient airflow and ease in servicing.

  • Page 21: Installing The 6023P-8R/6023P-8 Into A Rack

    You should have received two rack rail assemblies with the SuperServer 6023P-8R/6023P-8. Each of these assemblies consist of three sections: an inner fixed chassis rail that secures to the 6023P-8R/6023P-8 (A) and an outer fixed rack rail that secures directly to the rack itself (B). A sliding rail guide sandwiched between the two should remain attached to the fixed rack rail.

  • Page 22: Installing The Chassis Rails

    Installing the Chassis Rails: Position one of the fixed chassis rail sections you just removed along the side of the 6023P-8R/6023P-8. Note that these two rails are left/right specific. Slide the rail toward the front of the chassis (see arrows in Figure 2-2) until you hear them click into place with the retention hooks on the chassis.

  • Page 23: Installing The Server Into The Rack

    Chapter 2: Server Installation other assembly to the other side of the rack, making sure both are at the exact same height and with the rail guides facing inward. Installing the Server into the Rack: You should now have rails attached to both the chassis and the rack unit.

  • Page 24: Installing The Server Into A Telco Rack

    ERVER 6023P-8R/6023P-8 Manual Installing the Server into a Telco Rack: If you are installing the SuperServer 6023P-8R/6023P-8 into a Telco type rack, follow the directions given on the previous pages for rack installation. The only difference in the installation procedure will be the positioning of the rack brackets to the rack.

  • Page 25: Checking The Motherboard Setup

    Checking the Motherboard Setup After you install the 6023P-8R/6023P-8 in the rack, you will need to open the unit to make sure the motherboard is properly installed and all the con- nections have been made. 1. Accessing the inside of the 6023P-8R/6023P-8 (see Figure 2-5): First, release the retention screws that secure the unit to the rack.

  • Page 26: Checking The Drive Bay Setup

    UPER ERVER 6023P-8R/6023P-8 Manual Figure 2-5. Accessing the Inside of the 6023P-8R/6023P-8 Checking the Drive Bay Setup Next, you should check to make sure the peripheral drives and the SCSI drives and SCA backplane have been properly installed and all connections have been made.
  • Page 27 2. CD-ROM and floppy disk drives: A slim CD-ROM and a floppy drive should be preinstalled in your server. Refer to Chapter 6 if you need to reinstall a CD-ROM and/or floppy disk drive to the system. 3. Check the SCSI disk drives: Depending upon your system's configuration, your system may have one or more drives already installed.
  • Page 28 UPER ERVER 6023P-8R/6023P-8 Manual Notes 2-10...

  • Page 29: Chapter 3: System Interface

    Overview There are several LEDs on the control panel as well as others on the SCSI drive carriers and the motherboard to keep you constantly informed of the overall status of the system as well as the activity and health of specific components.

  • Page 30: Control Panel Leds

    SUPERSERVER 6023P-8R/6023P-8 User's Manual Control Panel LEDs The control panel located on the front of the SC822 chassis has five LEDs. These LEDs provide you with critical information related to different parts of the system. This section explains what each LED indicates when illumi- nated and any corrective action you may need to take.

  • Page 31: Power

    A SAF-TE compliant backplane is needed to activate the red LED, which indicates a drive failure. (A SAF-TE compliant SCSI backplane is standard on the 6023P-8R/6023P-8.) If one of the SCSI drives fail, you should be notified by your system management software.
  • Page 32 SUPERSERVER 6023P-8R/6023P-8 User's Manual Notes...

  • Page 33: Chapter 4: System Safety

    Electrical Safety Precautions Basic electrical safety precautions should be followed to protect yourself from harm and the SuperServer 6023P-8R/6023P-8 from damage: ! Be aware of the locations of the power on/off switch on the chassis as well as the room's emergency power-off switch, disconnection switch or electrical outlet.

  • Page 34: General Safety Precautions

    General Safety Precautions Follow these rules to ensure general safety: ! Keep the area around the SuperServer 6023P-8R/6023P-8 clean and free of clutter. ! The SuperServer 6023P-8R/6023P-8 weighs approximately 46/43 lbs when fully loaded. When lifting the system, two people at either end should lift slowly with their feet spread out to distribute the weight.

  • Page 35: Esd Precautions

    ! After accessing the inside of the system, close the system back up and secure it to the rack unit with the retention screws after ensuring that all connections have been made. ESD Precautions Electrostatic discharge (ESD) is generated by two objects with different electrical charges coming into contact with each other.

  • Page 36: Operating Precautions

    Operating Precautions Care must be taken to assure that the chassis cover is in place when the 6023P-8R/6023P-8 is operating to assure proper cooling. Out of warranty damage to the 6023P-8R/6023P-8 system can occur if this practice is not strictly followed.

  • Page 37: Chapter 5: Advanced Motherboard Setup

    Advanced Motherboard Setup This chapter covers the steps required to install processors and heatsinks to the X5DP8-G2 motherboard, connect the data and power cables and install add-on cards. scribed and a layout and quick reference chart are included in this chapter. Remember to close the chassis completely when you have finished working on the motherboard to protect and cool the system sufficiently.

  • Page 38: Pga Processor And Heatsink Installation

    UPERSERVER 6023P-8R/6023P-8 User’s Manual PGA Processor and Heatsink Installation When handling the processor package, avoid placing direct pressure on the label area of the fan. Also, do not place the motherboard on a conductive surface, which can damage the BIOS battery and prevent the system from booting up.
  • Page 39 4. Apply the proper amount of thermal compound to the CPU die and place the heatsink on top of the CPU. Make sure the heatsink sits completely flat on the CPU - if not, the space between the two will degrade the heat dissipation function of the heatsink, which may cause the processor to overheat.
  • Page 40 UPERSERVER 6023P-8R/6023P-8 User’s Manual Figure 5-2. Heatsink Installation...

  • Page 41: Connecting Cables

    Connecting Cables Now that the processors are installed, the next step is to connect the cables to the board. These include the data (ribbon) cables for the periph- erals and control panel and the power cables. Connecting Data Cables The ribbon cables used to transfer data from the peripheral devices have been carefully routed in preconfigured systems to prevent them from block- ing the flow of cooling air that moves through the system from front to back.

  • Page 42: Connecting The Control Panel

    UPERSERVER 6023P-8R/6023P-8 User’s Manual Connecting the Control Panel JF2 contains header pins for various front control panel connectors. See Figure 5-3 for the pin locations of the various front control panel buttons and LED indicators. Please note that even and odd numbered pins are on opposite sides of each header.

  • Page 43: I/O Ports

    Keyboard USB Ports (Purple) Installing Memory Note: Check the Supermicro web site for recommended memory modules: http://www.supermicro.com/TECHSUPPORT/FAQs/Memory_vendors.htm Exercise extreme care when installing or removing DIMM modules to prevent any possible damage. Also note that the memory is interleaved to improve performance (see step 1).
  • Page 44 UPERSERVER 6023P-8R/6023P-8 User’s Manual Memory Support The X5DP8-G2 only supports ECC registered DDR-266/200 (PC2100/1600) memory. If you are using 533 MHz FSB processors, you must use DDR-266 SDRAM. If you are using 400 MHz FSB processors, you may use either DDR-266 or DDR-200 SDRAM.

  • Page 45: Adding Pci Cards

    Adding PCI Cards PCI slots: The X5DP8-G2 has two 64-bit, 100 MHz PCI-X, four 64-bit, 66 MHz PCI and one SXB (Super Extended Bus) slots. The SC822S chassis accom- modates up to six low-profile add-on cards. PCI card installation: Before installing a PCI add-on card, make sure you install it into a slot that supports the speed of the card (see step 1, above).

  • Page 46: Motherboard Layout

    UPERSERVER 6023P-8R/6023P-8 User’s Manual Motherboard Layout Figure 5-7. SUPER X5DP8-G2 Layout JP40 Keyboard Mouse DIMM #1A USB 0/1 DIMM #1B DIMM #2A COM1 DIMM #2B DIMM #3A DIMM #3B DIMM #4A DIMM #4B Battery GLAN1 Rage GLAN2 Overheat Fan JOH1...

  • Page 47: X5Dp8-G2 Quick Reference

    X5DP8-G2 Quick Reference Jumper Description JBT1 CMOS Clear Speaker Enable (page 2-11) JPA1/JPA2 SCSI CH A/B Termination GLAN Enable/Disable VGA Enable/Disable Power Fail Alarm En/Disable JP22 SCSI Enable/Disable JP37 Watch Dog Enable/Disable JP38 Thermal Fan Enable/Disable JP39 Front Side Bus Speed Connector Description ATX PWR CONN...

  • Page 48: Connector Definitions

    UPERSERVER 6023P-8R/6023P-8 User’s Manual Connector Definitions ATX Power Connection The ATX power supply connector meets the SSI (Superset ATX) 24- pin specification, however it also supports a 20-pin power supply connector. Make sure that the ori- entation of the PS connector is correct.

  • Page 49: Hdd Led

    HDD LED The HDD (IDE Hard Disk Drive) LED connection is located on pins 13 and 14 of JF2. Attach the IDE hard drive LED cable to display disk ac- tivity. Refer to the table on the right for pin definitions. NIC1 LED The NIC1 (Network Interface Con- troller) LED connection is located...

  • Page 50: Reset Button

    UPERSERVER 6023P-8R/6023P-8 User’s Manual Reset Button The Reset Button connection is lo- cated on pins 3 and 4 of JF2. At- tach it to the hardware reset switch on the computer case. Refer to the table on the right for pin definitions.

  • Page 51: Extra Usb Headers

    Extra Universal Serial Bus Headers Extra USB headers (USB2/USB3) can be used for front side USB access. You will need a USB cable (not included) to use either connection. Refer to the tables on the right for pin definitions. An ad- ditional header (USB4) designated J27 is located near the Chassis Fan 3 header.

  • Page 52: Fan Headers

    UPERSERVER 6023P-8R/6023P-8 User’s Manual Fan Headers The X5DP8-G2 has several CPU and chassis fan headers. See the table on the right for pin defini- tions. Power LED/Speaker/NMI On the JDI header, pins 1-3 for a power LED, pins 4-7 are for the speaker and pins 8-9 are for the NMI connection.

  • Page 53: Wake-On-Lan

    Wake-On-LAN The Wake-On-LAN header is des- ignated WOL. See the table on the right for pin definitions. You must enable the LAN Wake-Up setting in BIOS to use this feature. must also have a LAN card with a Wake-on-LAN connector cable.

  • Page 54: Jumper Settings

    UPERSERVER 6023P-8R/6023P-8 User’s Manual Jumper Settings Explanation of Jumpers To modify the operation of the motherboard, jumpers can be used choose optional settings. create shorts between two pins to change the function of the connector. Pin 1 is identified with a square solder pad on the printed circuit board.

  • Page 55: Glan Enable/Disable

    GLAN Enable/Disable Change the setting of jumper JD4 to enable or disable the onboard GLAN ports (GLAN1 and GLAN2) on the motherboard. See the table on the right for jumper settings. The default setting is enabled VGA Enable/Disable JP4 allows you to enable or disable the VGA port.

  • Page 56: Scsi Termination Enable/Disable

    UPERSERVER 6023P-8R/6023P-8 User’s Manual SCSI Termination Enable/ Disable Jumpers JPA1 and JPA2 allow you to enable or disable termination for the individual SCSI channels. Jumper JPA1 controls SCSI channel A and JPA2 controls SCSI channel The normal (default) setting is open to enable (teminate) both SCSI channels.

  • Page 57: Speaker Enable/Disable

    Speaker Enable/Disable On the JD1 header, add a jumper to pins 6-7 to enable the onboard speaker. If you wish to use an external speaker, remove it to dis- able the onboard speaker. 5-10 Onboard Indicators GLAN LEDs The Ethernet ports (located beside the VGA port) have two LEDs.

  • Page 58: Floppy Connector

    UPERSERVER 6023P-8R/6023P-8 User’s Manual 5-11 Floppy/Hard Disk Drive and SCSI Connections Note the following when connecting the floppy and hard disk drive cables: • The floppy disk drive cable has seven twisted wires. • A red mark on a wire typically designates the location of pin 1.

  • Page 59: Ide Connectors

    IDE Connectors There are no jumpers to configure the onboard IDE#1 and #2 connectors. See the table on the right for pin definitions. Ultra320 SCSI Connectors Refer to the table on the right for the pin defi- nitions of the Ultra320 SCSI connectors lo- cated at JA1 and JA4.

  • Page 60: 5-12 Installing Software Drivers

    5-12 Installing Software Drivers After all the hardware has been installed you must install the software drivers. The necessary drivers are all included on the Supermicro CD that came packaged with your motherboard. CD-ROM drive, the display shown in Figure 5-8 should appear.

  • Page 61: Chapter 6: Advanced Chassis Setup

    Advanced Chassis Setup This chapter covers the steps required to install components and perform maintenance on the SC822 chassis. For component installation, follow the steps in the order given to eliminate the most common problems encoun- tered. If some steps are unnecessary, skip ahead to the step that follows. Tools Required The only tool you will need to install components and perform maintenance is a Philips screwdriver.

  • Page 62: Control Panel

    USB Ports Figure 6-1. Chassis: Front and Rear Views (6023P-8R shown - the 6023P-8 has a single power supply module) Control Panel The control panel (located on the front of the chassis) must be connected to the JF2 connector on the motherboard to provide you with system status indications.

  • Page 63: System Fans

    Replace the failed fan with an identical 8-cm, 12 volt fan (available from Supermicro, p/n FAN-044). Position the new fan at its proper place in the chassis by fitting the fan with its housing onto the fan mounts in the chassis.

  • Page 64: Drive Bay Installation/Removal

    UPER ERVER 6023P-8R/6023P-8 Manual Cover Release Buttons Motherboard Figure 6-2. (shown without active CPU heatsinks) Drive Bay Installation/Removal Accessing the Drive Bays SCSI Drives: You do not need to access the inside of the chassis to replace or swap SCSI drives. Proceed to the next step for instructions.

  • Page 65: Scsi Drive Installation

    SCSI Drive Installation Mounting a SCSI drive in a drive carrier: The SCSI drives are mounted in drive carriers to simplify their installation and removal from the chassis. These carriers also help promote proper airflow for the SCSI drive bays. For this reason, even empty carriers without SCSI drives installed must remain in the chassis to cool each drive evenly.
  • Page 66 UPER ERVER 6023P-8R/6023P-8 Manual Installing/removing hot-swap SCSI drives: The SCSI drive bays are located in the front of the chassis, making them easily accessible for installation and removal. The SCSI drives are hot- swap units, meaning that they can be installed and removed while the system is running.

  • Page 67: Installing A Component In The 5 1/4" Drive Bay

    Chapter 6: Advanced Chassis Setup SCA Backplane The SCSI drives plug into a SAF-TE compliant SCA backplane that provides power, SCSI ID and bus termination. A RAID controller can be used with the SCA backplane to provide data security. The operating system you use must have RAID support to enable the hot-swap capability of the SCSI drive.

  • Page 68: Cd-Rom And Floppy Drive Installation

    CD-ROM and Floppy Drive Installation The top cover of the chassis must be opened to gain full access to the CD- ROM and floppy drive bays. The 6023P-8R/6023P-8 accomodates only slim- line 5 1/4" CD-ROM drives. Side mounting brakets are typically needed to mount a slim-line CD-ROM drive in the 6023P-8R/6023P-8 server.

  • Page 69: Power Supply: 6023P-8R

    The PWR Fail LED will illuminate and remain on until the failed unit has been replaced. Replacement units can be ordered directly from Supermicro (see contact information in the Preface).

  • Page 70: Power Supply: 6023P-8

    Supermicro (see contact information in the Preface). placement part is p/n PWS-027, model SP402-2C. power supply unit in the 6023P-8, the server must be powered down be- fore removing and/or replacing the power supply for whatever reason. Removing/Replacing the Power Supply...

  • Page 71: Chapter 7: Bios

    Please refer Manual Download <http://www.supermicro.com> for any changes to BIOS that may not be reflected in this manual. System BIOS The BIOS is the Basic Input Output System used in all IBM and PS/2 ®...

  • Page 72: Running Setup

    SUPERSERVER 6023P-8R/6023P-8 User's Manual Running Setup *Default settings are in bold text unless otherwise noted. The BIOS setup options described in this section are selected by choos- ing the appropriate text from the main BIOS Setup screen. All displayed text is described in this section, although the screen display is often all you need to understand how to set the options (see on next page).

  • Page 73: Main Bios Setup Menu

    Main BIOS Setup Menu Main Advanced System Time System Date Legacy Diskette A: Legacy Diskette B: ! Primary Master ! Primary Slave ! Secondary Master ! Secondary Slave System Memory Extended Memory F1 Help Select Item Esc Exit Select Menu Main Setup Features System Time To set the system date and time, key in the correct information in the...

  • Page 74: Legacy Diskette A

    SUPERSERVER 6023P-8R/6023P-8 User's Manual Legacy Diskette A This setting allows the user to set the type of floppy disk drive installed as diskette A. The options are Disabled, 360Kb 5.25 in, 1.2MB 5.25 in, 720Kb 3.5 in, 1.44/1.25MB, 3.5 in and 2.88MB 3.5 in.
  • Page 75 Type Selects the type of IDE hard drive. The options are Auto (allows BIOS automatically determine the hard drive's capacity, number of heads, etc.), a number from 1-39 to select a predetermined type of hard drive, CD-ROM and ATAPI Removable. Multi-Sector Transfers Select the number of transfer sectors.

  • Page 76: Advanced

    SUPERSERVER 6023P-8R/6023P-8 User's Manual Advanced Setup Choose Advanced from the Phoenix BIOS Setup Utility main menu with the arrow keys. You should see the following display. The items with a triangle beside them have sub menus that can be accessed by highlighting the item and pressing <Enter>.
  • Page 77 Quiet Boot This setting allows you to Enable or Disable the diagnostic screen during boot-up. Legacy USB Support This setting allows you to enable support for Legacy USB devices. The settings are Enabled and Disabled. Reset Configuration Data Options are Yes and No. Choosing Yes will clear the Extended System Configuration Data (ECSD).
  • Page 78 SUPERSERVER 6023P-8R/6023P-8 User's Manual Interrupt Select the IRQ (interrupt request) for serial port A. Options are IRQ3 and IRQ4. Serial Port B This setting allows you to assign control of serial port B. The options are Enabled (user defined), Disabled, Auto (BIOS controlled) and OS Controlled.
  • Page 79 Mode Specify the parallel port mode. Options are Output Only, Bi-directional, EPP and ECP. DMA Channel Specify the DMA channel. Options are DMA1 and DMA3. Floppy Disk Controller This setting allows you to assign control of the floppy disk controller. The options are Enabled (user defined), Disabled and Auto (BIOS controlled).
  • Page 80 SUPERSERVER 6023P-8R/6023P-8 User's Manual ECC Configuration This setting lets you enable or disable ECC (Error Correction and Checking). The options are ECC and Disabled. ECC Error Type This setting lets you select which type of interrupt will be activated as a result of an ECC error.
  • Page 81 Split Lock Operations This setting allows you to Enable or Disable split lock operations. Hyper-threading This setting allows you to Enable or Disable hyper-threading. Enabling hyper-threading results in increased CPU performance. L3 Cache This setting allows you to Enable or Disable the L3 cache. ! ! ! ! ! DMI Event Logging Access the submenu to make changes to the following settings.
  • Page 82 SUPERSERVER 6023P-8R/6023P-8 User's Manual Clear All DMI Event Logs Highlight this item and press <Enter> to clear all DMI event logs. ! ! ! ! ! Console Redirection Access the submenu to make changes to the following settings. COM Port Address Specifies to redirect the console to On-board COMA or On-board COMB.

  • Page 83: Security

    Security Choose Security from the Phoenix BIOS Setup Utility main menu with the arrow keys. You should see the following display. displayed by highlighting the setting using the arrow keys and pressing <Enter>. All Security BIOS settings are described in this section. Main Advanced Supervisor Password Is:...
  • Page 84 SUPERSERVER 6023P-8R/6023P-8 User's Manual Set Supervisor Password When the item "Set Supervisor Password" is highlighted, hit the <Enter> key. When prompted, type the Supervisor's password in the dialogue box to set or to change supervisor's password, which allows access to BIOS.

  • Page 85: Power

    Power Choose Power from the Phoenix BIOS Setup Utility main menu with the arrow keys. You should see the following display. Power setting options are displayed by highlighting the setting using the arrow keys and pressing <Enter>. All Power BIOS settings are described in this section. Main Advanced ACPI Mode:...
  • Page 86 SUPERSERVER 6023P-8R/6023P-8 User's Manual Standby Timeout Use this setting to specify the period of system inactivity to transpire before entering the standby state. Options are Off, 16 sec, 32 sec, 48 sec, 1 min, 2 min, 4 min and 8 min.

  • Page 87: Boot

    Boot Choose Boot from the Phoenix BIOS Setup Utility main menu with the arrow keys. You should see the following display. Highlighting a setting with a + or - will expand or collapse that entry. See details on how to change the order and specs of boot devices in the Item Specific Help window.
  • Page 88 SUPERSERVER 6023P-8R/6023P-8 User's Manual +Hard Drive Highlight and press <Enter> to expand the field. See details on how to change the order and specs of hard drives in the Item Specific Help w i n d o w . Network Boot See details on how to change the order and specs of network boot devices in the Item Specific Help window.

  • Page 89: Pir

    Choose PIR from the Phoenix BIOS Setup Utility main menu with the arrow keys. You should see the following display. The items with a triangle beside them have sub menus that can be accessed by highlighting the item and pressing <Enter>. PIR stands for "Processor Info ROM", which allows BIOS to read certain information from the processors.
  • Page 90 SUPERSERVER 6023P-8R/6023P-8 User's Manual ! ! ! ! ! Processor Info ROM Data Highlight this and hit <Enter> to see PIR data on the following items: Header Info Processor Data Processor Core Data L3 Cache Data Package Data Part Number Data...

  • Page 91: Exit

    Chassis Fan 2 Processor Vcore 3.3V Standby 3.3V Vcc 5V Vcc 12V Vcc 1.8V Vcc -12V Vcc Exit Choose Exit from the Phoenix BIOS Setup Utility main menu with the arrow keys. You should see the following display. All Exit BIOS settings are described in this section.
  • Page 92 SUPERSERVER 6023P-8R/6023P-8 User's Manual Exit Saving Changes Highlight this item and hit <Enter> to save any changes you made and to exit the BIOS Setup utility. Exit Discarding Changes Highlight this item and hit <Enter> to exit the BIOS Setup utility without saving any changes you may have made.

  • Page 93: Appendix A: Bios Post Messages

    Appendix A: BIOS POST Messages Appendix A BIOS POST Messages During the Power-On Self-Test (POST), the BIOS will check for problems. If a problem is found, the BIOS will activate an alarm or display a message. The following is a list of such BIOS messages.
  • Page 94 UPER ERVER 6023P-8R/6023P-8 Manual System CMOS checksum bad - Default configuration used System CMOS has been corrupted or modified incorrectly, perhaps by an application program that changes data stored in CMOS. The BIOS installed Default Setup Values. If you do not want these values, enter Setup and enter your own values.
  • Page 95 Appendix A: BIOS POST Messages System cache error - Cache disabled RAM cache failed and BIOS disabled the cache. On older boards, check the cache jumpers. You may have to replace the cache. See your dealer. A disabled cache slows system performance considerably. CPU ID: CPU socket number for Multi-Processor error.
  • Page 96 UPER ERVER 6023P-8R/6023P-8 Manual Fixed Disk n Fixed disk n (0-3) identified. Invalid System Configuration Data Problem with NVRAM (CMOS) data. I/O device IRQ conflict I/O device IRQ conflict error. PS/2 Mouse Boot Summary Screen: PS/2 Mouse installed. nnnn kB Extended RAM Passed Where nnnn is the amount of RAM in kilobytes successfully tested.
  • Page 97 Appendix A: BIOS POST Messages Parity Check 2 nnnn Parity error found in the I/O bus. BIOS attempts to locate the address and display it on the screen. If it cannot locate the address, it displays ????. Press <F1> to resume, <F2> to Setup, <F3> for previous Displayed after any recoverable error message.
  • Page 98 UPER ERVER 6023P-8R/6023P-8 Manual Notes...

  • Page 99: Appendix B: Bios Post Codes

    This section lists the POST (Power On Self Test) codes for the PhoenixBIOS. POST codes are divided into two categories: recoverable and terminal. Recoverable POST Errors When a recoverable type of error occurs during POST, the BIOS will display an POST code that describes the problem. following beep codes: 1 long and two short beeps - video configuration error 1 continuous long beep - no memory detected...
  • Page 100 UPER ERVER 6023P-8R/6023P-8R Manual POST Code Description Initialize keyboard controller 1-2-2-3 BIOS ROM checksum Initialize cache before memory Auto size 8254 timer initialization 8237 DMA controller initialization Reset Programmable Interrupt Controller 1-3-1-1 Test DRAM refresh 1-3-1-3 Test 8742 Keyboard Controller Set ES segment register to 4 GB Auto size DRAM Initialize POST Memory Manager...
  • Page 101 POST Code Description Initialize POST display service Display prompt “Press F2 to enter SETUP” Disable CPU cache Test RAM between 512 and 640 kB Test extended memory Test extended memory address lines Jump to UserPatch1 Configure advanced cache registers Initialize Multi Processor APIC Enable external and CPU caches Setup System Management Mode (SMM) area Display external L2 cache size...
  • Page 102 UPER ERVER 6023P-8R/6023P-8R Manual POST Code Description Fix up Multi Processor table 1-2 Search for option ROMs. One long, two short beeps on checksum failure Check for SMART Drive (optional) Shadow option ROMs Set up Power Management Initialize security engine (optional) Enable hardware interrupts Determine number of ATA and SCSI drives Set time of day...
  • Page 103 POST Code Description Redirect Int 13h to Memory Technologies Devices such as ROM, RAM, PCMCIA, and serial disk Redirect Int 10h to enable remote serial video Re-map I/O and memory for PCMCIA Initialize digitizer and display message Unknown interrupt The following are for boot block in Flash ROM POST Code Description Initialize the chipset...
  • Page 104 UPER ERVER 6023P-8R/6023P-8R Manual Notes...

  • Page 105: Appendix C: System Specifications

    Single or dual Intel Xeon a 512K L2 cache at a front side (system) bus speed of 533/400 MHz. Note: Please refer to the motherboard specifications pages on our web site (http:// www.supermicro.com/Product_page/product-m.htm) for updates on supported processors. Chipset Intel E7501 chipset BIOS ®...
  • Page 106 UPER ERVER 6023P-8R/6023P-8 User's Manual Expansion Slots Six (6) 64-bit PCI-X slots (with optional speed/PCI-X and PCI settings) and one (1) SXB (128-bit Super Extended Bus) slot Motherboard Model: X5DP8-G2 Form Factor: ATX Dimensions: 12 x 13 in (305 x 330 mm)
  • Page 107 6023P-8: Model: SC822S-400LP Form Factor: 2U rackmount Dimensions: (WxHxD) 16.7 x 3.5 x 25.7 in. (425 x 88 x 652 mm) Weight (6023P-8R/6023P-8) Net (Bare Bone): 46/43 lbs. (21/19.5 kg.) Gross (Bare Bone): 57/54 lbs. (25.9/24.5 kg.) Operating Environment Operating Temperature: 0 to +35 degrees C...
  • Page 108 UPER ERVER 6023P-8R/6023P-8 User's Manual Notes...
