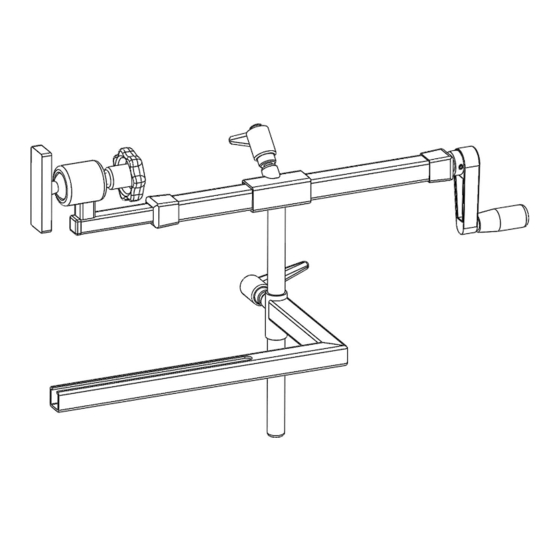

Stretch Device 10-392
Warning! This symbol indicates important information related to safety. Follow these
instructions carefully.
Read User Manual before use! It is important to fully understand the content of the user
manual before attempting to use the equipment.
2023-11-23
Document number: M10-392EN rev.02
1
Advertisement
Table of Contents
Related Manuals for Reison 10-392
Summary of Contents for Reison 10-392
- Page 1 Stretch Device 10-392 Warning! This symbol indicates important information related to safety. Follow these instructions carefully. Read User Manual before use! It is important to fully understand the content of the user manual before attempting to use the equipment. 2023-11-23...
- Page 2 Intended use This traction/stretch device is made for use together with a hand traction device model “Weinberger”, when a patient with broken wrist or forearm shall be treated. The traction device is to be attached into the square tube frame of the arm & hand operating table and the “Weinberger unit shall be mounted on the short rail on the ball joint.
- Page 3 User instruction General description Installation...
- Page 4 The Weinberger traction unit (10-393) is attached to the short rail on the ball joint by pushing the clamp on the unit on to the rail and lock it by turning the knob on the clamp anticlockwise. The Weinberger traction unit can be turned, and angle adjusted ±40° in any direction by unlocking the ball joint.
- Page 5 Annual Service Once a year the hand fixation shall be carefully cleaned, threading’s shall be lubricated, the locking function shall be tested.
- Page 6 Spare parts Description Article no. Guide fitting 10288 Outer telescopic tube 10294 Adjustment screw 10289 End cover 11226 End cover 10298 Stretching appliance 10292 Plastic plug IFR 1515-1,5 S Knob VC.53 p-M10x20 soft Washer 10,5x20x2 nylon Crank WN 570 C 65x8 BRB 4,4x10x1 A2 Screw MC6S M4x6 A2 Set screw MSK6SS M4x6...
- Page 7 Technical specification Weight 2,5 kg Dimension (H x W x L) 310 x 215 x 470-670 mm Length adjustment 200mm Height adjustment 190mm Material Hand fixation Polycarbonate Stainless steel 07350111832421 UDI-DI...
- Page 8 Reison Medical AB Eriksbergsvägen 32A 734 92 Hallstahammar SWEDEN +46 (0)220 433 99 order@reison.se info@reison.se...
