1.3 Construction

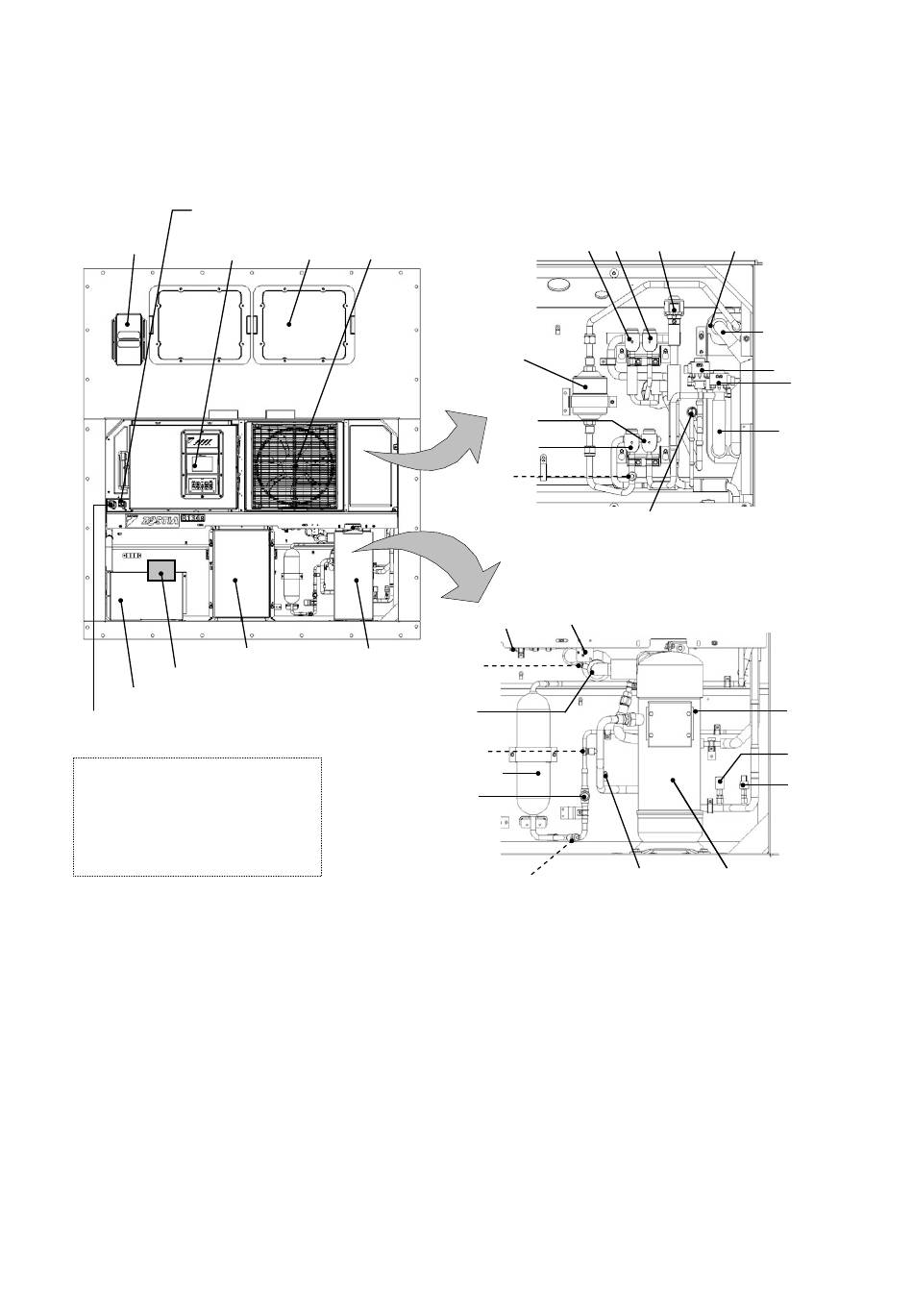

1.3.1 Outside View

RM (Remote monitoring receptacle)
Display panel
Ventilator
& key pad
Inverter box
Model name plate
Storage space for power cable
RPP1 (PC port receptacle)
Contents on unit name plate
Model name
MFG.NO. (Manufacturing number)
MONTH/YEAR
R134a charge amount [kg] a
Unit weight [kg]
【Sensor】
AMBS ： Ambient Temperature Sensor
DCHS1 ： Discharge Gas
Temperature Sensor 1
DCHS2 ： Discharge Gas
Temperature Sensor 2
ECO IN ： Economizer Inlet
Temperature Sensor
ECO OUT ： Economizer Outlet
Temperature Sensor
HPS ：High Pressure Switch
HPT ： High Pressure Transducer
Access Condenser
panel fan
Compressor
①
cover
SGS
②
Receiver
Sight
glass
LPT ： Low Pressure
Transducer
SGS ： Compressor Suction Gas
Temperature Sensor
【Valve】
DMV ：Discharge Modulation Valve
EEV ：Electronic Expansion Valve
EMV ：Economizer Modulation Valve
ESV ：Economizer Solenoid Valve
HSV ：Hot Gas Solenoid Valve
LSV ：Liquid Solenoid Valve
RSV ：Reheat Solenoid Valve
1-4
Valve chamber
HSV RSV DMV
Dryer
ESV
LSV
③
PRV
Compressor chamber
AMBS
LPT
DCHS1
④
PRV ：Pressure Relief Valve
【Service port】
①Low Pressure (Gas line)
②High Pressure (Gas line)
③High Pressure (Liquid line)
④High Pressure (Liquid line)
Economizer
ECO OUT
EEV
EMV
ECO IN
DCHS2
HPS
HPT
Inverter compressor
