Soyal AR-331-EF Manual

SOYAL
ACCESS CONTROL SYSTEM
Contents
1 Product

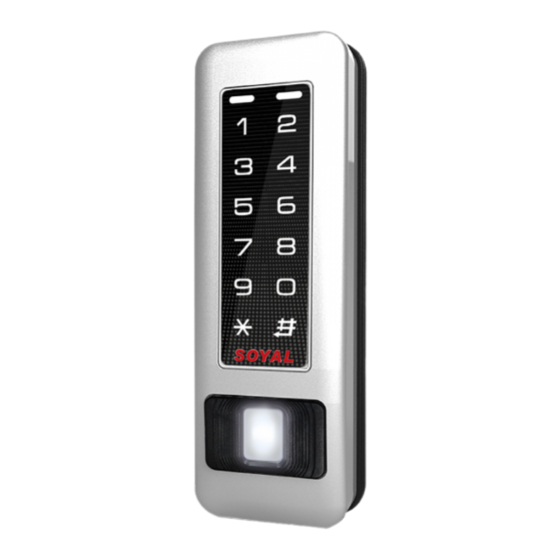

AR-331-E AR-331-EF
Installation
Peel off screw hole rubbers and frame rubber from rubber pad
Put screw rubbers on the back side of the mounting plate and pull
the cables from the square hole of the mounting plate.
Put a frame rubber on the frame groove of body
Front Panel & Indicator
Left LED
Descrption
Blue Arming / Blue LED
Input (Active High)
Yellow LED Input
Yellow
(Active High)
While power on the device,
hands off the touch panel
for 10 sec. to make sure
a successful activation.
2 Terminal Cables
CN1 CN2
CN4 CN5 CN6
Peel
5
off frame
rubber
4
Peel
off
screw
rubber
Right LED
Descrption
Green Power-on/Stand-by
/OK
Red
Error/Alarm
1 2
3
4
5 6
7 8
9 0
最佳感應區
AR-331-E/EF
3 Tools
Flat Head Cap Philips
Tapping Screw: 4x20
Security Torx: M3x10
Security Torx Wrenches
Connect the terminal cables to the body and attach the body to the
mounting plate.
Assemble the covers with the Allen key and screws (accessories supplied).
Turn on the power and LED will light and beep will sound.
27.5 mm
- 1 -
4 Accessories 5
Rubber Pad
7
Frame
1
6
Rubber
5
3
2
Put on/Take off together
INSTALLATION
55 mm
27.5 mm
14
16.5 mm
(Front View)
V221226
Option
RJ45 TCP/IP
Module
4
Screws
Rubber
30 mm
(Side view)
